CN217829127U - Sewage purification treatment equipment - Google Patents

Abstract

The utility model belongs to the technical field of sewage treatment, in particular to a sewage purification treatment equipment, comprising a casing, the top of the casing is provided with a water inlet, the outside of the casing is provided with a hole, the outside of the hole is screwed with a screw, and one end of the screw is fixed. A handle is connected, the other end of the screw rod is connected to a slider in rotation, the outside of the slider is slidably connected to a shell plate, the outside of the shell plate is fixedly connected to a shell, the outside of the shell is fixedly connected to a spring, and the end of the spring away from the shell is fixedly connected to a slide. The outside of the rod and slide bar is fixedly connected with a push plate, the outside of the push plate is slidably connected with a filter plate, the end of the filter plate away from the shell is fixedly connected with a pipeline, the outside of the pipeline is fixedly connected with a storage tank, and the bottom of the shell is provided with a water outlet. This kind of sewage purification treatment equipment achieves the convenience of use by setting water inlet, hole groove, screw rod, handle, slider, shell plate, spring, slide rod, push plate, filter plate, pipe, storage box, and water outlet. Effect.

Description

A kind of sewage purification treatment equipment

technical field

The utility model relates to the technical field of sewage treatment, in particular to sewage purification treatment equipment.

Background technique

Sewage treatment is the process of purifying sewage to meet the water quality requirements of a certain water body for drainage or reuse. Sewage treatment is widely used in various fields such as construction, agriculture, transportation, energy, petrochemical, environmental protection, urban landscape, medical treatment, catering, etc., and it is also increasingly entering the daily life of ordinary people. The topic of water pollution is constantly being raised At present, the discharge of urban domestic sewage is the main pollution source of urban water in China, and the treatment of urban domestic sewage is the top priority of urban water conservation and urban water environment protection at present and in the future.

The structure of the filter plate inside the existing sewage purification treatment equipment is relatively complicated, which makes it cumbersome to clean the filter plate inside, which is inconvenient for daily use, and the residue during cleaning needs to be cleaned and processed once, which increases the operation steps and is relatively Trouble.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a sewage purification treatment equipment, which solves the problem that the structure of the filter plate inside the existing sewage purification treatment equipment is relatively complicated, which leads to cumbersome cleaning of the internal filter plate. It is inconvenient for daily use, and the residue during cleaning needs to be cleaned and processed once, which increases the operation steps and is more troublesome.

In order to achieve the above purpose, the utility model provides the following technical solutions: a sewage purification treatment equipment, including a casing, the top of the casing is provided with a water inlet, the outside of the casing is provided with a hole, and the external thread of the hole is A screw is connected, one end of the screw is fixedly connected with a handle, the other end of the screw is rotatably connected with a slider, the outside of the slider is slidably connected with a shell, and the outside of the shell is fixedly connected with a shell, so The outside of the shell is fixedly connected with a spring, and the end of the spring away from the shell is fixedly connected with a slide bar, and the outside of the slide bar is slidably connected with the shell, and the outside of the slide bar is fixedly connected with a push plate. A filter plate is slidably connected to the outside, and a housing is fixedly connected to the outside of the filter plate, and a pipeline is fixedly connected to the end of the filter plate away from the housing, and a storage box is fixedly connected to the outside of the pipeline, and an outlet is provided at the bottom of the housing. Shuikou.

As a preferred technical solution of the utility model, there are two water inlets and two water outlets, the two water inlets are arranged on the top of the casing, and the two water outlets are arranged on the bottom of the casing. The water inlets and water outlets are distributed symmetrically.

As a preferred technical solution of the utility model, the positions of the shell plates correspond to the pipes, and the specifications of the holes match the screw rods.

As a preferred technical solution of the present utility model, there are two springs and two sliding bars, and one end of the two springs is fixedly connected to the outside of the housing and the other ends of the two springs are respectively fixed to the two sliding bars. The two springs are symmetrically distributed, and the two springs are respectively arranged outside the two slide bars.

As a preferred technical solution of the utility model, there are two push plates and two filter plates, and the two push plates are respectively fixedly connected with two slide bars and the two push plates are respectively slidably connected with two filter plates , the specifications of the two push plates match the two filter plates, one end of the two filter plates is fixedly connected to the inner side of the shell and the other end of the two filter plates is fixedly connected to the outside of the pipeline, the two The filter plates are distributed symmetrically.

As a preferred technical solution of the present invention, the storage box is screwed to the bottom of the casing, and the bottom of the casing is fixedly connected with two symmetrically distributed bases, and the specifications and dimensions of the two bases are the same.

As a preferred technical solution of the present invention, two symmetrically distributed baffles are fixedly connected to the inner side of the housing, and two symmetrically distributed guide plates are fixedly connected to the outer side of the shell.

Compared with the prior art, the utility model provides a kind of sewage purification treatment equipment, which has the following beneficial effects:

This kind of sewage purification treatment equipment is provided with water inlet, hole groove, screw rod, handle, slider, shell plate, spring, slide rod, push plate, filter plate, pipeline, storage box, water outlet, when using, the user Turn the handle, the rotation of the handle will drive the screw to rotate, and the rotation of the screw will move through the hole slot, and the movement of the screw will drive the movement of the slider. At this time, the slider will move inside the shell. The filter plate contacts and seals the pipeline. At this time, the user pours the sewage in through the water inlet, and then filters the sewage through the filter plate, and then discharges the filtered water through the water outlet. At this time, the residue in the sewage will remain On the filter plate, when it is necessary to clean up the residue retained on the filter plate, similarly, the user turns the handle in the opposite direction, at this time the slider will be retracted into the shell plate, and the pipe is opened at this time, and then the user Push the slider, the movement of the slider will squeeze the spring and drive the push plate to move outside the filter plate. The movement of the push plate will drive the movement of the residue remaining on the filter plate. When the push plate moves to a certain position, the residue will enter the storage box through the pipe. When the cleaning is completed, the user releases the slide bar. At this time, the slide bar will move under the action of the spring. The movement of the slide bar will drive the push plate to move. When the slide bar moves back to its original position, the push plate will also be driven back to its original position. position, and when the storage box is full, the user can take off the storage box and process the residue in the storage box, which achieves the effect of convenient use.

Description of drawings

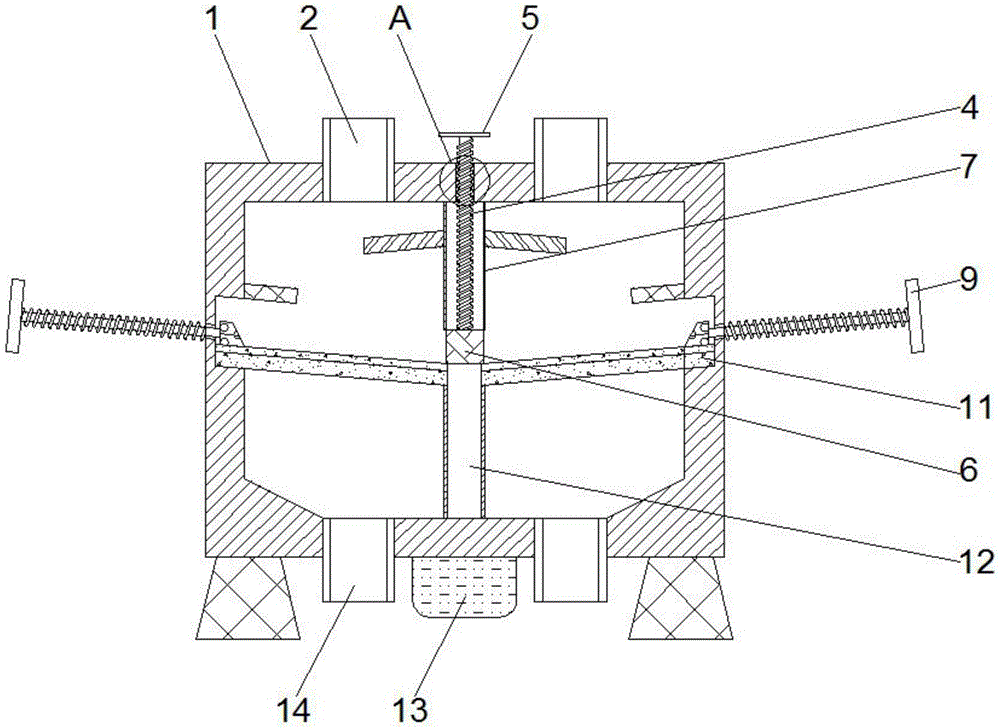

Fig. 1 is the utility model sectional schematic diagram;

Fig. 2 is a schematic diagram of the positional relationship between the slide bar, the spring, the casing and the push plate of the utility model;

Fig. 3 is a three-dimensional schematic diagram of a filter plate and a push plate of the present invention;

Fig. 4 is an enlarged schematic diagram of the structure at A of the utility model.

In the figure: 1. Shell; 2. Water inlet; 3. Groove; 4. Screw; 5. Handle; 6. Slider; 7. Shell plate; 8. Spring; 9. Slide bar; 10. Push plate; 11 , filter plate; 12, pipeline; 13, storage tank; 14, water outlet.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, in this embodiment: a sewage purification treatment equipment, including a housing 1, the top of the housing 1 is set with a water inlet 2, the outside of the housing 1 is provided with a hole 3, and the external screw connection of the hole 3 There is a screw 4, one end of the screw 4 is fixedly connected with a handle 5, the other end of the screw 4 is rotatably connected with a slider 6, the outside of the slider 6 is slidably connected with a shell plate 7, and the outside of the shell plate 7 is fixedly connected with a shell 1, the shell 1 is fixedly connected to the outside of the spring 8, and the end of the spring 8 away from the shell 1 is fixedly connected to the slide bar 9, and the outside of the slide bar 9 is slidably connected to the shell 1, and the outside of the slide bar 9 is fixedly connected to the push plate 10, and the push plate 10 The outside of the filter plate 11 is slidably connected to the outer shell 1. The end of the filter plate 11 away from the shell 1 is fixedly connected to the pipe 12. The outside of the pipe 12 is fixedly connected to the storage box 13. The bottom of the shell 1 is provided with Water outlet 14, this kind of sewage purification treatment equipment, is provided with water inlet 2, hole groove 3, screw rod 4, handle 5, slider 6, shell plate 7, spring 8, slide rod 9, push plate 10, filter plate 11 , pipeline 12, storage tank 13, water outlet 14, when in use, the user turns the handle 5, and the rotation of the handle 5 drives the screw 4 to rotate, and the rotation of the screw 4 will move through the hole groove 3, and the movement of the screw 4 will drive the slider 6 to move. At this time The slider 6 will move inside the shell plate 7. When the slider 6 moves to a certain position, the slider 6 will contact the two filter plates 11 and seal the pipeline 12. At this time, the user pours the sewage through the water inlet 2. After the sewage is filtered through the filter plate 11, the filtered water is discharged through the water outlet 14. At this time, the residue in the sewage will stay on the filter plate 11. When the residue is cleaned, similarly, the user turns the handle 5 in the opposite direction, at this time the slider 6 will be retracted into the shell 7, and the pipe 12 is opened at this time, and then the user pushes the slider 9, and the movement of the slider 9 will squeeze The spring 8 also drives the push plate 10 to move outside the filter plate 11. The movement of the push plate 10 will drive the residue remaining on the filter plate 11 to move. When the push plate 10 moves to a certain position, the residue will enter the storage box 13 through the pipeline 12. After the cleaning is completed, the user releases the slide bar 9. At this moment, the slide bar 9 will move under the action of the spring 8. The movement of the slide bar 9 will drive the push plate 10 to move. When the slide bar 9 moves back to its original position, the push plate 10 will also move. Will be driven back to the original position, and when the storage box is full 13, the user can take off the storage box 13 and process the residue in the storage box 13, which achieves the effect of convenient use.

There are two water inlets 2 and two water outlets 14, the two water inlets 2 are arranged on the top of the casing 1, the two water outlets 14 are arranged on the bottom of the casing 1, and the two water inlets 2 and the water outlets 14 are symmetrically distributed , the position of the shell plate 7 corresponds to the pipe 12, the specification of the hole 3 matches the screw rod 4, there are two springs 8 and two sliding rods 9, and one end of the two springs 8 is fixedly connected to the outside of the shell 1 and the two The other ends of the two springs 8 are fixedly connected to the two slide bars 9 respectively, the two springs 8 are distributed symmetrically, and the two springs 8 are arranged outside the two slide bars 9 respectively.

There are two push plates 10 and two filter plates 11, and the two push plates 10 are fixedly connected with the two slide bars 9 respectively and the two push plates 10 are respectively slidably connected with the two filter plates 11. The specifications of the two push plates 10 are the same as The two filter plates 11 are matched, one end of the two filter plates 11 is fixedly connected to the inner side of the housing 1 and the other end of the two filter plates 11 is fixedly connected to the outside of the pipeline 12, the two filter plates 11 are symmetrically distributed, storage The box 13 is threadedly connected to the bottom of the shell 1, and the bottom of the shell 1 is fixedly connected with two symmetrically distributed bases. The external fixed connection has two symmetrically distributed guide plates.

The working principle and application process of the utility model: when in use, the user turns the handle 5, and the rotation of the handle 5 drives the screw 4 to rotate, and the rotation of the screw 4 will move through the hole groove 3, and the movement of the screw 4 will drive the slider 6 to move. At this time, the slider 6 will move inside the shell plate 7. When the slider 6 moves to a certain position, the slider 6 will contact the two filter plates 11 and seal the pipeline 12. At this time, the user pours the sewage in through the water inlet 2, After the sewage is filtered by the filter plate 11, the filtered water is discharged through the water outlet 14. At this time, the residue in the sewage will stay on the filter plate 11. When cleaning, in the same way, the user turns the handle 5 in the opposite direction, at this time the slider 6 will be retracted into the shell plate 7, at this time the pipe 12 is opened, and then the user pushes the slider 9, and the movement of the slider 9 will squeeze the spring 8 And drive the push plate 10 to move outside the filter plate 11, the movement of the push plate 10 will drive the residue motion remaining on the filter plate 11, when the push plate 10 moves to a certain position, the residue will enter the storage box 13 through the pipeline 12, when the cleaning is completed Finally, the user releases the slide bar 9. At this time, the slide bar 9 will move under the action of the spring 8, and the movement of the slide bar 9 will drive the push plate 10 to move. When the slide bar 9 moves back to the original position, the push plate 10 will also be moved. Drive back to the original position, and when the storage box is full 13, the user can take off the storage box 13 and process the residue in the storage box 13.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present utility model shall be included in the protection scope of the present utility model.

Claims (7)

1. A sewage purification treatment device, includes shell (1), its characterized in that: the top of shell (1) sets up and water inlet (2), the outside of shell (1) is provided with hole groove (3), the outside threaded connection of hole groove (3) has screw rod (4), one end fixedly connected with handle (5) of screw rod (4), the other end of screw rod (4) rotates and is connected with slider (6), the outside sliding connection of slider (6) has shell plate (7), the outside fixedly connected with shell (1) of shell plate (7), the outside fixedly connected with spring (8) of shell (1), the one end fixedly connected with slide bar (9) of shell (1) is kept away from in spring (8), the outside sliding connection of slide bar (9) has shell (1), the outside fixedly connected with push pedal (10) of slide bar (9), the outside sliding connection of push pedal (10) has filter plate (11), the outside fixedly connected with shell (1) of filter plate (11), the one end fixedly connected with pipeline (12) of shell (1) are kept away from to filter plate (11), the outside fixedly connected with pipeline (13) of pipeline (12), the bottom of shell (1) is provided with delivery port (14).

2. The sewage purification treatment apparatus according to claim 1, wherein: the water inlet (2) and the water outlet (14) are respectively provided with two water inlets (2) and two water outlets (14) which are respectively arranged at the top of the shell (1) and the bottom of the shell (1), and the water inlets (2) and the water outlets (14) are respectively symmetrically distributed.

3. The sewage purification treatment apparatus according to claim 1, wherein: the position of the shell plate (7) corresponds to the position of the pipeline (12), and the specification of the hole groove (3) is matched with that of the screw rod (4).

4. The sewage purification treatment apparatus according to claim 1, wherein: spring (8), slide bar (9) all have two, two the equal fixed connection in the outside of shell (1) of one end of spring (8) and the other end of two springs (8) respectively with two slide bar (9) fixed connection, two spring (8) symmetric distribution, two spring (8) set up respectively in the outside of two slide bars (9).

5. The sewage purification treatment apparatus according to claim 1, wherein: push pedal (10), filter plate (11) all have two, two push pedal (10) respectively with two slide bar (9) fixed connection and two push pedal (10) respectively with two filter plate (11) sliding connection, two the specification and two filter plate (11) phase-matchs of push pedal (10), two the equal fixed connection in the outside of pipeline (12), two of the equal fixed connection of the other end of the inboard of shell (1) and two filter plate (11) of one end of filter plate (11) symmetric distribution.

6. The sewage purification treatment apparatus according to claim 1, wherein: bin (13) threaded connection is in the bottom of shell (1), the bottom fixedly connected with of shell (1) has two symmetric distribution's base, and the specification and size of two bases are the same.

7. The sewage purification treatment apparatus according to claim 1, wherein: the inner side of the shell (1) is fixedly connected with two baffle plates which are symmetrically distributed, and the outer part of the shell plate (7) is fixedly connected with two guide plates which are symmetrically distributed.
