CN217824185U - Cable support suitable for cable duct side - Google Patents
Cable support suitable for cable duct side Download PDFInfo
- Publication number
- CN217824185U CN217824185U CN202221420868.3U CN202221420868U CN217824185U CN 217824185 U CN217824185 U CN 217824185U CN 202221420868 U CN202221420868 U CN 202221420868U CN 217824185 U CN217824185 U CN 217824185U
- Authority
- CN
- China
- Prior art keywords
- cable
- wall
- clamping
- sides
- arc
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a cable support suitable for the side of a cable trench, which comprises two support crossbearers, a plurality of clamps and a plurality of elastic buckles; the back surfaces of the two supporting transverse frames are provided with fixing frames; the clamping apparatus comprises clamping blocks, arc-shaped grooves are formed in the tops of the clamping blocks, two grooves are formed in the two sides of the bottoms of the arc-shaped grooves, four pulleys are arranged inside the grooves, and the elastic clamping buckles are arranged on the two sides of the clamping apparatuses. The utility model discloses a, use through fixture and elastic buckle's cooperation, help putting separately of cable, avoid the cable to lay and lead to overhauing the difficulty together for overhauing seeking easily that becomes, elastic buckle's setting can the different cable footpaths cables of adaptation, and can relax closed elastic buckle, can ensure that the cable is difficult to be rocked and break away from fixture, and the safety is stabilized in the use.
Description
Technical Field
The utility model relates to an electric power laying equipment technical field, in particular to cable support suitable for cable trench side.
Background
The cable is an electric energy or signal transmission device, usually comprises several or several groups of wires, and in the cable laying process, the cable can be laid through a support mode in a cable trench, and the laying mode has the characteristics of facilitating the construction, maintenance, overhaul and construction of the cable.
Need come with cable support in the cable pit, but at present, general cable support in the market, the structure is more single, often lays the cable together, but many cables drop easily and twine together on the horizontal support, in the maintenance transformation in the future, it can be very troublesome to look for and maintain the cable, has certain danger moreover.
In view of the above problems, it is desirable to provide a cable holder suitable for use in a cable duct.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a cable support suitable for cable pit side to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a cable holder adapted for use at a side of a cable trench, comprising: the device comprises two supporting transverse frames, a plurality of clamps and a plurality of elastic buckles;
the back surfaces of the two supporting transverse frames are provided with fixing frames;
the clamping devices are respectively arranged at the top ends of the two supporting transverse frames and comprise clamping blocks, arc-shaped grooves are formed in the top parts of the clamping blocks, two grooves are formed in two sides of the bottom of each arc-shaped groove, and pulleys are arranged inside the four grooves;
the elastic buckles are arranged on two sides of the plurality of fixtures and comprise two arc-shaped side plates and clamping rods, and one ends of the two arc-shaped side plates are fixedly connected with two ends of the clamping rods respectively.
Preferably, two equal fixedly connected with loose axle in the relative one side of arc curb plate other end, a plurality of pivot grooves have all been seted up to the both sides of fixture block, two one side that the loose axle is relative rotates with the inner wall in two pivot grooves that correspond wherein respectively and alternates and is connected.
Preferably, the front surface of the clamping block is provided with a plurality of positioning clamping grooves, and the side wall of the clamping rod is in sliding penetrating connection with the inner wall of one of the positioning clamping grooves.
Preferably, the top of the supporting cross frame is fixedly connected with a plurality of U-shaped fixing plates, and the top ends of the U-shaped fixing plates are fixedly connected with the bottom ends of the clamping blocks.
Preferably, the front of mount has seted up the spout, a plurality of fixed orificess have all been seted up to the both sides of spout, two screw holes have been seted up to the both sides at the support crossbearer back, the one end that the support crossbearer is close to the back is connected with the inner wall sliding alternate of spout.
Preferably, four of them the equal sliding interlude of inner wall of fixed orifices is connected with fixing bolt, two fixing bolt's lateral wall alternates with the inner wall screw thread of screw hole and is connected, the mount is close to the equal fixedly connected with backup pad in both sides at the back, two a plurality of drilling, a plurality of have all been seted up in the front of backup pad the inner wall of drilling all rotates to alternate and is connected with the staple.
The utility model discloses a technological effect and advantage:
(1) The utility model discloses, use through fixture and elastic buckle's cooperation, help putting separately of cable, avoid the cable to lay and lead to overhauing the difficulty together for overhauing seeking easily that becomes, elastic buckle's setting can the different cable footpaths cables of adaptation, and can relax closed elastic buckle, can ensure that the cable is difficult to be rocked and break away from fixture, and the safety is stabilized in the use.
(2) The utility model discloses, through the setting of pulley, reach the convenient effect of trailing cable, prevent that the cable from riping and causing the loss, through the setting of spout and fixed orifices, conveniently adjust the height of supporting the crossbearer, the staff of being convenient for lays the cable.
Drawings

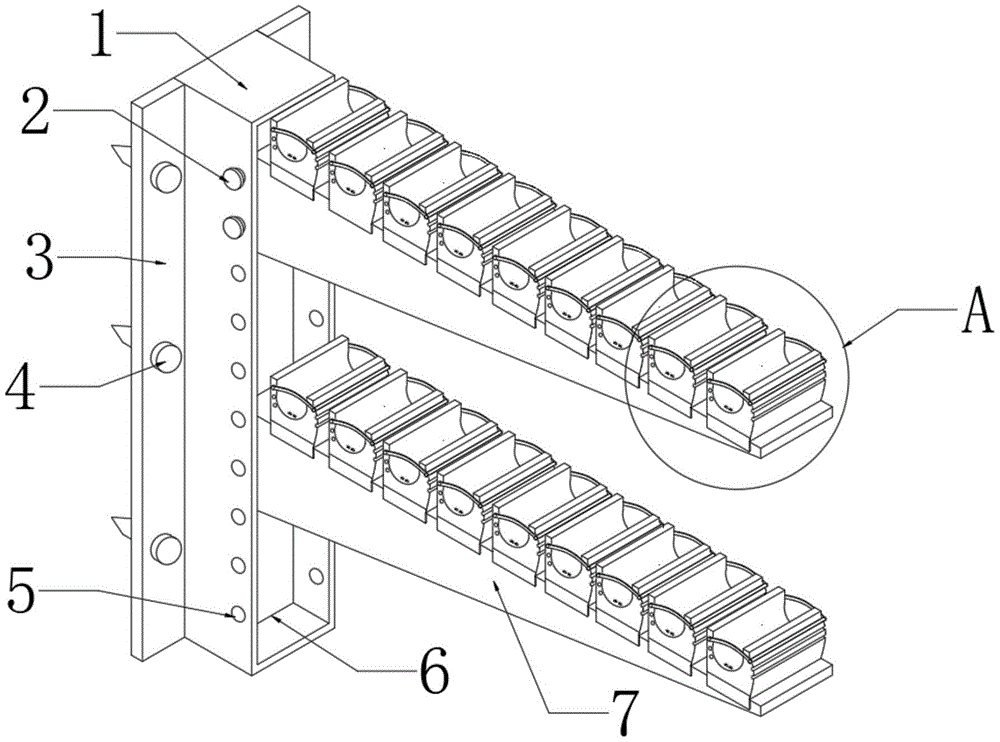

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic side view of the present invention.
Fig. 3 is an enlarged view of the structure a in fig. 1 according to the present invention.
In the figure: 1. a fixed mount; 2. fixing the bolt; 3. a support plate; 4. fixing nails; 5. a fixing hole; 6. a chute; 7. a supporting cross frame; 8. a U-shaped fixing plate; 9. positioning a clamping groove; 10. a clamping rod; 11. an arc-shaped slot; 12. an arc-shaped side plate; 13. a movable shaft; 14. a rotating shaft groove; 15. a pulley; 16. and (7) clamping blocks.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a cable support suitable for cable trench side as shown in fig. 1-3, include: the two supporting cross frames 7, a plurality of clamps and a plurality of elastic buckles;
the fixing frames 1 are arranged on the back surfaces of the two supporting transverse frames 7, and the fixing frames 1 are made of stainless steel materials and play a supporting role for the whole support;
the plurality of clamps are respectively arranged at the top ends of the two supporting transverse frames 7 and comprise clamp blocks 16, the tops of the clamp blocks 16 are provided with arc-shaped grooves 11 for placing cables, two sides of the bottoms of the arc-shaped grooves 11 are provided with two grooves, pulleys 15 are arranged inside the four grooves, and through arrangement of the pulleys 15, the effect of conveniently dragging the cables is achieved, and loss caused by scratching of the cables is prevented;
a plurality of elasticity buckles all set up the both sides at a plurality of fixture, and elasticity buckle includes two arc curb plates 12 and kelly 10, two wherein one end of arc curb plate 12 respectively with the both ends fixed connection of kelly 10, the setting of elasticity buckle can the different cable footpaths cables of adaptation, and can relax closed elasticity buckle, can ensure that the cable is difficult to rock and break away from fixture, and the safety is stabilized in the use.
The two arc-shaped side plates 12 are fixedly connected with movable shafts 13 on the opposite sides of the other ends, a plurality of rotating shaft grooves 14 are formed in the two sides of the clamping block 16, the opposite sides of the two movable shafts 13 are respectively in rotating penetrating connection with the inner walls of the two corresponding rotating shaft grooves 14, and the movable shafts 13 can be inserted into the corresponding rotating shaft grooves 14 according to the outer diameters of cables.
The front side of the clamping block 16 is provided with a plurality of positioning clamping grooves 9, the inner diameter of each positioning clamping groove 9 is larger than the outer diameter of each clamping rod 10, and the side wall of each clamping rod 10 is in sliding penetrating connection with the inner wall of one positioning clamping groove 9, so that the elastic buckles can be fixed.
Support a plurality of U type fixed plates 8 of top fixedly connected with of crossbearer 7, the opening of the bottom fixed connection U type fixed plate 8 of the top of a plurality of U type fixed plates 8 and a plurality of fixture blocks 16 is downward, the card is at the top of supporting crossbearer 7.
Wherein the equal sliding interlude of inner wall of four fixed orificess 5 is connected with fixing bolt 2, two fixing bolt 2's lateral wall and the inner wall screw thread interlude of screw hole are connected, it is fixed to be used for supporting crossbearer 7, mount 1 is close to the equal fixedly connected with backup pad 3 in both sides at the back, play the support fixed action to mount 1, a plurality of drivings have all been seted up in two backup pad 3's front, the inner wall of a plurality of drivings all rotates and alternates and is connected with staple 4, fix the support on cable trench wall edge, it is simple and convenient to be under construction.
The utility model discloses theory of operation:
referring to fig. 1 to 3, firstly, the bracket is fixed on the side wall of the cable trench by the fixing nail 4, then the height of the supporting cross frame 7 is adjusted, the supporting cross frame 7 slides on the inner wall of the sliding groove 6, after the height is adjusted to a proper height, the supporting cross frame is fixed by the fixing bolt 2, finally, the fixture is adjusted according to the outer diameter of the cable, the movable shaft 13 is clamped into the rotating shaft groove 14 with a corresponding height to adapt to the placement of cables with different outer diameters, after the cables are placed, the arc-shaped side plate 12 is rotated again, and the arc-shaped side plate 12 drives the clamping rod 10 to be clamped into the positioning clamping groove 9 to fix the cables.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
1. A cable holder adapted for use at a side of a cable trench, comprising: the device comprises two supporting transverse frames (7), a plurality of clamps and a plurality of elastic buckles;
the back surfaces of the two supporting transverse frames (7) are provided with fixed frames (1);
the clamping devices are respectively arranged at the top ends of the two supporting transverse frames (7), each clamping device comprises a clamping block (16), an arc-shaped groove (11) is formed in the top of each clamping block (16), two grooves are formed in two sides of the bottom of each arc-shaped groove (11), and pulleys (15) are arranged inside the four grooves;
the elastic buckles are arranged on two sides of the plurality of clamps and comprise two arc-shaped side plates (12) and clamping rods (10), and one ends of the two arc-shaped side plates (12) are fixedly connected with two ends of the clamping rods (10) respectively.
2. The cable support suitable for the cable trench side according to claim 1, wherein a movable shaft (13) is fixedly connected to one side of the two arc-shaped side plates (12) opposite to the other end, a plurality of rotating shaft grooves (14) are formed in both sides of the fixture block (16), and one side of the two movable shafts (13) opposite to each other is rotatably inserted into an inner wall of each of the two corresponding rotating shaft grooves (14).
3. The cable holder suitable for the cable duct side as claimed in claim 1, wherein the front surface of the locking block (16) is provided with a plurality of positioning locking slots (9), and the side wall of the locking rod (10) is slidably inserted into and connected with the inner wall of one of the positioning locking slots (9).
4. The cable bearer suitable for the cable trench side according to claim 1, wherein a plurality of U-shaped fixing plates (8) are fixedly connected to the top of the supporting cross frame (7), and the top ends of the plurality of U-shaped fixing plates (8) are fixedly connected to the bottom ends of the plurality of clamping blocks (16).
5. The cable support suitable for the cable trench side according to claim 1, wherein the front surface of the fixing frame (1) is provided with a sliding groove (6), both sides of the sliding groove (6) are provided with a plurality of fixing holes (5), both sides of the back surface of the supporting cross frame (7) are provided with two threaded holes, and one end of the supporting cross frame (7) close to the back surface is slidably inserted into the inner wall of the sliding groove (6).
6. The cable support suitable for cable trench side according to claim 5, wherein the inner wall of four fixing holes (5) is slidably inserted and connected with a fixing bolt (2), the side wall of two fixing bolts (2) is threadedly inserted and connected with the inner wall of a threaded hole, the two sides of the fixing frame (1) close to the back surface are fixedly connected with supporting plates (3), the front surface of two supporting plates (3) is provided with a plurality of drilled holes, and the inner wall of the plurality of drilled holes is rotatably inserted and connected with a fixing nail (4).
