Abstract

The utility model discloses an impact-resistant packaging box in the field of packaging boxes. The four corners of the board are equipped with reinforcing plates, the front wall of the upper part of the box body is provided with card slots, and the card slots are provided with multiple splicing rods. The box body is supported from the inside by the inner lining board, which effectively prevents the deformation of the box body. The protection of the four corners of the end wall in the body is conducive to improving its impact resistance and effectively improving its functionality and practicability; the lower end of the box is wrapped by the bottom of the bag, which effectively achieves a waterproof effect and improves the wear resistance of the bottom of the box; through splicing The clamp can be limited by the rod passing through the through hole. When the clamp is connected with the splicing rod, the fixing bolt can be installed in the pin hole to limit and fix the clamp in the slot. There is no need to seal the box with tape. It is convenient and fast, effectively improving its practicality and functionality.

Description

An impact-resistant packaging box

technical field

The utility model relates to the field of packaging boxes, in particular to an impact-resistant packaging box.

Background technique

As the name suggests, the packaging box is the box used to package the product. It can be classified according to the material, such as: paper box, iron box, wooden box, cloth box, leather box, acrylic box, corrugated box, pvc box, etc. The function of the box: guarantee the transportation Product safety, improve product grades, etc.

In the existing technology, the common packaging box has a simple structure and its impact resistance is not high. When the packaging material is transported, due to the poor impact resistance, the packaging box is subjected to pressure and collision, which will cause the box body to be deformed or damaged. At the same time Cause material loss, resulting in low practicality and functionality.

Utility model content

The purpose of this utility model is to provide an impact-resistant packaging box to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

An impact-resistant packaging box, comprising a box body, the outer end wall of the lower part of the box body is provided with a package bottom, the upper end of the box body is provided with an upper cover, the box body is provided with a lining board, and the lining board The four corners are all provided with reinforcing plates, and the front end wall of the upper part of the box body is provided with a card slot, and the card slot is provided with a plurality of splicing rods.

As a further solution of the present utility model: the inner lining board is made of cardboard, and the inner lining board is inserted inside the box body and contacts with its inner end wall. When in use, the box body is supported from the inside by the inner lining board, The deformation of the box body is effectively prevented, and the four corners of the end wall of the box body are protected by the reinforcing plate, which is beneficial to improving its impact resistance, and effectively improving its functionality and practicability.

As a further solution of the utility model: the outer end wall of the bottom of the bag is provided with a limit nail, and the bottom of the bag is installed on the lower end of the box body through a plurality of limit nails, and the bottom of the bag is made of leather material. When in use, The lower end of the box body is wrapped by wrapping the bottom, which effectively achieves a waterproof effect and improves the wear resistance of the bottom of the box body.

As a further solution of the utility model: side plates are provided on both sides of the upper end of the box body, and a clamping plate is provided at the front end of the upper cover, and the size of the clamping plate matches the size of the card slot. When in use, the upper cover The upper end of the box body can be closed through the cooperation of the clamping plate and the clamping groove.

As a further solution of the utility model: the inner end wall of the clamping plate is provided with a plurality of collars, each of which is provided with a through hole, and the size of each through hole matches the size of the splicing rod , when the card board is set in the card slot, the splicing rod penetrates through the through hole to limit the card board.

As a further solution of the present invention: the front end wall of each splicing rod is provided with a pin hole, and each pin hole is provided with a fixing bolt. The card board can be limited in the card slot and fixed in the pin hole, no need to seal the box with tape, which is convenient and quick, and effectively improves its practicability and functionality.

Compared with the prior art, the beneficial effects of the utility model are:

1. In this utility model, the box body is supported from the inside by the inner lining board, which effectively prevents the deformation of the box body, and the four corners of the end wall of the box body are protected by the reinforcing plate, which is beneficial to improve its impact resistance and effectively improve its functionality and practicability; the lower end of the box body is wrapped by the bottom of the bag, effectively waterproofing, and improving the wear resistance of the bottom of the box body; When installing the fixing bolt in the pin hole, the clamping plate can be limited in the clamping groove and fixed without using adhesive tape to seal the box, which is convenient and fast, and effectively improves its practicability and functionality.

Description of drawings

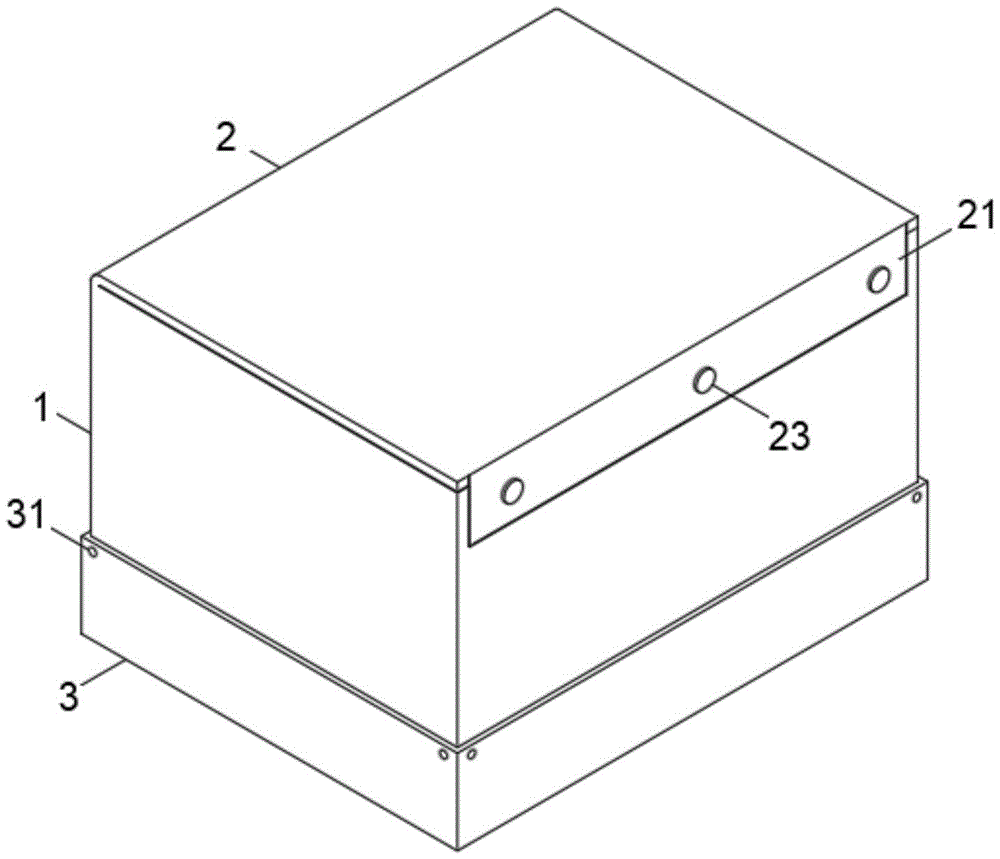

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the open state structural representation of box body in the utility model;

Fig. 3 is a structural schematic diagram of the inner liner in the utility model.

In the figure: 1, box body; 11, card slot; 2, upper cover; 21, card plate; 22, collar; 221, through hole; 23, fixed bolt; 3, bag bottom; 31, limit nail; 4 , splicing rod; 41, pin hole; 5, side plate; 6, inner lining plate; 61, reinforcing plate.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1 to 3. In the embodiment of the present utility model, an impact-resistant packaging box includes a box body 1, the outer end wall of the lower part of the box body 1 is provided with a package bottom 3, and the upper end of the box body 1 is provided with an upper cover 2. The box body 1 is provided with an inner liner 6, and the four corners of the inner liner 6 are provided with reinforcing plates 61, and the front end wall of the upper part of the box body 1 is provided with a card slot 11, and the card slot 11 is provided with a plurality of splicing rods 4.

Wherein, the inner liner 6 is made of cardboard, and the inner liner 6 is inserted in the inside of the box body 1 and contacts its inner end wall. When in use, the inner liner 6 supports the box body 1 from the inside, effectively preventing the box body 1 from deformation, and the four corners of the inner end wall of the box body 1 are protected by the reinforcing plate 61, which is conducive to improving its impact resistance and effectively improving its functionality and practicability.

The outer end wall of the bag bottom 3 is provided with limit nails 31, and the bag bottom 3 is installed on the lower end of the box body 1 through a plurality of limit nails 31, and the bag bottom 3 is made of leather material. Wrapping effectively plays a waterproof effect and improves the wear resistance of the bottom of the box body 1 .

Both sides of the upper end of the box body 1 are provided with side plates 5, and the front end of the upper cover 2 is provided with a card plate 21, and the size of the card plate 21 matches the size of the card slot 11. When in use, the upper cover 2 passes through the card plate 21 and the card slot 11 The cooperation of box body 1 upper end can be closed.

The inner end wall of the clamping plate 21 is provided with a plurality of collars 22, and each collar 22 is provided with a through hole 221, and the size of each through hole 221 is matched with the size of the splicing rod 4. When the clamping plate 21 is clamped on the card After entering the groove 11, the splicing rod 4 passes through the through hole 221 to limit the clamping plate 21.

Each splicing bar 4 front end walls are all provided with pin holes 41, and each pin hole 41 is provided with a fixed bolt 23, and when the clamping plate 21 is connected with the splicing bar 4, the fixed bolt 23 is installed in the pin hole 41. The clamping plate 21 can be limited in the clamping slot 11 and fixed without using adhesive tape to seal the box, which is convenient and fast, and effectively improves its practicability and functionality.

The working principle of the utility model is as follows: firstly, the box body 1 is supported from the inside by the inner liner plate 6 to effectively prevent the deformation of the box body 1, and the four corners of the inner end wall of the box body 1 are protected by the reinforcing plate 61, which is beneficial to improve its The impact resistance can effectively improve its functionality and practicability. The lower end of the box body 1 is wrapped by the bottom 3, which effectively achieves a waterproof effect and improves the wear resistance of the bottom of the box body 1. The upper cover 2 passes through the clamping plate 21 and the slot The cooperation of 11 can close the upper end of the box body 1. After the clamping plate 21 is set in the draw-in groove 11, the splicing rod 4 can pass through the through hole 221 to limit the position of the clamping plate 21. When the clamping plate 21 is locked with the splicing rod 4 When connecting, installing the fixing bolt 23 in the pin hole 41 can limit the clamping plate 21 in the clamping groove 11 and fix it, without using tape to seal the box, which is convenient and quick, and effectively improves its practicability and functionality.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. An impact-resistant packaging box, comprising a box body (1), characterized in that: the outer end wall of the lower part of the box body (1) is provided with a bag bottom (3), and the upper end of the box body (1) is provided with The upper cover (2), the box body (1) is provided with an inner liner (6), and the four corners of the inner liner (6) are provided with reinforcing plates (61), and the upper front end of the box body (1) The wall is provided with a card slot (11), and the card slot (11) is provided with a plurality of splicing rods (4). 2. An impact-resistant packaging box according to claim 1, characterized in that: the inner lining board (6) is made of cardboard, and the inner lining board (6) is inserted in the box body (1 ) is in contact with its inner end wall. 3. An impact-resistant packaging box according to claim 1, characterized in that: the outer end wall of the package bottom (3) is provided with limit nails (31), and the package bottom (3) passes through a plurality of The limit nail (31) is installed on the lower end of the box body (1), and the bottom of the bag (3) is made of leather. 4. An impact-resistant packaging box according to claim 1, characterized in that: side panels (5) are provided on both sides of the upper end of the box body (1), and the front end of the upper cover (2) is provided with There is a clamping plate (21), and the size of the clamping plate (21) matches the size of the clamping slot (11). 5. An impact-resistant packaging box according to claim 4, characterized in that: the inner end wall of the clamp (21) is provided with a plurality of collars (22), each of the collars (22) Through-holes (221) are provided on the top, and the size of each through-hole (221) matches the size of the splicing rod (4). 6. An impact-resistant packaging box according to claim 1, characterized in that: each of the splicing rods (4) is provided with a pin hole (41) on the front wall, and each of the pin holes (41) Fixing bolts (23) are all provided in the inside.
