Abstract
The utility model relates to a semiconductor laser prepares technical field, and discloses a semiconductor laser casing automation of welding equipment, including the equipment principal, the first mounting panel of last fixed surface of equipment principal is connected with, the last fixed surface of first mounting panel is connected with the box body, the upper surface laminating of box body is provided with the second mounting panel, the last fixed surface of second mounting panel is connected with welding jig, the through-hole has all been seted up to the left and right sides of box body, the inner wall fixedly connected with adjustment mechanism of through-hole, adjustment mechanism's fixed surface is connected with empty core block. The utility model discloses a cooperation of first mounting panel, box body, second mounting panel, through-hole, adjustment mechanism, empty core block, guide block, inclined hole, empty core column, spliced pole, draw-in groove, slide opening and limiting plate makes the dismouting comparatively convenient between second mounting panel and the box body to the maintenance personal of being convenient for changes the welding jig on this welding equipment.
Description
Technical Field
The utility model relates to a semiconductor laser prepares technical field, especially relates to an automatic welding equipment of semiconductor laser casing.
Background
Semiconductor lasers, also known as laser diodes, are lasers that use semiconductor materials as the working substance. When preparing semiconductor laser, mostly weld the semiconductor laser casing through automatic welding equipment, but at present, because the welding jig on the automatic welding equipment is comparatively troublesome when the dismouting, and then the maintenance personal of being not convenient for is changed the welding jig on the automatic welding equipment.
SUMMERY OF THE UTILITY MODEL
The purpose of the utility model is to solve the shortcoming that exists among the prior art, if: when preparing semiconductor laser, mostly weld the semiconductor laser casing through automatic welding equipment, but at present, because the welding jig on the automatic welding equipment is comparatively troublesome when the dismouting, and then the maintenance personal of being not convenient for is changed the welding jig on the automatic welding equipment, and the automatic welding equipment of semiconductor laser casing that provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an automatic welding equipment of semiconductor laser casing, includes the equipment main part, the first mounting panel of last fixed surface of equipment main part is connected with, the last fixed surface of first mounting panel is connected with the box body, the upper surface laminating of box body is provided with the second mounting panel, the last fixed surface of second mounting panel is connected with welding jig, the through-hole has all been seted up to the left and right sides of box body, the inner wall fixedly connected with adjustment mechanism of through-hole, adjustment mechanism's fixed surface is connected with hollow block, the bottom of hollow block and the upper surface contact of first mounting panel, the equal fixedly connected with guide block in both sides around the hollow block, the inclined hole has been seted up to the inside of guide block, the inner wall of inclined hole, the bottom of first mounting panel and the inner wall of box body all laminate and are provided with hollow column, the inner wall fixedly connected with spliced pole of hollow column, the draw-in groove has all been seted up to both sides around the second mounting panel, the sliding hole has been seted up to the upper surface of box body, the inner wall of sliding hole and the inner wall of spliced pole all with the surface contact of spliced pole, the fixed surface is connected with the limiting plate, the bottom of limiting plate and the last surface contact of second mounting panel.
Preferably, adjustment mechanism includes the screw thread post, the surperficial threaded connection of screw thread post has a screw thread section of thick bamboo, the surface of a screw thread section of thick bamboo and the inner wall fixed connection of hollow block, the equal fixedly connected with bearing of the surface of screw thread post and the inner wall of through-hole, the right side fixedly connected with carousel of screw thread post.
Preferably, the upper surface of box body is fixedly connected with the locating piece, the constant head tank has been seted up on the left side of second mounting panel, the inner wall of constant head tank and the surface contact of locating piece.
Preferably, the upper surface of the box body is fixedly connected with a U-shaped plate, and the U-shaped plate is positioned above the sliding hole.
Preferably, the right side fixedly connected with pilot lamp of box body, the pilot lamp is located the top of carousel, the right side fixedly connected with press switch of box body inner wall, press switch's left side and the right side contact of hollow block, press switch and pilot lamp electricity are connected.
Preferably, the maximum distance between the hollow block and the rotary disc is larger than the distance between the press switch and the rotary disc.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) The utility model discloses a set up first mounting panel, a box bod, the second mounting panel, a through-hole, adjustment mechanism, hollow block, the guide block, the inclined hole, hollow post, the spliced pole, the draw-in groove, slide opening and limiting plate, wherein, when the spliced pole contacts with the draw-in groove, through the limiting plate, the cooperation of draw-in groove and spliced pole, fix the second mounting panel on the box body, when the spliced pole separates with the draw-in groove, the second mounting panel can directly separate with the box body, and simultaneously, when the screw thread post on the adjustment mechanism rotates, through adjustment mechanism, hollow block, the guide block, the inclined hole, hollow post, the cooperation of spliced pole and slide opening, can make the distance between limiting plate and the welding jig change, and then through first mounting panel, a box body, the second mounting panel, a through-hole, adjustment mechanism, hollow block, the guide block, the inclined hole, hollow post, the spliced pole, the draw-in groove, the cooperation of slide opening and limiting plate, make comparatively easy dismounting between second mounting panel and the box body, thereby the maintenance personal of being convenient for change welding jig on this welding equipment.
(2) The utility model discloses a set up pilot lamp and press the switch, wherein, when spliced pole and draw-in groove contact, press to press the switch through hollow block, make the pilot lamp open, when spliced pole and draw-in groove separation, hollow block separates with press the switch, and close the pilot lamp through press the switch, at this moment, the user can light according to the pilot lamp whether, judge whether the second mounting panel is fixed on the box body, and then through the cooperation of pilot lamp and press the switch, make the user can audio-visual judgement second mounting panel whether fix on the box body.
Drawings

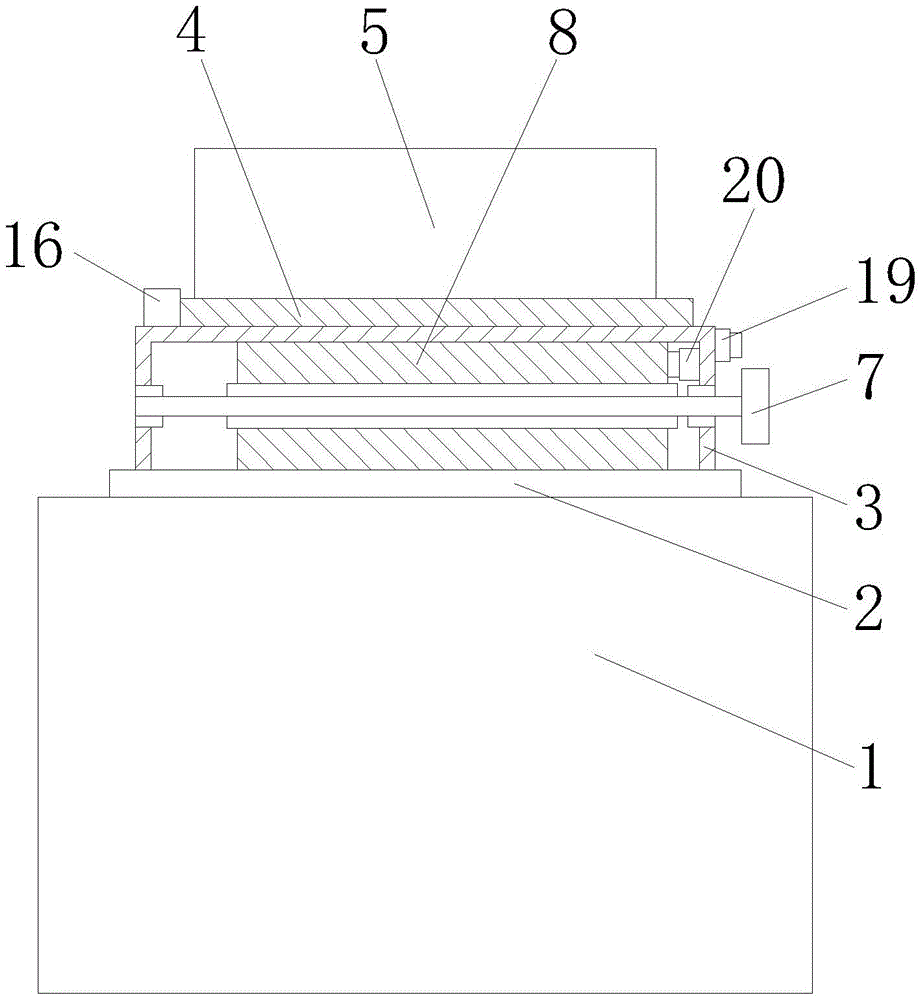

FIG. 1 is a schematic view of the structure of the present invention;
fig. 2 is a front view of the structure of the present invention;
fig. 3 is a bottom view of the box body of the present invention;
FIG. 4 is a side view of the box body of the present invention;
fig. 5 is a top view of the box body of the present invention;
fig. 6 is a top view of the second mounting plate of the present invention;
fig. 7 is a front view of the adjusting mechanism of the present invention.
In the figure: 1. an apparatus main body; 2. a first mounting plate; 3. a case body; 4. a second mounting plate; 5. welding a clamp; 6. a through hole; 7. an adjustment mechanism; 71. a threaded post; 72. a threaded barrel; 73. a bearing; 74. a turntable; 8. a hollow block; 9. a guide block; 10. an inclined hole; 11. a hollow column; 12. connecting columns; 13. a card slot; 14. a slide hole; 15. a limiting plate; 16. positioning a block; 17. positioning a groove; 18. a U-shaped plate; 19. an indicator light; 20. and pressing a switch.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
The first embodiment is as follows:
referring to fig. 1-7, an automatic welding device for semiconductor laser shells comprises a device body 1, a first mounting plate 2 is fixedly connected to the upper surface of the device body 1, a box body 3 is fixedly connected to the upper surface of the first mounting plate 2, a second mounting plate 4 is arranged on the upper surface of the box body 3 in a fitting manner, a welding fixture 5 is fixedly connected to the upper surface of the second mounting plate 4, through holes 6 are formed in the left side and the right side of the box body 3, an adjusting mechanism 7 is fixedly connected to the inner wall of the through hole 6, a hollow block 8 is fixedly connected to the surface of the adjusting mechanism 7, the bottom of the hollow block 8 is in contact with the upper surface of the first mounting plate 2, guide blocks 9 are fixedly connected to the front side and the rear side of the hollow block 8, inclined holes 10 are formed in the guide blocks 9, inner walls of the inclined holes 10, the bottom of the first mounting plate 2 and the inner wall of the box body 3 are provided with a hollow column 11 in a fitting manner, a connecting column 12 is fixedly connected to the inner wall of the hollow column 11, clamping grooves 13 are formed in the front side and the rear side of the second mounting plate 4, a sliding hole 14 is formed in a manner that the inner wall of the sliding hole 14, when the sliding block 14 and the sliding fixture 15 move to the positioning groove, the positioning groove 15, the positioning fixture 15 is moved to the positioning groove, the positioning fixture 16, the positioning groove, the positioning fixture 16 is moved to the positioning groove, the positioning fixture 16, the positioning block 15 and the positioning groove, the positioning fixture 16 is connected to the positioning block 15, when locating piece 16 and constant head tank 17 contact, cooperation through locating piece 16 and constant head tank 17, make spliced pole 12 align with draw-in groove 13, the last fixed surface of box body 3 is connected with U-shaped plate 18, U-shaped plate 18 is located the top of slide opening 14, after limiting plate 15 separates with second mounting panel 4, limiting plate 15 can direct movement to in the U-shaped plate 18, at this moment, protect limiting plate 15 through U-shaped plate 18, prevent that the user from placing second mounting panel 4 on box body 3 when, because of taking place to collide with between second mounting panel 4 and the limiting plate 15, and lead to spliced pole 12 to take place the bending.
The adjusting mechanism 7 comprises a threaded column 71, a threaded cylinder 72 is in threaded connection with the surface of the threaded column 71, the surface of the threaded cylinder 72 is fixedly connected with the inner wall of the hollow block 8, a bearing 73 is fixedly connected with the surface of the threaded column 71 and the inner wall of the through hole 6, a rotary disc 74 is fixedly connected to the right side of the threaded column 71, and when the threaded column 71 rotates, the distance between the hollow block 8 and the rotary disc 74 is changed through the matching of the threaded column 71 and the threaded cylinder 72.
The second embodiment:
referring to fig. 1 to 3, an indicator lamp 19 is fixedly connected to the right side of the box body 3, the indicator lamp 19 is located above the rotary table 74, a push switch 20 is fixedly connected to the right side of the inner wall of the box body 3, the left side of the push switch 20 contacts with the right side of the hollow block 8, the push switch 20 is electrically connected with the indicator lamp 19, the maximum distance between the hollow block 8 and the rotary table 74 is greater than the distance between the push switch 20 and the rotary table 74, by arranging the indicator lamp 19 and the push switch 20, when the connecting column 12 contacts with the clamping groove 13, the indicator lamp 19 is turned on by pressing the hollow block 8, when the connecting column 12 is separated from the clamping groove 13, the hollow block 8 is separated from the push switch 20, and the indicator lamp 19 is turned off by the push switch 20, at this time, a user can judge whether the second mounting plate 4 is fixed on the box body 3 according to whether the indicator lamp 19 is on, and further through the cooperation of the indicator lamp 19 and the push switch 20, so that the user can intuitively judge whether the second mounting plate 4 is fixed on the box body 3.
The utility model discloses in, the user is when fixing welding jig 5 on this welding equipment, place second mounting panel 4 on box body 3 earlier, and make locating piece 16 and constant head tank 17 contact, at this moment, cooperation through constant head tank 17 and locating piece 16, make draw-in groove 13 align with spliced pole 12, then, make screw thread post 71 rotate through rotating carousel 74, and the cooperation through screw thread post 71 and screw thread section of thick bamboo 72, make hollow block 8 remove to the right, at this moment, through hollow post 11, inclined hole 10, spliced pole 12 and slide opening 14's cooperation, make spliced pole 12 insert to the draw-in groove 13 in, and make limiting plate 15 and second mounting panel 4 contact, at this moment, through limiting plate 15, draw-in groove 13 and spliced pole 12's cooperation, fix second mounting panel 4 on box body 3, when the user needs to take welding jig 5 from box body 3 away, make screw thread post 71 rotate through rotating carousel 74, and the cooperation through screw thread post 71 and screw thread section of thick bamboo 72, make hollow block 8 remove left, at this moment, through hollow post 11, 10, 12 and the cooperation of inclined hole 14, make the cooperation of slide opening 15 and second mounting panel 4 separate the separation of second mounting panel, the limiting plate can separate with second mounting panel after the limiting plate 4, the direct separation of second mounting panel, the limiting plate 4.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
It should be noted that, in this document, relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Claims (6)
1. The utility model provides an automatic welding equipment of semiconductor laser casing, includes equipment main body (1), its characterized in that, the last fixed surface of equipment main body (1) is connected with first mounting panel (2), the last fixed surface of first mounting panel (2) is connected with box body (3), the upper surface laminating of box body (3) is provided with second mounting panel (4), the last fixed surface of second mounting panel (4) is connected with welding jig (5), through-hole (6) have all been seted up to the left and right sides of box body (3), the inner wall fixedly connected with adjustment mechanism (7) of through-hole (6), the fixed surface of adjustment mechanism (7) is connected with hollow block (8), the bottom of hollow block (8) and the upper surface contact of first mounting panel (2), the equal fixedly connected with guide block (9) in both sides around hollow block (8), inclined hole (10) have been seted up to the inside of guide block (9), the inner wall of inclined hole (10), the bottom of first mounting panel (2) and the inner wall of box body (3) all are provided with hollow post (11), the inner wall of fixed surface mounting post (11) has seted up hollow post (12), the upper surface mounting panel (13) has all been connected with hollow post (13), the inner wall of sliding hole (14) and the inner wall of draw-in groove (13) all with the surface contact of spliced pole (12), the fixed surface of spliced pole (12) is connected with limiting plate (15), the bottom of limiting plate (15) and the upper surface contact of second mounting panel (4).
2. The automatic welding equipment for semiconductor laser shells according to claim 1, wherein the adjusting mechanism (7) comprises a threaded column (71), a threaded cylinder (72) is connected to the surface of the threaded column (71) in a threaded manner, the surface of the threaded cylinder (72) is fixedly connected with the inner wall of the hollow block (8), a bearing (73) is fixedly connected to the surface of the threaded column (71) and the inner wall of the through hole (6), and a rotary table (74) is fixedly connected to the right side of the threaded column (71).
3. The automatic welding equipment for semiconductor laser shells according to claim 1, wherein a positioning block (16) is fixedly connected to the upper surface of the box body (3), a positioning groove (17) is formed in the left side of the second mounting plate (4), and the inner wall of the positioning groove (17) is in contact with the surface of the positioning block (16).
4. The automatic welding equipment for semiconductor laser shells according to claim 1, wherein a U-shaped plate (18) is fixedly connected to the upper surface of the box body (3), and the U-shaped plate (18) is located above the sliding hole (14).
5. The automatic welding equipment for semiconductor laser shells as claimed in claim 2, wherein an indicator lamp (19) is fixedly connected to the right side of the box body (3), the indicator lamp (19) is located above the rotary table (74), a push switch (20) is fixedly connected to the right side of the inner wall of the box body (3), the left side of the push switch (20) is in contact with the right side of the hollow block (8), and the push switch (20) is electrically connected with the indicator lamp (19).
6. An automated welding device for semiconductor laser housings according to claim 5, characterized in that the maximum distance between the hollow block (8) and the rotary disk (74) is greater than the distance between the push switch (20) and the rotary disk (74).
