Abstract
The utility model provides a support for dress designing relates to dress designing instrument field, including base, brace table and design frame. Wherein, the base top is provided with the lifter, and the lifter top is provided with the bearing platform, is provided with the design frame on the bearing platform, and the design frame includes bottom plate, crane, working plate and revolution mechanic, and wherein its bottom one end of bottom plate is articulated with the bearing platform, and the other end is connected with the crane that sets up at the bearing platform top, and the working plate setting is on the bottom plate, and the working plate passes through revolution mechanic with the bottom plate and rotates to be connected. Through rotating the work board, the work board passes through the rotation that revolution mechanic drove the bottom plate after that for fix the rotation that cloth on the work board can realize arbitrary angle, be of value to the designer and carry out the multi-angle and handle the cloth, improved design efficiency, and improve user's use and experience.
Description
Technical Field
The utility model relates to a dress designing instrument field especially relates to a support for dress designing.
Background
The clothing design is an artistic action for planning or creating clothes for people to wear and personalized clothes, and meanwhile, as a practical technology, a great number of people are engaged in the industry in the modern society. The clothing designer needs some auxiliary equipment for better design, and the clothing design support is a necessary auxiliary equipment.
And current dress designing support is usually fixed the cloth on the support in advance, and the designer can not carry out the rotation wantonly to the cloth when designing, leads to taking off the fixed block and changes the position again, has increased design time, has reduced design efficiency.
Therefore, in order to solve the above problems, a new type of clothes design support is needed.
SUMMERY OF THE UTILITY MODEL
The utility model provides a support for dress designing, the purpose is in order to solve the shortcoming that exists among the prior art.
In order to achieve the above object, the present invention provides the following technical solutions: a brace for apparel design, comprising:
a base on which a bearing table is arranged;
design frame sets up on the bearing platform, it includes:
one end of the bottom plate is hinged with the bearing table, and the other end of the bottom plate is connected with the bearing table through a lifting frame;
the working plate sets up on the bottom plate, the working plate passes through revolution mechanic with the bottom plate and rotates to be connected, revolution mechanic includes:
the rotating column is arranged at the bottom of the working plate, and the bottom end of the rotating column is provided with a first toothed ring;
the second gear ring is fixedly arranged on the bottom plate and is at the same height as the first gear ring;
and the gears are arranged between the first gear ring and the second gear ring and are in meshed connection with the first gear ring and the second gear ring.
Preferably, the crane comprises:
the first rotating rod is arranged inside the bearing table, a first bevel gear is arranged on the first rotating rod, and the first bevel gear is connected with a second bevel gear in a meshing manner;
the rotating handle is arranged outside the weighing platform and is connected with the first rotating rod;
one end of the second rotating rod is connected with the second bevel gear, an internal thread groove is formed in the other end of the second rotating rod, a threaded rod is screwed in the internal thread groove, and the top of the threaded rod is connected with the bottom plate.
Preferably, each side of the working plate is provided with a sliding groove, each sliding groove is internally provided with a sliding block, and each sliding block is provided with a pressing plate.
Preferably, a third rotating rod is arranged on the sliding block, and the pressing plate is rotatably connected with the sliding block through the third rotating rod.
Preferably, a graduated scale is arranged on the working plate outside the sliding groove.
Preferably, the base top is provided with the lifter, the lifter top is connected with the bearing platform.
Preferably, a fixing plate rotatably connected with the working plate is arranged on the bottom plate.
Preferably, a fixing knob is arranged on the lifting rod.
Preferably, the base bottom is provided with a plurality of universal wheel.
Compared with the prior art, the utility model following beneficial effect has:
1. when the designer is fixing the cloth on the working plate, need design bottom or lateral part in design process, and when the clothing through multi-angle show design when the design, through rotating the working plate, the working plate passes through the rotation that revolution mechanic drove the bottom plate after that, make the cloth of fixing on the working plate can realize the rotation of arbitrary angle, be of value to the designer and carry out the multi-angle and handle the cloth, design efficiency is improved, and user's use experience is improved.
2. Realize the adjustment to the height of design frame through the lifter, carry out the adjustment of angle through the crane to bottom plate and working plate according to designer's needs simultaneously, the better assurance of the designer of being convenient for is fit for different dress designing's angle for design efficiency improves.
Drawings

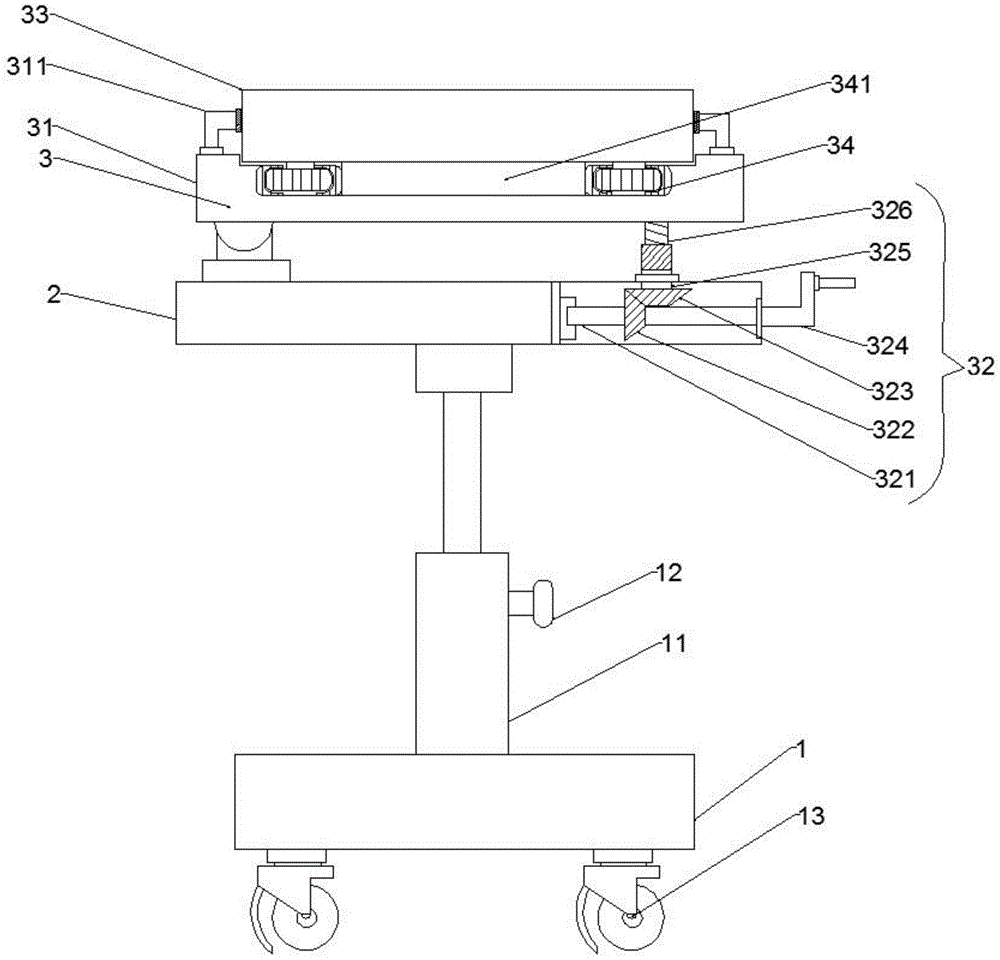

Fig. 1 is an overall schematic view of a support for clothing design according to the present invention;
fig. 2 is a connection structure diagram of a bottom plate and a working plate of the support for clothing design provided by the present invention;
fig. 3 is a top view of a working plate of a support for designing clothes according to the present invention;
fig. 4 is a sliding structure diagram of the pressing plate of the support for designing clothes provided by the present invention.
Description of reference numerals: 1-base, 2-bearing platform, 3-design frame, 11-lifting rod, 12-fixed knob, 13-universal wheel, 31-bottom plate, 32-lifting frame, 33-working plate, 34-rotating structure, 311-fixed plate, 321-first rotating rod, 322-first bevel gear, 323-second bevel gear, 324-rotating handle, 325-second rotating rod, 326-threaded rod, 331-sliding groove, 332-sliding block, 333-pressing plate, 341-rotating column, 342-first toothed ring, 343-second toothed ring, 344-gear, 3321-third rotating rod.
Detailed Description
The following description of the embodiments of the present invention will be made with reference to the accompanying drawings. The following examples are only for illustrating the technical solutions of the present invention more clearly, and the protection scope of the present invention is not limited thereby.
In the description of the present invention, it is to be understood that the terms "top," "inner," "outer," "first," "second," and the like are used in the orientation or positional relationship shown in the drawings for convenience of description and simplicity of description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.
For purposes of understanding and explanation, a support for garment design according to embodiments of the present invention is described in detail below.
As shown in fig. 1-4, a support for clothing design comprises a base 1, a support table 2 and a design frame 3.
Wherein, be provided with bearing platform 2 on the base 1, be provided with design frame 3 on the bearing platform 2, design frame 3 includes bottom plate 31, crane 32, working plate 33 and revolution mechanic 34. Wherein, its bottom one end of bottom plate 31 is articulated with bearing platform 2, and its bottom other end is connected with crane 32 that sets up on bearing platform 2, and the working plate 33 sets up on bottom plate 31, and the working plate 33 passes through revolution mechanic 34 with bottom plate 31 and rotates and be connected, and revolution mechanic 34 includes rotation post 341, first ring gear 342, second ring gear 343 and a plurality of gear 344. The rotating column 341 is fixedly arranged at the bottom of the working plate 33, the first gear ring 342 is arranged at the bottom end of the rotating column 341, the second gear ring 343 is fixedly arranged on the bottom plate 31 and is at the same height as the first gear ring, a plurality of gears 344 are arranged between the first gear ring 342 and the second gear ring 343, and each gear 344 is in meshed connection with the first gear ring 342 and the second gear ring 343. Through rotating the work plate 33, the work plate 33 drives the fixed rotation column 341 in its bottom and the first ring gear 342 on the rotation column 341 to rotate, and the first ring gear 342 realizes through a plurality of gear 344 with the displacement between the second gear 343 to realize the rotation of work plate 33 and bottom plate 31, make the cloth of fixing on the work plate 33 can realize the rotation of arbitrary angle, carry out the adjustment of angle to bottom plate 31 and work plate 33 through crane 32 according to the designer's needs simultaneously.
In order to achieve better angle adjustment of the bearing platform 2 and the bottom plate 31, the crane 32 comprises a first rotating rod 321, a first bevel gear 322, a second bevel gear 323, a rotating handle 324, a second rotating rod 325 and a threaded rod 36. The first rotating rod 321 is arranged inside the bearing platform 2, a first bevel gear 322 is arranged on the first rotating rod 321, the first bevel gear 322 is connected with a second bevel gear 323 in a meshed mode, a rotating handle 324 is arranged outside the bearing platform 2 and connected with the first rotating rod 321, one end of the second rotating rod 325 is connected with the second bevel gear 323, the other end of the second rotating rod 325 extends out of the bearing platform 2 through a bearing, an inner thread groove is formed in the second rotating rod 325, a threaded rod 326 is screwed in the inner thread groove, and the top of the threaded rod 326 is connected with the bottom plate 31. When the angle is adjusted, the first rotating rod 321, the first bevel gear 322 and the second bevel gear 323 are driven to rotate by rotating the handle 324, and the second bevel gear 323 drives the second rotating rod 325 to rotate, so that the angle of the bottom plate 31 is adjusted by screwing the threaded groove formed in the second rotating rod 325 with the threaded rod 36.
The first rotating rod 321 is driven by the second bevel gear 323 to rotate, the first rotating rod 321 drives the first bevel gear 322 thereon to move, the rotating handle 324 is driven by the movement of the first bevel gear 322 to start the lifting motion, so that one end of the bottom plate 31 is lifted, and meanwhile, the other end of the bottom plate 31 is hinged with the bearing platform 2, so that the bottom plate 31 is in angle adjustment motion.
In order to keep the stability of the cloth during design, each side of the working plate 33 is provided with a sliding groove 331, each sliding groove 331 is internally provided with a sliding block 332, each sliding block 332 is provided with a pressing plate 333, and the sliding blocks 332 drive the pressing plates 333 to move in the sliding grooves 331 so as to press and hold the cloth with different sizes.
In order to press and hold the cloth material better, a rotating rod 3321 is arranged on the sliding block 332, the pressing plate 333 is rotatably connected with the sliding block 332 through a third rotating rod 3321, the pressing plate 333 is fixedly connected with the top end of the third rotating rod 3321, and the third rotating rod 3321 is a screw rod and is in threaded connection with the top of the sliding block 332.
In order to facilitate measurement of the cloth size during design, a scale is provided on the work plate 33 outside the chute 331.
The top of the base 1 is provided with a lifting rod 11, and the top end of the lifting rod 11 is connected with the bearing platform 2.
The bottom plate 31 is provided with a fixing piece 311 rotatably connected to the operating plate 33 when the operating plate 33 is not required to rotate.
In order to maintain stability after the lifting, a fixing knob 12 is provided on the lifting lever 11.
In order to move conveniently, a plurality of universal wheels 13 are arranged at the bottom of the base 1.
The working principle is as follows: when the clothes hanger is designed, the cloth is fixed on the working plate, when the bottom or the side part needs to be designed in the design process, and when the clothes are displayed through multiple angles in the design process, the working plate is rotated through rotating the working plate, the working plate is rotated with the bottom plate through the rotating structure, so that the cloth fixed on the working plate can rotate at any angle, the height of a design frame is adjusted through the lifting rod, and meanwhile, the angle of the bottom plate and the working plate is adjusted through the lifting frame according to the requirement of a designer.
The above-mentioned embodiments are only preferred embodiments of the present invention, the protection scope of the present invention is not limited thereto, and any person skilled in the art can obviously obtain simple changes or equivalent replacements of the technical solutions within the technical scope of the present invention, all belong to the protection scope of the present invention.
Claims (9)
1. A support for apparel design, comprising:
a base (1) on which a bearing platform (2) is arranged;
design frame (3), set up on bearing platform (2), it includes:
one end of the bottom plate (31) is hinged with the bearing table (2), and the other end of the bottom plate is connected with the bearing table (2) through a lifting frame (32);
work board (33), set up on bottom plate (31), work board (33) and bottom plate (31) are through revolution mechanic (34) rotation connection, revolution mechanic (34) include:
the rotating column (341) is arranged at the bottom of the working plate (33), and the bottom end of the rotating column is provided with a first toothed ring (342);
the second gear ring (343) is fixedly arranged on the bottom plate (31) and is at the same height as the first gear ring (342);
a plurality of gears (344) are arranged between the first gear ring (342) and the second gear ring (343) and are all in meshed connection with the first gear ring (342) and the second gear ring (343).
2. A support for clothing design according to claim 1, wherein the lifting frame (32) comprises:
the first rotating rod (321) is arranged inside the bearing platform (2), a first bevel gear (322) is arranged on the first rotating rod, and a second bevel gear (323) is connected to the first bevel gear (322) in a meshed mode;
a rotating handle (324) arranged outside the bearing table (2) and connected with the first rotating rod (321);
and one end of the second rotating rod (325) is connected with the second bevel gear (323), an internal thread groove is formed in the other end of the second rotating rod, a threaded rod (326) is screwed in the internal thread groove, and the top of the threaded rod (326) is connected with the bottom plate (31).
3. A support for clothing design according to claim 1, characterized in that a chute (331) is provided on each side of the work plate (33), a slide block (332) is provided in each chute (331), and a press plate (333) is provided on each slide block (332).
4. A support for clothing design according to claim 3, wherein the slide block (332) is provided with a third rotating rod (3321), and the pressure plate (333) is rotatably connected with the slide block (332) through the third rotating rod (3321).
5. A support for clothing design according to claim 3, characterized in that a graduated scale is provided on the work plate (33) outside the chute (331).
6. A support for clothing design according to claim 1, characterized in that a lifting rod (11) is arranged on the top of the base (1), and the top end of the lifting rod (11) is connected with the bearing platform (2).
7. A support for clothing items according to claim 1, characterised in that the base plate (31) is provided with a fixing plate (311) which is pivotally connected to the work plate (33).
8. A support for clothing items according to claim 6, characterised in that the lifting bar (11) is provided with a fixing knob (12).
9. A support for clothing items according to claim 1, characterised in that the base (1) is provided with a number of casters (13) at its bottom.
