Abstract
The utility model discloses an automatic paint spraying machine of annular product, including base, station revolving stage, servo drive group, product rotary mechanism and the mechanism that sprays paint, the station revolving stage rotates and sets up on the base, and it passes through servo drive group drive, be equipped with a plurality of groups on the station revolving stage product rotary mechanism, product rotary mechanism is used for the drive to treat that the product that sprays paint is rotatory, it is equipped with one respectively to lie in station revolving stage both sides on the base the mechanism that sprays paint is used for treating the product that sprays paint to spray paint. The utility model provides an automatic paint spraying machine of annular product can rotate the product through product rotary mechanism, and the mechanism of spraying paint of both sides sprays paint to the product both sides simultaneously, need not the manual work change the face operation of trading, reaches except that the bottom surface all can be whole-length by the efficiency that evenly sprays paint, efficient and even good, pleasing to the eye, solve the artifical low-quality problem of inefficiency that sprays paint of tradition.
Description
Technical Field
The utility model relates to a technical field that sprays paint, concretely relates to automatic paint spraying machine of annular product.
Background
In modern industry, especially in machine manufacturing industry, paint spraying is more widely used, and most of the paint spraying devices on the market are mainly flat type, and especially for annular products such as bicycle wheels, motorcycle wheels, automobile wheels and the like, the flat type paint spraying efficiency is slow, the uniformity is poor, the requirement on technical operation of personnel is high, time and labor are wasted, and the effect is poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an automatic paint spraying machine of annular product can rotate the product through product rotary mechanism, and the mechanism of spraying paint of both sides sprays paint to the product both sides simultaneously, need not the manual work and trades a operation, reaches except that the bottom surface all can be whole body by the efficiency that evenly sprays paint, efficient and even good, pleasing to the eye, solve the artifical low-quality problem of inefficiency that sprays paint of tradition.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an automatic paint spraying machine of annular product, includes base, station revolving stage, servo drive group, product rotary mechanism and the mechanism that sprays paint, the station revolving stage rotates and sets up on the base, and it passes through servo drive group drive, be equipped with a plurality of groups on the station revolving stage product rotary mechanism, product rotary mechanism is used for the drive to treat that the product that sprays paint is rotatory, it is equipped with one respectively to lie in station revolving stage both sides on the base the mechanism that sprays paint is used for treating the product that sprays paint to spray paint and spray paint.
Preferably, product rotary mechanism includes mounting bracket, swiveling wheel and rotating electrical machines, the bottom of mounting bracket sets firmly on the station revolving stage, its top is equipped with at least three groups along circumferential direction the swiveling wheel, and wherein a set of the swiveling wheel passes through rotating electrical machines drives.
Preferably, at least one set of first lifting piece is arranged on the mounting frame, and the telescopic end of the first lifting piece is rotatably provided with the rotating wheel.
Preferably, a protective shell is arranged outside the rotating wheel, and a rotating gap is formed in the protective shell.
Preferably, the mechanism of spraying paint includes second lift piece, third lift piece, spray gun base, spray gun adjusting device and paint delivery pump, the second lift piece sets firmly on the base, and its flexible end is equipped with the third lift piece, the lift end of third lift piece is equipped with the spray gun base, the spray gun sets up on the spray gun base, spray gun adjusting device and paint delivery pump connect gradually.
Preferably, still including setting up the guard box in base the place ahead, be located in the guard box the below of product rotary mechanism is equipped with the catch basin.
After the technical scheme is adopted, compared with the background art, the utility model, have following advantage:
1. the utility model relates to an automatic paint spraying machine of annular product can rotate the product through product rotary mechanism, and the mechanism of spraying paint of both sides sprays paint to the product both sides simultaneously, need not the manual work and shifts the face operation, reaches except that the bottom surface all can be whole body by the efficiency that evenly sprays paint, efficient and even good, pleasing to the eye, solve the artifical low-quality problem of inefficiency that sprays paint of tradition.
2. The utility model relates to an automatic paint spraying machine of annular product, the last rotatory flexible end that sets up at first lift of at least a set of swiveling wheel of product rotary mechanism, the first lift of rethread is connected on the mounting bracket, be convenient for put and get annular product, high efficiency, it is fixed effectual, and can be through the high position of adjusting runner on the first lift, come the not unidimensional annular product of adaptation, the spray gun sets up through second lift and second lift cooperation, can spray paint the position control, the operation is simple and convenient, and wide application scope.
3. The utility model relates to an automatic paint spraying machine of annular product, the swiveling wheel outside is equipped with the protecting crust, is equipped with on the protecting crust to supply the swiveling wheel to expose and is used for driving annular product pivoted rotatory breach, improves the security height, and the swiveling wheel causes personnel's injury when preventing the operation of spraying paint, and the protective housing in base the place ahead, equipment can prevent through protective housing oneself protection when spraying paint man-hour, prevent to spray paint and cause equipment pollution.
Drawings
FIG. 1 is a schematic structural view of the present invention,

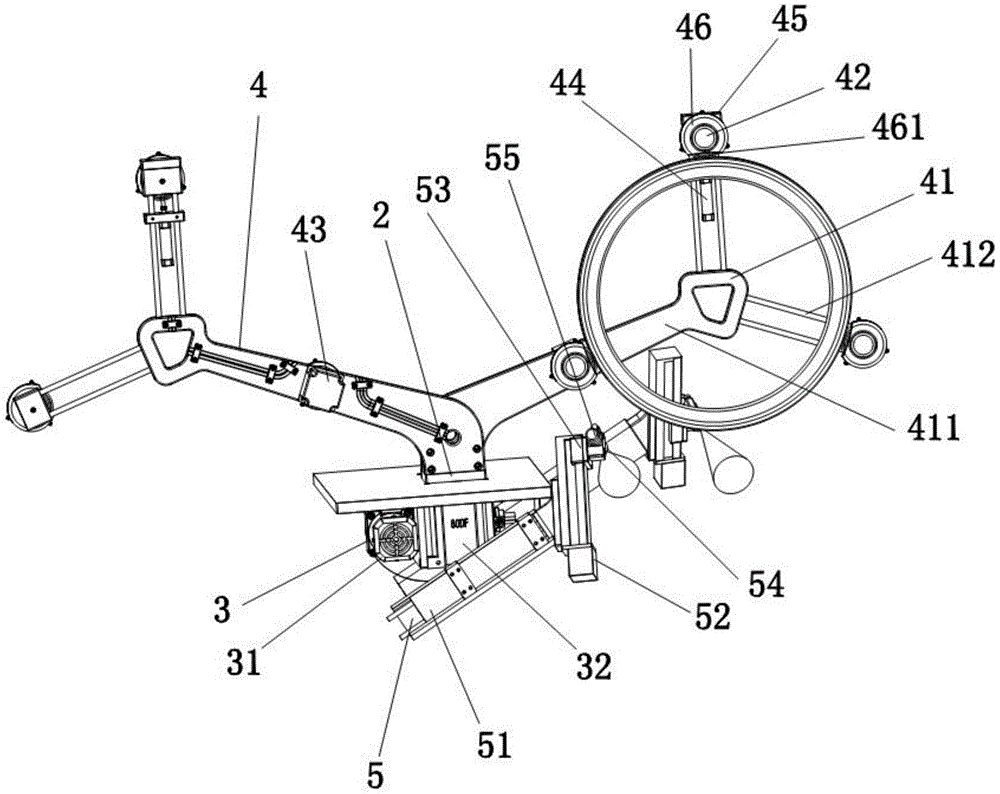

fig. 2 is the structure schematic diagram of the utility model after the protective box is removed.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
In the present invention, it should be noted that the terms "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. are all based on the orientation or position relationship shown in the drawings, and are only for convenience of description and simplification of the present invention, but do not indicate or imply that the device or element of the present invention must have a specific orientation, and thus, should not be construed as limiting the present invention.
Examples
Please refer to fig. 1 and fig. 2, the utility model discloses an automatic paint spraying machine of annular product, including base 1, station revolving stage 2, servo drive group 3, product rotary mechanism 4 and the mechanism 5 that sprays paint, station revolving stage 2 rotates and sets up on base 1, and it drives through servo drive group 3, be equipped with 2 groups of product rotary mechanism 4 on the station revolving stage 2, product rotary mechanism 4 is used for the drive to wait that the product that sprays paint is rotatory, it is equipped with a mechanism 5 that sprays paint respectively to be used for treating the product that sprays paint to spray paint to lie in station revolving stage 2 both sides on the base 1.
Product rotary mechanism 4 includes mounting bracket 41, swiveling wheel 42 and rotating electrical machines 43, and the bottom of mounting bracket 41 sets firmly on station revolving stage 2, and its top is equipped with three sets of swiveling wheels 42 along circumferential direction, and the mounting bracket is Y type mounting bracket, and it includes sill bar 411 and connects two sets of ejector pins 412 on sill bar 411 top, and sill bar 411 and two sets of 412 ejector pins rotate respectively and are equipped with a set of swiveling wheel 42, and wherein swiveling wheel 42 on the sill bar 411 passes through rotating electrical machines 43 drive.
The top end of one group of the top rods 412 is provided with a first lifting piece 44, the telescopic end of the first lifting piece 44 is provided with a rotating base 45, the rotating wheel 42 is rotatably arranged on the rotating base 45, the other group of the top rods 412 is directly provided with the rotating base 45, the rotating wheel 42 is rotatably arranged on the rotating base 45,
the rotating wheel 42 is externally provided with a protective shell 46, and the protective shell 46 is provided with a rotating notch 461, so that the safety is improved, and the rotating wheel is prevented from causing personnel injury during paint spraying operation.
The paint spraying mechanism 5 comprises a second lifting piece 51, a third lifting piece 52, a spray gun base 53, a spray gun 54, a spray gun adjusting device 55 and a paint delivery pump (not shown in the figure), the second lifting piece 51 is fixedly arranged on the base 1, the telescopic end of the second lifting piece is provided with the third lifting piece 52, the lifting end of the third lifting piece 52 is provided with the spray gun base 53, the spray gun 54 is arranged on the spray gun base 53, the spray gun 54, the spray gun adjusting device 55 and the paint delivery pump are sequentially connected, the second lifting piece 51 and the third lifting piece 52 are matched to adjust the position of the spray gun 54, the position of the spray paint can be adjusted, and the application range is wide.
Still including setting up protective housing 6 in base 1 the place ahead, the below that is located product rotary mechanism in protective housing 6 is equipped with collecting tank 61, and protective housing 6 prevents to spray paint and causes equipment pollution, and unnecessary paint vehicle concentrates the collection through flowing into collecting tank 61 when spraying paint and handles.
The servo driving group 3 comprises a servo motor 31 and a speed reducer 32, the station rotating platform 2 is rotatably arranged on the base 1, a rotating shaft is arranged at the bottom end of the station rotating platform, and the servo motor 31 is connected with the rotating shaft through the speed reducer 32.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that can be easily conceived by those skilled in the art within the technical scope of the present invention should be covered by the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.
Claims (6)
1. The utility model provides an automatic paint spraying machine of annular product which characterized in that: including base, station revolving stage, servo drive group, product rotary mechanism and the mechanism that sprays paint, the station revolving stage rotates to set up on the base, and it passes through servo drive group drive, be equipped with a plurality of groups on the station revolving stage product rotary mechanism, product rotary mechanism is used for the drive to treat that the product that sprays paint is rotatory, it is equipped with one respectively to lie in station revolving stage both sides on the base the mechanism that sprays paint is used for treating the product that sprays paint and sprays paint.
2. An automatic paint spraying machine for annular products according to claim 1, characterized in that: product rotary mechanism includes mounting bracket, swiveling wheel and rotating electrical machines, the bottom of mounting bracket sets firmly on the station revolving stage, its top is equipped with at least three groups along circumferential direction the swiveling wheel, and wherein a set of the swiveling wheel passes through the rotating electrical machines drive.
3. An automatic paint spraying machine for annular products according to claim 2, characterized in that: at least, be equipped with a set of first lifting member on the mounting bracket, the flexible end rotation of first lifting member is equipped with the swiveling wheel.
4. An automatic paint spraying machine for annular products according to claim 2, characterized in that: the rotating wheel is characterized in that a protective shell is arranged outside the rotating wheel, and a rotating notch is formed in the protective shell.
5. An automatic paint spraying machine for annular products according to claim 1, characterized in that: the mechanism of spraying paint includes second lift piece, third lift piece, spray gun base, spray gun adjusting device and paint delivery pump, the second lift piece sets firmly on the base, its flexible end is equipped with the third lift piece, the lift end of third lift piece is equipped with the spray gun base, the spray gun sets up on the spray gun base, spray gun adjusting device and paint delivery pump connect gradually.
6. An automatic paint spraying machine for annular products according to claim 1, characterized in that: still including setting up the protective housing in base the place ahead, be located in the protective housing the below of product rotary mechanism is equipped with the collecting tank.
