Abstract

The utility model discloses a movable device for basketball shooting training of teenagers, which comprises a first bracket, wherein one side of the first bracket is connected with a second bracket, and the upper end of the second bracket is provided with an arm bracket; the upper end of the first support is connected with a main support rod, and the top end of the main support rod is provided with a backboard; the middle upper part of the main supporting rod is movably provided with a movable supporting rod, and the spare end of the movable supporting rod is connected with a basketball component; a triangular support is fixed on the main support rod below the movable support rod, and an elastic rope and a hydraulic rod are arranged between the movable support rod and the triangular support. The equipment strictly standardizes the shooting technical actions such as a ball holding method, an aiming point, a force application sequence of the shooting ball action, a ball flying arc line, ball rotation and the like of the shooting basic technical actions, and the shooting basic technical actions are guarantee of high shooting hit rate. The shooting technical actions of teenagers are standardized through the equipment, the dynamic setting of the shooting technical actions is formed, and the shooting hit rate is improved.

Description

A mobile device for training of teenagers' basketball shooting
Technical Field
The utility model relates to a sports training equipment field, in particular to a mobile device that is used for training of teenagers' basketball shooting technical motion.
Background
Shooting is the main attacking technique of basketball movement and is the only means of scoring. The ultimate goal of all attacking technologies and tactical applications is to create more shooting opportunities and strive for hit-and-shoot scores. How to standardize the shooting actions of basketball players of teenagers, form standard shooting technical actions and improve the shooting hit rate is very important for the basketball players of the teenagers. The existing shooting equipment is applied to shooting training, shooting entertainment and games, and lacks the training and guiding of the basic technical action specification of shooting. The shooting technical action training method for the basketball beginners of the teenagers is more in the face of basket simulation exercise, the training method lacks pertinence and practicability, is easy to act and deform due to external interference, and is not easy for the teenagers to form technical action shaping.
Therefore, the applicant thinks that the movable equipment for training the shooting of teenagers is beneficial to standardizing the shooting technical action and fixing the shooting technology of the teenagers, and the equipment exercise can enable the teenagers to master the basic technical action of shooting, coordinate the exertion of upper limbs and lower limbs and play an extremely important role in improving the shooting hit rate.
SUMMERY OF THE UTILITY MODEL
The utility model provides a solve the current shooting equipment mainly used shooting training, and can't be used for standardizing the problem of beginner's shooting technique, provide a mobile device that is used for teenagers ' basketball shooting training.
The utility model discloses a can realize through following technical scheme.
A movable device for teenager basketball shooting training comprises a first support, wherein one side of the first support is connected with a second support, and an arm support is arranged at the upper end of the second support; the upper end of the first support is connected with a main support rod, and the top end of the main support rod is provided with a backboard; the middle upper part of the main supporting rod is movably provided with a movable supporting rod, and the spare end of the movable supporting rod is connected with a basketball component; a triangular support is fixed on the main support rod below the movable support rod, and an elastic rope and a hydraulic rod are arranged between the movable support rod and the triangular support.
Further, the first support comprises a first base, and the middle part of the first base is vertically connected with a first upright post; the bottom end of the main supporting rod is inserted into the first upright post.
Furthermore, the second bracket comprises a second base, one end of the second base is connected with the first bracket, and the other end of the second base is vertically connected with the second upright post; the tail end of the arm support is inserted into the second upright post.
Furthermore, the arm support comprises a vertical rod and a cross rod which are perpendicular to each other, and the tail end of the vertical rod is inserted into the second support; one end of the cross rod, which is far away from the vertical rod, is provided with a U-shaped limiting frame.
Furthermore, the movable support rod is connected with the main support rod through a fixing block; the fixed block is the U type, is equipped with the rotation axis between two arms of fixed block, and the end of activity bracing piece is worn to establish on the rotation axis.
Furthermore, the movable support rod comprises a connecting pipe, and a first outer sleeve and a second outer sleeve are respectively arranged at two ends of the connecting pipe; one end of the first outer sleeve pipe, which is far away from the connecting pipe, is connected with the main support rod; one end of the second outer sleeve, which is far away from the connecting pipe, is connected with the basketball component.
Furthermore, a hydraulic rod is arranged between the first outer sleeve and the triangular support; the end part of the first outer sleeve and the end part of the triangular support are connected through an elastic rope.
Further, the basketball component comprises an artificial basketball, the artificial basketball is connected with the connecting rod, the connecting rod is fixed at the tail end of the L-shaped connecting rod through a bearing, and one end, far away from the artificial basketball, of the L-shaped connecting rod is connected with the movable supporting rod.
The present application has the following advantageous effects.
The utility model provides a teenagers 'training equipment of shooting forms according to basketball shooting technical principle and human structural design, can standardize and fix teenagers' shooting technical motion through this equipment, uses this equipment training can make beginner skilled master shooting technical motion, the full-length coordination power when shooting to and the action such as the wrist of pressing of shooting and thumb have extremely important effect to improving the shooting hit rate. In addition, the shooting training equipment is convenient to detach, can be assembled in different scenes to train teenagers, and is convenient to transport and store. The utility model discloses simple structure, convenient to use, excellent in use effect has wide application prospect.
Drawings

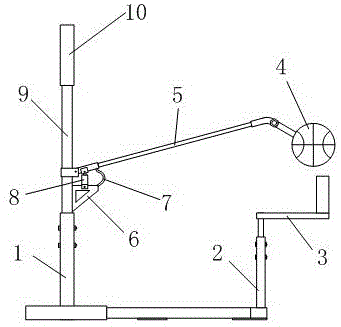

FIG. 1 is a front view of the present invention (basketball is not thrown);
FIG. 2 is a front view of the present invention (basketball shooting);
fig. 3 is a top view of the first and second brackets of the present invention;
FIG. 4 is a schematic structural view of an arm support and a second support of the present invention;
figure 5 is a schematic view of the connection between the basketball system and the movable support pole of the present invention;
FIG. 6 is a schematic structural view of a simulated basketball of the present invention;
fig. 7 is a schematic view of the connection mode of the middle movable support rod and the main support rod of the present invention.
Wherein, 1, a first bracket; 101. a first upright post; 102. a first base; a second support; 201. a second upright post; 202. a second base; 203. a non-slip mat; 3. an arm support; 301. erecting a rod; 302. a cross bar; 303.U-shaped limiting frame; 4. a basketball component; 401. simulating a basketball; 402. a connecting rod; a 403.L-shaped connecting rod; 5. a movable support rod; 501. a first outer sleeve; 502. a connecting pipe; 503. a second outer sleeve; 6. a triangular bracket; 7. an elastic cord; 8. a hydraulic lever; 801. a fixed mount; 9. a main support bar; 901. a fixed block; 10. a backboard.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and examples.
As shown in fig. 1 to 7, a movable apparatus for a basketball shooting training of teenagers includes a first stand 1, a second stand 2, an arm stand 3, a basketball module 4, a movable support bar 5, a tripod 6, an elastic string 7, a hydraulic bar 8, a main support bar 9, and a backboard 10.
The first bracket 1 comprises a first base 102, wherein the first base 102 is a square or rectangular frame, and a crisscross reinforced steel pipe is formed in the middle of the square or rectangular frame. An insertion opening for inserting the second bracket 2 is formed in the frame wall corresponding to one of the reinforcing steel pipes. The first vertical columns 101 are vertically connected to the centers of the criss-cross reinforcing steel pipes, hollow structures are formed in the first vertical columns 101 for the main support rods 9 to be inserted, and a plurality of through holes are formed in the side walls of the first vertical columns 101 and located on the same straight line. The base that this application formed more stable has guaranteed the security of teenager in training process and the stability of apparatus.
The second bracket 2 comprises a second base 202, the second base 202 comprises a first square steel tube and a second square steel tube which are arranged in a T shape, and one end of the first square steel tube is inserted into an insertion opening formed by the first base 102. The second stand 201 is connected perpendicularly to handing-over department of first side steel pipe and second side steel pipe, forms hollow structure in the second stand 201, forms a plurality of through-holes on the lateral wall of second stand 201, and a plurality of through-holes are located same straight line. In order to improve the stability of second support 2, this application still is equipped with slipmat 203 in the bottom of second base 202, increases the frictional force of second support 2 and ground, prevents that second support 2 from taking place the displacement in the use. This application can be different according to sportsman's height, arm length, adjusts the distance between first support 1 and the second support 2 at any time to guarantee the travelling comfort and the standardization that sportsman shot, improved the flexibility of equipment application simultaneously.
The arm support 3 comprises an upright stanchion 301 and a cross rod 302 which are perpendicular to each other, a plurality of through holes are formed in the upright stanchion 301 and are positioned on the same straight line, the tail end of the upright stanchion 301 is inserted into the second upright stanchion 201, the through holes in the upright stanchion 301 correspond to the through holes in the second upright stanchion 201, and bolts are inserted into the through holes, so that the relative positions of the second upright stanchion 201 and the upright stanchion 301 are fixed, and the height of the arm support 3 can be adjusted along with the height change of the athlete; the U-shaped limiting frame 303 is vertically arranged at one end of the cross rod 302, which is far away from the vertical rod 301, the U-shaped limiting frame 303 is used for standardizing the basketball shooting action of the sportsman and keeping the correct angle of the elbow joint, the U-shaped limiting frame 303 is vertical to the cross rod 302 and is used for fixing the position of the elbow joint, the elbow joint is prevented from excessively moving upwards and downwards, and the large arm and the body are kept to form 90 degrees. The arrangement of all the supporting structures avoids the area under the U-shaped limiting frame 303, and the reason is that when the athlete carries out shooting training, the knee is bent and squat to cause the knee to enter the area, and if the supporting structures are designed in the area, the knee is inevitably hit, so that the safety of the exercise is affected.
The lower extreme of main tributary vaulting pole 9 inserts in first stand 101, forms a plurality of through-holes on the lower part lateral wall of main tributary vaulting pole 9, and a plurality of through-holes are located same straight line, and the through-hole on the main tributary vaulting pole 9 corresponds with the through-hole of first stand 101, through inserting the bolt in the through-hole to realize the fixed of first stand 101 and main tributary vaulting pole 9 relative position, and then realize the regulation of main tributary vaulting pole 9 height, be used for controlling the height of whole training apparatus. In the shooting training process, the height difference exists in the athlete, and the proper height of the simulated backboard is adjusted according to different heights so as to ensure the training effect of the athlete. In addition, the device can be used for training the shooting technique action of adults and teenagers and training the in-situ jumping technique of athletes by changing the height of the device.
In the actual shooting, the player selects a point object as a shooting reference or aiming point, typically a basket or a portion of a backboard. Therefore, the top end of this application main tributary vaulting pole 9 is equipped with backboard 10, and backboard 10 is used for simulating actual shooting training, improves the training authenticity.
A U-shaped fixing block 901 is fixed on the middle upper part of the main supporting rod 9, a rotating shaft is arranged between two arms of the fixing block 901, the tail end of the movable supporting rod 5 is arranged on the rotating shaft in a penetrating way, and the movable supporting rod 5 can rotate for a certain angle along the rotating shaft. When a player shoots a basketball, acting force is applied by the shooting technology of pedaling, extending, lifting, pressing, poking and the like, so that the movable support rod 5 swings up and down along with the basketball to support the flight path of the basketball in the air.
The movable support rod 5 comprises a connecting pipe 502, and a first outer sleeve 501 and a second outer sleeve 503 are respectively arranged at two ends of the connecting pipe 502; one end of the first outer sleeve 501, which is far away from the connecting pipe 502, is arranged on a rotating shaft of the fixed block 901 in a penetrating manner; the end of the second outer sleeve 503 remote from the connecting tube 502 is connected to the basketball system 4.
A triangular bracket 6 is fixed on the main support rod 9 below the fixed block 901, and a hydraulic rod 8 and an elastic rope 7 are arranged between the first outer sleeve 501 and the triangular bracket 6. Two ends of the hydraulic rod 8 are connected with U-shaped fixing frames 801, and the two fixing frames 801 are respectively connected to the middle of the triangular support 6 and the middle of the first outer sleeve 501. The two ends of the connecting rope 7 are respectively connected with the end part of the triangular bracket 6 and the end part of the first outer sleeve 501. The hydraulic rod 8 plays a role in buffering the falling process of the movable support rod 5 and the ball, and keeps certain rhythm and speed sense in the shooting process; the elastic rope 7 plays a role in limiting the rotation angle of the movable supporting rod 5, and when the basketball cannot rise when reaching the highest point, the movable supporting rod 5 and the basketball are controlled to return in time so as to start the next shooting action.
The basketball assembly 4 of the present application includes a simulated basketball 401, and the simulated basketball 401 can be divided into three types, i.e., a No. 5 ball, a No. 6 ball, and a No. 7 ball. The simulated basketball 401 is connected with the connecting rod 402, the middle part of the connecting rod 402 is a hexagonal or square rod body, and the tail end of the connecting rod 402 is a cylindrical rod body and is provided with threads. The connecting rod 402 is arranged in a mounting hole at one end of the L-shaped connecting rod 403 in a penetrating manner, and a bearing is arranged in the mounting hole. The end of the L-shaped connecting rod 403 remote from the simulated basketball 401 is connected to a second outer sleeve 503. This application can fix teenagers' hand action of shooting with the help of the basketball to and the ball can carry out suitable rotation, improves the shooting hit rate. In the shooting process, the player dials the ball with the index finger and the middle finger and presses the wrist to rotate the ball backwards, so that the flying stability of the ball is improved.
The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims (8)

1. A mobile device for juvenile basketball shooting training, characterized in that: comprises a first bracket (1), one side of the first bracket (1) is connected with a second bracket (2), and the upper end of the second bracket (2) is provided with an arm bracket (3); the upper end of the first support (1) is connected with a main support rod (9), and the top end of the main support rod (9) is provided with a backboard (10); the middle upper part of the main supporting rod (9) is movably provided with a movable supporting rod (5), and the spare end of the movable supporting rod (5) is connected with the basketball component (4); a triangular support (6) is fixed on the main support rod (9) below the movable support rod (5), and an elastic rope (7) and a hydraulic rod (8) are arranged between the movable support rod (5) and the triangular support (6).
2. The mobile device for juvenile basketball shooting training as recited in claim 1, wherein: the first support (1) comprises a first base (102), and the middle part of the first base (102) is vertically connected with a first upright post (101); the bottom end of the main supporting rod (9) is inserted into the first upright post (101).
3. The mobile device for juvenile basketball shooting training as recited in claim 1, wherein: the second support (2) comprises a second base (202), one end of the second base (202) is connected with the first support (1), and the other end of the second base (202) is vertically connected with a second upright column (201); the tail end of the arm support (3) is inserted into the second upright post (201).
4. The removable apparatus for juvenile basketball shooting training as defined in claim 1, wherein: the arm support (3) comprises a vertical rod (301) and a cross rod (302) which are perpendicular to each other, and the tail end of the vertical rod (301) is inserted into the second support (2); one end of the cross rod (302) far away from the upright rod (301) is provided with a U-shaped limiting frame (303).
5. The removable apparatus for juvenile basketball shooting training as defined in claim 1, wherein: the movable support rod (5) is connected with the main support rod (9) through a fixing block (901); the fixing block (901) is U-shaped, a rotating shaft is arranged between two arms of the fixing block (901), and the tail end of the movable supporting rod (5) penetrates through the rotating shaft.
6. The mobile device for juvenile basketball shooting training as recited in claim 1, wherein: the movable supporting rod (5) comprises a connecting pipe (502), and a first outer sleeve (501) and a second outer sleeve (503) are respectively arranged at two ends of the connecting pipe (502); one end of the first outer sleeve (501), which is far away from the connecting pipe (502), is connected with the main supporting rod (9); the end of the second outer sleeve (503) distal from the connector (502) is connected to the basketball system (4).
7. The mobile device for juvenile basketball shooting training as recited in claim 6, wherein: a hydraulic rod (8) is arranged between the first outer sleeve (501) and the triangular bracket (6); the end part of the first outer sleeve (501) is connected with the end part of the triangular bracket (6) through an elastic rope (7).
8. The mobile device for juvenile basketball shooting training as recited in claim 1, wherein: the basketball component (4) comprises a simulated basketball (401), the simulated basketball (401) is connected with a connecting rod (402), the connecting rod (402) is fixed at the tail end of an L-shaped connecting rod (403) through a bearing, and one end, far away from the simulated basketball (401), of the L-shaped connecting rod (403) is connected with a movable supporting rod (5).
