CN217770190U - An intelligent network security monitoring camera with cleaning function - Google Patents

Abstract

The utility model discloses an intelligent network security monitoring camera with a cleaning function, which comprises an installation plate, wherein two pairs of through holes are formed on the installation plate, bolts pass through the through holes, and one side of the installation plate is provided with bolts. The side is provided with a horizontal plate, and the side of the horizontal plate close to the mounting plate is fixedly connected with a slider, the side wall of the mounting plate is provided with a sliding groove matching the sliding block, and the sliding block is located in the sliding groove, A casing is arranged above the horizontal plate, and a rotating mechanism is arranged between the horizontal plate and the casing. The inner wall of the casing is fixedly connected with a glass block, and the inner wall of the casing is fixedly connected with the camera body. The top of the casing is fixedly connected with a pair of L-shaped blocks, the bottom of the casing is fixedly connected with a fixed block, and the top of the pair of L-shaped blocks is fixedly connected with a first motor, the utility model has the function of preventing dust from adhering to the glass. It is easy to clean the wipe cloth, and the height and angle of the camera body are convenient to adjust.

Description

A camera for intelligent network security monitoring with cleaning function

technical field

The utility model relates to the technical field of cameras, in particular to an intelligent network security monitoring camera with a cleaning function.

Background technique

A smart camera is a device that converts optical image signals into electrical signals and records them. It converts light into electrical energy through camera devices to obtain video signals, amplifies them through pre-amplification circuits, and processes and adjusts various circuits to obtain standard signals. A device that records on a recording medium such as a video.

However, after the existing smart surveillance cameras usually work for a long time, a lot of dust or water stains will be absorbed on the lens or glass cover of the smart camera, which makes the picture taken by the smart camera blurred and greatly affects the normal monitoring of the smart camera. work, so if the smart camera is not cleaned, the monitoring effect will be greatly reduced. Therefore, in order to correct the above-mentioned defects, we propose a smart network security monitoring camera with a cleaning function.

Contents of the invention

The technical problem solved by the utility model is to overcome the defects of the prior art and provide an intelligent network security monitoring camera with a cleaning function.

In order to achieve the above purpose, the utility model provides the following technical solutions: a camera with cleaning function for intelligent network security monitoring, including a mounting plate, two pairs of through holes are opened on the mounting plate, through which there are Bolts, one side of the mounting plate is provided with a horizontal plate, the side of the horizontal plate close to the mounting plate is fixedly connected with a slider, and the side wall of the mounting plate is provided with a chute matching the slider, so The slider is located in the chute, a housing is provided above the horizontal plate, and a rotating mechanism is provided between the horizontal plate and the housing, a glass block is fixedly connected to the inner wall of the housing, and a glass block is fixed on the inner wall of the housing. A camera body is fixedly connected, and a pair of L-shaped blocks are fixedly connected to the top of the housing, a fixed block is fixedly connected to the bottom of the housing, and a first motor is fixedly connected to the top of the pair of L-shaped blocks. The output shaft of the first motor runs through the L-shaped block, and a moving block is arranged under a pair of the L-shaped blocks. The outer wall of the moving block close to the glass block is fixedly connected with a hook surface Velcro, and the hook surface Velcro There is a Velcro with a rough surface on it, and a wiping cloth is provided on the side of the Velcro with a rough surface close to the glass block. A pair of threaded holes are opened on the moving block, and a threaded rod is connected to the threaded hole internally. The top end of the rod is fixedly connected to the output shaft of the first motor, and the bottom end of the threaded rod is movably connected to the top of the fixed block, and the bottom of a pair of L-shaped blocks is fixedly connected with a positioning rod, and the positioning rod The bottom end runs through the moving block and is fixedly connected to the top of the fixed block.

Preferably, the rotating mechanism includes a second motor, the second motor is fixedly connected to the top of the horizontal plate, the output shaft of which is fixedly connected with the first gear, and one side of the second motor is provided with a rotating rod, The bottom end of the rotating rod is movably connected to the top of the horizontal plate, and the shaft of the rotating rod is fixedly connected with a second gear, the second gear meshes with the first gear, and the top end of the rotating rod is fixedly connected at the bottom of the housing.

Preferably, the two pairs of bolts are arranged symmetrically with respect to the central axis of the mounting plate.

Preferably, a pair of threaded rods are arranged symmetrically with respect to the central axis of the moving block.

Preferably, several cooling holes are opened on the top of the housing, and a dust-proof net is arranged above the cooling holes, and the dust-proof net is fixedly connected to the top of the housing.

Preferably, a positioning block is fixedly connected to the top of the mounting plate, a pair of electric telescopic rods are fixedly connected to the top of the positioning block, and the output shafts of a pair of electric telescopic rods pass through the positioning block and are fixedly connected to the horizontal plate. top.

Preferably, a pair of said electric telescopic rods are arranged symmetrically with respect to the central axis of the horizontal plate.

Compared with the prior art, the beneficial effects of the utility model are:

1. Through the arrangement among the housing, glass block, L-shaped block, first motor, threaded rod, moving block and wiping cloth, the surface of the glass block can be wiped to prevent dust from adhering to the glass block, thereby improving the camera body shooting clarity;

2. Through the setting between the hook surface Velcro and the wool surface Velcro, it is easy to remove the wiping cloth, thereby improving the convenience of cleaning the wiping cloth;

3. Through the setting between the second motor, the first gear, the second gear and the rotating rod, the angle of the camera body can be adjusted, and the height of the camera body can be adjusted through the setting of the electric telescopic rod and the horizontal plate.

Description of drawings

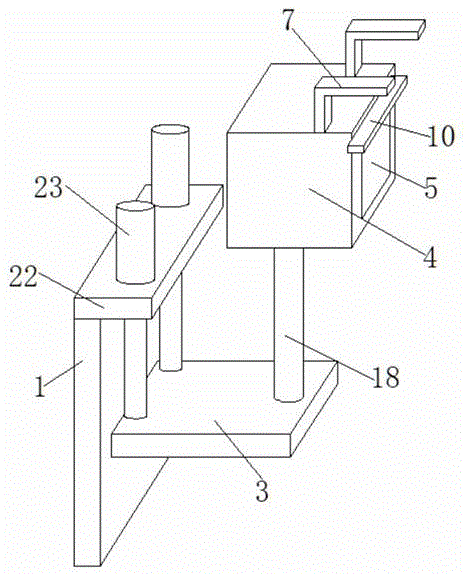

Fig. 1 is a partial perspective view of the utility model;

Fig. 2 is the overall schematic diagram of the utility model;

Fig. 3 is the right side view of housing and glass block;

Fig. 4 is the right side view of mounting plate and positioning block;

Fig. 5 is an enlarged view of A in Fig. 2 .

Symbols in the figure: 1. Mounting plate; 2. Bolt; 3. Horizontal plate; 4. Housing; 5. Glass block; 6. Camera body; 7. L-shaped block; 8. Fixed block; 9. First motor; 10, moving block; 11, hook surface Velcro; 12, rough surface Velcro; 13, wiping cloth; 14, threaded rod; 15, positioning rod; 16, second motor; 17, first gear; 18, rotating rod ; 19, the second gear; 20, cooling holes; 21, dust-proof net; 22, positioning block; 23, electric telescopic rod.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-5, the utility model provides a kind of technical scheme: a kind of intelligent network security monitoring camera with cleaning function, comprises installation board 1, and the top of installation board 1 is fixedly connected with positioning block 22, and the positioning block 22 The top is fixedly connected with a pair of electric telescopic rods 23, and the pair of electric telescopic rods 23 are symmetrically arranged about the central axis of the horizontal plate 3, and the force is uniform, which improves the stability of the height adjustment of the camera body 6. The output shafts of the pair of electric telescopic rods 23 Through the positioning block 22, and fixedly connected to the top of the horizontal plate 3, the height of the camera body 6 can be adjusted. There are two pairs of through holes on the mounting plate 1, and there are bolts 2 passing through the through holes. The two pairs of bolts 2 are about the mounting plate. The central axis of 1 is symmetrically arranged, the force is uniform, and the stability of device installation is improved. One side of the mounting plate 1 is provided with a horizontal plate 3, and the side of the horizontal plate 3 close to the mounting plate 1 is fixedly connected with a slider. The mounting plate 1 There is a chute matching the slider on the side wall, the slider is located in the chute, a housing 4 is provided above the horizontal plate 3, and a number of cooling holes 20 are opened on the top of the housing 4, and the cooling holes 20 A dust-proof net 21 is provided above, and the dust-proof net 21 is fixedly connected to the top of the housing 4 to facilitate the heat dissipation of the camera body 6, and a rotating mechanism is provided between the horizontal plate 3 and the housing 4, and the rotating mechanism includes a second motor 16 , the second motor 16 is fixedly connected to the top of the horizontal plate 3, its output shaft is fixedly connected with the first gear 17, and one side of the second motor 16 is provided with a rotating rod 18, and the bottom end of the rotating rod 18 is movably connected to the horizontal The top of the plate 3, and the shaft of the rotating rod 18 is fixedly connected with the second gear 19, the second gear 19 is meshed with the first gear 17, the top of the rotating rod 18 is fixedly connected to the bottom of the housing 4, adjusted by the rotating mechanism The angle of the camera body 6, the inner wall of the housing 4 is fixedly connected with a glass block 5, the inner wall is fixedly connected with the camera body 6, and the top of the housing 4 is fixedly connected with a pair of L-shaped blocks 7, and the bottom of the housing 4 is fixed. A fixed block 8 is connected, and a first motor 9 is fixedly connected to the top of a pair of L-shaped blocks 7. The output shaft of the first motor 9 runs through the L-shaped block 7, and a moving block 10 is arranged below the pair of L-shaped blocks 7. Block 10 is fixedly connected with a hook surface Velcro 11 on the outer wall near the glass block 5, the hook surface Velcro 11 is provided with a rough surface Velcro 12, and the side of the rough surface Velcro 12 near the glass block 5 is provided with a wiping cloth 13, A pair of threaded holes are provided on the moving block 10, and the threaded holes are internally threaded to be connected with threaded rods 14. The pair of threaded rods 14 are arranged symmetrically about the central axis of the moving block 10, and the force is uniform, which improves the stability of the wiping cloth 13 to wipe the glass block 5 The top end of the threaded rod 14 is fixedly connected to the output shaft of the first motor 9, and the bottom end of the threaded rod 14 is movably connected to the top of the fixed block 8, and the bottoms of a pair of L-shaped blocks 7 are fixedly connected with a positioning rod 15, The bottom end of the positioning rod 15 runs through the moving block 10 and is fixedly connected to the top of the fixed block 8 .

Working principle: when the utility model is working, the device is installed to the working position through the bolt 2 and the mounting plate 1. During the working process of the camera body 6, dust is adhered to the glass block 5. At this time, the first motor 9 is started, and the second motor 9 is started. A motor 9 drives the threaded rod 14 to rotate, and then through the threaded cooperation between the threaded rod 14 and the moving block 10, the moving block 10 is driven to move up and down, and then the moving block 10 drives the wiping cloth 13 to move up and down, and then the glass block 5 is wiped. To improve the monitoring clarity of the camera body 6, when the wiper 13 needs to be cleaned, the moving block 10 is driven by the first motor 9 and the threaded rod 14 to move to the top of the housing 4, and then the textured Velcro 12 is pulled down, The wiping cloth 13 can be cleaned, and when the angle of the camera body 6 needs to be adjusted, the second motor 16 is started, and the second motor 16 drives the first gear 17 to rotate, and then the first gear 17 drives the second gear 19 and the rotating rod 18 to rotate , and then drive the casing 4 and the camera body 6 to rotate through the rotating rod 18, thereby adjusting the angle of the camera body 6, when the height of the camera body 6 needs to be adjusted, start the electric telescopic rod 23, and the electric telescopic rod 23 drives the horizontal plate 3 to move up and down , the horizontal plate 3 drives the rotating rod 18 and the housing 4 to move up and down, and then the height of the camera body 6 is adjusted.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an intelligence camera for network security monitoring with clean function, includes mounting panel (1), its characterized in that: the improved multifunctional cleaning device is characterized in that two pairs of through holes are formed in the mounting plate (1), bolts (2) penetrate through the through holes, a transverse plate (3) is arranged on one side of the mounting plate (1), a sliding block is fixedly connected to one side, close to the mounting plate (1), of the transverse plate (3), a sliding groove matched with the sliding block is formed in the side wall of the mounting plate (1), the sliding block is located in the sliding groove, a shell (4) is arranged above the transverse plate (3), a rotating mechanism is arranged between the transverse plate (3) and the shell (4), a glass block (5) is fixedly connected to the inner wall of the shell (4), a camera body (6) is fixedly connected to the inner wall of the shell, a pair of L-shaped blocks (7) is fixedly connected to the top of the shell (4), a fixed block (8) is fixedly connected to the bottom of the shell (4), a first motor (9) is fixedly connected to the top of the L-shaped blocks (7), an output shaft of the first motor (9) penetrates through the L-shaped blocks (7), a pair of L-shaped blocks (7) is provided with a moving block (10) below, a magic cloth (12) is fixedly connected to the outer wall, a hook face (11) of the moving block (10) is close to the outer wall of the glass block (5), the movable block (10) is provided with a pair of threaded holes, threaded rods (14) are connected to the threaded holes in an internal thread mode, the top ends of the threaded rods (14) are fixedly connected to an output shaft of the first motor (9), the bottom ends of the threaded rods (14) are movably connected to the tops of the fixed blocks (8), a pair of positioning rods (15) are fixedly connected to the bottoms of the L-shaped blocks (7), and the bottom ends of the positioning rods (15) penetrate through the movable block (10) and are fixedly connected to the tops of the fixed blocks (8).

2. The camera with the cleaning function for the intelligent network security monitoring as recited in claim 1, wherein: slewing mechanism includes second motor (16), second motor (16) fixed connection is at the top of diaphragm (3), the first gear of fixedly connected with (17) on its output shaft, just one side of second motor (16) is equipped with dwang (18), the bottom swing joint of dwang (18) is at the top of diaphragm (3), just fixedly connected with second gear (19) on the pole body of dwang (18), second gear (19) mesh with first gear (17) mutually, the top fixed connection of dwang (18) is in the bottom of casing (4).

3. The camera with the cleaning function for the intelligent network security monitoring as recited in claim 1, wherein: the two pairs of bolts (2) are symmetrically arranged around the central axis of the mounting plate (1).

4. The camera with the cleaning function for the intelligent network security monitoring as claimed in claim 1, wherein: the pair of threaded rods (14) is symmetrically arranged about the central axis of the moving block (10).

5. The camera with the cleaning function for the intelligent network security monitoring as claimed in claim 1, wherein: a plurality of heat dissipation holes (20) are formed in the top of the shell (4), a dust screen (21) is arranged above the heat dissipation holes (20), and the dust screen (21) is fixedly connected to the top of the shell (4).

6. The camera with the cleaning function for the intelligent network security monitoring as claimed in claim 1, wherein: the top fixedly connected with locating piece (22) of mounting panel (1), the top fixedly connected with of locating piece (22) is a pair of electric telescopic handle (23), and is a pair of electric telescopic handle (23)'s output shaft runs through locating piece (22) to fixed connection is at the top of diaphragm (3).

7. The camera with cleaning function for intelligent network security monitoring of claim 6, wherein: the pair of electric telescopic rods (23) are symmetrically arranged around the central axis of the transverse plate (3).
