The utility model discloses a light current cable installing support, including the mounting panel, the mounting panel all is provided with the limiting plate from top to bottom, it is equipped with the slide to all insert between mounting panel and the limiting plate, below slide one side is connected with first splint, the top sliding connection has the second splint, be equipped with the slot on the mounting panel, the slot interpolation is equipped with the spliced pole, spliced pole one side is provided with the connecting plate, connecting plate one side is provided with the winding displacement post, be equipped with first double-layered groove on the first splint, it presss from both sides the groove to be equipped with the second on the second splint, the equipartition is equipped with outer wire casing on first splint and the second splint, lay the inner wire casing on the winding displacement post. Imbed the cable respectively in outer wire casing or interior wire casing, first splint slide to the winding displacement post with the second splint, pass the through-hole from last to down with clamping bolt, and the nut spiro union is at clamping bolt's lower extreme, screws up the nut, makes first splint and second splint tightly hug closely close the winding displacement post, and the weak current cable is difficult for the winding in outer wire casing and wire casing.
Description
Technical Field
The utility model belongs to the technical field of the cable installation, concretely relates to light current cable installing support.
Background
The weak current cable is used for the security protection communication, and electrical equipment and relevant weak current cable of transmission usefulness, the weak current cable can be installed on the wall usually when using, among the prior art, puts into the splint with two arc splint and receives in the bundle with the weak current cable, and arc splint are connected on the mounting panel, fix the mounting panel on the wall with the bolt, and reuse bolt is screwed up arc splint, and the weak point that exists is: in some cases, more weak current cables need to be installed, but the more weak current cables are bundled in the arc-shaped clamping groove, so that the weak current cables are easily tangled, and inconvenience is caused to subsequent overhaul.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a light current cable installing support to solve more light current cable among the prior art and easily tangling's problem in pressing from both sides the inslot.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a light current cable installing support, includes the mounting panel, all be provided with the limiting plate from top to bottom the mounting panel, the mounting panel with all insert between the limiting plate and be equipped with the slide, the below slide one side is connected with first splint, the top the slide is connected with the second splint, be equipped with the slot on the mounting panel, the slot interpolation is equipped with the spliced pole, spliced pole one side is provided with the connecting plate, connecting plate one side is provided with the winding displacement post, be equipped with first double-layered groove on the first splint, it presss from both sides the groove to be equipped with the second on the second splint, the equipartition is equipped with outer wire casing on first splint and the second splint, the last interior wire casing that has laid of winding displacement post.
Preferably, threaded holes are formed in the upper position and the lower position of the mounting plate, and fixing bolts are screwed in the threaded holes.
Preferably, the outer wire casing and the inner wire casing are both internally provided with anti-slip pads.
Preferably, one side of each of the first clamping plate and the second clamping plate is provided with a pressing plate, each pressing plate is provided with a through hole, a clamping bolt is inserted into each through hole, and a nut is screwed at one end of each clamping bolt.
Compared with the prior art, the beneficial effects of the utility model are that: pass the light current cable between first splint and the second splint, imbed the cable respectively outer wire casing or interior wire inslot again, first splint slide to the winding displacement post with the second splint, with clamp bolt from last to passing the through-hole down, the nut spiro union is at clamp bolt's lower extreme, screw up the nut, make first splint tightly hug closely with the second splint and close the winding displacement post, the light current cable is difficult for the winding in outer wire casing and the winding displacement inslot, during the maintenance, it slides first splint and second splint respectively to the top and bottom to twist off the nut and is convenient for clear up the convenient maintenance of light current cable.
Drawings

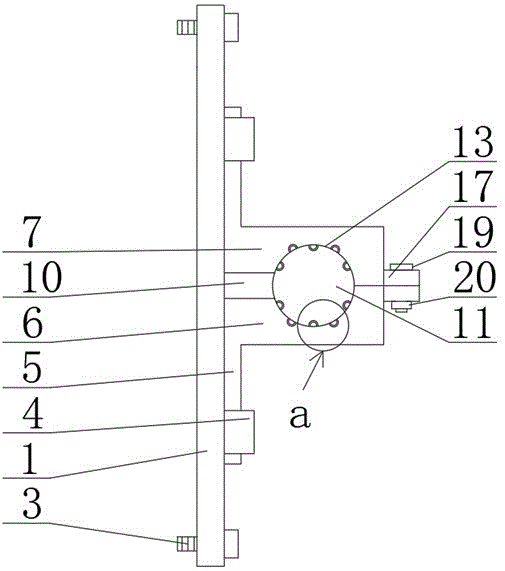

Fig. 1 is a schematic front view of the present invention;
FIG. 2 is a front sectional view of the present invention;
fig. 3 is a right-side schematic view of the present invention;
fig. 4 is an enlarged schematic view of a in fig. 2.
In the figure: 1. mounting a plate; 2. a threaded hole; 3. fixing the bolt; 4. a limiting plate; 5. a slide plate; 6. a first splint; 7. a second splint; 8. a slot; 9. connecting columns; 10. a connecting plate; 11. arranging wire columns; 12. a first clamping groove; 13. a second clamping groove; 14. an outer wire groove; 15. an inner wire groove; 16. a non-slip mat; 17. pressing a plate; 18. a through hole; 19. clamping the bolt; 20. and a nut.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
As shown in fig. 1, fig. 2, fig. 3, fig. 4, the embodiment of the present invention provides a weak current cable installing support, the present invention provides the following technical solution: the utility model provides a light current cable installing support, including mounting panel 1, mounting panel 1 upper and lower position all sets up screw hole 2, the spiro union has fixing bolt 3 in the screw hole 2, fixing bolt 3 fixes mounting panel 1 on the wall, mounting panel 1 upper and lower position all welds limiting plate 4, limiting plate 4 is the U-shaped board, all slide between mounting panel 1 and the limiting plate 4 and insert and be equipped with slide 5, the upper and lower slip is convenient for winding displacement and maintenance, slide 5 of below is connected with first splint 6, slide 5 and first splint 6 of below are integrative, top slide 5 is connected with second splint 7, top slide 5 and second splint 7 are integrative, mounting panel 1 right side central point puts and has seted up slot 8, the interference is inserted in the slot 8 and is equipped with spliced pole 9, spliced pole 9 right side welding has connecting plate 10, connecting plate 10 right side welding has winding displacement post 11, winding displacement 11 is cylindrical, first double-layered groove 12 has been seted up on the first splint 6, first double-layered groove 12 is the convex of upwards open-ended, second double-layered groove 13 has been seted up on the second splint 7, second double-layered groove 13 is convex of downward open-ended, first double-layered groove 12 is used for cliping row post 11.
As shown in fig. 1, fig. 2, fig. 3, and fig. 4, two outer wire grooves 14 have all been seted up on first splint 6 and the second splint 8, 6 inner wire grooves 15 have evenly been seted up on the winding displacement post 11, inner wire groove 14 is used for the winding displacement with outer wire groove 15, outer wire groove 14 and inner wire groove 15 all bond with the resin adhesive and have slipmat 16, slipmat 16 is the rubber slipmat, prevent that the light current cable from sliding in the wire groove and wearing and tearing the cushion cable, first splint 6 and second splint 7 right side all weld clamp plate 17, go up holding down plate 17 and have all seted up through-hole 18, it has clamping bolt 19 to slide to alternate in the through-hole 18, clamping bolt 19's one end spiro union has nut 20, it makes first splint 12 and second splint 13 clamp winding displacement post 11 to screw up nut 20, prevent that the light current cable from sliding.
The working principle of the embodiment is as follows: during use, the limiting plate 4 is welded on the right side of the mounting plate 1 in advance, the mounting plate 1 is fixed on the wall through the fixing bolt 3, the sliding plate 5 on the first clamping plate 6 is inserted into the limiting plate 4 below in a sliding mode, the sliding plate 5 on the second clamping plate 7 is inserted into the limiting plate 4 above in a sliding mode, the indirect plate 10 is welded on the left side of the winding displacement column 11 in advance, the connecting column 9 is welded on the left side of the connecting plate 9, the connecting column 9 is inserted into the slot 8 in an interference mode, a weak-current cable penetrates between the first clamping plate 6 and the second clamping plate 7, the cable is embedded into the outer winding slot 14 or the inner winding slot 15 respectively, the first clamping plate 6 and the second clamping plate 7 slide towards the winding displacement column 11, the clamping bolt 19 penetrates through the through hole 19 from top to bottom, the nut 19 is screwed at the lower end of the clamping bolt 19, the nut 19 is screwed, the first clamping plate 6 and the second clamping plate 7 are tightly attached to the winding displacement column 11, and the weak-current cable is not easy to wind in the outer winding displacement slot 14 and the winding displacement slot 15.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention.
Claims (4)
1. The utility model provides a light current cable installing support which characterized in that: including mounting panel (1), mounting panel (1) all is provided with limiting plate (4) from top to bottom, mounting panel (1) with all insert between limiting plate (4) and be equipped with slide (5), the below slide (5) one side is connected with first splint (6), the top slide (5) are connected with second splint (7), be equipped with slot (8) on mounting panel (1), slot (8) interpolation is equipped with spliced pole (9), spliced pole (9) one side is provided with connecting plate (10), connecting plate (10) one side is provided with winding displacement post (11), be equipped with first double-layered groove (12) on first splint (6), be equipped with second double-layered groove (13) on second splint (7), the equipartition is equipped with outer wire casing (14) on first splint (6) and second splint (7), inner wire casing (15) have been laid on winding displacement post (11).
2. The weak current cable mounting bracket according to claim 1, wherein the mounting plate (1) is provided with threaded holes (2) at upper and lower positions, and fixing bolts (3) are screwed in the threaded holes (2).
3. A weak current cable mounting bracket as claimed in claim 1, wherein: and anti-skid pads (16) are arranged in the outer wire groove (14) and the inner wire groove (15).
4. A weak current cable mounting bracket as claimed in claim 1, wherein: the clamping device is characterized in that a pressing plate (17) is arranged on one side of each of the first clamping plate (6) and the second clamping plate (7), a through hole (18) is formed in each pressing plate (17), a clamping bolt (19) penetrates through each through hole (18), and a nut (20) is screwed at one end of each clamping bolt (19).
