Abstract
The utility model relates to a signal cable technical field specifically is a warning function's signal cable wets, including first insulation layer, warning wire, flame retardant coating, metal mesh layer and second insulating layer, be provided with the waterproof layer in the first insulation layer, be provided with the warning wire on the waterproof layer. Through the waterproof layer, flame retardant coating and metal mesh layer, make the toughness and the fire prevention waterproof ability of cable reinforcing cable in the use, guarantee the normal transmission of signal, make cable life extension, it wets to take place when the cable in the use, moist aqueous vapor makes and takes place the short circuit between each warning wire, make the circuit of power module switch on, make the siren send out the police dispatch newspaper, make things convenient for the staff to overhaul the change, very convenient, the functional of reinforcing device and the convenience of overhauing.
Description
Technical Field
The utility model relates to a signal cable technical field specifically is a warning function's that wets signal cable.
Background
A signal cable is a signal transmission means. The signal cable has small transmitted signal, and in order to avoid signal interference, the signal cable has one shielding layer, which is made of conducting cloth, woven copper net or copper foil (aluminum) and is grounded.
The existing signal cable cannot give an alarm when the cable is affected with tide during use, so that the working personnel are inconvenient to carry out maintenance work, and the functionality of the device is reduced; the existing signal cable has poor supporting rigidity, so that the inner core is easy to break off when in use, signal transmission is interrupted, and the service life of the cable is shortened.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a signal cable of alarming function wets to solve the problem that proposes among the above-mentioned background art. In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a signal cable of alarming function wets, includes first insulation layer, warning wire, flame retardant coating, metal mesh layer and second insulating layer, be provided with the waterproof layer in the first insulation layer, be provided with the warning wire on the waterproof layer, be provided with the flame retardant coating in the warning wire, be provided with the metal mesh layer in the flame retardant coating, be provided with the second insulating layer in the metal mesh layer, be provided with the sinle silk in the second insulating layer, the fixed cover has the casing on the first insulation layer, fixed mounting has solar charging panel on the surface of casing, fixed mounting has binding post, dry package, siren respectively on the inner wall of casing, shells inner wall's bottom fixed mounting has the power module.
Preferably, the number of the alarm conducting wires is multiple, and the alarm conducting wires are circumferentially distributed between the waterproof layer and the fireproof layer.
Preferably, the outer surface and the inner surface of the metal net layer are respectively abutted against the inner surface of the fire-proof layer and the outer surface of the second insulating layer.
Preferably, the number of the solar charging panels is four, and the four solar charging panels are respectively and correspondingly distributed on the four end faces of the shell.
Preferably, the number of the drying bags is two, and the two drying bags are symmetrically distributed around the first insulating layer.
Preferably, the power module is respectively and electrically connected with the alarm wire, the solar charging panel, the wiring terminal and the alarm.
Compared with the prior art, the beneficial effects of the utility model are that:
in the utility model, the toughness and the fireproof and waterproof capability of the cable are enhanced in the use process of the cable through the waterproof layer, the fireproof layer and the metal net layer, the normal transmission of signals is ensured, and the service life of the cable is prolonged;
the utility model discloses in, take place to wet when the cable in the use, moist aqueous vapor makes and takes place the short circuit between each warning wire for the circuit of power module switches on, makes the siren send out the police dispatch newspaper, makes things convenient for the staff to overhaul the change, and convenience very strengthens the functional of device and the convenience of overhauing.
Drawings

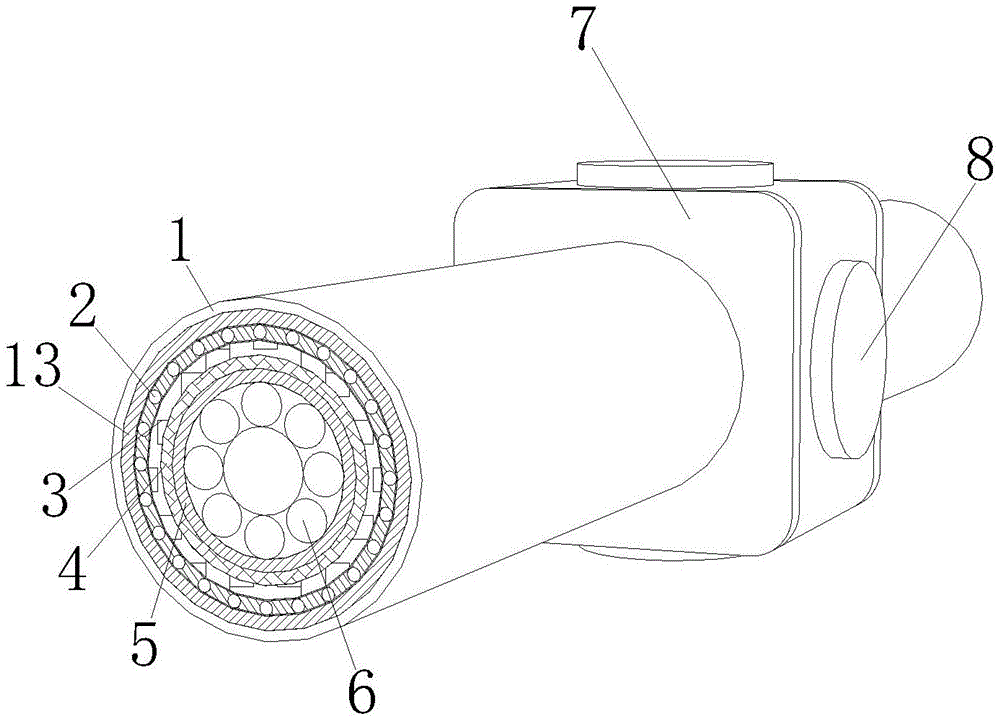

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a second schematic structural diagram of the present invention;
FIG. 3 is a third schematic view of the present invention;
fig. 4 is a fourth schematic view of the present invention.
In the figure: 1. a first insulating layer; 2. an alarm wire; 3. a fire barrier layer; 4. a metal mesh layer; 5. a second insulating layer; 6. a wire core; 7. a housing; 8. a solar charging panel; 9. a wiring terminal; 10. drying the bag; 11. an alarm; 12. a power module; 13. and a waterproof layer.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by the staff of ordinary skill in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 4, the present invention provides a technical solution: the utility model provides a signal cable of alarming function wets, including first insulation layer 1, alarm wire 2, flame retardant coating 3, metal mesh layer 4, and second insulating layer 5, be provided with waterproof layer 13 in the first insulation layer 1, be provided with alarm wire 2 in the waterproof layer 13, be provided with flame retardant coating 3 in the alarm wire 2, be provided with metal mesh layer 4 in the flame retardant coating 3, be provided with second insulating layer 5 in the metal mesh layer 4, be provided with sinle silk 6 in the second insulating layer 5, casing 7 has been cup jointed to the last fixed of first insulation layer 1, fixed mounting has solar charging panel 8 on casing 7's the surface, on casing 7's the inner wall respectively fixed mounting have binding post 9, dry package 10, siren 11, the bottom fixed mounting of casing 7 inner wall has power module 12.
In this embodiment, as shown in fig. 1, 2, 3 and 4, the number of the alarm wires 2 is multiple, and the multiple alarm wires 2 are circumferentially distributed between the waterproof layer 13 and the fireproof layer 3.
In the present embodiment, as shown in fig. 1, 2, 3, and 4, the outer surface and the inner surface of the metal mesh layer 4 are respectively abutted against the inner surface of the flame retardant layer 3 and the outer surface of the second insulating layer 5.
In this embodiment, as shown in fig. 1, fig. 2, fig. 3 and fig. 4, the number of the solar charging panels 8 is four, the four solar charging panels 8 are respectively and correspondingly distributed on the four end surfaces of the housing 7, and the solar charging panels 8 charge the power module 12 to ensure normal operation of alarm.
In the present embodiment, as shown in fig. 1, 2, 3 and 4, the number of the drying bags 10 is two, two drying bags 10 are symmetrically distributed about the first insulating layer 1, and the drying bags 10 dry the air in the housing 7.
In this embodiment, as shown in fig. 1, fig. 2, fig. 3 and fig. 4, the power module 12 is electrically connected to the alarm wire 2, the solar charging panel 8, the connection terminal 9 and the alarm 11, respectively.
The utility model discloses a use method and advantage: when the signal cable with the damp alarm function is used, the working process is as follows:
as shown in fig. 1, fig. 2, fig. 3 and fig. 4, when the device is used, firstly, the external power supply and the internal power supply module 12 are connected to the electric equipment in the device, and the cable is enabled to enhance the toughness and the fireproof and waterproof capability of the cable in the using process through the waterproof layer 13, the fireproof layer 3 and the metal mesh layer 4, so that the normal transmission of signals is ensured, the service life of the cable is prolonged, the problem that the existing signal cable is poor in supporting rigidity is solved, the breakage of the inner core is easy to occur during the use, the signal transmission is interrupted, and the service life of the cable is shortened.
When taking place the cable and making moist in the use, moist aqueous vapor makes and takes place the short circuit between each warning wire 2, make the circuit of power module 12 switch on, make siren 11 send out the police dispatch newspaper, make things convenient for the staff to overhaul the change, convenience very, the functional of reinforcing device and the convenience of overhauing, it can not report to the police when the cable takes place to wet to have solved current signal cable when using, make the staff inconvenient maintenance work of going on, make the problem that the functional of device reduces.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a signal cable of alarming function wets, includes first insulating layer (1), warning wire (2), flame retardant coating (3), metal mesh layer (4) and second insulating layer (5), its characterized in that: be provided with waterproof layer (13) in first insulation layer (1), be provided with warning wire (2) on waterproof layer (13) is interior, be provided with flame retardant coating (3) in warning wire (2), be provided with metal mesh layer (4) in flame retardant coating (3), be provided with second insulating layer (5) in metal mesh layer (4), be provided with sinle silk (6) in second insulating layer (5), it has casing (7) to fix the cover on first insulation layer (1), fixed mounting has solar charging panel (8) on the surface of casing (7), on the inner wall of casing (7) respectively fixed mounting have binding post (9), dry package (10), siren (11), the bottom fixed mounting of casing (7) inner wall has power module (12).
2. The signal cable with the damp alarm function according to claim 1, wherein: the number of the alarm wires (2) is multiple, and the alarm wires (2) are circumferentially distributed between the waterproof layer (13) and the fireproof layer (3).
3. The signal cable with the damp alarm function according to claim 1, wherein: the outer surface and the inner surface of the metal mesh layer (4) are respectively abutted against the inner surface of the fireproof layer (3) and the outer surface of the second insulating layer (5).
4. The signal cable with the damp alarm function according to claim 1, wherein: the solar charging panels (8) are four in number, and the four solar charging panels (8) are correspondingly distributed on the four end faces of the shell (7) respectively.
5. The signal cable with the damp alarm function according to claim 1, wherein: the number of the drying packs (10) is two, and the two drying packs (10) are symmetrically distributed around the first insulating layer (1).
6. The signal cable with the damp alarm function according to claim 1, wherein: the power module (12) is respectively electrically connected with the alarm lead (2), the solar charging panel (8), the wiring terminal (9) and the alarm (11).
