CN217714869U - Intelligent mobile phone remote control LED lamp

Info

Publication number: CN217714869U
Application number: CN202221495737.1U
Authority: CN
Inventors: 何青松
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-06-14
Filing date: 2022-06-14
Publication date: 2022-11-01
Anticipated expiration: 2032-06-14

Abstract

The utility model discloses an intelligent cell-phone remote control LED lamps and lanterns, including the lamp body, lamp body bottom outer wall is provided with the lamp shade, and the inside of lamp shade is provided with LED lamp pearl, the rectangle mouth has been seted up to one side outer wall of lamp body, and the inner wall fixedly connected with protection network of rectangle mouth, the installing port has been seted up to the both sides outer wall of lamp body, and the inner wall fixedly connected with fan of two installing ports, the access hole has been seted up to lamp body top outer wall, and the inner wall fixedly connected with top cap of access hole. The utility model discloses an integrated bluetooth module on the PCB board of lamps and lanterns is connected between bluetooth module and the smart mobile phone to the convenience carries out wireless control to the lamps and lanterns switch, protects the PCB board through the baffle, sets up heat conduction mechanism and heating panel again on the baffle, thereby conveniently dispels the heat to the PCB board.

Description

Intelligent mobile phone remote control LED lamp

Technical Field

The utility model relates to a LED lamps and lanterns technical field especially relates to a smart mobile phone remote control LED lamps and lanterns.

Background

The LED lighting fixture is a general term for LED lighting fixtures, and refers to a fixture capable of transmitting light, distributing and changing light distribution of LED light sources, including all components and parts required for fixing and protecting the LED light sources except for the LED light sources, and circuit accessories necessary for connecting with a power supply.

Along with the development of the society, the functions of the LED lamp are increased, along with the popularization of intellectualization, the LED lamp is gradually listed in the category of intelligent home, but along with the increase of the functions of the LED lamp, the heat generated by the LED lamp is also increased, and the traditional LED lamp is not provided with a special heat dissipation structure, so that the normal use of the LED lamp is influenced.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a smart phone remote control LED lamp.

In order to realize the purpose, the utility model adopts the following technical scheme:

the utility model provides an intelligent cell-phone remote control LED lamps and lanterns, includes the lamp body, lamp body bottom outer wall is provided with the lamp shade, and the inside of lamp shade is provided with LED lamp pearl, the rectangle mouth has been seted up to one side outer wall of lamp body, and the inner wall fixedly connected with protection network of rectangle mouth, the installing port has been seted up to the both sides outer wall of lamp body, and the inner wall fixedly connected with fan of two installing ports, the access hole has been seted up to lamp body top outer wall, and the inner wall fixedly connected with top cap of access hole, the baffle of lamp body bottom inner wall fixedly connected with L shape structure, and baffle top outer wall has seted up the rectangle opening, rectangle open-ended inner wall fixedly connected with heat conduction mechanism, one side of lamp body bottom inner wall is provided with the PCB board, and PCB board top outer wall is provided with bluetooth module.

Preferably, a plurality of connectors are formed in the outer wall of the top of the partition plate, and the inner wall of each connector is fixedly connected with a heat dissipation plate.

Preferably, the outer wall of the heat dissipation plate is provided with a vent, and the heat conduction mechanism comprises a heat conduction sleeve.

Preferably, the outer wall of the bottom of the heat-conducting sleeve is provided with a sliding opening, the inner wall of the sliding opening is connected with a heat-conducting block in a sliding manner, and the outer wall of the bottom of the heat-conducting block is fixedly connected with a copper plate.

Preferably, the outer wall of the bottom of the copper plate is in contact with the Bluetooth module, the two sides of the inner wall of the bottom of the heat conduction sleeve are fixedly connected with sliding rods, and springs are sleeved on the outer walls of the two sliding rods.

Preferably, the heat conduction block is connected to the outer walls of the two sliding rods in a sliding mode, and the outer wall of the top of the heat conduction block is fixedly connected with a radiator.

The beneficial effects of the utility model are that:

1. the utility model discloses an integrated bluetooth module on the PCB board of lamps and lanterns is connected through between bluetooth module and the smart mobile phone to the convenience carries out wireless control to the lamps and lanterns switch.

2. The utility model discloses a set up the baffle of L shape structure in the lamp body, protect the PCB board through the baffle, set up heat conduction mechanism and heating panel again on the baffle to the convenience is dispelled the heat to the PCB board.

3. The utility model discloses a set up heat conduction mechanism on the baffle, contact with bluetooth module alone through heat conduction mechanism to carry out solitary heat dissipation to bluetooth module, thereby avoid bluetooth module to appear overheated trouble.

Drawings

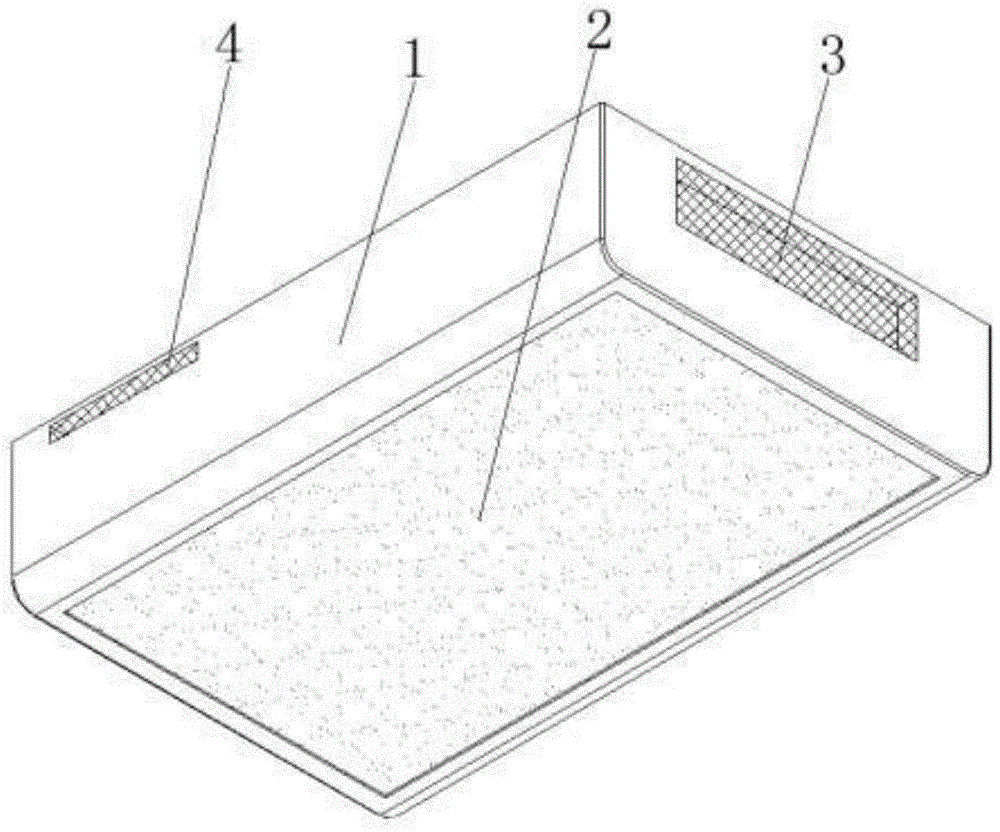

Fig. 1 is a schematic structural view of an intelligent mobile phone remote control LED lamp provided by the present invention;

fig. 2 is a schematic view of a lamp housing structure of a smart phone remote control LED lamp provided by the present invention;

fig. 3 is a schematic view of an internal structure of a lamp housing of the smart phone remote control LED lamp provided by the present invention;

fig. 4 is a schematic diagram of a partition structure of a remote-controlled LED lamp for a smart phone according to the present invention;

fig. 5 is the utility model provides a heat conduction mechanism schematic diagram of remote control LED lamps and lanterns of smart mobile phone.

In the figure: 1. a lamp housing; 2. a lamp shade; 3. a protective net; 4. a fan; 5. a top cover; 6. a partition plate; 7. a heat dissipation plate; 8. a heat conducting mechanism; 9. a PCB board; 10. a Bluetooth module; 11. a heat conducting sleeve; 12. a heat conducting block; 13. a heat sink; 14. a copper plate; 15. a slide bar; 16. a spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-5, an intelligent mobile phone remote control LED lamp, including lamp body 1, the outer wall of 1 bottom of lamp body is provided with lamp shade 2, and the inside of lamp shade 2 is provided with LED lamp pearl, the rectangle mouth has been seted up to one side outer wall of lamp body 1, and the inner wall fixedly connected with protection network 3 of rectangle mouth, the installing port has been seted up to the both sides outer wall of lamp body 1, and the inner wall fixedly connected with fan 4 of two installing ports, the access hole has been seted up to the outer wall of 1 top of lamp body, and the inner wall fixedly connected with top cap 5 of access hole, the baffle 6 of 1 bottom inner wall fixedly connected with L shape structure of lamp body, and baffle 6 top outer wall has seted up the rectangle opening, rectangle open-ended inner wall fixedly connected with heat conduction mechanism 8, one side of the inner wall of 1 bottom of lamp body is provided with PCB board 9, and PCB board 9 top outer wall is provided with bluetooth module 10.

The utility model discloses in, a plurality of connectors have been seted up to 6 top outer walls of baffle, and the inner wall fixedly connected with heating panel 7 of connector, and the heat that produces on convenient with PCB board 9 of assistance through heating panel 7 is derived.

The utility model discloses in, the vent has been seted up to the outer wall of heating panel 7, and heat conduction mechanism 8 includes heat conduction cover 11, and the sliding port has been seted up to the outer wall of 11 bottoms of heat conduction cover, and the inner wall sliding connection of sliding port has heat conduction piece 12, and heat conduction piece 12 bottoms outer wall fixedly connected with copper 14, thereby derives the heat that produces on with bluetooth module 10 through copper 14 and the contact of bluetooth module 10.

The utility model discloses in, 14 bottom outer walls of copper and bluetooth module 10 contact, the both sides fixedly connected with slide bar 15 of 11 bottom inner walls of heat conduction cover, and the outer wall of two slide bars 15 has cup jointed spring 16, and spring 16 through slide bar 15 is last to make things convenient for drive copper 14 to compress tightly on bluetooth module 10.

The utility model discloses in, heat conduction block 12 sliding connection is on two slide bar 15's outer wall, and heat conduction block 12 top outer wall fixedly connected with radiator 13 conveniently derives the heat on the heat conduction block 12 fast through radiator 13.

The working principle is as follows: during the use, electric elements on its PCB board 9 can produce the heat when lamps and lanterns during operation, derive the heat in baffle 6 fast through heating panel 7, the air flow in lamp body 1 is quickened to the fan 4 that deuterogamies, thereby derive the heat in lamp body 1 fast, simultaneously when needs are controlled the lamps and lanterns switch, take out the smart mobile phone and connect bluetooth module 10 on the connection lamps and lanterns, connect and to control the switch of lamps and lanterns through built-in APP in the cell-phone behind bluetooth module 10, copper 14 and the contact of bluetooth module 10 on the heat conduction mechanism 8 simultaneously, copper 14 passes through heat conduction piece 12 with the heat that produces on bluetooth module 10 and transmits radiator 13, radiator 13 derives the heat with the help of the air flow in lamp body 1, copper 14 pastes under the drive of spring 16 and covers on bluetooth module 10 simultaneously.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an intelligent cell-phone remote control LED lamps and lanterns, includes lamp body (1), its characterized in that, lamp body (1) bottom outer wall is provided with lamp shade (2), and the inside of lamp shade (2) is provided with LED lamp pearl, the rectangle mouth has been seted up to one side outer wall of lamp body (1), and the inner wall fixedly connected with protection network (3) of rectangle mouth, the installing port has been seted up to the both sides outer wall of lamp body (1), and the inner wall fixedly connected with fan (4) of two installing ports, the access hole has been seted up to lamp body (1) top outer wall, and the inner wall fixedly connected with top cap (5) of access hole, baffle (6) of lamp body (1) bottom inner wall fixedly connected with L shape structure, and baffle (6) top outer wall has seted up the rectangle opening, rectangle open-ended inner wall fixedly connected with heat conduction mechanism (8), one side of lamp body (1) bottom inner wall is provided with PCB board (9), and PCB board (9) top outer wall is provided with bluetooth module (10).

2. The LED lamp with the remote control function of the smart phone according to claim 1, wherein a plurality of connectors are formed on the outer wall of the top of the partition plate (6), and a heat dissipation plate (7) is fixedly connected to the inner walls of the connectors.

3. The LED lamp with the remote control function of the smart phone according to claim 2, wherein the outer wall of the heat dissipation plate (7) is provided with a vent, and the heat conducting mechanism (8) comprises a heat conducting sleeve (11).

4. The LED lamp with the remote control function for the smart phone according to claim 3, wherein a sliding opening is formed in the outer wall of the bottom of the heat conducting sleeve (11), a heat conducting block (12) is connected to the inner wall of the sliding opening in a sliding manner, and a copper plate (14) is fixedly connected to the outer wall of the bottom of the heat conducting block (12).

5. The LED lamp with the remote control function for the smart phone according to claim 4, wherein the outer wall of the bottom of the copper plate (14) is in contact with the Bluetooth module (10), slide bars (15) are fixedly connected to two sides of the inner wall of the bottom of the heat conducting sleeve (11), and springs (16) are sleeved on the outer walls of the two slide bars (15).

6. The LED lamp with the remote control function of the smart phone according to claim 5, wherein the heat conducting block (12) is slidably connected to the outer walls of the two sliding rods (15), and a heat sink (13) is fixedly connected to the outer wall of the top of the heat conducting block (12).
