CN217656222U - Grounding device applied to power distribution cabinet - Google Patents
Grounding device applied to power distribution cabinet Download PDFInfo
- Publication number
- CN217656222U CN217656222U CN202221899154.5U CN202221899154U CN217656222U CN 217656222 U CN217656222 U CN 217656222U CN 202221899154 U CN202221899154 U CN 202221899154U CN 217656222 U CN217656222 U CN 217656222U
- Authority
- CN
- China
- Prior art keywords
- groove
- power distribution
- distribution cabinet
- fixedly connected
- switch board
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Patch Boards (AREA)
Abstract
The utility model discloses a be applied to earthing device of switch board relates to switch board technical field. The utility model discloses a switch board body, ground plate and receiver, the main draw-in groove has been seted up to the ground plate upper surface, and surface mounting has a fixing base on the ground plate, and the spacing spring one end fixedly connected with of second presses the button piece, and a button piece side fixedly connected with transmission post, transmission post suit with vice draw-in groove position, and a second recess side fixed mounting has miniature cylinder, and the miniature cylinder output suits with a button piece position. The utility model discloses a set up switch board body, ground plate, receiver, main draw-in groove, fixing base, buried cable in advance, the spacing spring of second, button piece, transmission post, micro cylinder, main fixture block, conductor piece, first recess, first spacing spring and vice fixture block can realize the convenient connection of conductor piece and buried cable in advance, have greatly promoted the convenience that earthing device used.
Description
Technical Field
The utility model belongs to the technical field of the switch board, especially, relate to a be applied to earthing device of switch board.
Background
Most of the grounding devices of the existing power distribution cabinets need to be fixed to one end of a grounding wire by bolts and screws, the other end of the grounding device is connected with a pre-buried cable, tools such as screwdrivers are omitted, the grounding wire cannot be detached and installed, the whole installation process is troublesome, and the use convenience of the grounding device of the power distribution cabinet is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a be applied to earthing device of switch board, the earthing device who solves current switch board mostly need fix earth connection one end on the switch board with bolt and screw, and the other end is connected with buried cable in advance, if do not have instruments such as screwdriver, then the unable dismantlement of earth connection and installation, and whole installation is more troublesome, has reduced the problem of the convenience that switch board earthing device used.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a be applied to earthing device of switch board, including switch board body, ground plate and receiver, the main draw-in groove has been seted up to the ground plate upper surface, surface mounting has the fixing base on the ground plate, the fixing base inside wall is connected with buried cable in advance, and vice draw-in groove has been seted up to main draw-in groove side, the second recess has been seted up to vice draw-in groove side, the spacing spring of second recess side fixedly connected with second, the spacing spring one end fixedly connected with button piece of second, a button piece side fixedly connected with transmission post, the transmission post suits with vice draw-in groove position, a second recess side fixed mounting has miniature cylinder, the miniature cylinder output suits with button piece position.
A main clamping block is clamped and assembled on the upper surface of the main clamping groove, a conductor block is installed on the inner side wall of the main clamping block, a first groove is formed in one side surface of the main clamping block, a first limiting spring is installed on one side surface of the first groove, an auxiliary clamping block is fixedly connected to one end of the first limiting spring, and the auxiliary clamping block is clamped and assembled with the auxiliary clamping groove; through setting up switch board body, ground plate, storage cylinder, main draw-in groove, fixing base, buried cable in advance, the spacing spring of second, button piece, transmission post, micro cylinder, main fixture block, conductor block, first recess, first spacing spring and vice fixture block can realize the convenient connection of conductor block and buried cable in advance, have greatly promoted the convenience that earthing device used.
A placing groove is formed in one side face of the power distribution cabinet body, mounting holes are formed in the side face of the periphery of the containing barrel, grounding wires are mounted on the side faces of the mounting holes, and the grounding wires are fixedly connected with the conductor blocks; through setting up switch board body, mounting groove, mounting hole, storage cylinder and earth connection can realize the convenient of earth connection taking in, greatly promoted the convenience that earthing device used.
The lower surface of the power distribution cabinet body is provided with a plurality of supporting rods, and the lower surfaces of the supporting rods are provided with universal wheels.
The front view surface of the power distribution cabinet body is hinged with a plurality of cabinet doors.
A handle is arranged on the front surface of the cabinet door.
A handle is fixedly arranged on one side surface of the power distribution cabinet body; the flexible movement of the power distribution cabinet body can be realized by arranging the power distribution cabinet body, the supporting rods, the universal wheels and the handle, and the convenience of using the power distribution cabinet body is greatly improved.
The utility model discloses following beneficial effect has:
the utility model discloses a set up switch board body, ground plate, receiver, main draw-in groove, fixing base, pre-buried cable, second spacing spring, button piece, transmission post, micro cylinder, main fixture block, conductor piece, first recess, first spacing spring and vice fixture block can realize the convenient connection of conductor piece and pre-buried cable, have greatly promoted the convenience that earthing device used; the power distribution cabinet body, the placing groove, the mounting hole, the containing barrel and the grounding wire are arranged, so that the grounding wire can be conveniently contained, and the use convenience of the grounding device is greatly improved; the flexible movement of the power distribution cabinet body can be realized by arranging the power distribution cabinet body, the supporting rods, the universal wheels and the handle, and the convenience of using the power distribution cabinet body is greatly improved.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

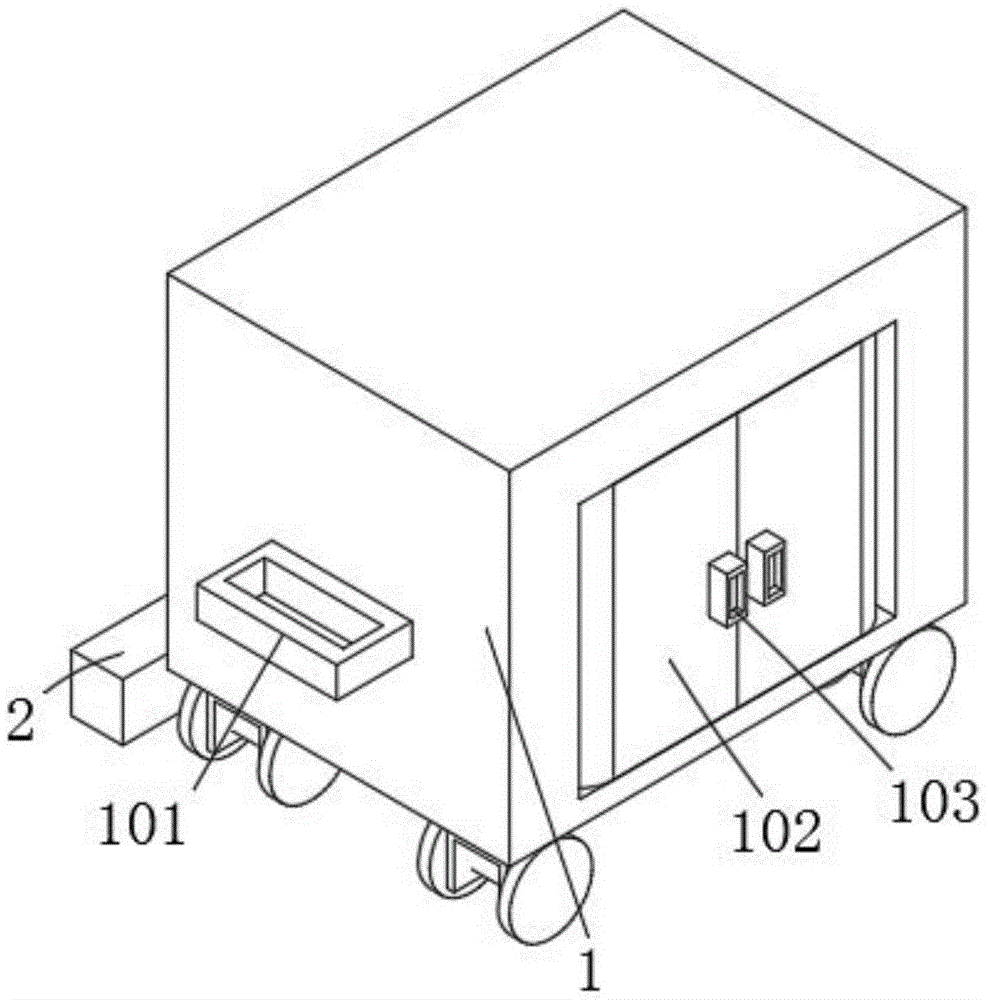

Fig. 1 is a schematic isometric view of a grounding device for a power distribution cabinet;
fig. 2 is a schematic diagram of a right-view structure of an earthing device applied to a power distribution cabinet;
FIG. 3 isbase:Sub>A schematic view of the cross-sectional structure A-A in FIG. 2;
FIG. 4 is an enlarged view of a portion C of FIG. 3;
fig. 5 is a schematic rear view of an earthing device applied to a power distribution cabinet;
fig. 6 is a schematic view of the cross-sectional structure B-B in fig. 5.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a power distribution cabinet body; 2. a ground plate; 4. a main clamping block; 5. a placing groove; 6. a storage cylinder; 101. a handle; 102. a cabinet door; 103. a handle; 104. a support bar; 105. a universal wheel; 201. a fixed seat; 202. pre-burying a cable; 203. a main card slot; 204. a conductor block; 205. a second groove; 206. a second limit spring; 207. a drive post; 208. a button block; 209. a micro cylinder; 401. a first limit spring; 402. a first groove; 403. a secondary fixture block; 404. an auxiliary card slot; 501. a ground line; 601. and (7) installing holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person skilled in the art without making creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate positional or positional relationships, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Please refer to fig. 1-6, the utility model relates to a be applied to earthing device of switch board, including switch board body 1, ground plate 2 and receiver 6, main draw-in groove 203 has been seted up to the ground plate 2 upper surface, ground plate 2 upper surface mounting has fixing base 201, the fixing base 201 inside wall is connected with buried cable 202 in advance, vice draw-in groove 404 has been seted up to main draw-in groove 203 one side, second recess 205 has been seted up to vice draw-in groove 404 one side, a second recess 205 side fixedly connected with second limit spring 206, 206 one end fixedly connected with button block 208 of second limit spring, a button block 208 side fixedly connected with drive column 207, drive column 207 suits with vice draw-in groove 404 position, a second recess 205 side fixed mounting has miniature cylinder 209, miniature cylinder 209 output suits with button block 208 position.
A main clamping block 4 is clamped and assembled on the upper surface of the main clamping groove 203, a conductor block 204 is installed on the inner side wall of the main clamping block 4, a first groove 402 is formed in one side surface of the main clamping block 4, a first limiting spring 401 is installed on one side surface of the first groove 402, an auxiliary clamping block 403 is fixedly connected to one end of the first limiting spring 401, and the auxiliary clamping block 403 is clamped and matched with the auxiliary clamping groove 404; through setting up switch board body 1, ground plate 2, storage cylinder 6, main draw-in groove 203, fixing base 201, buried cable 202 in advance, second spacing spring 206, button piece 208, transmission post 207, micro cylinder 209, main fixture block 4, conductor block 204, first recess 402, first spacing spring 401 and vice fixture block 403 can realize the convenient connection of conductor block 204 and buried cable 202 in advance, greatly promoted the convenience that earthing device used.
A mounting groove 5 is formed in one side face of the power distribution cabinet body 1, mounting holes 601 are formed in the peripheral side face of the containing barrel 6, grounding wires 501 are mounted on the side faces of the mounting holes 601, and the grounding wires 501 are fixedly connected with the conductor blocks 204; through setting up switch board body 1, mounting groove 5, mounting hole 601, receiver 6 and earth connection 501 can realize the convenient of earth connection 501 and accomodate, greatly promoted the convenience that earthing device used.
A plurality of supporting rods 104 are installed on the lower surface of the power distribution cabinet body 1, and universal wheels 105 are installed on the lower surfaces of the supporting rods 104.
The front surface of the power distribution cabinet body 1 is hinged with a plurality of cabinet doors 102.
A handle 103 is mounted on the front of the cabinet door 102.
A handle 101 is fixedly arranged on one side surface of the power distribution cabinet body 1; through setting up switch board body 1, bracing piece 104, universal wheel 105 and handle 101 can realize the nimble removal of switch board body 1, greatly promoted the convenience of using switch board body 1.
The embodiment shown in fig. 1 to 6 is a method for using a grounding device applied to a power distribution cabinet: when the power distribution cabinet body 1 is pulled to a use place, the main clamping block 4 is pulled out from the placing groove 5, the grounding wire 501 is pulled out, the auxiliary clamping block 403 is pressed into the first groove 402, the main clamping block 4 is inserted into the main clamping groove 203, the auxiliary clamping block 403 is automatically clamped when reaching the position of the auxiliary clamping groove 404, the conductor block 204 is fixedly connected with the embedded cable 202, the power distribution cabinet body 1 starts to work, and when the power distribution cabinet body needs to be disassembled, the micro cylinder 209 pushes the button block 208, the transmission column 207 presses the auxiliary clamping block 403 into the first groove 402, and the main clamping block 4 is pulled out.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended to aid in the description of the invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (7)
1. The utility model provides a be applied to earthing device of switch board, includes switch board body (1), ground plate (2) and storage barrel (6), its characterized in that: main draw-in groove (203) has been seted up to ground plate (2) upper surface, surface mounting has fixing base (201) on ground plate (2), fixing base (201) inside wall is connected with buried cable (202) in advance, and vice draw-in groove (404) have been seted up to main draw-in groove (203) one side, second recess (205) have been seted up to vice draw-in groove (404) one side, second recess (205) one side fixedly connected with second spacing spring (206), second spacing spring (206) one end fixedly connected with button piece (208), button piece (208) one side fixedly connected with transmission post (207), transmission post (207) suit with vice draw-in groove (404) position, second recess (205) one side fixed mounting has miniature cylinder (209), miniature cylinder (209) output and button piece (208) position suit.
2. The grounding device applied to a power distribution cabinet according to claim 1, wherein a main clamping block (4) is clamped and fitted on an upper surface of the main clamping groove (203), a conductor block (204) is mounted on an inner side wall of the main clamping block (4), a first groove (402) is formed in one side surface of the main clamping block (4), a first limiting spring (401) is mounted in one side surface of the first groove (402), a secondary clamping block (403) is fixedly connected to one end of the first limiting spring (401), and the secondary clamping block (403) is clamped and fitted with the secondary clamping groove (404).
3. The grounding device applied to the power distribution cabinet according to claim 2, wherein a mounting groove (5) is formed in one side surface of the power distribution cabinet body (1), a mounting hole (601) is formed in the peripheral side surface of the containing barrel (6), a grounding wire (501) is installed on the side surface of the mounting hole (601), and the grounding wire (501) is fixedly connected with the conductor block (204).
4. The grounding device applied to the power distribution cabinet according to claim 1, wherein a plurality of support rods (104) are mounted on the lower surface of the power distribution cabinet body (1), and universal wheels (105) are mounted on the lower surfaces of the support rods (104).
5. The grounding device applied to the power distribution cabinet according to claim 1, wherein a plurality of cabinet doors (102) are hinged to the front surface of the power distribution cabinet body (1).
6. The grounding device applied to the power distribution cabinet is characterized in that a handle (103) is installed on the front surface of the cabinet door (102).
7. The grounding device applied to the power distribution cabinet according to claim 1, wherein a handle (101) is fixedly installed on one side surface of the power distribution cabinet body (1).
