Abstract
The utility model discloses a mill base grinder with screening function, which comprises a housin, the top surface of casing is provided with the feeder hopper, the inside of casing is provided with the baffle, the centre of baffle is provided with the bin outlet, the bottom of baffle is provided with the pull board, the left side of pull board bottom is provided with the stopper, the baffle falls into the mixing chamber of top and the grinding chamber of below with the inner chamber of casing, the inside of mixing chamber is provided with the stirring subassembly, the inside of grinding the chamber is provided with grinds the roller, the below of grinding the roller is provided with the filtration sieve, the bottom of filtering the sieve is provided with the clearance subassembly, the bottom of mixing chamber is provided with the collecting box, the bottom of casing right side wall articulates there is the dodge gate, the right side of dodge gate is provided with locking screw, the bottom surface of casing is provided with the supporting leg. The utility model discloses bottom filtering the sieve is provided with the clearance subassembly, clears up filtering the sieve through the brush, prevents to filter the filtration pore blocking of sieve, improves the screening effect.
Description
Technical Field
The utility model relates to a mill base processing technology field especially relates to a mill base grinder with screening function.
Background
In the color paste processing technology, a color paste grinding machine is often used for grinding raw materials such as pigments, resins and the like into powder, and the quality of the color paste is directly determined by the grinding degree. Need filter the screening to the raw materials after grinding after the completion, the big granule mill base raw materials that will not conform to the requirement sieves out, and current mill base grinder blocks up the sieve easily when sieving, influences the screening effect.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a mill base grinder with screening function solves current mill base grinder and blocks up the sieve easily when screening, influences the screening effect problem.
In order to solve the technical problem, the utility model adopts the following technical scheme:
the utility model relates to a mill base grinder with screening function, which comprises a housin, the top surface of casing is provided with the feeder hopper, the inside of casing is provided with the baffle, the centre of baffle is provided with the bin outlet, the bottom of baffle is provided with the pull board, the right side of pull board is run through extend to behind the right wall of casing outside the casing, the left side of pull board bottom is provided with the stopper, the baffle will the inner chamber of casing falls into the mixing chamber of top and the grinding chamber of below, the inside of mixing chamber is provided with the stirring subassembly, the inside of grinding the chamber is provided with grinds the roller, the below of grinding the roller is provided with the filtration sieve, the bottom of filtering the sieve is provided with the clearance subassembly, the bottom of mixing chamber is provided with the collecting box, the bottom of casing right side wall articulates there is the dodge gate, the right side of dodge gate is provided with locking screw, locking screw's left end runs through screw in behind the dodge gate screw in the thread groove of casing bottom, the bottom surface of casing is provided with the supporting leg.
Further, the stirring subassembly is including installing the first motor of casing top surface, the output shaft of first motor has the pivot, be connected with a plurality of puddlers in the pivot.
Still further, the quantity of feeder hopper sets up to two, two the feeder hopper symmetrical arrangement is in the left and right sides of first motor.
Still further, the clearance subassembly is including installing the second motor on casing right side, the output shaft of second motor has the threaded rod, threaded connection has the connecting block on the outer peripheral face of threaded rod, the top surface of connecting block is connected with the brush, the brush with the bottom surface contact of filtering the sieve, the below of threaded rod is provided with the gag lever post, the gag lever post runs through behind the connecting block with the inner wall connection of casing.
Still further, the right side of the collecting box is connected with a handle, the bottom surface of the collecting box is provided with a roller, the bottom surface of the shell is provided with a limiting groove, and the roller rolls along the limiting groove.
Still further, a material guide plate is arranged inside the grinding chamber and below the cleaning assembly, one side of the material guide plate is connected with the inner wall of the shell, and the other side of the material guide plate inclines downwards.
Still further, there is a supporting block on the left and right inner walls of the casing through a bolt, and the filtering sieve plate is placed on the supporting block.
Compared with the prior art, the utility model discloses a beneficial technological effect:
the utility model relates to a mill base grinder with screening function is provided with the clearance subassembly in the bottom of filtering the sieve, clears up filtering the sieve through the brush, prevents to filter the filtration pore blocking of sieve, improves the screening effect.
Drawings
The present invention will be further explained with reference to the following description of the drawings.

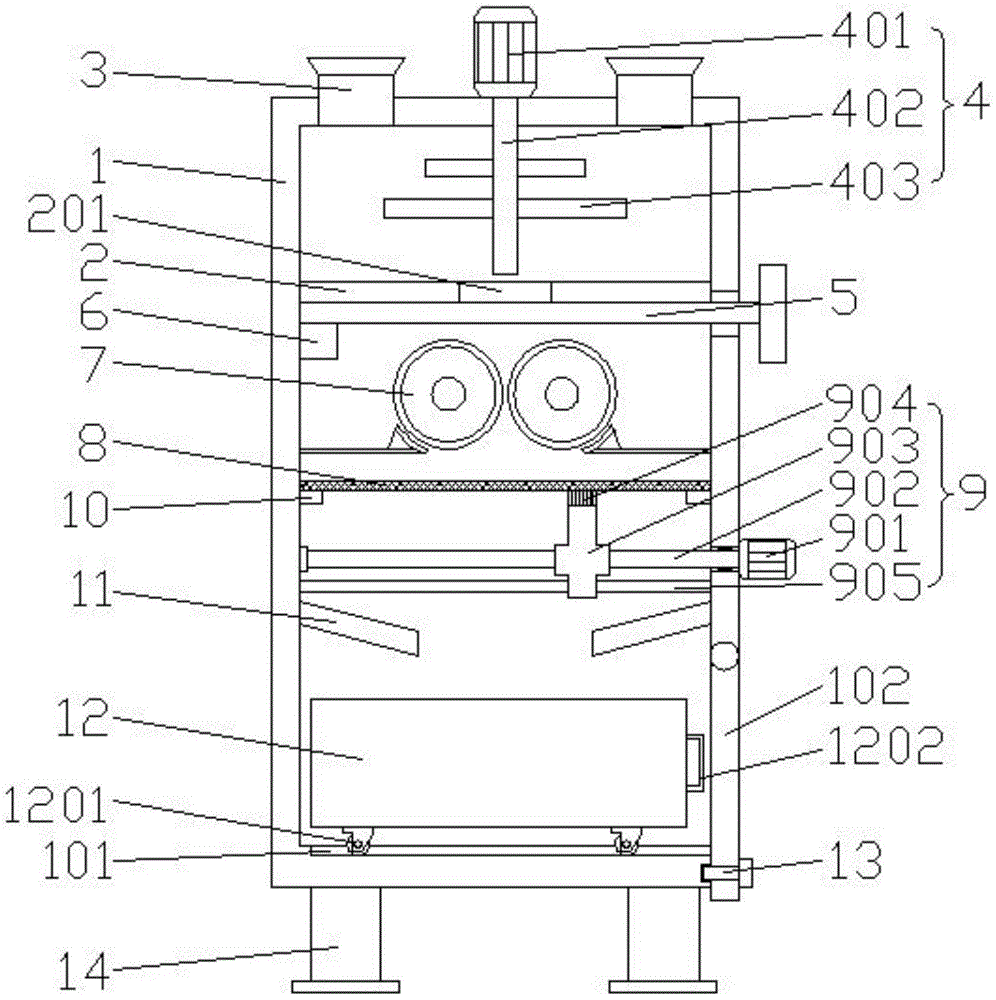

FIG. 1 is a schematic structural view of a color paste grinding device with a sieving function according to the present invention;
description of reference numerals: 1. a housing; 101. a limiting groove; 102. a movable door; 2. a partition plate; 201. a discharge outlet; 3. a feed hopper; 4. a stirring assembly; 401. a first motor; 402. a rotating shaft; 403. a stirring rod; 5. a drawing plate; 6. a limiting block; 7. grinding the roller; 8. filtering the sieve plate; 9. cleaning the assembly; 901. a second motor; 902. a threaded rod; 903. connecting blocks; 904. a brush; 905. a limiting rod; 10. a supporting block; 11. a material guide plate; 12. a collection box; 1201. a roller; 1202. a handle; 13. locking the screw; 14. and (5) supporting legs.
Detailed Description
As shown in fig. 1, a color paste grinding device with screening function comprises a housing 1, wherein the top surface of the housing 1 is connected with two feed hoppers 3, the two feed hoppers 3 are symmetrically arranged on the left and right sides of a first motor 401, a partition plate 2 is connected inside the housing 1 through a bolt, a discharge opening 201 is formed in the middle of the partition plate 2, a pull plate 5 is arranged at the bottom of the partition plate 2, the right side of the pull plate 5 penetrates through the right wall of the housing 1 and then extends out of the housing 1, a limit block 6 is arranged on the left side of the bottom of the pull plate 5, the limit block 6 is connected to the inner wall of the housing 1 through a bolt, the partition plate 2 divides the inner cavity of the housing 1 into an upper mixing chamber and a lower grinding chamber, a stirring assembly 4 is arranged inside the mixing chamber, a grinding roller 7 is arranged inside the grinding chamber, a filtering screen plate 8 is arranged below the grinding roller 7, support blocks 10 are connected to the inner walls on the left and right sides of the housing 1 through bolts, the filtering screen plate 8 is arranged on the upper surface of the support blocks 10, a cleaning assembly 9 is arranged at the bottom of the filtering screen plate 8, a movable door 12, a movable door is arranged at the bottom of the housing 1, a locking door 13 hinged to the movable door 102, and a movable door 102 is arranged at the bottom of the movable door 14, and a movable door 102, and a movable door 14 is arranged at the movable door 14, a door, which is arranged on the bottom of the movable door, and a movable door which is hinged in the movable door which is arranged on the housing 1; specifically, the grinding roller 7 is driven by a motor, and the specific connection structure is the prior art and is not described herein again; the utility model discloses a set up the mixing chamber to set up the stirring subassembly in the mixing chamber, mix before grinding the raw materials, make the raw materials after grinding can until carrying out mill base and make, need not practice thrift manufacturing cost at the independent increase mixing process, it is more convenient to use.
Specifically, the stirring assembly 4 includes a first motor 401 mounted on the top surface of the housing 1, an output shaft of the first motor 401 is connected with a rotating shaft 402, and a plurality of stirring rods 403 are connected to the rotating shaft 402; during the use, add different raw materials through two feeder hoppers 3 in to the mixing chamber, start first motor 401, first motor 401 drives the pivot 402 rotatory, and then drives puddler 403 rotatory, mixes the raw materials.
The cleaning assembly 9 comprises a second motor 901 mounted on the right side of the casing 1, an output shaft of the second motor 901 is connected with a threaded rod 902, the threaded rod 902 is rotatably connected in the casing 1 through a bearing, a connecting block 903 is in threaded connection with the outer peripheral surface of the threaded rod 902, a brush 904 is connected with the top surface of the connecting block 903, the brush 904 is in contact with the bottom surface of the filter sieve plate 8, a limiting rod 905 is arranged below the threaded rod 902, and the limiting rod 905 penetrates through the connecting block 903 and then is connected with the inner wall of the casing 1; the limiting rod 905 limits the connecting block 903 to rotate, so that the brush 904 is in contact with the bottom surface of the filtering sieve plate 8; during the use, start second motor 901, second motor 901 drives the threaded rod 902 rotation, and because connecting block 903 and threaded rod 902 threaded connection, threaded rod 902 rotation drives connecting block 903 and removes along the horizontal direction, drives brush 904 horizontal migration, clears up filtering sieve 8, avoids filtering the filtration pore blocking of sieve 8, improves the screening effect.
The right side of the collecting box 12 is connected with a handle 1202, the bottom surface of the collecting box 12 is provided with a roller 1201, the bottom surface of the shell 1 is provided with a limiting groove 101, and the roller 1201 rolls along the limiting groove 101; specifically, the rollers 1201 are arranged at the bottom of the collecting box 12, so that the collecting box 12 is pulled outwards more easily, the limiting groove 101 limits the moving direction of the rollers 1201, and the collecting box 12 is prevented from shifting; can collect the raw materials after grinding through setting up collecting box 12, promote the convenience that the raw materials was taken.
A material guide plate 11 is arranged in the grinding chamber and below the cleaning assembly 9, one side of the material guide plate 11 is connected with the inner wall of the shell 1, and the other side of the material guide plate 11 inclines downwards; through setting up stock guide 11, the raw materials after the guide is ground falls into to collection box 12, avoids the raw materials unrestrained to collect the case 12 outside.
The utility model discloses a working process as follows:
firstly, adding different raw materials into a mixing chamber through two feed hoppers 3, starting a first motor 401, driving a rotating shaft 402 to rotate by the first motor 401, and further driving a stirring rod 403 to rotate to mix the raw materials;
then, the drawing plate 5 is pulled to the right side, the drawing plate 5 is drawn out, and the uniformly mixed raw materials fall through the discharge opening 201; starting the grinding roller 7, grinding the raw materials by the grinding roller 7, screening the ground raw materials by the filter sieve plate 8, allowing the qualified raw materials to fall into the collection box 12 through the filter sieve plate 8, allowing the unqualified ground raw materials to remain on the surface of the filter sieve plate 8, and taking out and cleaning the filter sieve plate 8 at regular intervals;
finally, the locking screw 13 is rotated to make the locking screw 13 unscrew from the thread groove at the bottom of the shell 1, the movable door 102 is rotated upwards to open the movable door 102, the handle 1202 is pulled to take out the collecting box 12, the ground raw materials are taken out, and the next process is carried out.
The utility model discloses in pivot, puddler, grinding roller, filtration sieve, threaded rod, connecting block, brush, gag lever post, gyro wheel, spring, second motor, first motor and circuit connection that relate to all belong to prior art, no longer give unnecessary details here.
The above-mentioned embodiments are only intended to describe the preferred embodiments of the present invention, but not to limit the scope of the present invention, and those skilled in the art should also be able to make various modifications and improvements to the technical solution of the present invention without departing from the spirit of the present invention, and all such modifications and improvements are intended to fall within the scope of the present invention as defined in the appended claims.
Claims (7)
1. The utility model provides a mill base grinder with screening function which characterized in that: the novel kitchen ware grinding device comprises a housin, the top surface of casing is provided with the feeder hopper, the inside of casing is provided with the baffle, the centre of baffle is provided with the bin outlet, the bottom of baffle is provided with the pull board, the right side of pull board is run through extend to behind the right wall of casing outside the casing, the left side of pull board bottom is provided with the stopper, the baffle will the inner chamber of casing falls into the mixing chamber of top and the grinding chamber of below, the inside of mixing chamber is provided with stirring component, the inside of grinding the chamber is provided with grinds the roller, the below of grinding the roller is provided with the filtration sieve, the bottom of filtering the sieve is provided with the clearance subassembly, the bottom of mixing chamber is provided with the collecting box, the bottom of casing right side wall articulates there is the dodge gate, the right side of dodge gate is provided with locking screw, locking screw's left end runs through screw in behind the dodge gate screw arrives in the thread groove of casing bottom, the bottom surface of casing is provided with the supporting leg.
2. The color paste grinding device with the screening function according to claim 1, which is characterized in that: the stirring assembly comprises a first motor arranged on the top surface of the shell, an output shaft of the first motor is connected with a rotating shaft, and a plurality of stirring rods are connected to the rotating shaft.
3. The color paste grinding device with the screening function according to claim 2, characterized in that: the quantity of feeder hopper sets up to two, two the feeder hopper symmetrical arrangement is in the left and right sides of first motor.
4. The color paste grinding device with the screening function according to claim 1, which is characterized in that: the clearance subassembly is including installing the second motor on casing right side, the output shaft of second motor has the threaded rod, threaded connection has the connecting block on the outer peripheral face of threaded rod, the top surface of connecting block is connected with the brush, the brush with filter the bottom surface contact of sieve, the below of threaded rod is provided with the gag lever post, the gag lever post runs through behind the connecting block with the interior wall connection of casing.
5. The color paste grinding device with the screening function according to claim 1, which is characterized in that: the right side of the collecting box is connected with a handle, the bottom surface of the collecting box is provided with a roller, the bottom surface of the shell is provided with a limiting groove, and the roller rolls along the limiting groove.
6. The mill base grinder with screening function according to claim 4, characterized in that: a material guide plate is arranged inside the grinding chamber and below the cleaning assembly, one side of the material guide plate is connected with the inner wall of the shell, and the other side of the material guide plate inclines downwards.
7. The mill base grinder with screening function according to claim 1, characterized in that: the inner walls of the left side and the right side of the shell are connected with supporting blocks through bolts, and the filtering sieve plate is placed on the supporting blocks.
