Rotary display cabinet for selling electronic products

Technical Field

The utility model belongs to the technical field of the show cupboard, specifically indicate a rotary type show cupboard is used in electronic product sale.

Background

The display cabinet is a display platform which is provided for commodity display and has a protection function. Before electronic product sells, need show the product to people, current show cupboard function is comparatively single, can only fixed direction show electronic product, leads to the corner edge part that the customer can't see electronic product clearly, and then has reduced electronic product's bandwagon effect, owing to lack fixed establishment moreover for commodity places the unstability, leads to commodity to empty easily, thereby causes the commodity outward appearance to produce the mar, is unfavorable for commodity to sell. Therefore, a new rotary display cabinet for selling electronic products is urgently needed to solve the above problems.

SUMMERY OF THE UTILITY MODEL

For solving the above-mentioned current difficult problem, the utility model provides a fixed subassembly is convenient for fix not unidimensional electronic product, and the runner assembly is convenient for drive the electronic product rotation in the fixed subassembly, and the rotary type show cupboard is used in the sale of electronic product that the bandwagon effect is good, the practicality is strong, easy operation, application scope are wide.

The utility model adopts the following technical scheme: the utility model discloses rotary display cabinet for selling electronic products, which comprises a storage cabinet body, a display cabinet body, a rotating bottom plate, a supporting base, a rotating motor, a rotating shaft, a rotating supporting shaft, a fixing component and a rotating component, wherein the storage cabinet body is a hollow cavity with an open end, the display cabinet body is arranged above the storage cabinet body, one end of the display cabinet body, which is close to the open end of the storage cabinet body, is arranged in an open shape, the rotating bottom plate is rotatably arranged above the inner bottom wall of the display cabinet body, the supporting base is symmetrically arranged above the two ends of the rotating bottom plate, the rotating motor is fixedly arranged in the storage cabinet body, the rotating shaft is arranged at the output end of the rotating motor, the rotating shaft is connected with the center of the rotating bottom plate, the upper end of the rotating shaft penetrates through the rotating bottom plate, the rotating supporting shaft is arranged above the supporting base, the lower end of the rotating supporting shaft is rotatably arranged in the supporting base, the fixing component is arranged above the rotating support shaft, the rotating component is arranged above the rotating bottom plate, the fixing component comprises a fixing display board, a fixing chute and a fixing splint, the fixing display board is arranged above the rotating support shaft, the fixing chute is symmetrically arranged in two ends of the fixing display board, one end of the fixing chute penetrates through the fixing display board, the fixing splint is symmetrically arranged in two ends of the fixing display board, one end of the fixing splint is slidably arranged in the fixing chute, the rotating component comprises a driving gear, a rotating gear, a transmission rotating shaft and a transmission gear, the driving gear is arranged at the upper end of the rotating shaft and is arranged above the center of the rotating bottom plate, the rotating gear is arranged on the side wall of the rotating support shaft and is rotatably arranged in the supporting base, the transmission rotating shaft is rotatably arranged on one side of the supporting base close to the rotating shaft, one end of the transmission rotating shaft penetrates through the side wall of the supporting base, drive gear symmetry locates transmission pivot both ends, drive gear respectively with drive gear, the meshing of rotating gear, the rotation motor passes through the axis of rotation and drives the rotation bottom plate and rotate, make the continuous variable position of electronic product on the rotation bottom plate, conveniently demonstrate different electronic product, when the rotation motor drives the axis of rotation pivoted, the drive gear of axis of rotation upper end drives the drive gear rotation of transmission pivot one end, make the transmission pivot begin to rotate, the drive gear of the transmission pivot other end drives the rotating gear and rotates, rotating gear drives the rotation back shaft and rotates, the back shaft drives fixed subassembly and rotates, make the electronic product on the fixed subassembly rotate, be convenient for demonstrate the different positions of electronic product.

Furthermore, the cross section of the fixed display board is arranged in an inclined manner, and the inclined fixed display board is convenient for displaying the electronic product.

Furthermore, the cross section of the fixing splint is arranged in an L shape, and the L-shaped fixing splint is convenient for clamping two ends of the electronic product, so that the electronic product is fixed on one side of the fixed display board.

Furthermore, the fixed chute side wall is provided with a guide chute, one end of the fixed clamping plate, which is slidably arranged in the fixed chute, is provided with a guide sliding block, and the guide sliding block is slidably clamped in the guide chute.

Further, be equipped with fixed spring in the direction spout, fixed spring locates direction slider one side, the fixed spring both ends are connected with direction spout, direction slider respectively, and when pulling solid fixed splint, the fixed spring is extruded to the direction slider, and fixed spring is convenient for promote solid fixed splint and resets rapidly when releasing solid fixed splint, is convenient for the solid fixed clamp tight electronic product of clamp.

Further, the show cupboard body open end is equipped with the show cupboard door, show cupboard door one end is articulated with the show cupboard body, storage cupboard body open end is equipped with the storage cabinet door, storage cabinet door one end is articulated with the storage cupboard body, and the show cupboard door is convenient for get and puts the internal electronic product of show cupboard, and the storage cabinet door is convenient for get and puts the internal electronic product of storage cupboard.

Furthermore, the display cabinet body is made of toughened glass materials, and the toughened glass has high display transparency, good display effect, high strength and is not easy to break.

Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: the rotary type show cupboard is used in electronic product sale that this scheme provided, place electronic product in fixed show board one side and locate between the solid fixed splint, release solid fixed splint, the solid fixed splint that promote of fixed spring resets rapidly, thereby fix electronic product in fixed show board one side, when rotating the motor and driving the rotating bottom plate pivoted, the drive gear of axis of rotation upper end drives the transmission pivot and rotates, the drive gear of the transmission pivot other end passes through the running gear and drives the back shaft rotation, the back shaft drives fixed subassembly and rotates, make the electronic product on the fixed subassembly rotate, be convenient for show electronic product's different positions, the bandwagon effect is good, therefore, the clothes hanger is strong in practicability, and wide application scope.

Drawings

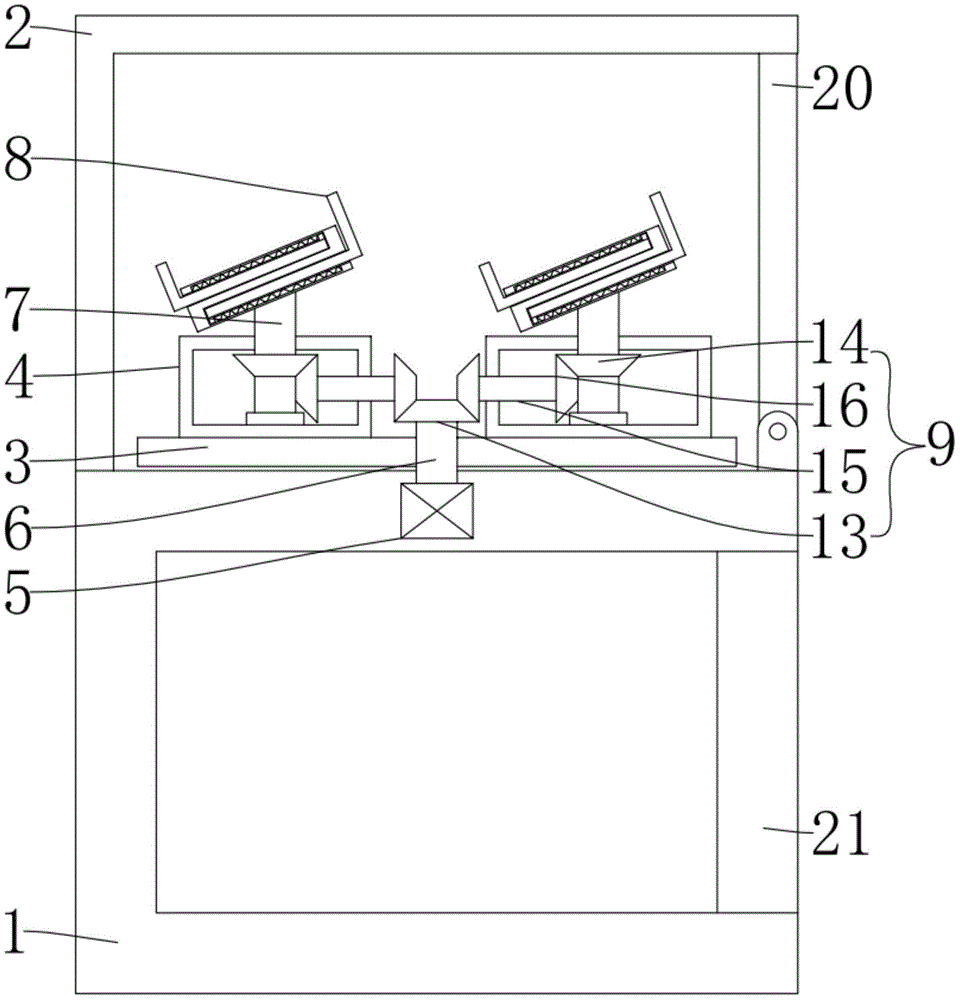

Fig. 1 is a schematic structural view of a rotary display cabinet for selling electronic products according to the present invention;

fig. 2 is a schematic structural view of a rotary display cabinet fixing assembly for selling electronic products according to the present disclosure;

fig. 3 is a top view of a rotary display case rotating bottom plate for selling electronic products according to the present invention.

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings: 1. storage cabinet body, 2, the show cabinet body, 3, the rotation bottom plate, 4, the support base, 5, the rotation motor, 6, the axis of rotation, 7, the rotation back shaft, 8, fixed subassembly, 9, the runner assembly, 10, fixed show board, 11, fixed spout, 12, fixed splint, 13, drive gear, 14, the rotating gear, 15, the transmission pivot, 16, drive gear, 17, the direction spout, 18, the direction slider, 19, fixed spring, 20, show cabinet door, 21, storage cabinet door.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1 to 3, the rotary display cabinet for selling electronic products according to the present invention comprises a storage cabinet body 1, a display cabinet body 2, a rotating bottom plate 3, a supporting base 4, a rotating motor 5, a rotating shaft 6, a rotating supporting shaft 7, a fixing component 8 and a rotating component 9, wherein the storage cabinet body 1 is a hollow cavity with one open end, the display cabinet body 2 is arranged above the storage cabinet body 1, one end of the display cabinet body 2 close to the open end of the storage cabinet body 1 is arranged in an open shape, the rotating bottom plate 3 is rotatably arranged above the inner bottom wall of the display cabinet body 2, the supporting base 4 is symmetrically arranged above two ends of the rotating bottom plate 3, the rotating motor 5 is fixedly arranged in the storage cabinet body 1, the rotating shaft 6 is arranged at the output end of the rotating motor 5, the rotating shaft 6 is connected with the center of the rotating bottom plate 3, the upper end of the rotating shaft 6 penetrates through the rotating bottom plate 3, the rotating support shaft 7 is arranged above the support base 4, the lower end of the rotating support shaft 7 is rotatably arranged in the support base 4, the fixing component 8 is arranged above the rotating support shaft 7, the rotating component 9 is arranged above the rotating bottom plate 3, the fixing component 8 comprises a fixed display board 10, a fixed chute 11 and a fixed clamping plate 12, the fixed display board 10 is arranged above the rotating support shaft 7, the fixed chutes 11 are symmetrically arranged in two ends of the fixed display board 10, one end of the fixed chute 11 penetrates through the fixed display board 10, the fixed clamping plate 12 is symmetrically arranged in two ends of the fixed display board 10, one end of the fixed clamping plate 12 is slidably arranged in the fixed chute 11, the rotating component 9 comprises a driving gear 13, a rotating gear 14, a transmission rotating shaft 15 and a transmission gear 16, the driving gear 13 is arranged at the upper end of the rotating shaft 6 and is arranged above the center of the rotating bottom plate 3, the rotating gear 14 is arranged on the side wall of the rotating support shaft 7 and is rotatably arranged in the support base 4, the transmission rotating shaft 15 is rotatably arranged on one side, close to the rotating shaft 6, of the support base 4, one end of the transmission rotating shaft 15 penetrates through the side wall of the support base 4, the transmission gears 16 are symmetrically arranged at two ends of the transmission rotating shaft 15, and the transmission gears 16 are respectively meshed with the driving gear 13 and the rotating gear 14.

The cross section of the fixed display board 10 is arranged in an inclined shape, and the cross section of the fixed splint 12 is arranged in an L shape.

Fixed chute 11 lateral wall is equipped with direction spout 17, the one end that solid fixed splint 12 slided and locates in fixed chute 11 is equipped with guide slide block 18, guide slide block 18 slip joint is located in the direction spout 17, be equipped with fixed spring 19 in the direction spout 17, fixed spring 19 locates guide slide block 18 one side, fixed spring 19 both ends are connected with direction spout 17, guide slide block 18 respectively.

The display cabinet is characterized in that a display cabinet door 20 is arranged at the opening end of the display cabinet body 2, one end of the display cabinet door 20 is hinged to the display cabinet body 2, a storage cabinet door 21 is arranged at the opening end of the storage cabinet body 1, one end of the storage cabinet door 21 is hinged to the storage cabinet body 1, and the display cabinet body 2 is made of toughened glass materials.

When the electronic product display device is used specifically, the fixing clamp plate 12 is pulled, an electronic product is placed on one side of the fixing display plate 10 and is arranged between the fixing clamp plate 12, the fixing clamp plate 12 is released at the moment, the fixing spring 19 pushes the guide sliding block 18 to move along the guide sliding groove 17, the fixing clamp plate 12 is enabled to reset rapidly, the fixing clamp plate 12 clamps two ends of the electronic product, the electronic product is fixed on one side of the fixing display plate 10, the rotating motor 5 drives the rotating bottom plate 3 to rotate through the rotating shaft 6 at the moment, the electronic product on the rotating bottom plate 3 can change positions continuously, different electronic products can be displayed conveniently, the rotating motor 5 drives the rotating shaft 6 to rotate, meanwhile, the driving gear 13 at the upper end of the rotating shaft 6 drives the transmission gear 16 at one end of the transmission rotating shaft 15 to rotate, the transmission shaft 15 starts to rotate, the transmission gear 16 at the other end of the transmission rotating shaft 15 drives the rotating gear 14 to rotate, the rotating gear 14 drives the rotating support shaft 7 to rotate, the rotating support shaft 7 drives the fixing component 8 to rotate, the electronic product on the fixing component 8 rotates, different positions for displaying the electronic product conveniently, the displaying effect is good, the practicability is high, and the application range is wide.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an electronic product sells with rotary type show cupboard which characterized in that: the multifunctional cabinet comprises a storage cabinet body, a display cabinet body, a rotating bottom plate, a supporting base, a rotating motor, a rotating shaft, a rotating supporting shaft, a fixing assembly and a rotating assembly, wherein the storage cabinet body is arranged in a hollow cavity with one open end, the display cabinet body is arranged above the storage cabinet body, one end of the display cabinet body, which is close to the open end of the storage cabinet body, is arranged in an open shape, the rotating bottom plate is rotatably arranged above the inner bottom wall of the display cabinet body, the supporting base is symmetrically arranged above two ends of the rotating bottom plate, the rotating motor is fixedly arranged in the storage cabinet body, the rotating shaft is arranged at the output end of the rotating motor, the rotating shaft is connected with the center of the rotating bottom plate, the upper end of the rotating shaft penetrates through the rotating bottom plate, the rotating supporting shaft is arranged above the supporting base, the lower end of the rotating supporting shaft is rotatably arranged in the supporting base, the fixing assembly is arranged above the rotating supporting shaft, the rotating assembly is arranged above the rotating bottom plate, the fixing assembly comprises a fixed display plate, a fixed chute and a fixed clamping plate, the fixed display plate is arranged above the rotating support shaft, the fixed chute is symmetrically arranged in two ends of the fixed display plate, one end of the fixed chute penetrates through the fixed display plate, the fixed clamping plate is symmetrically arranged in two ends of the fixed display plate, one end of the fixed clamping plate is slidably arranged in the fixed chute, the rotating assembly comprises a driving gear, a rotating gear, a transmission rotating shaft and a transmission gear, the driving gear is arranged at the upper end of the rotating shaft and is arranged above the center of the rotating bottom plate, the rotating gear is arranged on the side wall of the rotating support shaft and is rotatably arranged in the support base, the transmission rotating shaft is rotatably arranged on one side of the support base close to the rotating shaft, one end of the transmission rotating shaft penetrates through the side wall of the support base, the transmission gear is symmetrically arranged at two ends of the transmission rotating shaft, the transmission gear is respectively meshed with the driving gear and the rotating gear.

2. A rotary display cabinet according to claim 1, wherein: the cross section of the fixed display board is arranged in an inclined shape.

3. A rotary display cabinet according to claim 1, wherein: the cross section of the fixed splint is arranged in an L shape.

4. A rotary display cabinet according to claim 1, wherein: the fixed chute lateral wall is equipped with the direction spout, the one end that the solid fixed splint slided and locates in the fixed spout is equipped with the direction slider, the direction slider slip joint is located in the direction spout.

5. A rotary display cabinet according to claim 4, wherein: be equipped with fixed spring in the direction spout, fixed spring locates direction slider one side, the fixed spring both ends are connected with direction spout, direction slider respectively.

6. A rotary display cabinet according to claim 1, wherein: the display cabinet is characterized in that a display cabinet door is arranged at the open end of the display cabinet body, one end of the display cabinet door is hinged to the display cabinet body, a storage cabinet door is arranged at the open end of the storage cabinet body, and one end of the storage cabinet door is hinged to the storage cabinet body.

7. A rotary display cabinet according to claim 1, wherein: the display cabinet body is made of toughened glass materials.
