Abstract
The utility model discloses a green building ventilation unit of quick detach clearance type belongs to ventilation unit technical field, including the supply-air duct, supply-air duct one end middle part is connected with quick disassembly body, the constant head tank has been seted up on the supply-air duct top, inlet air rate adjustment mechanism is installed to constant head tank inner wall symmetry, supply-air duct inner wall one side fixed mounting has the filtration to collect the mechanism, the locating hole has been seted up to supply-air duct surface equidistance symmetry, the utility model discloses a quick disassembly body can be convenient for the separation between shell and the supply-air duct, has reduced the separation degree of difficulty between shell and the supply-air duct, and then has reduced the required time of separation between shell and the supply-air duct to improve the separation efficiency between shell and the supply-air duct, can be convenient for simultaneously that the connection between shell and the supply-air duct is fixed, has reduced the fixed degree of difficulty of connection between shell and the supply-air duct.
Description
Technical Field
The utility model relates to a ventilation unit technical field specifically is green building ventilation unit of quick detach clearance type.
Background
The ventilation is a building environment control technology which controls the propagation and harm of air pollutants by means of ventilation dilution or ventilation removal and the like, and realizes the quality guarantee of indoor and outdoor air environment.
But the shell of current supply air duct one end is not convenient for dismantle to increased the dismantlement degree of difficulty of the shell of supply air duct one end, and then increased the required time of user of dismantlement supply air duct one end, further leaded to staff's inefficiency problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a green building ventilation unit of quick detach clearance type to the shell that provides supply air duct one end among the above-mentioned background of solution is not convenient for dismantle, thereby has increased the dismantlement degree of difficulty of the shell of supply air duct one end, and then has increased the required time of the shell that the user of service dismantled supply air duct one end, further leads to staff's the inefficiency problem.
In order to solve the technical problem, the utility model provides a following technical scheme: quick detach clearance type's green building ventilation unit, including supply-air duct, supply-air duct one end middle part is connected with quick disassembly body, the constant head tank has been seted up on supply-air duct top, inlet air rate adjustment mechanism is installed to constant head tank inner wall symmetry, supply-air duct inner wall one side fixed mounting has the filtration to collect the mechanism, the locating hole has been seted up to supply-air duct surface equidistance symmetry.
Preferably, the quick disassembling mechanism comprises a shell, a baffle, a moving groove, a spring column, an extrusion block, a trapezoidal groove, an extrusion rod and a spring rod;
the utility model discloses an extrusion device, including casing, air supply pipeline, baffle, movable groove, extrusion piece, supply-air duct one end middle part is connected with the casing, the baffle is installed to casing inner wall middle part equidistance, the movable groove has been seted up to the casing bilateral symmetry, the bilateral symmetry welding of movable groove inner wall has the spring post, the welding of spring post one end has the extrusion piece, the trapezoidal groove has been seted up at extrusion piece openly middle part, the laminating of trapezoidal inslot portion is connected with the extrusion pole, connect through the spring pole between extrusion pole and the casing.
Preferably, sliding connection between extrusion stem and the shell, fixed through the spring beam between extrusion stem and the shell, extrusion piece one end face limit portion and locating hole inner wall limit portion agree with each other, can be convenient for extrusion piece's removal, have reduced extrusion piece's the removal degree of difficulty.
Preferably, the air inlet amount adjusting mechanism comprises a manual telescopic rod, a bamboo tablet and a pull handle;
manual telescopic links are symmetrically installed on the inner wall of the positioning groove, one end of each manual telescopic link is connected with a wooden document board, and a pull handle is connected to one end face of each wooden document board.
Preferably, the filtering and collecting mechanism comprises a fixed frame, an inclined net, a group spacing member, an arc-shaped member, a connecting rope and a rubber ball;
the utility model discloses a wind supply pipeline, including supply air duct inner wall, fixed frame, slope net bottom end side welding have a group spacing body, the welding of group spacing body surface equidistance has an arc piece, fixed frame back bottom equidistance is connected with the connection rope, it is connected with the ball to connect rope one end.
Preferably, the arc-shaped groove is formed in the middle of the inner wall of the separation part, and the round corners are formed in the edge part of the outer surface of the separation part, so that the gas can be guided conveniently, and dirt can be blocked.
Compared with the prior art, the utility model discloses the beneficial effect who reaches is:
1. through quick disassembly body, the separation between shell and the supply air duct of can being convenient for has reduced the separation degree of difficulty between shell and the supply air duct, and then has reduced the required time of separation between shell and the supply air duct to improve the separation efficiency between shell and the supply air duct, the connection that can be convenient for between shell and the supply air duct is fixed simultaneously, has reduced the fixed degree of difficulty of being connected between shell and the supply air duct.
2. Through filtering and collecting the mechanism, can be convenient for clear up the slope net, reduced the clearance degree of difficulty of slope net, and then prevent that the dirt from piling up at slope net surface, reduced the interference of dirt to the slope net to can increase often that the slope net used, can be convenient for collect the dirt after the clearance simultaneously, reduce the collection degree of difficulty of dirt.
3. Through intake adjustment mechanism, can block up the supply air duct entrance point, reduce the external amount of wind that enters into the inside supply air duct to when transportation or maintenance, can block up supply air duct inside, prevent that the dust in the work progress from entering into the inside supply air duct.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

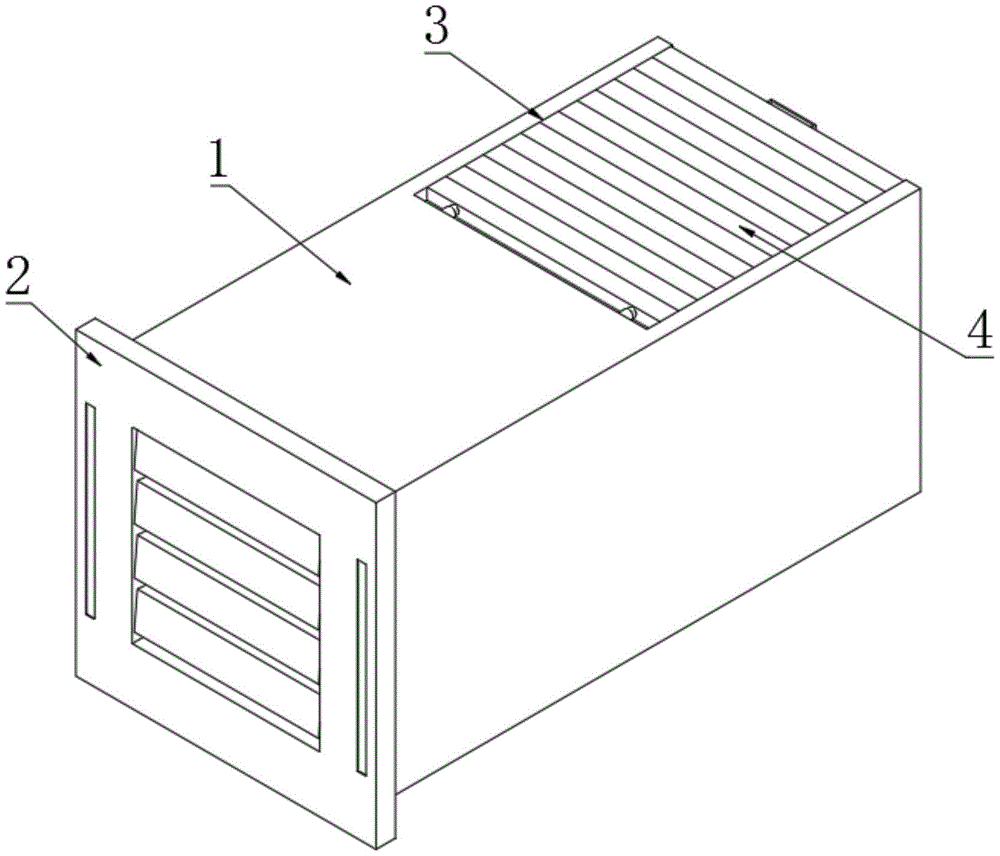

fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is a schematic view of the positioning groove of the present invention;
fig. 3 is a schematic structural view of the intake air adjusting mechanism of the present invention;
FIG. 4 is a schematic structural view of the quick release mechanism of the present invention;
FIG. 5 is a schematic structural view of the filtering and collecting mechanism of the present invention;
in the figure: 1. an air supply duct;
2. a quick release mechanism; 201. a housing; 202. a baffle plate; 203. a moving groove; 204. a spring post; 205. extruding the block; 206. a trapezoidal groove; 207. an extrusion stem; 208. a spring lever;
3. positioning a groove;
4. an intake air amount adjusting mechanism; 401. a manual telescopic rod; 402. a wooden tablet; 403. pulling a handle;
5. a filtration and collection mechanism; 501. a fixing frame; 502. tilting the net; 503. a group spacer; 504. an arcuate member; 505. connecting ropes; 506. a ball;
6. and (6) positioning the holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: quick detach cleaning type's green building ventilation unit, including supply- air duct 1, 1 one end mid-connection of supply-air duct has quick disassembly body 2, and constant head tank 3 has been seted up on supply-air duct 1 top, and intake adjustment mechanism 4 is installed to constant head tank 3 inner wall symmetry, and 1 inner wall one side fixed mounting of supply-air duct has the filtration to collect mechanism 5, and locating hole 6 has been seted up to 1 surface equidistance symmetry of supply-air duct.
The quick-release mechanism 2 comprises a shell 201, a baffle 202, a moving groove 203, a spring post 204, a pressing block 205, a trapezoidal groove 206, a pressing rod 207 and a spring rod 208;
the middle part of 1 end of blast pipeline is connected with shell 201, baffle 202 is installed to shell 201 inner wall middle part equidistance, the shifting chute 203 has been seted up to shell 201 bilateral symmetry, the bilateral symmetry welding of shifting chute 203 inner wall has spring post 204, the welding of spring post 204 one end has extrusion piece 205, extrusion piece 205 openly has seted up trapezoidal groove 206 in the middle part, the inside laminating in trapezoidal groove 206 is connected with extrusion stem 207, sliding connection between extrusion stem 207 and the shell 201, it is fixed through spring stem 208 between extrusion stem 207 and the shell 201, extrusion piece 205 terminal surface limit portion and 6 inner wall limit portions of locating hole agree with each other, the removal of extrusion piece 205 can be convenient for, the removal degree of difficulty of extrusion piece 205 has been reduced, connect through spring stem 208 between extrusion stem 207 and the shell 201.
The intake air adjusting mechanism 4 includes a manual telescopic rod 401, a tablet 402, and a pull handle 403;
a manual telescopic rod 401 is symmetrically arranged on the inner wall of the positioning groove 3, one end of the manual telescopic rod 401 is connected with a tablet 402, and one end face of the tablet 402 is connected with a pull handle 403.
The filtering and collecting mechanism 5 comprises a fixed frame 501, an inclined net 502, a group partition 503, an arc piece 504, a connecting rope 505 and a ball 506;
fixed frame 501 of air supply pipeline 1 inner wall one side fixed mounting, the net 502 that inclines is installed to fixed frame 501 inner wall, the welding of slope net 502 bottom limit portion has group spacing member 503, the arc wall has been seted up at group spacing member 503 inner wall middle part, group spacing member 503 surface limit portion has seted up the fillet, the gaseous water conservancy diversion of can being convenient for, can separate the dirt simultaneously, the welding of spacing member 503 surface equidistance has arc member 504, fixed frame 501 back bottom equidistance is connected with connection rope 505, connection rope 505 one end is connected with ball 506.
The utility model discloses a theory of operation: the quick disassembling mechanism 2 is detached by a user, the filtering and collecting mechanism 5 is connected with the air inlet quantity adjusting mechanism 4 and the air supply pipeline 1, a fan inside the ventilation device is arranged inside the air supply pipeline 1, when the air inlet quantity into the air supply pipeline 1 needs to be adjusted after the use, the user pulls the pull handle 403, the pull handle 403 drives the wooden slip sheet 402 to move when moving, the wooden slip sheet 402 moves along the inside of the positioning groove 3 and drives the manual telescopic rod 401 to stretch, the inlet end of the air supply pipeline 1 can be blocked by the wooden slip sheet 402, the air quantity entering the inside of the air supply pipeline 1 from the outside is reduced, and when the wooden slip sheet is transported or maintained, the inside of the air supply pipeline 1 can be blocked, and dust in the construction process is prevented from entering the inside of the air supply pipeline 1.
And because the air enters into the air supply duct 1, the air contacts with the inclined net 502 of the fixed frame 501, and the dust on the surface of the inclined net 502 falls into the partition 503, and the planar dust is blocked by the arc-shaped member 504, so as to prevent the external dust from entering into the outer surface of the inclined net 502, and because the air flow drives the ball 506 to move, the ball 506 moves to drive the connecting rope 505 to move, and when the air intake amount required in the air supply duct 1 is reduced or the external air flow is reduced, the ball 506 reversely moves due to gravity to wash the inclined net 502, so as to be convenient for cleaning the inclined net 502, reduce the cleaning difficulty of the inclined net 502, further prevent the dirt from accumulating on the outer surface of the inclined net 502, reduce the interference of the dirt on the inclined net 502, and increase the use frequency of the inclined net 502.
Finally, the user detaches the casing 201, the user pushes the extrusion rod 207 at the moment, the extrusion rod 207 moves to drive the spring rod 208 to contract, and at the moment, the extrusion rod 207 moves along the inside of the trapezoidal groove 206, the extrusion block 205 moves when the extrusion rod 207 moves, the spring column 204 contracts when the extrusion block 205 moves along the inside of the moving groove 203, at the moment, the extrusion block 205 separates from the air supply pipeline 1 along the positioning hole 6, separation between the casing 201 and the air supply pipeline 1 can be facilitated, separation difficulty between the casing 201 and the air supply pipeline 1 is reduced, time required for separation between the casing 201 and the air supply pipeline 1 is reduced, separation efficiency between the casing 201 and the air supply pipeline 1 is improved, connection and fixation between the casing 201 and the air supply pipeline 1 can be facilitated, and connection and fixation difficulty between the casing 201 and the air supply pipeline 1 is reduced.
It should be noted that, in this document, relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. Green building ventilation unit of quick detach clearance type, including supply air duct (1), its characterized in that: supply-air duct (1) one end middle part is connected with quick disassembly body (2), constant head tank (3) have been seted up on supply-air duct (1) top, inlet air rate adjustment mechanism (4) are installed to constant head tank (3) inner wall symmetry, supply-air duct (1) inner wall one side fixed mounting has the filtration to collect mechanism (5), locating hole (6) have been seted up to supply-air duct (1) surface equidistance symmetry.
2. The quick release cleaning type green building ventilation device according to claim 1, characterized in that: the quick disassembling mechanism (2) comprises a shell (201), a baffle (202), a moving groove (203), a spring column (204), an extrusion block (205), a trapezoidal groove (206), an extrusion rod (207) and a spring rod (208);
air supply duct (1) one end middle part is connected with shell (201), baffle (202) are installed to shell (201) inner wall middle part equidistance, removal groove (203) have been seted up to shell (201) bilateral symmetry, removal groove (203) inner wall bilateral symmetry welding has spring post (204), spring post (204) one end welding has extrusion piece (205), trapezoidal groove (206) have been seted up at extrusion piece (205) positive middle part, trapezoidal groove (206) inside laminating is connected with extrusion stem (207), connect through spring stem (208) between extrusion stem (207) and shell (201).
3. The quick-release cleaning type green building ventilation device according to claim 2, characterized in that: the extrusion rod (207) is in sliding connection with the shell (201), the extrusion rod (207) is fixed with the shell (201) through the spring rod (208), and one end face edge part of the extrusion block (205) is matched with the inner wall edge part of the positioning hole (6).
4. The quick release cleaning type green building ventilation device according to claim 1, characterized in that: the intake adjusting mechanism (4) comprises a manual telescopic rod (401), a tablet (402) and a pull handle (403);
the wooden tablet fixing device is characterized in that manual telescopic rods (401) are symmetrically installed on the inner wall of the positioning groove (3), one end of each manual telescopic rod (401) is connected with a wooden tablet (402), and one end face of each wooden tablet (402) is connected with a pull handle (403).
5. The quick release cleaning type green building ventilation device according to claim 1, characterized in that: the filtering and collecting mechanism (5) comprises a fixed frame (501), an inclined net (502), a group spacing part (503), an arc-shaped part (504), a connecting rope (505) and a ball (506);
air supply duct (1) inner wall one side fixed mounting has fixed frame (501), net (502) that inclines is installed to fixed frame (501) inner wall, net (502) that inclines bottom edge portion welding has group spacing body (503), the welding of group spacing body (503) surface equidistance has arc spare (504), fixed frame (501) back bottom equidistance is connected with and connects rope (505), it is connected with ball (506) to connect rope (505) one end.
6. The quick release cleaning type green building ventilation device according to claim 5, characterized in that: an arc-shaped groove is formed in the middle of the inner wall of the group spacing part (503), and a round angle is formed in the edge part of the outer surface of the group spacing part (503).
