CN217559775U - Hanger laying structure for mounting oversized lamp

Info

Publication number: CN217559775U
Application number: CN202221114765.4U
Authority: CN
Inventors: 姜海洋; 张沙; 向永荷; 张玉林; 陈阳
Original assignee: China Construction Eighth Engineering Division Decoration Engineering Co Ltd
Current assignee: China Construction Eighth Engineering Division Decoration Engineering Co Ltd
Priority date: 2022-05-10
Filing date: 2022-05-10
Publication date: 2022-10-11
Anticipated expiration: 2032-05-10

Abstract

The utility model relates to a lamps and lanterns installation technical field, concretely relates to super large lamps and lanterns installation is with crane span structure of laying up, the sound insulation protective device comprises a wall body, the bottom outer wall of wall body is fixed with the fixed column, the bottom mounting of fixed column has the regulating box, the bottom outer wall below of regulating box is provided with the bottom plate, be provided with adjusting part on the regulating box, adjusting part includes moving part, locking part, fixed part and prevents weighing down the part, moving part sets up at the regulating box inner wall, and is known from above-mentioned mode the utility model discloses can not only realize carrying out the purpose of hoist and mount to lamps and lanterns, also can adjust the height of lamps and lanterns according to user's demand simultaneously, therefore improved its application scope greatly, the suitability is strong and the practicality is good.

Description

Hanger laying structure for mounting oversized lamp

Technical Field

The utility model relates to a lamps and lanterns installation technical field, concretely relates to super large lamps and lanterns installation is laid structure with crane.

Background

The ceiling lamp is a high-grade decorative illuminating lamp hung on an indoor ceiling, the ceiling lamp can not be hung too short whether by a wire or an iron support, the normal sight of people is obstructed or the ceiling lamp is dazzling, common European-style candleholder ceiling lamps, chinese-style ceiling lamps, crystal ceiling lamps, parchment ceiling lamps, fashion ceiling lamps, cone-shaped cover flower lamps, point-flat cover flower lamps, girdling cover flower lamps, five-fork ball ceiling lamps, magnolia cover flower lamps, olive ceiling lamps and the like are used, the ceiling lamp is used for single-head ceiling lamps and multi-head ceiling lamps of living rooms, the former is mostly used in bedrooms, dining rooms and the latter is suitable for being installed in living rooms.

And along with user's demand, the volume of ceiling lamp is also bigger and bigger, and traditional lamps and lanterns gallows also can not satisfy gradually with user's demand, and prior art mainly adopts lead screw or iron chain to fix, and it can realize the purpose of hoist and mount, but can not adjust the height of lamps and lanterns according to user's demand, and then still has the weak point in the use.

Therefore, the invention is necessary to provide a hanger arrangement structure for mounting oversized lamps.

SUMMERY OF THE UTILITY MODEL

Therefore, the utility model provides a super large lamps and lanterns installation is with hanger cloth and is established structure to solve prior art and mainly adopt lead screw or iron chain to fix, its purpose that though can realize hoist and mount, can not adjust the height of lamps and lanterns according to user's demand, and then still have the problem of weak point in the use.

In order to achieve the above object, the present invention provides the following technical solutions: a hanging frame arrangement structure for mounting an oversized lamp comprises a wall body, wherein a fixed column is fixed on the outer wall of the bottom end of the wall body, an adjusting box is fixed at the bottom end of the fixed column, a bottom plate is arranged below the outer wall of the bottom end of the adjusting box, and an adjusting assembly is arranged on the adjusting box;

the adjusting part comprises a moving part, a locking part, a fixed part and an anti-falling part, the moving part is arranged on the inner wall of the adjusting box, the moving part comprises a moving plate and a connecting column, the locking part is arranged on two sides of the outer wall of the top end of the moving plate, the locking part comprises a square frame, a short rod, a limiting moving plate and a connecting fixture block, the fixed part is arranged on two sides of the outer wall of the bottom end of the adjusting box, the fixed part comprises a threaded plate, a screw rod and an arc-shaped fixture block, the anti-falling part is arranged between two sides of the outer wall of the top end of the bottom plate and the outer wall of two sides of the adjusting box, and the anti-falling part comprises a pull rod and a slide block.

Preferably, the outer wall of the moving plate is in sliding connection with the inner wall of the adjusting box, the upper end of the connecting column is fixedly connected with the center of the outer wall of the bottom end of the moving plate, and the bottom end of the connecting column is fixedly connected with the outer wall of the top end of the bottom plate.

Preferably, the inner walls of the two sides of the adjusting box are both fixedly provided with connecting clamping plates, the bottom end of the square frame is fixedly connected with the two sides of the outer wall of the top end of the moving plate, the displacement limiting plate is slidably connected with the inner wall of the square frame, the opposite end of the short rod is fixedly connected with the outer wall of the side, opposite to the displacement limiting plate, of the short rod, and the outer wall of the short rod is slidably connected with the outer wall of the side, opposite to the square frame, of the short rod.

Preferably, the outer wall of the short rod is sleeved with a spring in a sliding connection mode, the opposite end of the spring is fixedly connected with the outer wall of the side, opposite to the limiting moving plate, of the limiting moving plate, and the opposite end of the spring is fixedly connected with the inner wall of the side, opposite to the square frame, of the side, opposite to the square frame.

Preferably, the opposite end of the connecting clamping block is fixedly connected with the outer wall of the opposite side of the limiting moving plate, the outer wall of the connecting clamping block is slidably connected with the outer wall of the opposite side of the square frame, the outer wall of the opposite side of the connecting clamping plate is provided with a clamping groove at a position corresponding to the connecting clamping block, and the connecting clamping block is slidably connected with the inner wall of the clamping groove.

Preferably, the top of the thread plate is fixedly connected with the two sides of the outer wall of the bottom of the adjusting box, threaded holes are formed in the center of the outer wall of the side end of the thread plate, the outer wall of the screw rod is in threaded connection with the inner wall of the threaded hole, the arc-shaped clamping blocks are rotatably connected with the opposite ends of the screw rod, and the arc-shaped clamping blocks are arranged on the two sides of the connecting column.

Preferably, the upper end of the pull rod is hinged to the outer walls of the two sides of the adjusting box, the bottom end of the pull rod is hinged to the top end of the sliding block, sliding grooves are formed in the connecting positions of the outer walls of the top end of the bottom plate and the sliding blocks, and the sliding blocks are connected with the inner walls of the sliding grooves in a sliding mode.

Preferably, the upper part of the outer wall of the fixed column is sleeved with a fixed clamping plate in a sliding connection mode, two ends of the fixed clamping plate are fixedly connected with the outer wall of the bottom end of the wall body through bolts, lamp mounting plates are fixed on two sides of the outer wall of the bottom end of the bottom plate, and mounting holes are formed in the outer walls of the side ends of the lamp mounting plates.

The utility model has the advantages that:

the utility model discloses in, can install lamps and lanterns through the bottom plate that sets up and the lamps and lanterns mounting panel, and can highly adjust the lamps and lanterns installation through the cooperation between the moving part that sets up and the locking part, can improve the fixed effect of moving part after the altitude mixture control is accomplished simultaneously through the fixed part that sets up, know through the above-mentioned mode the utility model discloses can not only realize carrying out the purpose of hoist and mount to lamps and lanterns, also can highly adjust lamps and lanterns according to user's demand simultaneously, and improved its application scope greatly, the suitability is strong and the practicality is good.

Drawings

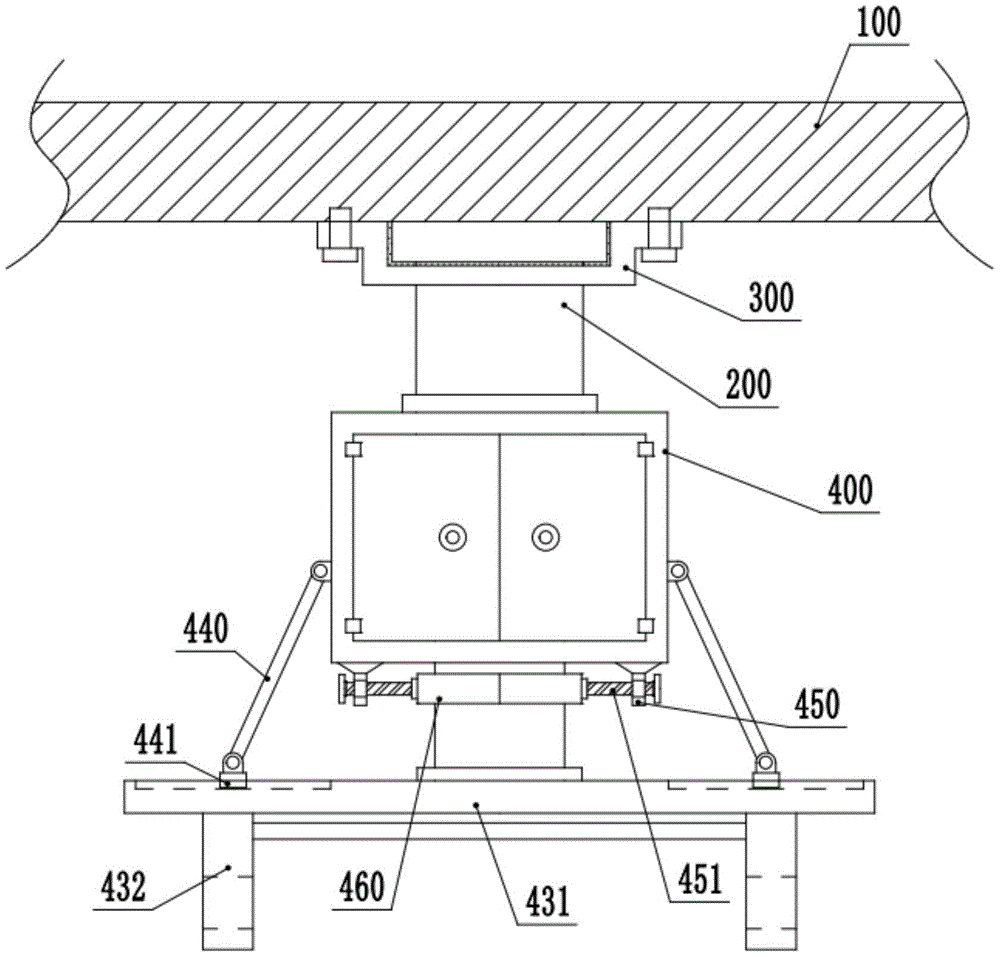

Fig. 1 is a schematic view of the external structure of the utility model in the front view direction;

FIG. 2 is a schematic view of a partial cross-sectional structure in the front view direction of the present invention;

FIG. 3 is an enlarged schematic view of the structure of FIG. 2;

fig. 4 is a schematic structural view of the arc-shaped fixture block of the present invention in the top view direction;

fig. 5 is a schematic view of the three-dimensional structure of the overlooking direction of the middle fixing clip plate of the present invention.

In the figure: 100. a wall body; 200. fixing the column; 300. fixing the clamping plate; 400. an adjusting box; 401. connecting a clamping plate; 402. a card slot; 410. moving the plate; 420. a square frame; 421. a short bar; 422. a displacement limiting plate; 423. a spring; 424. connecting a clamping block; 430. connecting columns; 431. a base plate; 432. a lamp mounting plate; 440. a pull rod; 441. a slider; 450. a thread plate; 451. a screw; 460. an arc-shaped clamping block.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.

Referring to fig. 1-5, the utility model provides a hanger cloth structure for installation of oversized lamp, including wall body 100, the bottom outer wall of wall body 100 is fixed with fixed column 200, the fixed column 200 that sets up is for being connected regulation case 400 with wall body 100, the bottom of fixed column 200 is fixed with regulation case 400, the front end outer wall of regulation case 400 that sets up articulates there is the chamber door, be provided with bottom plate 431 below the bottom outer wall of regulation case 400, be provided with the adjusting part on regulation case 400, the adjusting part that sets up is for adjusting the height of bottom plate 431, and then can adjust the height of the lamp of fixing in its bottom, the adjusting part includes moving part, locking part, fixed part, and anti-falling part, moving part sets up at the regulation case 400 inner wall, the moving part that sets up is for cooperating locking part to adjust the height of bottom plate 431 together, moving part includes movable plate 410 and spliced pole 430, the outer wall of 410 and the inner wall sliding connection of regulation case 400, the upper end of spliced pole 430 is fixedly connected with the bottom outer wall center of movable plate 410, the bottom outer wall of bottom plate 430 is fixedly connected with the bottom outer wall of bottom plate 431, and the bottom of spliced pole 410 is connected with the height of regulation case 410, the movable plate 410, the bottom of the movable plate is connected with the worker's bottom of spliced pole 431 through the height adjustment pole 410;

the locking components are arranged on two sides of the outer wall of the top end of the moving plate 410, each locking component comprises a square frame 420, a short rod 421, a limiting moving plate 422 and a connecting fixture block 424, the inner walls of two sides of the adjusting box 400 are respectively fixedly provided with a connecting fixture plate 401, the bottom end of the square frame 420 is fixedly connected with two sides of the outer wall of the top end of the moving plate 410, the limiting moving plate 422 is in sliding connection with the inner wall of the square frame 420, the inner wall of the arranged square frame 420 is provided with a limiting groove at the joint with the limiting moving plate 422, the outer wall of the limiting moving plate 422 is in sliding connection with the limiting groove, the opposite end of the short rod 421 is respectively fixedly connected with the outer wall of the opposite side of the limiting moving plate 422, the outer wall of the short rod 421 is respectively in sliding connection with the outer wall of the opposite side of the square frame 420, a user can pull the limiting moving plate 422 to slide through the short rod 421, the outer wall of the short rod 421 is respectively sleeved with a spring 423 in a sliding connection mode, the opposite ends of the springs 423 are fixedly connected with the outer wall of the opposite side of the limiting moving plate 422, the opposite ends of the springs 423 are fixedly connected with the inner wall of the opposite side of the square frame 420, the springs 423 are arranged to enable the two sets of limiting moving plates 422 to drive the connecting fixture block 424 to be inserted into the clamping groove 402 all the time without the action of external force, the opposite ends of the connecting fixture block 424 are fixedly connected with the outer wall of the opposite side of the limiting moving plate 422, the outer wall of the connecting fixture block 424 is connected with the outer wall of the opposite side of the square frame 420 in a sliding manner, the outer wall of the opposite side of the connecting fixture block 401 is provided with the clamping groove 402 at a position corresponding to the connecting fixture block 424, the connecting fixture block 424 is connected with the inner wall of the clamping groove 402 in a sliding manner, the arranged connecting fixture block 424 can be inserted into the clamping groove 402 to fix the position of the moving plate 410, and the arranged clamping grooves 402 can be uniformly arranged on the outer wall of the opposite side of the connecting fixture plate 401 in a strip array manner;

the fixing parts are arranged on two sides of the outer wall of the bottom end of the adjusting box 400 and comprise a threaded plate 450, a threaded rod 451 and an arc-shaped fixture block 460, the top end of the threaded plate 450 is fixedly connected with two sides of the outer wall of the bottom end of the adjusting box 400, threaded holes are formed in the centers of the outer walls of the side ends of the threaded plate 450, the outer wall of the threaded rod 451 is in threaded connection with the inner wall of the threaded hole, the arc-shaped fixture block 460 is rotatably connected with one end, opposite to the threaded rod 451, of the threaded rod 451, the arc-shaped fixture block 460 is arranged on two sides of the connecting column 430, workers can rotate the threaded rod 451 to enable the two groups of connecting columns 430 to move in opposite directions or opposite directions, rubber anti-skidding pads are fixed on the outer walls of the opposite sides of the arc-shaped fixture block 460, the outer wall of the connecting column 430 can be clamped, so that the connecting column 430 is prevented from moving up and down, and the outer wall of the connecting column 430 is subjected to sandblasting, and the friction force is improved;

the anti-falling component is arranged between two sides of the outer wall of the top end of the bottom plate 431 and the outer walls of two sides of the adjusting box 400, the anti-falling component comprises a pull rod 440 and a slide block 441, the upper end of the pull rod 440 is hinged with the outer walls of two sides of the adjusting box 400, the bottom end of the pull rod 440 is hinged with the top end of the slide block 441, the outer wall of the top end of the bottom plate 431 is provided with a slide groove at the joint with the slide block 441, the slide block 441 is connected with the inner wall of the slide groove in a sliding manner, and the pull rod 440 and the slide block 441 are arranged to fix the top end of the bottom plate 431 under the condition that the movement of the bottom plate 431 is not influenced, so that the situation that the bottom plate 431 is emergently fallen off is avoided;

preferably, the outer wall upper portion of fixed column 200 is equipped with fixed cardboard 300 through sliding connection's mode cover, the bottom outer wall fixed connection of bolt and wall body 100 is passed through at the both ends of fixed cardboard 300, the fixed cardboard 300 that sets up has seted up the through-hole with fixed column 200 outer wall junction, bottom outer wall both sides of bottom plate 431 all are fixed with lamps and lanterns mounting panel 432, the mounting hole has all been seted up to lamps and lanterns mounting panel 432's side outer wall, the lamps and lanterns mounting panel 432 and the mounting hole that set up are connected lamps and lanterns and bottom plate 431's bottom for the convenience of the workman.

The utility model discloses a use as follows: the worker firstly slidably connects the fixing clamping plate 300 with the outer wall of the fixing column 200 through the through hole, after connection is completed, the limiting installation block is fixed at the top end of the fixing column 200, then the limiting installation block is connected with the bottom end installation position of the wall body 100 through the bolt, after connection is completed, the two sides of the fixing clamping plate 300 are fixedly connected with the bottom end outer wall of the wall body 100 through the bolt, after connection is completed, the worker firstly rotates the screw 451 reversely to separate the arc-shaped clamping block 460 from the outer wall of the connecting column 430, then opens the door of the outer wall at the front end of the adjusting box 400, pulls the short rod 421 to separate the connecting clamping block 424 from the inner wall of the clamping groove 402, after separation, the other worker can drag the bottom plate 431 to move up and down, then can adjust the height of the bottom plate 431, in the adjusting process of the worker, the set sliding block 441 slides in the sliding groove, so as to avoid the pull rod 440 from blocking the movement of the bottom plate 431, after height adjustment is completed, the worker can push the short rod 421 to make the connecting block 422 pass through the displacement limiting plate 424 to insert the clamping block into the clamping groove 402, and then rotate the screw 460 to clamp the outer wall of the lamp to clamp the bottom end of the bottom plate 431 to complete installation of the lamp 451, and then to complete the installation of the lamp after the installation of the lamp 451.

The above description is only a preferred embodiment of the present invention, and any person skilled in the art may modify the present invention or modify it into an equivalent technical solution by using the technical solutions described above. Therefore, any simple modifications or equivalent replacements made according to the technical solution of the present invention belong to the scope of the claimed invention as far as possible.

Claims

1. The utility model provides a super large lamps and lanterns installation is with hanger cloth and is established structure, includes wall body (100), the bottom outer wall of wall body (100) is fixed with fixed column (200), the bottom mounting of fixed column (200) has regulating box (400), the bottom outer wall below of regulating box (400) is provided with bottom plate (431), its characterized in that: an adjusting component is arranged on the adjusting box (400);

the adjusting part includes moving part, locking part, fixed part and prevents weighing down the part, the moving part sets up at regulating box (400) inner wall, the moving part includes movable plate (410) and spliced pole (430), locking part sets up the top outer wall both sides at movable plate (410), locking part includes square frame (420), quarter butt (421), spacing board (422) and connection fixture block (424) of moving, the fixed part sets up the bottom outer wall both sides at regulating box (400), the fixed part includes screw plate (450), screw rod (451) and arc fixture block (460), prevent weighing down the part setting between the top outer wall both sides of bottom plate (431) and regulating box (400) both sides outer wall, prevent weighing down the part and include pull rod (440) and slider (441).

2. The hanger arrangement structure for mounting the oversized lamp according to claim 1, characterized in that: the outer wall of the moving plate (410) is in sliding connection with the inner wall of the adjusting box (400), the upper end of the connecting column (430) is fixedly connected with the center of the outer wall of the bottom end of the moving plate (410), and the bottom end of the connecting column (430) is fixedly connected with the outer wall of the top end of the bottom plate (431).

3. The hanger arrangement structure for mounting the oversized lamp according to claim 1, characterized in that: the both sides inner wall of regulating box (400) all is fixed with connects cardboard (401), the bottom of square frame (420) and the top outer wall both sides fixed connection of movable plate (410), the inner wall sliding connection of limit displacement board (422) and square frame (420), the opposite one end of quarter butt (421) all with the relative one side outer wall fixed connection of limit displacement board (422), the outer wall of quarter butt (421) all with the relative one side outer wall sliding connection of square frame (420).

4. The hanger arrangement structure for mounting the oversized lamp according to claim 3, characterized in that: the outer wall of quarter butt (421) all has cup jointed spring (423) through sliding connection's mode, the opposite one end of spring (423) all with spacing move board (422) relative one side outer wall fixed connection, the relative one end of spring (423) all with square frame (420) relative one side inner wall fixed connection.

5. The hanger arrangement structure for mounting oversized lamp according to claim 4, characterized in that: the opposite ends of the connecting clamping blocks (424) are fixedly connected with the outer wall of the side opposite to the limiting moving plate (422), the outer wall of the connecting clamping blocks (424) is slidably connected with the outer wall of the side opposite to the square frame (420), clamping grooves (402) are formed in the positions, corresponding to the connecting clamping blocks (424), of the outer wall of the side opposite to the connecting clamping plate (401), and the connecting clamping blocks (424) are slidably connected with the inner wall of the clamping grooves (402).

6. The hanger arrangement structure for mounting the oversized lamp according to claim 1, characterized in that: the top of thread plate (450) all with the bottom outer wall both sides fixed connection of regulating box (400), the side outer wall center department of thread plate (450) all sets up threaded hole, the outer wall of screw rod (451) all with threaded hole inner wall threaded connection, arc fixture block (460) all rotates with the relative one end of screw rod (451) to be connected, arc fixture block (460) set up in spliced pole (430) both sides.

7. The hanger arrangement structure for mounting the oversized lamp according to claim 1, characterized in that: the upper end of the pull rod (440) is hinged to the outer walls of the two sides of the adjusting box (400), the bottom end of the pull rod (440) is hinged to the top end of the sliding block (441), the outer wall of the top end of the bottom plate (431) is provided with sliding grooves at the connection positions with the sliding block (441), and the sliding block (441) is connected with the inner walls of the sliding grooves in a sliding mode.

8. The hanger arrangement structure for mounting the oversized lamp according to claim 1, characterized in that: the lamp fixing device is characterized in that a fixing clamping plate (300) is sleeved on the upper portion of the outer wall of the fixing column (200) in a sliding connection mode, two ends of the fixing clamping plate (300) are fixedly connected with the outer wall of the bottom end of the wall body (100) through bolts, lamp mounting plates (432) are fixed to two sides of the outer wall of the bottom end of the bottom plate (431), and mounting holes are formed in the outer wall of the side end of each lamp mounting plate (432).
