CN217541705U - Novel engineering quality detection chi is built in multi-functional municipal administration room

Info

Publication number: CN217541705U
Application number: CN202221757586.2U
Authority: CN
Inventors: 沐晓春; 唐寅
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-07-07
Filing date: 2022-07-07
Publication date: 2022-10-04
Anticipated expiration: 2032-07-07

Abstract

The utility model belongs to the technical field of the engineering quality detects, especially, novel engineering quality detection chi is built in novel multi-functional municipal room will lift with the hand always to having when measuring in the current technique, and is inconvenient fixed to be not convenient for measure the problem of long distance size, now propose following scheme, it includes first fixed block, second fixed block and tape measure, two slide bars that relative one side fixedly connected with symmetry of first fixed block and second fixed block set up, two the outer wall slip cap of slide bar is equipped with same movable block, the utility model discloses in, drive the movable block through first screw rod and be close to first fixed block and fix the device on the wall post, adjust the level of balancing pole through twisting the second screw rod, make the tape measure the time value more accurate to use manpower sparingly, convenient to use.

Description

Novel engineering quality detection chi is built in multi-functional municipal administration room

Technical Field

The utility model relates to an engineering quality detects technical field, especially relates to a novel engineering quality detection chi is built in multi-functional municipal room.

Background

The engineering quality refers to the engineering construction condition, the engineering quality is a standard for engineering assessment, the quality directly determines the later use and maintenance of the engineering, and the measurement of the engineering quality often requires the measurement of the size of the building, including the measurement of gaps, the measurement of diameters, the measurement of levels and the like.

The utility model with the bulletin number of CN215984329U discloses a novel multifunctional municipal building engineering quality detection ruler, which comprises a level meter, wherein one end of the level meter is fixedly connected with a first telescopic rod, one end of the first telescopic rod, which is far away from the level meter, is hinged with a first support plate, a flexible rule is fixedly connected to the first support plate, one end of the level meter, which is far away from the first telescopic rod, is fixedly connected with a second telescopic rod, and one end of the second telescopic rod, which is far away from the level meter, is slidably connected with a second support plate; the screw thread adjusting column rotates relative to the bearing, the screw thread adjusting column rotates with the fixed rod screw thread, the horizontal height of the second telescopic rod can be adjusted, the level meter is located at the horizontal position through fine adjustment of the second telescopic rod, a horizontal reference line is provided for measuring the gap by the tape measure, and therefore when the gap is measured by the tape measure, the tape measure is prevented from inclining, and the measured data are larger than the actual gap width.

Although the device can incline less gap, must always lift with the hand during measurement, inconvenient fixed to the measurement long distance's of not being convenient for size, so we provide a novel multi-functional municipal building engineering quality detection chi, in order to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the prior art has the defects of inconvenient measurement of long-distance size and the like, and providing a novel multifunctional municipal building engineering quality detection ruler.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a novel engineering quality detection chi is built in multi-functional municipal room, includes first fixed block, second fixed block and tape measure, two slide bars that first fixed block and the relative one side fixedly connected with symmetry of second fixed block set up, two the outer wall slip cap of slide bar is equipped with same movable block, first fixed block runs through the rotation with the relative one side of second fixed block and is connected with same first screw rod, first screw rod runs through threaded connection with the movable block, first fixed block is rotated with the homonymy of second fixed block and is connected with same balancing pole, the tape measure is located the top of balancing pole, the outer wall of balancing pole is equipped with the clamping component who is used for pressing from both sides tight tape measure.

Preferably, the clamping assembly comprises a base, the outer wall of the balance rod is sleeved with the base in a sliding manner, a connecting column is fixedly connected to one side of the base, a clamping block is sleeved on the outer wall of the connecting column, a first bolt penetrates through one side of the clamping block, one end of the first bolt is in threaded connection with the base, and the tape measure is located between the clamping block and the base.

Preferably, two turning blocks that one side fixedly connected with symmetry of second fixed block set up, two relative one side of turning block is run through to rotate and is connected with same second screw rod, the outer wall threaded connection of second screw rod has the nut, one side of nut is rotated and is connected with the rotation post, waist shape hole has been seted up to one side of balancing pole, the rotation post runs through waist shape hole.

Preferably, the top of the balance bar is fixedly connected with a level gauge.

Preferably, the bottom of the base is in threaded connection with a second bolt, and the top of the second bolt is abutted against the bottom of the balance bar.

Preferably, the bottom of the base is provided with a laser lamp.

Preferably, anti-skidding lines are arranged on the opposite sides of the moving block and the first fixed block.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the device is clamped on the wall column, the first screw rod is rotated, and the first screw rod drives the moving block to be close to the first fixing block, so that the device is fixed on the wall column;

2. placing the tape measure on the base, screwing the first bolt, driving the clamping block by the first bolt to fix the tape measure on the base, pushing the base to enable one side of the tape measure to be flush with the first fixing block, and screwing the second bolt to fix the base on the balancing pole;

3. the second screw rod is screwed, the second screw rod drives the nut to move up and down, the balance rod can be adjusted to be horizontal by the movement of the nut, the horizontal state can be observed through the level meter, the laser lamp is turned on, the position to be measured can be seen through the point emitted by the laser lamp, the tape measure is pulled, one end of the tape measure is attached to the red point, and the distance can be measured;

the utility model discloses in, drive the movable block through first screw rod and be close to first fixed block and fix the device on the wall post, move the level that the balancing pole was adjusted to the second screw rod through twisting, make the tape measure value more accurate when measuring to use manpower sparingly, convenient to use.

Drawings

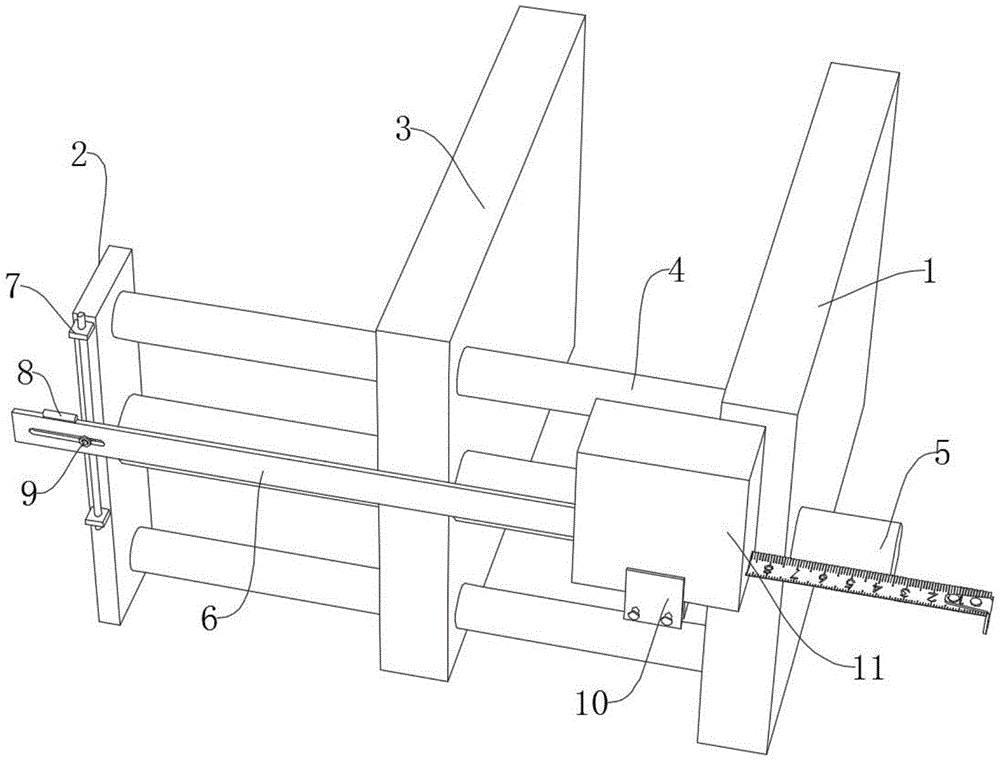

Fig. 1 is a three-dimensional structure schematic diagram of a novel multifunctional municipal building engineering quality detection ruler provided by the utility model;

fig. 2 is a schematic three-dimensional structure diagram of another view angle of the novel multifunctional municipal building engineering quality detection ruler provided by the utility model;

fig. 3 is a schematic view of the balancing bar of the present invention;

fig. 4 is an enlarged view of a portion a of fig. 2.

In the figure: 1. a first fixed block; 2. a second fixed block; 3. a moving block; 4. a slide bar; 5. a first screw; 6. a balancing pole; 7. rotating the block; 8. a level gauge; 9. rotating the column; 10. a clamping block; 11. a tape measure; 12. a second screw; 13. a waist-shaped hole; 14. connecting columns; 15. a first bolt; 16. a base; 17. a second bolt; 18. a nut; 19. and a laser lamp.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Example one

Referring to fig. 1-4, a novel engineering quality detection chi is built in multi-functional municipal building, including first fixed block 1, second fixed block 2 and tape measure 11, two slide bars 4 that first fixed block 1 and the relative one side fixedly connected with symmetry of second fixed block 2 set up, the outer wall sliding sleeve of two slide bars 4 is equipped with same movable block 3, first fixed block 1 runs through to rotate with relative one side of second fixed block 2 and is connected with same first screw rod 5, first screw rod 5 runs through threaded connection with movable block 3, first fixed block 1 is rotated with the homonymy of second fixed block 2 and is connected with same balancing pole 6, tape measure 11 is located the top of balancing pole 6, the outer wall of balancing pole 6 is equipped with the clamping component who is used for pressing from both sides tight tape measure 11.

Example two

Referring to fig. 1-4, a novel multifunctional municipal building engineering quality detection ruler comprises a first fixed block 1, a second fixed block 2 and a measuring tape 11, wherein two symmetrically arranged sliding rods 4 are fixedly connected to one opposite side of the first fixed block 1 and the second fixed block 2, a same moving block 3 is slidably sleeved on the outer wall of the two sliding rods 4, a same first screw 5 is rotatably connected to one opposite side of the first fixed block 1 and the second fixed block 2 in a penetrating manner, the first screw 5 is in threaded connection with the moving block 3 in a penetrating manner, anti-skid threads are arranged on one opposite side of the moving block 3 and the first fixed block 1, so that the device can be conveniently fixed on a wall column, a same balancing rod 6 is rotatably connected to the same side of the first fixed block 1 and the second fixed block 2, two symmetrically arranged rotating blocks 7 are fixedly connected to one side of the second fixed block 2, and a same second screw 12 is rotatably connected to one opposite side of the two rotating blocks 7, the outer wall of the second screw rod 12 is in threaded connection with a nut 18, one side of the nut 18 is rotatably connected with a rotating column 9, one side of the balance bar 6 is provided with a waist-shaped hole 13, the rotating column 9 penetrates through the waist-shaped hole 13, the top of the balance bar 6 is fixedly connected with a level meter 8, the horizontal state of the balance bar 6 is convenient to adjust, the tape measure 11 is positioned above the balance bar 6, the outer wall of the balance bar 6 is provided with a clamping component for clamping the tape measure 11, the clamping component comprises a base 16 which is slidably sleeved on the outer wall of the balance bar 6, one side of the base 16 is fixedly connected with a connecting column 14, the outer wall of the connecting column 14 is sleeved with a clamping block 10, one side of the clamping block 10 is provided with a first bolt 15 in a penetrating manner, one end of the first bolt 15 is in threaded connection with the base 16, the tape measure 11 is positioned between the clamping block 10 and the base 16, the tape measure 11 is convenient to fix, the bottom of the base 16 is in a penetrating manner connected with a second bolt 17 in a threaded manner, the top of the second bolt 17 is abutted against the bottom of the balance bar 6, so that the tape measure 11 cannot move the bottom of the base 16 when in use, and a laser lamp 19 is arranged at the bottom of the base, thereby facilitating measurement.

The working principle is as follows: when the device is used, the device is clamped on a wall column, the first screw rod 5 is rotated, the first screw rod 5 drives the moving block 3 to be close to the first fixing block 1, the device is fixed on the wall column, the tape measure 11 is placed on the base 16, the first bolt 15 is screwed, the first bolt 15 drives the clamping block 10 to fix the tape measure 11 on the base 16, the base 16 is pushed to enable one side of the tape measure 11 to be level with the first fixing block 1, the second bolt 17 is screwed to fix the base 16 on the balancing rod 6, the second screw rod 12 is screwed, the nut 18 is driven to move up and down by the second screw rod 12, the balancing rod 6 can be adjusted to be horizontal by moving the nut 18, the horizontal state can be observed through the level meter 8, the laser lamp 19 is turned on, the position to be measured can be observed through the point emitted by the laser lamp 19, the tape measure 11 is pulled, one end of the tape measure 11 is attached to a red point, and the distance can be measured. The device can be fixed on a wall column by driving the moving block 3 to be close to the first fixing block 1 through the first screw rod 5, and the level of the balancing rod 6 is adjusted by screwing the second screw rod 12, so that the time value of the measuring tape 11 is more accurate in measurement, manpower is saved, and the use is convenient.

The above, only be the embodiment of the preferred of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, which are designed to be replaced or changed equally, all should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a novel engineering quality detection chi is built in multi-functional municipal administration room, includes first fixed block (1), second fixed block (2) and tape measure (11), its characterized in that, two slide bar (4) that first fixed block (1) and the relative one side fixedly connected with symmetry of second fixed block (2) set up, two the outer wall sliding sleeve of slide bar (4) is equipped with same movable block (3), first fixed block (1) is run through rotation with the relative one side of second fixed block (2) and is connected with same first screw rod (5), first screw rod (5) run through threaded connection with movable block (3), first fixed block (1) is connected with same balancing pole (6) with the homonymy rotation of second fixed block (2), tape measure (11) are located the top of balancing pole (6), the outer wall of balancing pole (6) is equipped with the clamping component who is used for pressing from both sides tight tape measure (11).

2. The novel multifunctional municipal building engineering quality detection ruler according to claim 1, characterized in that the clamping assembly comprises a base (16) slidably sleeved on the outer wall of the balance bar (6), a connecting column (14) is fixedly connected to one side of the base (16), a clamping block (10) is sleeved on the outer wall of the connecting column (14), a first bolt (15) is arranged on one side of the clamping block (10) in a penetrating manner, one end of the first bolt (15) is in threaded connection with the base (16), and the measuring tape (11) is located between the clamping block (10) and the base (16).

3. The novel multifunctional municipal building engineering quality detection ruler according to claim 2, characterized in that one side of the second fixed block (2) is fixedly connected with two symmetrically arranged rotating blocks (7), the opposite side of the two rotating blocks (7) is connected with the same second screw (12) in a penetrating and rotating manner, the outer wall of the second screw (12) is connected with a nut (18) in a threaded manner, one side of the nut (18) is connected with a rotating column (9) in a rotating manner, one side of the balancing rod (6) is provided with a kidney-shaped hole (13), and the rotating column (9) penetrates through the kidney-shaped hole (13).

4. The novel multifunctional municipal building engineering quality detection ruler according to claim 3, characterized in that a level (8) is fixedly connected to the top of the balance bar (6).

5. The novel multifunctional municipal building construction engineering quality detection ruler according to claim 2, characterized in that a second bolt (17) is connected to the bottom of the base (16) through a threaded connection, and the top of the second bolt (17) abuts against the bottom of the balance bar (6).

6. The novel multifunctional municipal building engineering quality detection ruler according to claim 5, characterized in that a laser lamp (19) is provided at the bottom of the base (16).

7. The novel multifunctional municipal building engineering quality detection ruler according to claim 1, characterized in that the opposite side of the moving block (3) and the first fixed block (1) is provided with anti-slip lines.
