Abstract

The utility model discloses an environment-friendly integrated domestic sewage treatment equipment, which relates to the technical field of sewage treatment. The utility model comprises a shell, a filter module and a purification module. The filter module and the purification module are both arranged inside the shell and are connected with each other through a circulation pipe, wherein the filter module includes a filter box, and the filter box is connected to the outside through a water inlet pipe The sewage flows into the filter module from the water inlet pipe, and the filter module filters the sewage and filters out large-volume garbage. The purification module includes a purification box. The purification box is connected to the outside through the water outlet pipe, and the sewage flows from the circulation pipe into the purification box. The purification module purifies the sewage through the spray mechanism and the adsorption mechanism. The utility model collects the large-volume garbage in the sewage by detachably setting the filter module, so as to avoid affecting the flow speed of the sewage, and at the same time, it is convenient to disassemble and clean the filter mechanism.

Description

An environmentally friendly integrated domestic sewage treatment equipment

technical field

The utility model belongs to the technical field of sewage treatment, in particular to an environment-friendly integrated domestic sewage treatment equipment.

Background technique

Sewage treatment is the process of purifying sewage to meet the water quality requirements for discharge into a water body or reuse. Sewage treatment is widely used in construction, agriculture, transportation, energy, petrochemical, environmental protection, urban landscape, medical care, catering, etc. Various fields are also increasingly entering the daily life of ordinary people.

The Chinese utility model patent number is CN202020896099.9, which discloses an environmental protection sewage treatment equipment, including a sewage sedimentation chamber, an activated carbon adsorption rod is installed inside the sewage sedimentation chamber, and a stable base is installed at the bottom of the sewage sedimentation chamber, so A sludge pump is installed on one side of the sewage sedimentation chamber, a spray treatment chamber is installed on the top of the sewage sedimentation chamber, and a supernatant liquid buffer chamber is installed on both sides of the spray treatment chamber. A spray liquid storage tank is installed at the top of the spray liquid storage tank, and a spray liquid addition port is arranged in the front middle of the spray liquid storage tank. Although the equipment can treat sewage and avoid secondary pollution, most sewage is filled with water. If it contains large garbage, it needs to be treated before entering the treatment equipment. Otherwise, the large volume of garbage will cause the internal blockage of the equipment, the effect of hard sewage treatment, and even damage the equipment, resulting in economic losses.

For the problems in the related technologies, no effective solutions have been proposed so far.

Utility model content

In view of the problems in the related art, the present utility model proposes an environment-friendly integrated domestic sewage treatment equipment to overcome the above-mentioned technical problems existing in the related art.

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions:

The utility model relates to an environment-friendly integrated domestic sewage treatment equipment, which comprises a casing, a filter module and a purification module, wherein the filter module and the purification module are both arranged inside the casing, and the two are connected through a circulation pipe. Wherein, the filter module includes a filter box, the filter box is connected to the outside through a water inlet pipe, the sewage flows into the filter module from the water inlet pipe, the filter module filters the sewage, and filters out large-volume garbage, and the purification module It includes a purification box, the purification box is connected to the outside through a water outlet pipe, the sewage flows into the purification box from the circulation pipe, and the purification module purifies the sewage through a spray mechanism and an adsorption mechanism.

Further, slide rails are provided on both sides of the filter box, rollers are slidably arranged in the two slide rails, a filter plate is connected between the two rollers, and a number of filter holes are opened in the filter plate, Large-volume garbage cannot pass through the filter holes, so the filter holes play a role in filtering sewage.

Further, a filter box cover and a shell cover are hinged to the corresponding positions of the filter box and the shell and the filter plate, respectively, open the filter box cover and the shell cover, and pull out the filter plate for cleaning. .

Further, the spraying mechanism includes a spraying main pipe, the end of the spraying main pipe is connected with a plurality of spraying branch pipes, and each end of the spraying branch pipe is connected with a spraying head, and the spraying head is located inside the purification box. , the spray liquid is sprayed from the spray head through the spray main pipe and the spray branch pipe, and the sewage entering the purification box is neutralized and decomposed.

Further, the adsorption mechanism includes an adsorption plate, and the adsorption plate is located at the lower part of the purification box and is used for adsorbing impurities in the sewage.

The utility model has the following beneficial effects:

1. The present utility model collects the large-volume garbage in the sewage by detachably setting the filter module, so as to avoid it affecting the flow speed of the sewage, and at the same time, it is convenient to disassemble and clean the filter mechanism;

2. The utility model can fully purify the sewage by coordinating the setting of the spray mechanism and the adsorption mechanism to neutralize, decompose and adsorb the sewage respectively.

Of course, any product implementing the present invention does not necessarily need to simultaneously achieve all of the above-mentioned advantages.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the utility model more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some embodiments of the utility model. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

Fig. 1 is the overall structure schematic diagram of the present utility model;

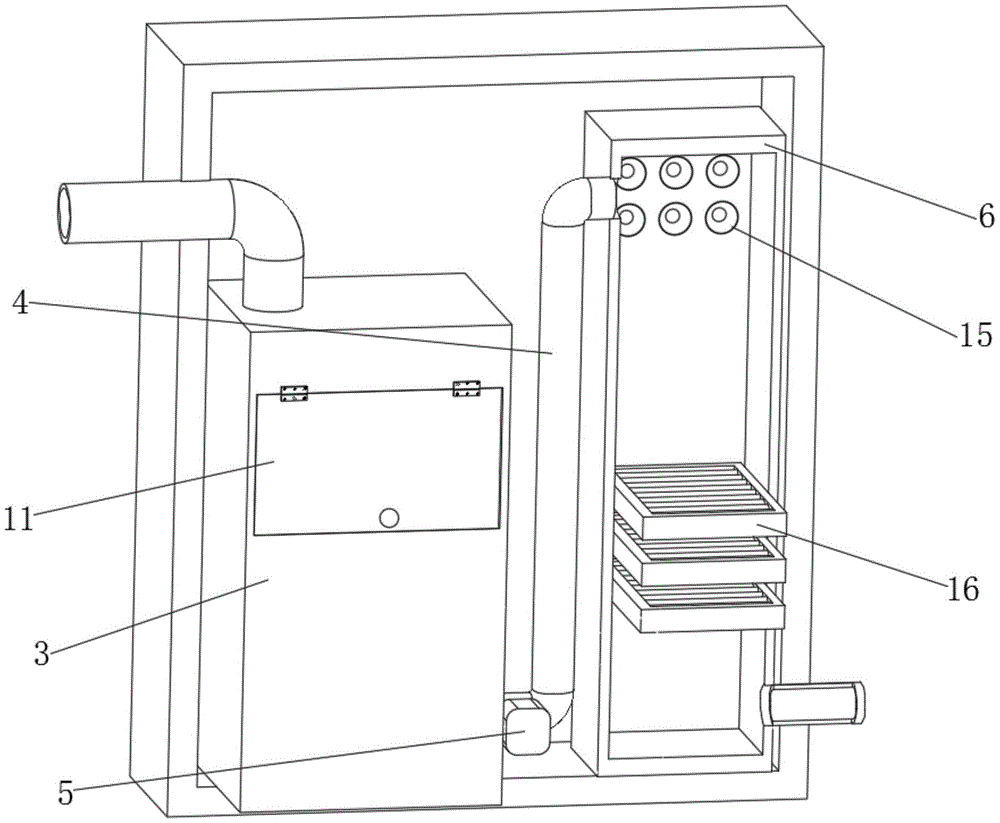

Fig. 2 is the internal structure schematic diagram of the utility model;

3 is an exploded view of the filter module of the present invention;

4 is an exploded view of the spray mechanism of the present utility model;

Figure 5 is a schematic diagram of the structure of the filter plate of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1. Shell; 2. Water inlet pipe; 3. Filter box; 4. Flow pipe; 5. Water pump; 6. Purification box; 7. Water outlet pipe; 8. Slide rail; 9. Roller; 10. Filter plate; 11. Filtration Box cover body; 12, shell cover body; 13, spray main pipe; 14, spray branch pipe; 15, spray head; 16, adsorption plate.

Detailed ways

The technical solutions in the embodiments of the utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the utility model. Obviously, the described embodiments are only a part of the embodiments of the utility model, not all of the embodiments. Based on the embodiments in the utility model, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the utility model.

In the description of the present invention, it should be understood that the terms "opening", "upper", "lower", "top", "middle", "inside", etc. indicate orientation or positional relationship, and are only for the convenience of description The utility model and simplified description, rather than indicating or implying that the components or elements referred to must have a particular orientation, be constructed and operate in a particular orientation, should not be construed as limiting the utility model.

Please refer to FIGS. 1-5 , the utility model is an environment-friendly integrated domestic sewage treatment equipment, comprising a casing 1, a filter module and a purification module, the filter module and the purification module are both arranged inside the casing 1, between the two It is connected by a flow pipe 4, wherein the filter module includes a filter box 3, the filter box 3 is connected to the outside through the water inlet pipe 2, the sewage flows into the filter module from the water inlet pipe 2, and the filter module filters the sewage and filters out large-volume garbage, The purification module includes a purification box 6, which is connected to the outside through a water outlet pipe 7, and sewage flows into the purification box 6 from the circulation pipe 4. The purification module purifies the sewage through a spray mechanism and an adsorption mechanism.

In one embodiment, for the above-mentioned filter box 3, slide rails 8 are provided on both sides of the filter box 3, rollers 9 are slidably arranged in the two slide rails 8, and a filter plate 10 is connected between the two rollers 9, The filter plate 10 is provided with a number of filter holes, and large-volume garbage cannot pass through the filter holes, so the filter holes play a role in filtering sewage, and the sewage flows into the filter box 3 through the water inlet pipe 2, so that the large-volume garbage in the sewage cannot pass through the filter holes, and then Use the filter holes to filter the bulky garbage in the sewage.

In one embodiment, for the above-mentioned filter box 3, the filter box 3 and the outer shell 1 and the filter plate 10 are respectively hinged with a filter box cover 11 and a shell cover 12, and the filter box cover 11 and the shell cover are opened. 12. Pull out the filter plate 10 to clean it, so that the filter module is detachably arranged, which facilitates the disassembly and cleaning of the filter mechanism and prolongs the service life of the equipment.

In one embodiment, for the above-mentioned spraying mechanism, the spraying mechanism includes a spraying main pipe 13, the end of the spraying main pipe 13 is connected with a plurality of spraying branch pipes 14, and the end of each spraying branch pipe 14 is connected with a spray head 15. The spray head 15 is located inside the purification box 6, and the spray liquid is sprayed from the spray head 15 through the spray main pipe 13 and the spray branch pipe 14 to neutralize and decompose the sewage entering the purification box 6, thereby purifying the sewage.

In one embodiment, for the above adsorption mechanism, the adsorption mechanism includes an adsorption plate 16, and the adsorption plate 16 is located at the lower part of the purification box 6 for adsorbing impurities in the sewage, so that the adsorption plate 16 is used to adsorb the impurities in the sewage, and then To purify the sewage, by coordinating the setting of the spray mechanism and the adsorption mechanism, the sewage is neutralized, decomposed and adsorbed, and the sewage is fully purified.

To sum up, with the help of the above-mentioned technical solutions of the present invention, the sewage first flows into the filter box 3 through the water inlet pipe 2, and then passes through the filter plate 10 after entering the filter box 3. The large-volume garbage is filtered, and the garbage that cannot pass through the filter holes remains inside the filter plate 10, and the fluid flows into the lower part of the filter box 3 through the filter holes, and then the water pump 5 arranged on the circulation pipe 4 is turned on, and the sewage is poured from the filter box 3. into the purification box 6, after the sewage enters the purification box 6, the spray liquid is sprayed from the spray head 15 through the spray main pipe 13 and the spray branch pipe 14, and the sewage entering the purification box 6 is neutralized and decomposed. The sewage will fall into the bottom of the purification box 6, and the adsorption plate 16 arranged in the lower part of the purification box 6 will adsorb the sewage to further purify the sewage. Due to the limited capacity of the filter plate 10, the interior of the filter plate 10 needs to be cleaned regularly. When cleaning, first open the casing cover 12 and the filter box cover 11 in sequence, and then hold the handle on the side of the filter plate 10 and pull it out. At this time, the roller 9 Rolling along the slide rail 8, the filter plate 10 can be moved to other positions for cleaning after the filter plate 10 is completely removed from the interior of the housing 1.

Through the above technical solutions, 1. The large-volume garbage in the sewage is collected by detachably setting the filter module, so as to avoid it affecting the flow rate of the sewage, and at the same time, it is convenient to disassemble and clean the filter mechanism; 2. By coordinating the setting of the spray mechanism and adsorption The mechanism can neutralize, decompose and adsorb the sewage respectively, and fully purify the sewage.

In the description of this specification, description with reference to the terms "one embodiment," "example," "specific example," etc. means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one aspect of the present invention. in one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the utility model disclosed above are only used to help illustrate the utility model. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. These embodiments are selected and described in this specification in order to better explain the principle and practical application of the utility model, so that those skilled in the art can well understand and utilize the utility model. The utility model is limited only by the claims and their full scope and equivalents.

Claims (5)

1. An environmentally friendly integrated domestic sewage treatment equipment, comprising a housing (1), a filter module and a purification module, characterized in that: the filter module and the purification module are both arranged inside the housing (1), and the two They are connected by a flow pipe (4), wherein, The filter module includes a filter box (3), the filter box (3) is connected to the outside through a water inlet pipe (2), and the sewage flows into the filter module from the water inlet pipe (2), and the filter module filters the sewage to filter the sewage. Large volume of garbage is filtered out, The purification module includes a purification box (6), the purification box (6) is connected to the outside through a water outlet pipe (7), and sewage flows into the purification box (6) from the circulation pipe (4), and the purification The module purifies the sewage through the spray mechanism and the adsorption mechanism. 2. An environmentally friendly integrated domestic sewage treatment equipment according to claim 1, characterized in that, sliding rails (8) are provided on both sides of the filter box (3), and two sliding rails (8) are provided on both sides. ) are slidably provided with rollers (9), a filter plate (10) is connected between the two rollers (9), and a number of filter holes are opened in the filter plate (10), so that large-volume garbage cannot pass through the filter holes, Therefore, the filter hole can filter the sewage. 3. An environmentally friendly integrated domestic sewage treatment equipment according to claim 2, characterized in that the filter box (3) and the housing (1) are hinged with the corresponding positions of the filter plate (10) respectively with a filter The box cover (11) and the casing cover (12) are opened, the filter box cover (11) and the casing cover (12) are opened, and the filter plate (10) is pulled out for cleaning. 4. An environmentally friendly integrated domestic sewage treatment equipment according to claim 1, characterized in that, the spray mechanism comprises a spray header pipe (13), and the end of the spray header pipe (13) is connected with a A plurality of spray branch pipes (14), the ends of each of the spray branch pipes (14) are connected with a spray head (15), the spray head (15) is located inside the purification box (6), and the spray liquid passes through the spray main pipe (13) and the spray branch pipe (14) are sprayed from the spray head (15) to neutralize and decompose the sewage entering the interior of the purification box (6). 5. An environmentally friendly integrated domestic sewage treatment equipment according to claim 1, wherein the adsorption mechanism comprises an adsorption plate (16), and the adsorption plate (16) is located in the purification box (6). ) lower part, used to adsorb impurities in sewage.
