本实用新型涉及散热器加工技术领域，且公开了一种散热器加工限位夹紧机构，包括安装盒和套筒，套筒设置安装盒的上方。该散热器加工限位夹紧机构，在需要翻转时，根据工作需求，旋转套筒，套筒带动转杆旋转，转杆通过第一锥形齿轮和第二锥形齿轮，带动两个螺纹柱同步旋转，进而使螺纹转杆带动短板沿着伸缩杆的方向上下移动，起到调节散热器距套筒之间距离的效果，保证散热器在翻转时，不会触碰到套筒，保证翻转工作的稳定进行，调节好高度后，抽出定位销，旋转转盘，转盘通过延伸凸起带动C形卡钳旋转，C形卡钳带动散热器旋转，旋转至工作位置后，将定位销插入圆孔和凹槽内，从而起到旋转散热器的效果，方便用户使用。
The utility model relates to the technical field of radiator processing, and discloses a radiator processing limit clamping mechanism, which comprises an installation box and a sleeve, and the sleeve is arranged above the installation box. The radiator processing limit clamping mechanism, when it needs to be turned over, rotates the sleeve according to the work requirements, the sleeve drives the rotating rod to rotate, and the rotating rod drives the two threaded columns through the first bevel gear and the second bevel gear. Synchronous rotation, so that the threaded rod drives the short plate to move up and down along the direction of the telescopic rod, which has the effect of adjusting the distance between the radiator and the sleeve, ensuring that the radiator will not touch the sleeve when it is turned over, ensuring that The turning work is carried out stably. After adjusting the height, take out the positioning pin and rotate the turntable. The turntable drives the C-shaped caliper to rotate through the extension protrusion, and the C-shaped caliper drives the radiator to rotate. After rotating to the working position, insert the positioning pin into the round hole and In the groove, it has the effect of rotating the radiator, which is convenient for users to use.
Description
Technical Field
The utility model relates to a radiator processing technology field specifically is a spacing clamping mechanism of radiator processing.
Background
The heat radiator is a device or an instrument which transfers heat generated by a machine or other appliances in the working process in time so as to avoid influencing the normal work of the machine or other appliances. Common radiators can be divided into various types such as air cooling, heat pipe radiators, liquid cooling, semiconductor refrigeration, compressor refrigeration and the like according to the heat dissipation mode.
The radiator needs to be fixed at the in-process of processing to clamping device need be used, and current radiator clamping device is when using, and the inconvenient angle regulation of radiator body after the centre gripping, when the back of processing radiator, need dismantle the back upset with the radiator, then press from both sides tightly once more, complex operation, inconvenient use is not convenient for process the different positions of radiator body, has reduced machining efficiency.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a spacing clamping mechanism of radiator processing possesses advantages such as facilitate the use, has solved current radiator clamping device when using, and the inconvenient angle regulation of radiator body after the centre gripping when the back of processing radiator, needs to dismantle the back upset with the radiator, then presss from both sides tightly once more, complex operation, inconvenient use is not convenient for process the different positions of radiator body, has reduced machining efficiency's problem.
(II) technical scheme
In order to realize the purpose of convenient use, the utility model provides a following technical scheme: the utility model provides a spacing clamping mechanism of radiator processing, includes mounting box and sleeve, and the sleeve sets up the top of mounting box, the left side wall and the right side wall of mounting box all rotate through the bearing and are connected with the threaded rod, two the equal threaded connection of surface of threaded rod has the threaded sleeve, two the equal fixedly connected with extension board in threaded sleeve's the equal fixed mounting in top of extension board has a square chest, two one side that the square chest is relative all rotates through the bearing and is connected with the bull stick, two the one end that the bull stick is relative all runs through and extends to telescopic inside, equal fixed mounting has the slide rail on telescopic inside roof and the diapire, the inside sliding connection of slide rail has the slider, the slider with bull stick fixed connection, two all rotate through the bearing on the inside diapire of square chest and be connected with inside hollow screw post, two the equal fixedly connected with first bevel gear in surface of screw post, two the equal fixedly connected with second bevel gear in one end that the bull stick carried on the back mutually of bull stick, first bevel gear with the second bevel gear meshes, two equal threaded post's the top of the equal fixedly connected with short fixed connection has the short circuit board on the left side the short side C face all extend through the protruding calliper of left side and extend through the bearing and the riser, and extend to one side of the riser, and the riser is connected with the protruding C and extends to the left side.
Preferably, fixedly connected with litter between the inside left side wall of mounting box and the right side wall, the surface cover of litter is equipped with two sliding sleeves, the sliding sleeve with fixed connection between the threaded sleeve.
Preferably, a telescopic rod is fixedly connected between the short plate and the inner bottom wall of the square box.
Preferably, the left end of the extending protrusion is fixedly provided with a turntable, the outer surface of the turntable is provided with a plurality of round holes, the left side surface of the left vertical plate is provided with a plurality of grooves, and positioning pins are arranged between the grooves and the round holes.
Preferably, two threaded rods are fixedly connected, and the thread directions are opposite.
Preferably, a nut is inlaid on the upper surface of the C-shaped caliper, a bolt is connected to the inner thread of the nut, and a rubber pad is fixedly mounted on the lower surface of the bolt.
(III) advantageous effects
Compared with the prior art, the utility model provides a spacing clamping mechanism of radiator processing possesses following beneficial effect:
(1) This spacing clamping mechanism of radiator processing, when using, through the threaded rod of establishing, rotatory threaded rod, because of the screw thread opposite direction of two threaded rods, make two threaded sleeves move the square box through the extension board and move along the opposite or back-to-back movement of direction of litter, and then play the effect of adjusting two C shape calliper distances, with the radiator that adapts to different length, adjust to working distance after, put the radiator between two C shape calliper, the rotation bolt, the bolt drives the rubber pad and moves down, play the effect of pressing from both sides tight radiator
(2) This spacing clamping mechanism of radiator processing, when needs upset, according to the work demand, rotatory sleeve, the sleeve drives the bull stick rotation, the bull stick is through first bevel gear and second bevel gear, drive two screw thread post synchronous rotations, and then make the screw thread bull stick drive the short slab and reciprocate along the direction of telescopic link, play the effect of adjusting the radiator apart from distance between the sleeve, guarantee the radiator when the upset, can not touch the sleeve, guarantee the stability of upset work and go on, adjust high back, take out the locating pin, rotatory carousel, the carousel drives C shape calliper rotation through extending the arch, C shape calliper drives the radiator rotation, it is rotatory to the operating position after rotatory, insert the locating pin in round hole and the recess, thereby play the effect of rotatory radiator, convenience of customers uses.
Drawings

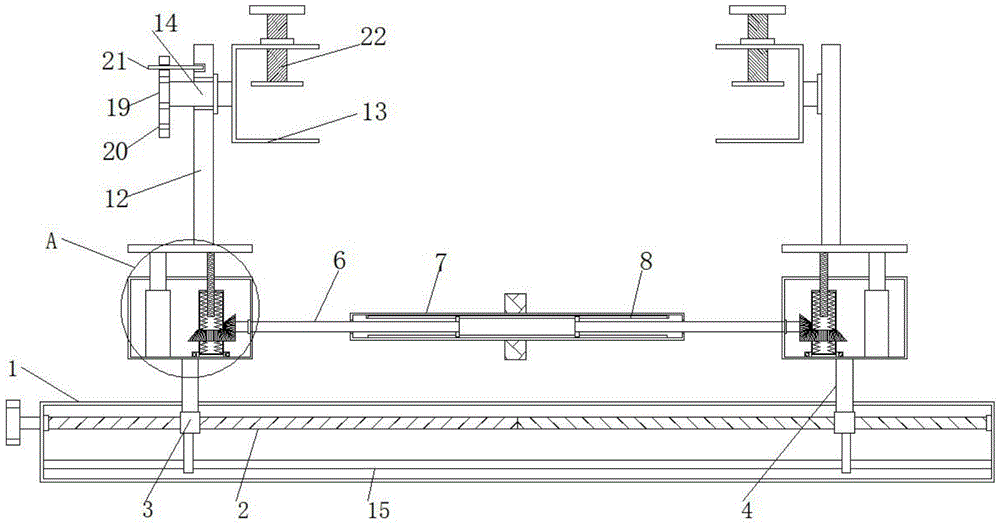

FIG. 1 is a schematic view of the present invention;
fig. 2 is an enlarged view of the structure a in fig. 1 according to the present invention;
FIG. 3 is a front view of the present invention;
fig. 4 is a schematic view of the turntable structure of the present invention.
In the figure: 1. mounting a box; 2. a threaded rod; 3. a threaded sleeve; 4. an extension plate; 5. a square box; 6. a rotating rod; 7. a sleeve; 8. a slide rail; 9. a threaded post; 10. a threaded rotating rod; 11. a short plate; 12. a vertical plate; 13. C-shaped calipers; 14. an extension projection; 15. a slide rod; 16. a first bevel gear; 17. a second bevel gear; 18. a telescopic rod; 19. a turntable; 20. a circular hole; 21. positioning pins; 22. and (4) bolts.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-4, a spacing clamping mechanism of radiator processing, including mounting box 1 and sleeve 7, sleeve 7 sets up the top of mounting box 1, the left side wall and the right side wall of mounting box 1 all are connected with threaded rod 2 through the bearing rotation, the equal threaded connection of surface of two threaded rod 2 has threaded sleeve 3, the equal fixedly connected with extension board 4 of surface of two threaded sleeve 3, the equal fixed mounting in top of two extension board 4 has square box 5, one side that two square box 5 are relative all is connected with bull stick 6 through the bearing rotation, the inside that two bull stick 6 are relative all runs through and extends to sleeve 7, equal fixed mounting has slide rail 8 on the inside roof of sleeve 7 and the diapire, the inside sliding connection of slide rail 8 has the slider, slider and bull stick 6 fixed connection, all be connected with inside hollow screw post 9 through the bearing rotation on the inside diapire of two square box 5, the equal fixedly connected with first conical gear 16 of surface of two bull stick 9, the equal fixedly connected with one end of two bull sticks of mutually opposite hands on 6 has fixed connection with gear 17, first conical gear 16 meshes with first conical gear 17, the inside of two bull stick 9 all is connected with the inside of screw post 9 is connected with short-shaped gear 17, the top of two bull stick 12 that the left side fixed connection has the corresponding short-shaped riser 12 that extends to the left side that the riser 14, the left side that two riser extends to be connected with two riser 12, the fixed connection of the left side that the riser 12 that the fixed connection has all be connected with the left side that the short bar 10, the short bar 13 and all extend, the riser 12 that the left side that the riser 12 that the short plate 13 extends, the left side that the short plate 14.
In embodiment 1, referring to fig. 1, a slide rod 15 is fixedly connected between the left side wall and the right side wall inside the mounting box 1, two sliding sleeves are sleeved on the outer surface of the slide rod 15, and the sliding sleeves are fixedly connected with the threaded sleeve 3, so as to ensure that the threaded sleeve 3 can stably move along the direction of the slide rod 15.
In embodiment 2, referring to fig. 1-2, the telescopic rod 18 is fixedly connected between the short plate 11 and the inner bottom wall of the square box 5, so as to ensure that the short plate 11 can stably move up and down along the telescopic rod 18.
In embodiment 5, please refer to fig. 1-4,C, a nut is embedded in the upper surface of the clamp 13, a bolt 22 is connected to the nut through an internal thread, and a rubber pad is fixedly mounted on the lower surface of the bolt 22, so as to prevent the clamp mark from occurring.
In conclusion, when the limiting and clamping mechanism for processing the radiator is used, the threaded rod 2 is rotated through the threaded rod 2, and because the thread directions of the two threaded rods 2 are opposite, the two threaded sleeves 3 drive the square boxes 5 to move oppositely or back to back along the direction of the sliding rod 15 through the extension plate 4, so that the effect of adjusting the distance between the two C-shaped calipers 13 is achieved, the radiator is adapted to radiators with different lengths, after the working distance is adjusted, the radiator is placed between the two C-shaped calipers 13, the bolt 22 is rotated, the bolt 22 drives the rubber pad to move downwards, and the effect of clamping the radiator is achieved.
This spacing clamping mechanism of radiator processing, when needs overturn, according to the work demand, rotatory sleeve 7, sleeve 7 drives bull stick 6 rotatory, bull stick 6 is through first bevel gear 16 and second bevel gear 17, drive two screw thread post 9 synchronous revolution, and then make screw thread bull stick 10 drive short slab 11 reciprocate along the direction of telescopic link 18, play the effect of adjusting the radiator apart from distance between the sleeve 7, guarantee the radiator when the upset, can not touch sleeve 7, guarantee the stability of upset work and go on, adjust high back, take out locating pin 21, rotatory carousel 19, carousel 19 drives C shape calliper 13 rotatory through extending protruding 14, C shape calliper 13 drives the radiator rotatory, after rotatory to the working position, insert the locating pin in round hole 20 and the recess, thereby play the effect of rotatory radiator, convenience of customers uses.
It should be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising a … …" does not exclude the presence of another identical element in a process, method, article, or apparatus that comprises the element.
The standard parts used in the present application document can be purchased from the market, and can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each part adopts the conventional means matured in the prior art, the machines, the parts and the equipment adopt the conventional types in the prior art, the circuit connection adopts the conventional connection mode in the prior art, no specific description is provided here, meanwhile, the electric elements appearing in the specification are electrically connected with the external main controller and the mains supply, the peripheral controller mentioned in the specification can play a control role for the electric elements mentioned in the specification, and the peripheral controller is the conventional known equipment.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a spacing clamping mechanism of radiator processing, includes mounting box (1) and sleeve (7), sleeve (7) set up the top of mounting box (1), its characterized in that: the left side wall and the right side wall of the mounting box (1) are both rotatably connected with threaded rods (2) through bearings, the outer surfaces of the two threaded rods (2) are both in threaded connection with threaded sleeves (3), the outer surfaces of the two threaded sleeves (3) are both fixedly connected with extension plates (4), the top ends of the two extension plates (4) are both fixedly provided with square boxes (5), one opposite sides of the two square boxes (5) are both rotatably connected with rotating rods (6) through bearings, the opposite ends of the two rotating rods (6) are both penetrated through and extended into the sleeves (7), slide rails (8) are both fixedly arranged on the inner top wall and the inner bottom wall of the sleeves (7), the inner sliding of the slide rails (8) is connected with a slide block, the slide block is fixedly connected with the rotating rods (6), the inner ends of the two square boxes (5) are both rotatably connected with inner hollow threaded columns (9) through bearings, the outer surfaces of the two threaded columns (9) are both fixedly connected with first bevel gears (16), one end of the two rotating rods (6) is fixedly connected with back-on the back gears (17), the first bevel gears (10) are both fixedly connected with second bevel gears (10), and the top ends of the second bevel gears (10) are both fixedly connected with second bevel gears (10), two the equal fixed mounting of upper surface of short slab (11) has riser (12), two one side that riser (12) are relative all is connected with C shape calliper (13), left side through the bearing rotation the left surface of C shape calliper (13) is equipped with extends arch (14), the left end that extends arch (14) runs through and extends to the left of riser (12).
2. The limiting and clamping mechanism for radiator processing according to claim 1, wherein: fixedly connected with litter (15) between the inside left side wall of mounting box (1) and the right side wall, the surface cover of litter (15) is equipped with two sliding sleeves, the sliding sleeve with fixed connection between threaded sleeve (3).
3. The limiting and clamping mechanism for radiator processing according to claim 1, wherein: and a telescopic rod (18) is fixedly connected between the short plate (11) and the inner bottom wall of the square box (5).
4. The limiting and clamping mechanism for radiator processing according to claim 1, wherein: the left end fixed mounting who extends arch (14) has carousel (19), a plurality of round holes (20) have been seted up to the surface of carousel (19), and a plurality of recesses have been seted up to the left surface of the aforesaid riser (12) of the left side, the recess with be equipped with between round hole (20) locating pin (21).
5. The limiting and clamping mechanism for radiator processing according to claim 1, wherein: and the two threaded rods (2) are fixedly connected and have opposite thread directions.
6. The limiting and clamping mechanism for radiator processing according to claim 1, wherein: the upper surface of C shape calliper (13) inlays and has the nut, the inside threaded connection of nut has bolt (22), the lower fixed surface of bolt (22) installs the rubber pad.
