本实用新型为涉及印刷机领域，具体为一种高精度柔板印刷机，包括支撑架，所述支撑架的顶部下方安装有安装架，所述安装架上设有多个伸缩电机以及第一油墨盒，所述伸缩电机上设有电动伸缩杆，所述电动伸缩杆的底部设有印刷机构，本实用新型通过在安装架上设置多个伸缩电机，可以在伸缩电机上安装伸缩杆，并在伸缩杆上固定印刷机构，多个印刷机构交替使用，不需要停机维护印刷机，提高了印刷的效率，印刷机构的的安装结构简单，降低了拆卸难度，提高了印刷机的使用寿命，印版辊以及传墨带上滴落的油墨通过过滤网过滤缓冲后再滴落到第二油墨盒内，保证了印刷机的洁净，同时提高油墨的利用效率。
The utility model relates to the field of printing machines, in particular to a high-precision flexographic printing machine, comprising a support frame, an installation frame is installed under the top of the support frame, and a plurality of telescopic motors and a first installation frame are arranged on the installation frame For the oil cartridge, the telescopic motor is provided with an electric telescopic rod, and the bottom of the electric telescopic rod is provided with a printing mechanism. The utility model can install a telescopic rod on the telescopic motor by arranging a plurality of telescopic motors on the mounting frame, and The printing mechanism is fixed on the telescopic rod, multiple printing mechanisms are used alternately, and there is no need to stop the printing machine to maintain the printing machine, which improves the printing efficiency. The ink dripped on the plate roller and the ink transfer belt is filtered and buffered by the filter screen and then dripped into the second ink cartridge, which ensures the cleanliness of the printing machine and improves the utilization efficiency of the ink.
Description
Technical Field
The utility model relates to a printing machine field specifically is a high accuracy flexographic printing machine.
Background
The flexible plate printing machine uses fluid ink with strong fluidity, the ink is transferred to the image-text part of the printing plate by the ink fountain rubber roller and the anilox ink transfer roller and enables the image-text part to be inked, then printing pressure is exerted by the pressure roller, the ink on the printing plate is transferred to the printing stock, and finally the printing process is completed through the drying surface.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a high accuracy flexographic printing machine that printing efficiency is high.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a high accuracy flexible plate printing machine, includes the support frame, the mounting bracket is installed to the top below of support frame, be equipped with a plurality of flexible motors and first ink horn on the mounting bracket, be equipped with electric telescopic handle on the flexible motor, electric telescopic handle's bottom is equipped with printing mechanism, be equipped with printing ink pump and first ink horn intercommunication in the printing mechanism, the mounting panel is installed to one side of support frame, be equipped with second rotation motor on the mounting panel, second rotation motor is equipped with two at least, the second ink horn is installed to front surface bottom one side of mounting panel, and the top of second ink horn is through being equipped with first rubber roll, a second rotation motor is connected through the pivot to first rubber roll, the second rubber roll is installed to one side that is close to first rubber roll on the mounting panel, another second rotation motor is connected through the pivot to the second rubber roll, and a printing plate roller is installed on one side of the second rubber roller, the printing plate roller is connected with a third rotating motor through a rotating shaft, an ink transfer ribbon is arranged between the first rubber roller and the second rubber roller, a filter screen is installed below the printing plate roller and the ink transfer ribbon, the second ink box is located below the first rubber roller and the filter screen, one end of the ink transfer ribbon extends into the second ink box, and the other end of the ink transfer ribbon is attached to the printing plate roller.
Further, the utility model discloses the improvement has, printing mechanism includes mount, printing plate, first rotation motor and axis of rotation, first rotation motor is installed on the mount, the axis of rotation is installed on first rotation motor, the printing plate is installed in the axis of rotation.
Further, the utility model discloses the improvement has, printing plate is the rectangle structure, just printing plate is equipped with four printing faces at least.
Further, the utility model discloses the improvement has, the below of printing mechanism is equipped with first conveyer belt, the top of version roller is equipped with the second conveyer belt, the both ends of first conveyer belt and second conveyer belt all are equipped with the transmission shaft, the transmission shaft is connected with driving motor, the both sides of first conveyer belt and second conveyer belt all are equipped with the holding frame, be equipped with the centre gripping groove between holding frame and first conveyer belt and the second conveyer belt.
Further, the utility model discloses the improvement has, one side that the printing plate roller was kept away from to the front surface of mounting panel is installed the drying apparatus, rectangular channel and lower rectangular channel have been seted up at the middle part of drying apparatus, and the inside of first rectangular channel and second rectangular channel all installs the heating pipe, first conveyer belt passes first rectangular channel, the second conveyer belt passes the second rectangular channel.
(III) advantageous effects
Compared with the prior art, the utility model provides a high accuracy flexographic printing machine possesses following beneficial effect:
the utility model discloses a set up a plurality of flexible motors on the mounting bracket, can install the telescopic link on flexible motor to fixed printing mechanism on the telescopic link, a plurality of printing mechanism alternate use need not shut down and maintain the printing machine, have improved the efficiency of printing, and the mounting structure of printing mechanism is simple, has reduced the dismantlement degree of difficulty, has improved the life of printing machine.
According to the invention, the second rotating motor is arranged on the mounting plate, and the second rotating motor can rotate the first rubber roller and the second rubber roller, so that the ink in the second ink box is transferred to the printing roller by the movement of the ink transfer belt, and the printing roller and the ink dripped on the ink transfer belt drop into the second ink box after being filtered and buffered by the filter screen, thereby ensuring the cleanness of the printing machine and improving the utilization efficiency of the ink.
Drawings

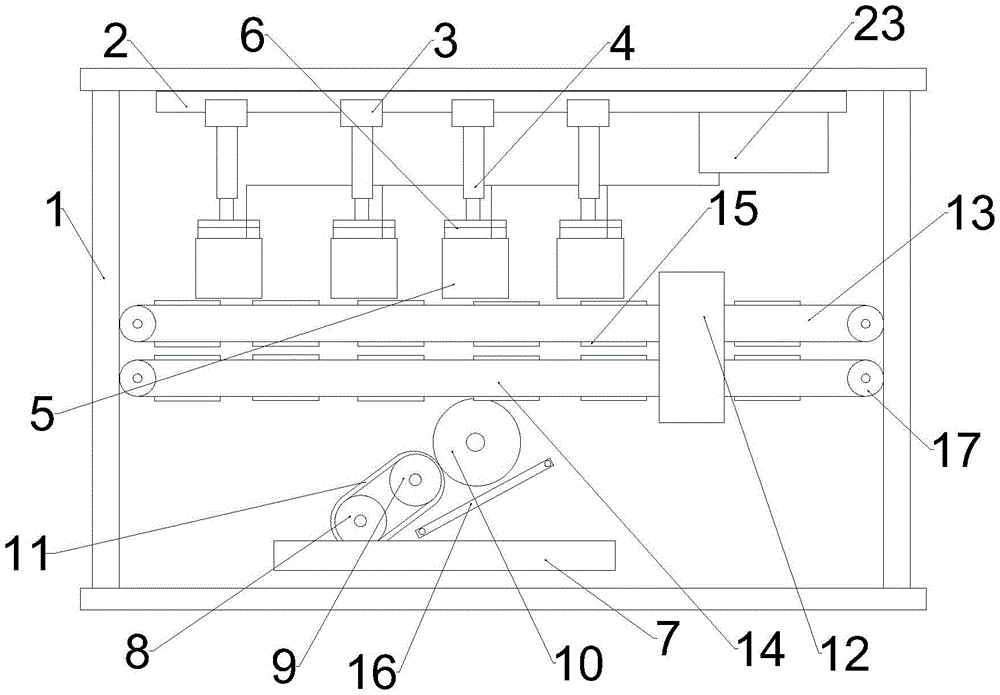

FIG. 1 is a schematic view of the present invention;
FIG. 2 is a schematic view of the present invention;
fig. 3 is a schematic view of a first rotating motor according to the present invention;
in the figure: 1. a support frame; 2. a mounting frame; 3. a telescopic motor; 4. an electric telescopic rod; 5. printing
A plate; 6. a fixed mount; 7. a second ink cartridge; 8. a first rubber roller; 9. a second rubber roller; 10. a printing plate roller; 11. A transfer ribbon; 12. a dryer; 13. a first conveyor belt; 14. a second conveyor belt; 15. a clamping frame; 16. A filter screen; 17. a drive shaft; 18. a second rotating electric machine; 19. a third rotating electric machine; 20. a drive motor; 21. a first rotating electric machine; 22. a rotating shaft; 23. a first ink cartridge;
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention relates to a high precision flexible plate printing machine, which comprises a supporting frame 1, a mounting frame 2 is installed below the top of the supporting frame 1, a plurality of telescopic motors 3 and first ink cartridges 23 are arranged on the mounting frame 2, an electric telescopic rod 4 is arranged on each telescopic motor 3, a printing mechanism is arranged at the bottom of the electric telescopic rod 4, an ink pump is arranged on the printing mechanism and is communicated with the first ink cartridges 23, a mounting plate is installed at one side of the supporting frame 1, a second rotating motor 18 is arranged on the mounting plate, at least two second rotating motors 18 are arranged, a second ink cartridge 7 is installed at one side of the bottom of the front surface of the mounting plate, a first rubber roller 8 is arranged above the second ink cartridge 7, the first rubber roller 8 is connected with a second rotating motor 18 through a rotating shaft, the utility model discloses a printing roller, including mounting panel, first rubber roll 8, second rubber roll 9, printing roller 10, third rotation motor 19, be equipped with ink transfer ribbon 11 between first rubber roll 8 and the second rubber roll 9, printing roller 10 and printing ribbon 11 below install filter screen 16, second ink horn 7 is located the below of first rubber roll 8 and filter screen 16, in the one end of printing ribbon 11 stretched into second ink horn 7, the other end laminated with printing roller 10.
In this embodiment, the printing mechanism includes a holder 6, a printed board 5, a first rotating motor 21, and a rotating shaft 22, the first rotating motor 21 is mounted on the holder 6, the rotating shaft 22 is mounted on the first rotating motor 21, and the printed board 5 is mounted on the rotating shaft 22.
In this embodiment, the printing plate 5 has a rectangular structure, and the printing plate 5 has at least four printing surfaces, so that the first rotating motor 21 can drive the rotating shaft 22 to switch the printing contents.
In this embodiment, a first conveyor belt 13 is arranged below the printing mechanism, a second conveyor belt 14 is arranged above the printing plate roller 10, transmission shafts 17 are arranged at two ends of the first conveyor belt 13 and the second conveyor belt 14, the transmission shafts 17 are connected with a driving motor 20, clamping frames 15 are arranged on two sides of the first conveyor belt 13 and the second conveyor belt 14, a clamping groove is formed between the clamping frame 15 and the first conveyor belt 13 and between the clamping frame 15 and the second conveyor belt 14, printing paper can be placed in the clamping groove to be fixed during printing, and the driving motor 20 drives the conveying shafts to enable the first conveyor belt 13 and the second conveyor belt 14 to enter a working state.
In this embodiment, drying apparatus 12 is installed to one side of keeping away from printing plate roller 10 on the front surface of mounting panel, rectangular channel and lower rectangular channel have been seted up at the middle part of drying apparatus 12, and the inside of first rectangular channel and second rectangular channel all installs the heating pipe, first conveyer belt 13 passes first rectangular channel, second conveyer belt 14 passes the second rectangular channel, through drying apparatus 12 to the printing paper fast drying after the printing, makes printing ink fast drying shaping to improve the printing effect.
To sum up, this high accuracy flexographic printing machine, when using, through set up a plurality of flexible motors 3 on mounting bracket 2, can install telescopic link 4 on flexible motor 3, and fixed printing mechanism on telescopic link 4, control 4 concertina movement of telescopic link under the control of flexible motor 3, thereby make a plurality of printing mechanism alternate use print, need not shut down and maintain the printing machine, the efficiency of printing has been improved, the mounting structure of printing mechanism is simple, the dismantlement degree of difficulty has been reduced, the life of printing machine has been improved.
The invention sets the second rotating motor 18 on the mounting plate, the second rotating motor 18 can rotate the first rubber roller 8 and the second rubber roller 9, thereby the ink transfer ribbon 11 moves to transfer the ink in the second ink box 7 to the printing roller 10, the ink dropped on the printing roller 10 and the ink transfer ribbon 11 drops into the second ink box 7 after being filtered and buffered by the filter screen 16, the cleanness of the printing machine is ensured, simultaneously the utilization efficiency of the ink is improved, the printing mechanism and the printing roller 10 are used simultaneously, the printing efficiency is improved, meanwhile, different printing modes can be adopted according to different printing contents through the press printing of the printing plate 5 and the rolling printing of the printing roller 10, the printing plate 5 is adopted for printing patterns, the printing plate 10 is adopted for printing words, thereby improving the printing accuracy.
