Publication number: CN217447283U
Application number: CN202220099708.7U
Authority: CN
Inventors: 姜福青
Original assignee: Kaisheng Textile Co ltd
Current assignee: Kaisheng Textile Co ltd
Priority date: 2022-01-15
Filing date: 2022-01-15
Publication date: 2022-09-20
Anticipated expiration: 2032-01-15

Abstract

The utility model relates to the technical field of bedding, and discloses a down cervical vertebra stretching pillow. The inner part of the fiber auxiliary support area located at the lower part of the down fluffy layer is filled with a first slow-rebound memory cotton buffer layer, and the fibers The inner part of the auxiliary support area is filled with a fiber support layer at the lower part of the first slow-rebound memory foam buffer layer, the top of the main support area of the spring body is covered with a fiber buffer layer, and the inside of the fiber buffer layer is equipped with a spring The main body support layer, the bottoms of the fiber support layer and the fiber buffer layer are both laid with a second slow-rebound memory foam buffer layer, and the bottom of the second slow-rebound memory foam buffer layer is laid with a second pillow skin. The down cervical stretch pillow, through the additional fiber auxiliary support area and the spring body main support area, enables the pillow core to lift the cervical spine in different sleeping environments according to the sleeping posture requirements of consumers sleeping on their backs and sides. to good support.

Description

Down cervical vertebra stretching pillow

Technical Field

The utility model relates to a bedding technical field specifically is a down cervical vertebra stretching pillow.

Background

At present, people in cities can see that the people are low and are concentrated in the 'low head group' of the mobile phone screen everywhere, the cervical spondylosis of the people in cities are in a high incidence situation, the fatigue of the people in busy days is relieved through comfortable sleep, the sleeping posture is correct, and the cervical vertebra is attached and moderately supported. And with the continuous improvement of living standard, the down pillow is more and more popular with consumers.

Common eiderdown pillow is during filling whole cavity with the eiderdown more, and the eiderdown quantity is more, and manufacturing cost is higher, and the eiderdown moves in the pillow filling chamber easily simultaneously, and the body type that turns in the sleep can cause few both sides in the middle of the eiderdown many, and fluffy degree reduces, lacks the support nature, is unfavorable for comfortable sleep, and eiderdown pillow resilience is not enough in addition, is unfavorable for keeping good pillow shape, can not satisfy the operational requirement of eiderdown pillow, provides a eiderdown cervical vertebra stretching pillow for this reason.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

To the deficiency of the prior art, the utility model provides a down cervical vertebra stretching pillow, which solves the technical problem.

(II) technical scheme

In order to achieve the above object, the present invention provides the following technical solutions: a down cervical vertebra stretching pillow comprises a fiber auxiliary supporting area and a spring body main supporting area, wherein a first pillow cover is laid at the top of the fiber auxiliary supporting area, a down feather fluffy layer is filled at the position, located at the lower part of the first pillow cover, in the fiber auxiliary supporting area, a first slow rebound memory cotton buffer layer is filled at the position, located at the lower part of the down feather fluffy layer, in the fiber auxiliary supporting area, a fiber supporting layer is filled at the position, located at the lower part of the first slow rebound memory cotton buffer layer, in the fiber auxiliary supporting area, the right side of the fiber supporting layer is provided with the spring body main supporting area, a fiber buffer layer is laid at the top of the spring body main supporting area, the fiber supporting layer is in contact with the fiber buffer layer, a spring body main supporting layer is arranged in the fiber buffer layer, and second slow rebound memory cotton buffer layers are laid at the bottoms of the fiber supporting layer and the fiber buffer layer, and a second pillow cover is laid at the bottom of the second slow rebound memory cotton buffer layer.

Preferably, fabrics are arranged among the down feather fluffy layer, the first slow rebound memory cotton buffer layer and the fiber supporting layer, and the height of the fabrics is 3-6 cm.

Preferably, the right sides of the first pillow cover and the second pillow cover are provided with invisible zippers.

Preferably, the height of the first slow rebound memory cotton buffer layer and the second slow rebound memory cotton buffer layer is 0.5-2 cm.

Preferably, the first pillow cover and the second pillow cover are designed in a three-dimensional bread grid mode by adopting a pleating process, and are quilted together with the first slow rebound memory cotton buffer layer and the fabric, and the filling amount of the down feather fluffy layer is 200-600g/m ² 。

(III) advantageous effects

Compared with the prior art, the utility model provides a tensile pillow of eiderdown cervical vertebra possesses following beneficial effect:

1. according to the down cervical vertebra stretching pillow, the fiber auxiliary supporting area and the spring body main supporting area are additionally arranged, so that the pillow core can well support cervical vertebra under different sleeping environments according to sleeping posture requirements of a consumer for sleeping on the back and on the side, close-fitting height adjustment is performed through the self elasticity of the spring body in the pillow core, and in the postures and turning-over actions, the neck and the spine of a user are placed on a straight line which is generally stretched together, so that the neck fatigue is reduced, and the sleeping comfort level is improved;

2. this tensile pillow of eiderdown cervical vertebra through adding first pillowcase and the second pillowcase of establishing for this pillow can be reversible, and when using eiderdown side laminating neck position, the softness of eiderdown is cold-proof enables the better parcel head and neck portion of pillow, and fluffy but not oppression sense and stifle sensation. When the memory cotton is used for side fitting of the head and neck, the memory cotton is warm and moist in plasticity, and can be better fitted with the head and neck. Different contact feels bring for your different sleep and feel, and add the stealthy zip fastener of establishing and can take out or replace the spring body according to individual demand, can unpick and wash, the sunning avoids breeding of bacterium.

Drawings

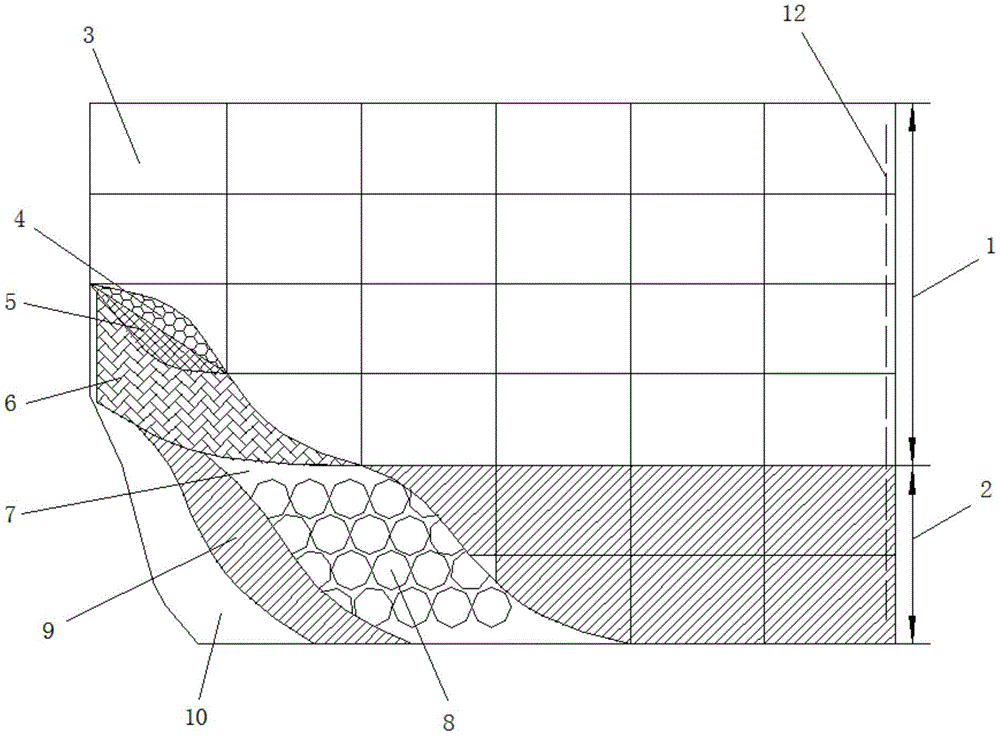

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a front cross-sectional view of the present invention;

FIG. 3 is a side sectional view of the present invention;

fig. 4 is a side view of the utility model for sleeping on back.

In the figure: 1. a fiber secondary support zone; 2. a spring body main support area; 3. a first pillow cover; 4. a down feather bulking layer; 5. a first slow rebound memory cotton buffer layer; 6. a fibrous support layer; 7. a fiber buffer layer; 8. a spring body main support layer; 9. a second slow rebound memory cotton buffer layer; 10. a second pillow cover; 11. Fabric; 12. provided is a concealed zipper.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The utility model provides a technical scheme, a down cervical vertebra stretching pillow, including fibre auxiliary supporting area 1, spring body main supporting area 2, first pillow cover 3, down feather fluffy layer 4, first slow rebound memory cotton buffer layer 5, fibre supporting layer 6, fibre buffer layer 7, spring body main supporting layer 8, second slow rebound memory cotton buffer layer 9, second pillow cover 10, surface fabric 11 and invisible zipper 12, please refer to figure 1, first pillow cover 3 is laid on the top of fibre auxiliary supporting area 1, please refer to figure 2, the position of the inside of fibre auxiliary supporting area 1 at the lower part of first pillow cover 3 is filled with down feather fluffy layer 4, the position of the inside of fibre auxiliary supporting area 1 at the lower part of down feather layer 4 is filled with first slow rebound memory cotton buffer layer 5, the position of the inside of fibre auxiliary supporting area 1 at the lower part of first slow rebound memory cotton buffer layer 5 is filled with fibre supporting layer 6, the right side of the fiber supporting layer 6 is provided with a spring body main supporting area 2, the top of the spring body main supporting area 2 is paved with a fiber buffer layer 7, the fiber supporting layer 6 is in contact with the fiber buffer layer 7, the inside of the fiber buffer layer 7 is provided with a spring body main supporting layer 8, the bottoms of the fiber supporting layer 6 and the fiber buffer layer 7 are respectively paved with a second slow rebound memory cotton buffer layer 9, the bottom of the second slow rebound memory cotton buffer layer 9 is paved with a second pillow cover 10, please refer to fig. 3, the down feather fluffy layer 4, the first slow rebound memory cotton buffer layer 5 and the fiber supporting layer 6 are all provided with a fabric 11, the height of the fabric 11 is 3-6cm, please refer to fig. 1, the right sides of the first pillow cover 3 and the second pillow cover 10 are provided with an invisible zipper 12, and the second pillow cover 10 is provided with an invisible zipper 12The height of one slow rebound memory cotton buffer layer 5 and the second slow rebound memory cotton buffer layer 9 is 0.5-2cm, please refer to FIG. 4, by adding the fiber auxiliary supporting area 1 and the spring body main supporting area 2, the utility model can meet the sleeping position requirements of the consumers for lying on the back and sleeping on the side, the pillow core can well support the cervical vertebra under different sleeping environments, the close-fitting height can be adjusted through the self elasticity of the spring body in the pillow core, in these stance and roll-over motions, the user's neck and thoracic vertebrae are positioned in a generally coextensive straight line, to reduce the fatigue of the neck and improve the comfort of sleeping, referring to fig. 1, the first pillow cover 3 and the second pillow cover 10 are designed in a three-dimensional bread grid form by adopting a pleating process, and quilting together with the first slow rebound memory cotton buffer layer 5 and the fabric, wherein the filling amount of the down feather fluffy layer 4 is 200-600 g/m. ² The pillow can be used for both front and back sides by adding the first pillow cover 3 and the second pillow cover 10, and when the down is used for attaching to the head and neck part, the soft and warm keeping of the down enables the pillow core to wrap the head and neck part better, so that the down is fluffy and has no oppression feeling and stuffy feeling. When the memory cotton is used for side fitting of the head and neck, the memory cotton is warm and moist in plasticity, and can be better fitted with the head and neck. Different contact feelings bring to you different sleep feelings, and add stealthy zip fastener 12 of establishing and can take out or replace the spring body according to individual's demand, can unpick and wash, the sunning avoids breeding of bacterium.

The working principle of the device is as follows: the pillow is characterized in that a fiber auxiliary supporting area 1 and a spring body main supporting area 2 are additionally arranged at first, so that the pillow core can well support cervical vertebrae under different sleeping environments according to sleeping posture requirements of a consumer for lying on the back and sleeping on the side, close-fitting height adjustment is carried out through self elasticity of a spring body in the pillow core, the neck and the spine of a user are placed on a straight line which is extended together in general in the postures and turning-over actions so as to reduce neck fatigue and improve sleeping comfort, and then a first pillow cover 3 and a second pillow cover 10 are additionally arranged so that the pillow can be used for being used in a reversible mode. When the memory cotton is used for side fitting of the head and neck, the memory cotton is warm and moist in plasticity, and can be better fitted with the head and neck. Different contact feelings bring to you different sleep feelings, and add stealthy zip fastener 12 of establishing and can take out or replace the spring body according to individual's demand, can unpick and wash, the sunning avoids breeding of bacterium.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a tensile pillow of eiderdown cervical vertebra, includes that fibre assists supporting area (1) and spring body owner supporting area (2), its characterized in that: a first pillow (3) is laid at the top of the fiber auxiliary supporting area (1), a down feather fluffy layer (4) is filled at the position of the lower part of the first pillow (3) in the fiber auxiliary supporting area (1), a first slow rebound memory cotton buffer layer (5) is filled at the position of the lower part of the down feather fluffy layer (4) in the fiber auxiliary supporting area (1), a fiber supporting layer (6) is filled at the position of the lower part of the first slow rebound memory cotton buffer layer (5) in the fiber auxiliary supporting area (1), a spring body main supporting area (2) is arranged on the right side of the fiber supporting layer (6), a fiber buffer layer (7) is laid at the top of the spring body main supporting area (2), the fiber supporting layer (6) is in contact with the fiber buffer layer (7), and a spring body main supporting layer (8) is arranged in the fiber buffer layer (7), and a second slow rebound memory cotton buffer layer (9) is paved at the bottoms of the fiber supporting layer (6) and the fiber buffer layer (7), and a second pillow cover (10) is paved at the bottom of the second slow rebound memory cotton buffer layer (9).

2. The down cervical stretching pillow according to claim 1, characterized in that: and fabrics (11) are arranged among the down feather fluffy layer (4), the first slow rebound memory cotton buffer layer (5) and the fiber supporting layer (6), and the height of the fabrics (11) is 3-6 cm.

3. The down cervical stretching pillow according to claim 1, characterized in that: the right sides of the first pillow cover (3) and the second pillow cover (10) are provided with invisible zippers (12).

4. The down cervical stretching pillow according to claim 1, characterized in that: the height of the first slow rebound memory cotton buffer layer (5) and the height of the second slow rebound memory cotton buffer layer (9) are 0.5-2 cm.

5. The down cervical stretching pillow according to claim 1, characterized in that: the first pillow cover (3) and the second pillow cover (10) are designed in a three-dimensional bread grid mode by adopting a pleating process, and are quilted together with the first slow rebound memory cotton buffer layer (5) and the fabric, and the filling amount of the down feather fluffy layer (4) is 200-600g/m ² 。
