CN217395141U

CN217395141U - Static cross cutting machine is prevented to new material film

Info

Publication number: CN217395141U
Application number: CN202220048704.6U
Authority: CN
Inventors: 梁业彬
Original assignee: Hua'an Shenzhen New Material Co ltd
Current assignee: Hua'an Shenzhen New Material Co ltd
Priority date: 2022-01-10
Filing date: 2022-01-10
Publication date: 2022-09-09
Anticipated expiration: 2032-01-10

Abstract

The utility model belongs to the technical field of the film cross cutting machine, especially, be a new material film anti-static cross cutting machine, including the cross cutting machine body, one side of cross cutting machine body is equipped with static-removing device, static-removing device includes the control box, the control box rotates the deflector roll one of installing the conveying film and carries out spacing deflector roll two to the film, the top of control box is rotated and is installed the static-removing subassembly that destatics the film, the cover is equipped with and carries out clear clean subassembly to the static-removing subassembly on the static-removing subassembly. The utility model discloses it can get rid of the static on the film after the cross cutting to operate, will also clean because of the dust of electrostatic adsorption on the film simultaneously, ensures that the film that stacks together can not stick together, can pile up neatly with the film that stacks together, the storage and the transportation of the follow-up film of being convenient for.

Description

New material film prevents static cross cutting machine

Technical Field

The utility model relates to a film cross cutting machine technical field especially relates to a new material film prevents static cross cutting machine.

Background

The polyester plastic film is a film material which is prepared by using polyethylene terephthalate as a raw material, adopting an extrusion method to prepare a thick sheet and then carrying out biaxial stretching, and is widely applied to the industries of building materials, printing, medicine, health and the like. When the polyester plastic film is used, a die-cutting machine is generally required to cut the polyester plastic film into different shapes, such as a circle, a rectangle, a triangle and the like.

However, in the actual production process, when the existing die-cutting machine conveys and cuts the polyester plastic film, static electricity is easily generated on the film, the stacked films are difficult to align the corners due to the action of the static electricity, and the storage and transportation of the subsequent films are inconvenient, so that the novel material film anti-static die-cutting machine is provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a novel material film anti-static die cutting machine.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a new material film prevents static cross cutting machine, includes the cross cutting machine body, one side of cross cutting machine body is equipped with static-removing device, static-removing device includes the control box, the control box rotates the deflector roll one of installing the conveying film and carries out spacing deflector roll two to the film, the top of control box is rotated and is installed the static-removing subassembly that destatics the film, the cover is equipped with and carries out clear clean subassembly to the static-removing subassembly on the static-removing subassembly.

Preferably, two limiting plates are fixedly mounted at the top of the control box.

Preferably, the top fixed mounting of control box has two curb plates, and the equal slidable mounting in one side that two curb plates are close to each other has the sliding seat, the both ends of deflector roll one and deflector roll two are in the same place with the sliding seat rotation connection that corresponds respectively.

Preferably, fixed cover is equipped with two flexible pieces on the deflector roll one, the cover is equipped with two stop collars on the deflector roll two, threaded connection has fastening bolt on the stop collar, and fastening bolt runs through deflector roll two.

Preferably, the static electricity removing assembly comprises mounting plates fixedly connected with the two sliding seats, and the two mounting plates are rotatably provided with the same static electricity removing roller.

Preferably, the same guide roller III is rotatably installed between the two side plates, the support carrier plates are arranged on two sides of the guide roller III, and two sides of each support carrier plate are respectively connected with the corresponding side plates in a fixed mode.

Preferably, the cleaning assembly comprises two U-shaped covers with two sides provided with openings, connecting rods are fixedly mounted on the two sides of each U-shaped cover, the two connecting rods are fixedly connected with corresponding mounting plates respectively, two cleaning brushes which are symmetrically distributed are fixedly mounted on the inner walls of the U-shaped covers, one sides of the two cleaning brushes which are close to each other are connected with the static electricity removing roller in a sliding mode, an ash discharging pipe is arranged at the top of each U-shaped cover, and the ash discharging pipe penetrates through the U-shaped covers and is fixedly connected with the U-shaped covers.

Preferably, the spout has been seted up on the curb plate, the inner wall sliding connection of sliding seat and spout is in the same place, the top of curb plate is detachable installs the guide arm, be equipped with the diaphragm on the guide arm, the diaphragm runs through the guide arm and is in the same place with guide arm fixed connection, and the diaphragm runs through the sliding seat and is in the same place with sliding seat sliding connection, the slip cover is equipped with the spring on the diaphragm, the both ends of spring are contradicted with spout and sliding seat respectively and are in the same place.

Compared with the prior art, the beneficial effects of the utility model are that: after the film comes out from the cross cutting machine body, the film walks around the static and gets rid of the roller, deflector roll one and deflector roll two in proper order, later spacing through two limiting plates, be convenient for gather together and collect the film, then can get rid of the static on the film when the static gets rid of roller and film contact, the dust that the film adhesion was on the static gets rid of the roller then can get rid of by two clean brushes in the continuous contact process of static removal roller, and communicate with the ash pipe through negative-pressure air fan and hose, then can gather the dust of scraping and sweep in the U-shaped cover and discharge through the ash pipe, thereby ensure the cleanness and the no static of film, it is more favorable to neatly stacking subsequent film.

The utility model discloses the static that the operation can be got rid of on the film after the cross cutting is cleaned because of the dust of electrostatic absorption on the film simultaneously also, ensures that the film that stacks together can not stick together, can pile up neatly with the film that stacks together, the storage and the transportation of the follow-up film of being convenient for.

Drawings

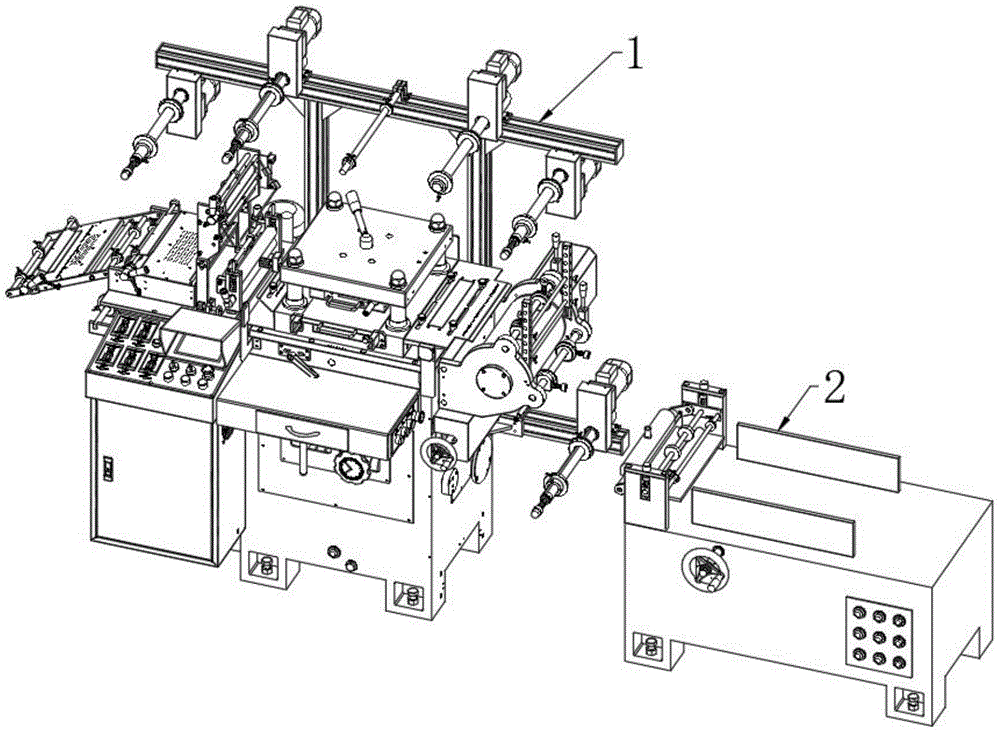

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a schematic view of the overall structure of the static electricity removing device of the present invention;

FIG. 3 is a partially enlarged schematic view of FIG. 2;

FIG. 4 is a partially enlarged schematic view of FIG. 3;

FIG. 5 is a schematic view of the overall structure of the static electricity removing assembly and the cleaning assembly of the present invention;

fig. 6 is a schematic view of the overall structure of the middle cleaning assembly of the present invention.

In the figure: 1. a die cutting machine body; 2. a static electricity removing device; 21. a control box; 22. a limiting plate; 23. a side plate; 231. a chute; 232. a spring; 233. a transverse plate; 234. a guide bar; 24. a sliding seat; 25. a first guide roller; 26. a flexible block; 27. a static electricity eliminating component; 271. mounting a plate; 272. a static electricity removing roller; 28. a cleaning assembly; 281. a U-shaped cover; 282. a cleaning brush; 283. a connecting rod; 284. an ash discharging pipe; 29. a second guide roller; 210. a position limiting sleeve; 211. and a third guide roller.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides a new material film prevents static cross cutting machine, includes cross cutting machine body 1, and one side of cross cutting machine body 1 is equipped with static-removing device 2, and static-removing device 2 includes control box 21, and control box 21 rotates and installs the deflector roll one 25 of conveying film and carries out spacing deflector roll two 29 to the film, and the top of control box 21 is rotated and is installed the static-removing subassembly 27 that destatics the film, and the cover is equipped with on the static-removing subassembly 27 and carries out clear clean subassembly 28 to static-removing subassembly 27.

Two limit plates 22 are fixedly mounted at the top of the control box 21.

Specifically, the films after static electricity removal can be gathered together and collected by arranging the two limiting plates 22, so that subsequent films can be stacked neatly.

Two side plates 23 are fixedly installed at the top of the control box 21, sliding seats 24 are installed on the mutually close sides of the two side plates 23 in a sliding mode, and two ends of the first guide roller 25 and the second guide roller 29 are respectively connected with the corresponding sliding seats 24 in a rotating mode.

Two flexible blocks 26 are fixedly sleeved on the first guide roller 25, two limiting sleeves 210 are sleeved on the second guide roller 29, and fastening bolts are connected to the limiting sleeves 210 in a threaded mode and penetrate through the second guide roller 29.

Specifically, by loosening and tightening the fastening bolts on the position-limiting sleeves 210, the distance between the two position-limiting sleeves 210 can be adjusted according to the size of the film, thereby facilitating the position limitation of the film conveyed out by the flexible block 26.

The static electricity removing assembly 27 comprises a mounting plate 271 fixedly connected with the two sliding seats 24, and the same static electricity removing roller 272 is rotatably mounted on the two mounting plates 271.

The same guide roller III 211 is rotatably installed between the two side plates 23, support plates are arranged on two sides of the guide roller III 211, and two sides of each support plate are fixedly connected with the corresponding side plate 23.

Specifically, the film can be supported by the guide rollers three 211 and the two supporting plates, so that the rolling flexible blocks 26 can smoothly convey the film.

The cleaning assembly 28 comprises a U-shaped cover 281 with two open sides, wherein two connecting rods 283 are fixedly installed on two sides of the U-shaped cover 281, the two connecting rods 283 are fixedly connected with corresponding mounting plates 271 respectively, two cleaning brushes 282 symmetrically distributed are fixedly installed on the inner wall of the U-shaped cover 281, one sides of the two cleaning brushes 282 close to each other are slidably connected with the electrostatic removing roller 272, an ash discharging pipe 284 is arranged at the top of the U-shaped cover 281, and the ash discharging pipe 284 penetrates through the U-shaped cover 281 and is fixedly connected with the U-shaped cover 281.

Specifically, by providing two cleaning brushes 282 closely connected to the static electricity removing roller 272, when the static electricity removing roller 272 rotates, the dust thereon can be scraped by the two cleaning brushes 282, and the dust discharging pipe 284 can collect the dust in the U-shaped cover 281 and discharge the dust in a concentrated manner.

The side plate 23 is provided with a sliding groove 231, the sliding seat 24 is connected with the inner wall of the sliding groove 231 in a sliding manner, the top of the side plate 23 is detachably provided with a guide rod 234, the guide rod 234 is provided with a transverse plate 233, the transverse plate 233 penetrates through the guide rod 234 and is fixedly connected with the guide rod 234, the transverse plate 233 penetrates through the sliding seat 24 and is connected with the sliding seat 24 in a sliding manner, the transverse plate 233 is sleeved with a spring 232 in a sliding manner, and two ends of the spring 232 are respectively abutted against the sliding groove 231 and the sliding seat 24.

Specifically, the sliding seat 24 and the side plate 23 are elastically and slidably connected together through the spring 232, so that the sliding seat 24 drives the two flexible blocks 26 on the first guide roller 25 to be always in close contact with the film, and the rotating flexible blocks 26 can continuously convey the film.

The working principle is as follows: after the film comes out of the die cutting machine body 1, the film sequentially bypasses the static electricity removing roller 272, the first guide roller 25 and the second guide roller 29 and then passes through the limiting positions of the two limiting plates 22, so that the film is gathered and collected conveniently, when the static electricity removing roller 272 is in contact with the film, static electricity on the film can be removed, dust adhered to the static electricity removing roller 272 of the film can be swept down by the two cleaning brushes 282 in the continuous contact process of the static electricity removing roller 272, and the dust can be collected in the U-shaped cover 281 and discharged through the dust outlet pipe 284 through the negative pressure fan and the hose, so that the film is ensured to be clean and free of static electricity, and the subsequent film is more favorable for orderly stacking.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a new material film prevents static cross cutting machine, includes cross cutting machine body (1), its characterized in that: one side of cross cutting machine body (1) is equipped with destaticizing device (2), destaticizing device (2) are including control box (21), control box (21) are rotated and are installed deflector roll one (25) of conveying film and carry out spacing deflector roll two (29) to the film, the top of control box (21) is rotated and is installed destaticizing subassembly (27) to the film, the cover is equipped with and carries out clear clean subassembly (28) to destaticizing subassembly (27) on destaticizing subassembly (27).

2. The new material film antistatic die cutting machine according to claim 1, characterized in that: and two limiting plates (22) are fixedly mounted at the top of the control box (21).

3. The new material film antistatic die cutting machine according to claim 1, characterized in that: the top fixed mounting of control box (21) has two curb plates (23), and the equal slidable mounting in one side that two curb plates (23) are close to each other has sliding seat (24), the both ends of deflector roll one (25) and deflector roll two (29) rotate respectively with corresponding sliding seat (24) and link together.

4. The new material film antistatic die-cutting machine according to claim 1, characterized in that: fixed cover is equipped with two flexible piece (26) on deflector roll one (25), the cover is equipped with two stop collar (210) on deflector roll two (29), threaded connection has fastening bolt on stop collar (210), and fastening bolt runs through deflector roll two (29).

5. The new material film antistatic die cutting machine according to claim 3, characterized in that: the static electricity removing assembly (27) comprises mounting plates (271) fixedly connected with the two sliding seats (24), and the two mounting plates (271) are rotatably provided with the same static electricity removing roller (272).

6. The new material film antistatic die cutting machine according to claim 3, characterized in that: rotate between two curb plate (23) and install three (211) of same deflector roll, the both sides of three (211) of deflector roll all are equipped with the support plate, the both sides of holding in the palm the support plate respectively with curb plate (23) fixed connection that correspond together.

7. The new material film antistatic die cutting machine according to claim 5, characterized in that: cleaning assembly (28) include that both sides are open-ended U-shaped cover (281), the equal fixed mounting in both sides of U-shaped cover (281) has connecting rod (283), and two connecting rods (283) are respectively in the same place with corresponding mounting panel (271) fixed connection, fixed mounting has two symmetric distribution's cleaning brush (282) on the inner wall of U-shaped cover (281), and roller (272) sliding connection is all got rid of with static in one side that two cleaning brush (282) are close to each other together, the top of U-shaped cover (281) is equipped with out ash pipe (284), it runs through U-shaped cover (281) and is in the same place with U-shaped cover (281) fixed connection to go out ash pipe (284).

8. The new material film antistatic die cutting machine according to claim 3, characterized in that: the utility model discloses a slide rail, including curb plate (23), slide holder (24) and spout (231), the inner wall sliding connection who has seted up spout (231) on curb plate (23), the detachable guide arm (234) of installing in top of curb plate (23), be equipped with diaphragm (233) on guide arm (234), diaphragm (233) run through guide arm (234) and with guide arm (234) fixed connection together, and diaphragm (233) run through slide holder (24) and with slide holder (24) sliding connection together, sliding sleeve is equipped with spring (232) on diaphragm (233), the both ends of spring (232) are contradicted together with spout (231) and slide holder (24) respectively.
