The utility model relates to a relevant technical field of interior decoration discloses an auxiliary assembly is used in installation of stone material curtain, including the base, base one side is connected with removes the wheel, still includes: a clamping assembly; a rotation adjustment assembly; a height adjustment assembly; the fine setting subassembly, the utility model discloses at first press from both sides tight fixedly to the stone material through clamping components, later adjust clamping components's angle through the rotation regulation subassembly, thereby realize clamping components by horizontal rotation to vertical state, later highly carry out rough adjustment to the stone material through height regulation subassembly, later finely tune the position of stone material through the fine setting subassembly, thereby make the mutual gomphosis concatenation of stone material, later drive the stone material through the setting of removing the wheel and remove, make the stone material laminating to the wall on, thereby be convenient for the installation of stone material, the utility model discloses simple structure, the size is less, is convenient for shift, and convenient operation has promoted installation speed, has promoted the practicality of device.
Description
Technical Field
The utility model relates to a relevant technical field of interior decoration specifically is an auxiliary assembly is used in installation of stone material curtain.
Background
The wall is the outer wall enclosure of the building, does not bear the weight, hang like the curtain, so is also called curtain wall to be modern large-scale and high-rise building common use with decorative effect light wall. The building outer protective structure or decorative structure consists of a panel and a support structure system, can have certain displacement capacity or certain deformation capacity relative to the main structure, and does not bear the function of the main structure.
The stone curtain wall is generally heavier, generally adopts electric suction cups to suck the stone curtain wall when being installed, adopts a crane to move the stone curtain wall to the bottom of a wall to be installed, and lifts the stone curtain wall to the height to be installed by the crane, so that the stone curtain wall is troublesome to move on the ground, low in moving efficiency and slow in moving speed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an auxiliary assembly is used in installation of stone material curtain to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides an auxiliary assembly is used in installation of stone material curtain, includes the base, and base one side is connected with removes the wheel, still includes: the clamping component is arranged on one side of the base and used for clamping and fixing the stone; the rotary adjusting component is connected to the base and used for adjusting the angle of the clamping component, so that the clamping component rotates from a horizontal state to a vertical state; the height adjusting assembly is connected to the rotary adjusting assembly and used for adjusting the height of the clamping assembly; and the fine adjustment assembly is connected between the height adjusting assembly and the clamping assembly and is used for fine adjustment of the position of the clamping assembly.
As a further aspect of the present invention: the utility model discloses a rotary adjusting assembly, including the fixed block of fixed connection on the base, the first screw rod of fixedly connected with between the fixed block, fixed block fixedly connected with rocking arm is passed to first screw rod one end, base one end both sides fixedly connected with support frame, fixedly connected with fixed axle between the support frame rotate the one end that is connected with the rotating turret on the fixed axle, threaded connection has a first drive block on the first screw rod, rotates the one end that is connected with the rotation support pole on the first drive block, and the other end of rotation support pole rotates to be connected on the rotating turret.
As a further aspect of the present invention: the height adjusting assembly comprises a first sliding rod fixedly connected in the rotating frame, a second screw rod rotatably connected in the rotating frame is arranged on one side of the first sliding rod, a second driving block is connected to the second screw rod in a threaded mode, a first motor is fixedly connected to the other side of the rotating frame, and an output shaft of the first motor penetrates through the rotating frame and is fixedly connected to the second screw rod.
As a further aspect of the present invention: the fine setting subassembly includes that fixed connection is on the first removal frame of second drive block, fixedly connected with second litter in the first removal frame, and second litter one side is provided with the third screw rod of rotating the connection in the first removal frame, and threaded connection has the third drive block on the third screw rod, first removal frame opposite side fixedly connected with second motor, the output shaft of second motor passes first rotating turret fixed connection on the third screw rod.
As a further aspect of the present invention: the third driving block is fixedly connected with a second moving frame, a third sliding rod is fixedly connected in the second moving frame, one side of the third sliding rod is provided with a fourth screw rod which is rotatably connected in the second moving frame, the fourth screw rod is in threaded connection with a fourth driving block, the other side of the second moving frame is fixedly connected with a third motor, and an output shaft of the third motor penetrates through the second moving frame and is fixedly connected to the fourth screw rod.
As a further aspect of the present invention: clamping component includes that fixed connection moves the frame at the third on fourth drive block, and fixedly connected with fourth litter in the third removes the frame, and third litter one side is provided with the double-threaded screw who rotates to connect in the third removes the frame, and double-threaded screw both ends threaded connection has the fifth drive block, the third removes a opposite side fixedly connected with fourth motor, and the output shaft of fourth motor passes third rotating turret fixed connection on double-threaded screw, the side direction pinch-off blades that the two sets of symmetries of fifth drive block fixedly connected with set up, the third removes frame one side fixedly connected with and side direction pinch-off blades matched with bottom pinch-off blades.
As a further aspect of the present invention: the start and stop of the first motor, the second motor, the third motor and the fourth motor are controlled by a controller.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses at first press from both sides tight fixedly to the stone material through clamping components, later adjust clamping components's angle through rotation regulation subassembly to realize clamping components by horizontal rotation to vertical state, later carry out rough adjustment to the height of stone material through height regulation subassembly, later finely tune the position of stone material through the fine setting subassembly, thereby make the mutual gomphosis concatenation of stone material, later drive the stone material through the setting of removing the wheel and remove, make the stone material laminating to the wall on, thereby the installation of the stone material of being convenient for, the utility model discloses simple structure, the size is less, is convenient for shift, and convenient operation has promoted installation speed, has promoted the practicality of device.
Drawings

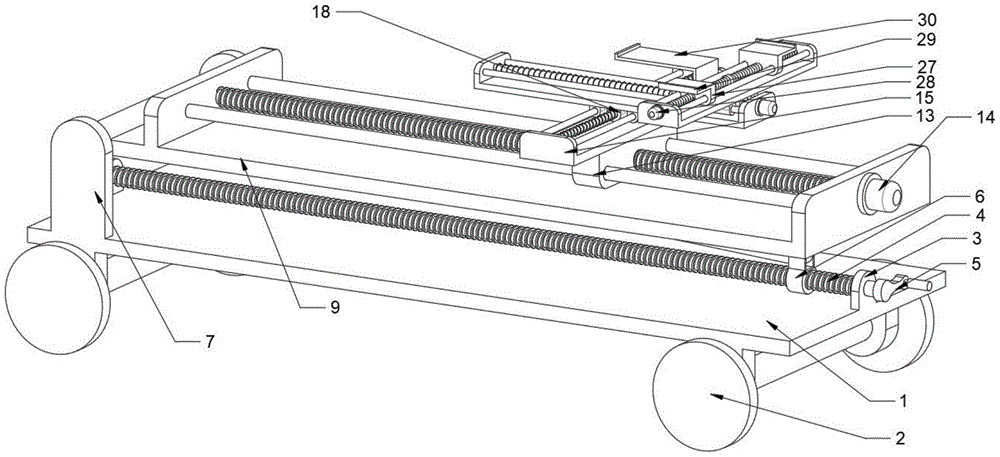

Fig. 1 is the utility model discloses in a stone material is auxiliary assembly's for curtain wall installation structure sketch map.
Fig. 2 is the utility model discloses in a stone material is plan view of auxiliary assembly for curtain wall installation.
Fig. 3 is a side view of the auxiliary device for mounting a stone curtain wall of the present invention.
In the figure: 1-base, 2-moving wheel, 3-fixed block, 4-first screw, 5-rocker, 6-first driving block, 7-supporting frame, 8-fixed shaft, 9-rotating frame, 10-rotating supporting rod, 11-first slide rod, 12-second screw, 13-second driving block, 14-first motor, 15-first moving frame, 16-second slide rod, 17-third screw, 18-third driving block, 19-second motor, 20-second moving frame, 21-third slide rod, 22-fourth screw, 23-fourth driving block, 24-third motor, 25-third moving frame, 26-double-head screw, 27-fifth driving block, 28-fourth motor, 29-lateral clamping plate, 30-bottom end clamping plate, 31-fourth slide rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 ~ 3, in the embodiment of the utility model provides an auxiliary assembly is used in installation of stone material curtain, including base 1, base 1 one side is connected with removes wheel 2, still includes: the clamping component is arranged on one side of the base 1 and used for clamping and fixing the stone; the rotary adjusting component is connected to the base 1 and used for adjusting the angle of the clamping component, so that the clamping component can rotate from a horizontal state to a vertical state; the height adjusting assembly is connected to the rotary adjusting assembly and used for adjusting the height of the clamping assembly; connect and be used for carrying out the fine setting subassembly of fine setting to clamping component's position between altitude mixture control subassembly and clamping component, the utility model discloses at first press from both sides tight fixedly to the stone material through clamping component, later adjust clamping component's angle through the rotation regulation subassembly, thereby realize clamping component by horizontal rotation to vertical state, later highly carry out rough adjustment to the stone material through altitude mixture control subassembly, later finely tune the position of stone material through the fine setting subassembly, thereby make the mutual gomphosis concatenation of stone material, later drive the stone material through the setting of removing wheel 2 and remove, make the stone material laminating to the wall on, thereby the installation of the stone material of being convenient for.
In one aspect of this embodiment, referring to fig. 1 to 3, the rotation adjusting assembly includes fixed blocks 3 fixedly connected to a base 1, first screws 4 fixedly connected between the fixed blocks 3, a rocker arm 5 fixedly connected to one end of each first screw 4 passing through the fixed blocks 3, support frames 7 fixedly connected to both sides of one end of the base 1, a fixed shaft 8 fixedly connected between the support frames 7, one end of a rotating frame 9 rotatably connected to the fixed shaft 8, a first driving block 6 threadedly connected to the first screw 4, one end of a rotating support rod 10 rotatably connected to the first driving block 6, the other end of the rotating support rod 10 rotatably connected to the rotating frame 9, the rotation adjusting assembly driving the first screws 4 to rotate by rocking the rocker arm 5, the first screws 4 driving the first driving blocks 6 to move by threaded connection with the first driving blocks 6, the first driving block 6 drives the rotary supporting rod 10 to rotate, raise or lower, so as to control the stone to rotate from horizontal to vertical or from vertical to horizontal.
In a case of this embodiment, referring to fig. 1 to 3, the height adjusting assembly includes a first sliding rod 11 fixedly connected in the rotating frame 9, a second screw 12 rotatably connected in the rotating frame 9 is disposed on one side of the first sliding rod 11, a second driving block 13 is connected to the second screw 12 through a thread, a first motor 14 is fixedly connected to the other side of the rotating frame 9, an output shaft of the first motor 14 passes through the rotating frame 9 and is fixedly connected to the second screw 12, the height adjusting assembly drives the second screw 12 to rotate through the first motor 14, the second screw 12 drives the second driving block 13 to move through a thread connection with the second driving block 13, the second driving block 13 drives the first moving frame 15 to lift, and the first moving frame 15 drives the stone to lift, so as to roughly adjust the height of the stone.
In one aspect of this embodiment, referring to fig. 1 to 3, the fine adjustment assembly includes a first movable frame 15 fixedly connected to a second driving block 13, a second slide rod 16 is fixedly connected to the first movable frame 15, a third screw 17 rotatably connected to the first movable frame 15 is disposed on one side of the second slide rod 16, a third driving block 18 is threadedly connected to the third screw 17, a second motor 19 is fixedly connected to the other side of the first movable frame 15, an output shaft of the second motor 19 passes through the first movable frame 9 and is fixedly connected to the third screw 17, a second movable frame 20 is fixedly connected to the third driving block 18, a third slide rod 21 is fixedly connected to the second movable frame 20, a fourth screw 22 rotatably connected to the second movable frame 20 is disposed on one side of the third slide rod 21, a fourth driving block 23 is threadedly connected to the fourth screw 22, a third motor 24 is fixedly connected to the other side of the second movable frame 20, an output shaft of the third motor 24 passes through the second rotating frame 9 and is fixedly connected to the fourth screw rod 22, the fine adjustment assembly can drive the third screw rod 17 to rotate through the second motor 19, the third screw rod 17 drives the third driving block 18 to move through threaded connection with the third driving block 18, the third driving block 18 drives the second moving frame 20 to move, the second moving frame 20 drives the stone to lift, so that the height of the stone is finely adjusted, meanwhile, the fourth screw rod 22 can also drive the fourth screw rod 22 to rotate through the third motor 24, the fourth screw rod 22 drives the fourth driving block 23 to move through threaded connection with the fourth driving block 23, the fourth driving block 23 drives the third moving frame 25 to move, and the third moving frame 25 drives the stone to laterally move, so that the lateral position of the stone is finely adjusted.
In one aspect of this embodiment, referring to fig. 1 to 3, the clamping assembly includes a third moving frame 25 fixedly connected to a fourth driving block 23, a fourth sliding rod 31 is fixedly connected to the third moving frame 25, a double-headed screw 26 rotatably connected to the third moving frame 25 is disposed on one side of the third sliding rod 21, fifth driving blocks 27 are threadedly connected to two ends of the double-headed screw 26, a fourth motor 28 is fixedly connected to the other side of the third moving frame 25, an output shaft of the fourth motor 28 passes through the third rotating frame 9 and is fixedly connected to the double-headed screw 26, two sets of symmetrically disposed lateral clamping plates 29 are fixedly connected to the fifth driving block 27, a bottom clamping plate 30 matched with the lateral clamping plates 29 is fixedly connected to one side of the third moving frame 25, the clamping assembly first supports the end of the stone against the bottom clamping plate 30 and places two sides of the stone on the lateral clamping plates 29, then, the fourth motor 28 drives the double-threaded screw 26 to rotate, the double-threaded screw 26 drives the fifth driving block 27 to move through the threaded connection with the fifth driving block 27, and the fifth driving block 27 drives the two sets of lateral clamping plates 29 to close, so as to clamp and fix the stone.
The utility model discloses a theory of operation is: the utility model firstly drives the double-head screw 26 to rotate through the fourth motor 28, the double-head screw 26 drives the fifth driving block 27 to move through the threaded connection with the fifth driving block 27, the fifth driving block 27 drives the two sets of lateral clamping plates 29 to close, thereby clamping and fixing the stone material, then drives the first screw 4 to rotate through the rocking rocker arm 5, the first screw 4 drives the first driving block 6 to move through the threaded connection with the first driving block 6, the first driving block 6 drives the rotating support rod 10 to rotate and raise or lower, thereby controlling the stone material to rotate from horizontal to vertical, then drives the second screw 12 to rotate through the first motor 14, the second screw 12 drives the second driving block 13 to move through the threaded connection with the second driving block 13, the second driving block 13 drives the first moving frame 15 to lift, the first moving frame 15 drives the stone to move up and down, so as to coarsely adjust the height of the stone, after the adjustment is completed, the second motor 19 drives the third screw rod 17 to rotate, the third screw rod 17 drives the third driving block 18 to move through the threaded connection with the third driving block 18, the third driving block 18 drives the second moving frame 20 to move, the second moving frame 20 drives the stone to move up and down, so as to finely adjust the height of the stone, meanwhile, the third motor 24 can also drive the fourth screw rod 22 to rotate, the fourth screw rod 22 drives the fourth driving block 23 to move through the threaded connection with the fourth driving block 23, the fourth driving block 23 drives the third moving frame 25 to move, the third moving frame 25 drives the stone to laterally move, so as to finely adjust the lateral position of the stone, after the adjustment is completed, the stone is driven to move through the setting of the moving wheel 2, the stone is attached to the wall, so that the stone is convenient to mount.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides an auxiliary assembly is used in installation of stone material curtain, includes the base, its characterized in that, base one side is connected with the removal wheel, still includes: the clamping component is arranged on one side of the base and used for clamping and fixing the stone; the rotary adjusting component is connected to the base and used for adjusting the angle of the clamping component, so that the clamping component rotates from a horizontal state to a vertical state; the height adjusting assembly is connected to the rotary adjusting assembly and used for adjusting the height of the clamping assembly; and the fine adjustment assembly is connected between the height adjusting assembly and the clamping assembly and is used for fine adjustment of the position of the clamping assembly.
2. The auxiliary device for installing the stone curtain wall as claimed in claim 1, wherein the rotation adjusting assembly comprises fixed blocks fixedly connected to the base, a first screw is fixedly connected between the fixed blocks, one end of the first screw penetrates through the fixed blocks and is fixedly connected with the rocker arm, support frames are fixedly connected to two sides of one end of the base, a fixed shaft is fixedly connected between the support frames, one end of a rotating frame is rotatably connected to the fixed shaft, a first driving block is connected to the first screw through threads, one end of a rotation supporting rod is rotatably connected to the first driving block, and the other end of the rotation supporting rod is rotatably connected to the rotating frame.
3. The auxiliary device for installing the stone curtain wall as claimed in claim 2, wherein the height adjusting assembly comprises a first slide rod fixedly connected in the rotating frame, one side of the first slide rod is provided with a second screw rod rotatably connected in the rotating frame, the second screw rod is in threaded connection with a second driving block, the other side of the rotating frame is fixedly connected with a first motor, and an output shaft of the first motor penetrates through the rotating frame and is fixedly connected to the second screw rod.
4. The auxiliary device for installing the stone curtain wall as claimed in claim 3, wherein the fine adjustment assembly comprises a first movable frame fixedly connected to the second driving block, a second sliding rod is fixedly connected to the first movable frame, a third screw rod rotatably connected to one side of the second sliding rod is arranged in the first movable frame, a third driving block is connected to the third screw rod in a threaded manner, a second motor is fixedly connected to the other side of the first movable frame, and an output shaft of the second motor penetrates through the first movable frame and is fixedly connected to the third screw rod.
5. The auxiliary equipment for installing the stone curtain wall as claimed in claim 4, wherein the third driving block is fixedly connected with a second movable frame, a third sliding rod is fixedly connected in the second movable frame, a fourth screw rod rotatably connected in the second movable frame is arranged on one side of the third sliding rod, a fourth driving block is connected to the fourth screw rod in a threaded manner, a third motor is fixedly connected to the other side of the second movable frame, and an output shaft of the third motor penetrates through the second rotary frame and is fixedly connected to the fourth screw rod.
6. The auxiliary device for installing the stone curtain wall as claimed in claim 5, wherein the clamping assembly comprises a third movable frame fixedly connected to a fourth driving block, a fourth sliding rod is fixedly connected to the inside of the third movable frame, a double-headed screw rotatably connected to the inside of the third movable frame is arranged on one side of the third sliding rod, fifth driving blocks are threadedly connected to two ends of the double-headed screw, a fourth motor is fixedly connected to the other side of the third movable frame, an output shaft of the fourth motor penetrates through the third movable frame and is fixedly connected to the double-headed screw, two sets of symmetrically arranged lateral clamping plates are fixedly connected to the fifth driving blocks, and a bottom clamping plate matched with the lateral clamping plates is fixedly connected to one side of the third movable frame.
