Intelligent skylight with high daylighting performance

Technical Field

The utility model relates to a skylight daylighting technical field especially relates to an intelligent skylight of high daylighting performance.

Background

The window refers to an opening built on a wall or a roof, so that light or air enters a room, and among numerous building products, the skylight has the functions of lighting, ventilation and rain prevention, is a practical product, is more and more applied in building construction, and has higher and higher requirements on the skylight in order to adapt to different environments.

Traditional skylight generally all utilizes the vaulting pole to strut it, and the angle of strutting is very little, has reduced the daylighting ability in skylight, and traditional skylight generally is in the same place glass and protection shield fixed connection, and when the later stage need clear up glass, the junction between glass and the protection shield is cleared up very troublesome, and when changing glass, also need change the protection shield together, has increased the cost of changing.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects that the angle opened by glass is small and the glass is inconvenient to disassemble in the prior art, and providing an intelligent skylight with high daylighting performance.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides an intelligent skylight of high daylighting performance, includes skylight base and servo motor, and servo motor installs the outside at the skylight base, the outside of skylight base is the symmetry and is provided with the protection shield, the inside symmetry of skylight base is provided with adjustment mechanism, adjustment mechanism includes the connecting plate, connecting plate fixed connection be in servo motor's output shaft tip, the connecting plate is kept away from the one end of servo motor output shaft is connected with the connecting rod, the outside fixed mounting of connecting rod has backup pad A and backup pad B, a plurality of screws have been seted up to the outside of protection shield, the outside of protection shield is provided with a plurality of bolts, the bolt with screw looks adaptation.

The above technical solution further comprises: an opening seat B is installed on the outer portion of the protection plate, and an opening groove B is formed in the outer portion of the opening seat B.

The outer portion of the supporting plate A is fixedly connected with a connecting pin B, and the connecting pin B is rotatably connected to the inner portion of the open groove B.

An opening seat A is installed on the outer portion of the protection plate, and an opening groove A is formed in the outer portion of the opening seat A.

The outside fixedly connected with connecting pin A of backup pad B, connecting pin A rotates to be connected in the inside of open slot A.

The two sides of the protection plate are respectively provided with a mounting opening, and the interior of the protection plate is detachably connected with toughened glass.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, set up adjustment mechanism, utilize the motor to drive two backup pads and remove, two backup pads can be opened the glass of installation on the skylight completely, through the degree of opening that improves glass, have further improved the daylighting effect in skylight.

2. The utility model discloses in, set up a plurality of bolts in the outside of protection shield, fixed glass on the protection shield through a plurality of bolt cooperations, increased glass and opened the stability of in-process, set up the bolt and fix glass, dismantle when making things convenient for the later stage to need change glass.

Drawings

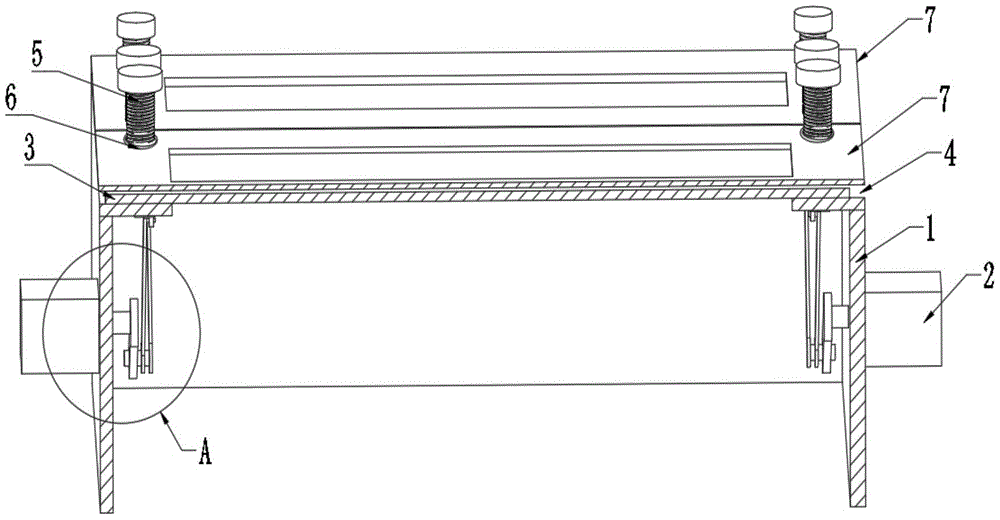

Fig. 1 is a schematic view of a front view cross-sectional structure of an intelligent skylight with high daylighting performance according to the present invention;

FIG. 2 is a schematic front view of the structure of FIG. 1;

FIG. 3 is a side view of the structure of FIG. 2;

FIG. 4 is an enlarged schematic view of the structure at A in FIG. 1;

FIG. 5 is an enlarged view of the structure at B in FIG. 3;

fig. 6 is an enlarged schematic view of a portion B in fig. 3.

In the figure: 1. a skylight base; 2. a servo motor; 3. tempering the glass; 4. an installation port; 5. a bolt; 6. a screw hole; 7. a protection plate; 8. a connecting plate; 9. a connecting rod; 10. a support plate A; 11. a support plate B; 12. an opening seat A; 13. a connecting pin A; 14. an open slot A; 15. an opening seat B; 16. an open slot B; 17. and a connecting pin B.

Detailed Description

The technical solution of the present invention will be further explained with reference to the accompanying drawings and specific embodiments.

Example one

Referring to the accompanying drawing 1, the utility model provides an intelligent skylight of high daylighting performance, including skylight base 1 and servo motor 2, servo motor 2 installs in skylight base 1's outside, skylight base 1's outside is the symmetry and is provided with protection shield 7, skylight base 1's inside symmetry is provided with adjustment mechanism, adjustment mechanism includes connecting plate 8, 8 fixed connection of connecting plate are in servo motor 2's output shaft tip, connecting plate 8 keeps away from the one end of servo motor 2 output shaft is connected with connecting rod 9, the outside fixed mounting of connecting rod 9 has backup pad A10 and backup pad B11, a plurality of screws 6 have been seted up to protection shield 7's outside, protection shield 7's outside is provided with a plurality of bolts 5, bolt 5 with 6 looks adaptations of screw.

In the embodiment, when the skylight needs to be opened, two servo motors 2 are started, the servo motors 2 drive a connecting plate 8 to rotate, the connecting plate 8 drives a connecting rod 9 fixedly connected to the outside of the connecting plate 8 to rotate, the connecting rod 9 drives a supporting plate B11 and a supporting plate A10 fixedly connected to the outside of the connecting rod 9 to rotate, and a supporting plate B11 and a supporting plate A10 respectively support two protecting plates 7 to be opened, wherein a connecting pin B17 fixedly connected to the outside of the supporting plate A10 is rotatably connected to the inside of an open slot B16, a connecting pin A13 fixedly connected to the outside of the supporting plate B11 is rotatably connected to the inside of an open slot A14, the skylight can be completely opened only by rotating the skylight anticlockwise to 135 degrees, and when the skylight needs to be closed, the servo motors 2 are started to rotate clockwise by 135 degrees and return to the position of the toughened glass 3, and the skylight can be closed;

when the toughened glass 3 needs to be dismantled in the later stage, 8 bolts through dismantling the outside connecting plate of 7 protective plates can, dismantle simple and convenient getting up taking out toughened glass 3 from the position department of installing port 4.

Example two

As shown in fig. 1-2, based on the first embodiment, a plurality of bolts 5 are arranged outside the protection plate 7, the bolts 5 are adapted to the screw holes 6, and the servo motor 2 is fixedly mounted outside the skylight base 1.

In this embodiment, wherein the rubber pad is installed to the tip of bolt 5, and the rubber pad can prevent the tip of screw thread and 3 direct contact of toughened glass, avoids causing the damage to toughened glass 3 because of too big when workman mounting bolt 5 hard, and wherein servo motor 2's output shaft runs through skylight base 1 and extends to the inside of skylight base 1, and servo motor 2's outside should be provided with the waterproof box, prevents sleet weather, causes the damage of 2 internal circuit component of servo motor.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. An intelligent skylight with high daylighting performance comprises a skylight base (1) and a servo motor (2), wherein the servo motor (2) is installed outside the skylight base (1), and is characterized in that protection plates (7) are symmetrically arranged outside the skylight base (1), adjusting mechanisms are symmetrically arranged inside the skylight base (1), each adjusting mechanism comprises a connecting plate (8), the connecting plate (8) is fixedly connected to the end portion of an output shaft of the servo motor (2), one end, far away from the output shaft of the servo motor (2), of the connecting plate (8) is connected with a connecting rod (9), and a support plate A (10) and a support plate B (11) are fixedly installed outside the connecting rod (9);

a plurality of screw holes (6) are formed in the outer portion of the protection plate (7), a plurality of bolts (5) are arranged on the outer portion of the protection plate (7), and the bolts (5) are matched with the screw holes (6).

2. The intelligent skylight with high daylighting performance of claim 1, characterized in that the outside of the protection plate (7) is provided with an opening seat B (15), and the outside of the opening seat B (15) is provided with an opening groove B (16).

3. The intelligent skylight with high daylighting performance of claim 2, characterized in that the outside of the supporting plate A (10) is fixedly connected with a connecting pin B (17), and the connecting pin B (17) is rotatably connected inside the open slot B (16).

4. The intelligent skylight with high daylighting performance of claim 2, characterized in that the outside of the protection plate (7) is provided with an opening seat A (12), and the outside of the opening seat A (12) is provided with an opening groove A (14).

5. The intelligent skylight with high daylighting performance of claim 4, characterized in that the outside of the supporting plate B (11) is fixedly connected with a connecting pin A (13), and the connecting pin A (13) is rotatably connected inside the open slot A (14).

6. The intelligent skylight with high daylighting performance according to claim 1, characterized in that the two sides of the protection plate (7) are respectively provided with an installation opening (4), and the interior of the protection plate (7) is detachably connected with toughened glass (3).
