CN217287334U

CN217287334U - Waste liquid collection device for marine oil and gas exploitation environmental protection

Info

Publication number: CN217287334U
Application number: CN202220258047.8U
Authority: CN
Inventors: 王建民; 胡松; 张孝光; 朱建才; 李经纬
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-02-08
Filing date: 2022-02-08
Publication date: 2022-08-26
Anticipated expiration: 2032-02-08

Abstract

The utility model relates to the technical field of oil and gas exploitation and environmental protection, in particular to a waste liquid collecting device for marine oil and gas exploitation and environmental protection, which comprises a liquid collecting box, wherein sundry outlets are arranged above the left side and the right side of the liquid collecting box, a sweeping component is arranged at the upper side inside the liquid collecting box, a filter plate is arranged inside the sweeping component and below the sweeping component, sundry collecting boxes are arranged at the left side and the right side of the liquid collecting box, the waste liquid can be filtered through the arranged filter plate when the waste liquid is conveyed to the liquid collecting box, so that solid sundries in the waste liquid are filtered out, the solid-liquid separation effect is realized, and the arranged threaded rod and a servo motor can drive a scraping plate to move left and right, thereby sundries accumulated on the filter plate can be scraped, and the scraped sundries can fall into the sundry collecting box from the sundry outlet, thereby can conveniently clear up the filter, make it carry out filtering work for a long time.

Description

Waste liquid collection device for marine oil and gas exploitation environmental protection

Technical Field

The utility model relates to an oil gas exploitation environmental protection technical field specifically is a marine oil gas exploitation waste liquid collection device for environmental protection.

Background

At present, about 10 ten thousand formulas of waste oil water and waste residues are generated in the production process of offshore oil fields every year, the production waste liquid mainly comprises aging oil, solid suspended matters, wax, colloid, bacteria, corrosion products, polymer agents and the like, and solid-liquid separation is needed when the waste liquid is collected.

Current marine oil gas exploitation waste liquid collection device for environmental protection is when collecting the waste liquid, and filterable effect is not good, and the filter can take place to block up for a long time using, and then influences filterable effect.

Therefore, there is a need for an environmentally friendly waste liquid collecting apparatus for marine oil and gas production that improves upon the above problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an environmental protection is adopted to ocean oil and gas uses waste liquid collection device to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides a marine oil and gas exploitation waste liquid collection device for environmental protection, includes liquid collection box, the debris export has been seted up to the top of liquid collection box left and right sides, the inside upside of liquid collection box is provided with sweeps the subassembly, it is provided with the filter to sweep the inside of subassembly and be located the below of sweeping the subassembly, the left and right sides of liquid collection box is provided with the debris collecting box, the junction at liquid collection box and debris collecting box front, the back all is provided with coupling assembling, the bottom of liquid collection box and debris collecting box all is provided with removes the wheel, the top of liquid collection box is provided with the feed liquor pipe, the positive downside of liquid collection box is provided with the drain pipe.

As the utility model discloses preferred scheme, the subassembly of sweeping away includes mounting bracket, threaded rod, servo motor and scraper blade, the liquid collecting box left and right sides is provided with the mounting bracket and the top that is located the debris export, the symmetry is provided with the threaded rod around the inboard of mounting bracket, the right-hand member of threaded rod is provided with servo motor, the scraper blade has been cup jointed to the outer wall of threaded rod.

As the utility model discloses preferred scheme, coupling assembling includes that first connecting plate, second connecting plate, first insert ring, second insert ring and inserted bar, first connecting plate and liquid collecting box fixed connection, the downside of first connecting plate is provided with the second connecting plate, second connecting plate and debris collecting box fixed connection, the outside of first connecting plate is provided with first insert ring, the outside of second connecting plate is provided with the second and inserts the ring, the inserted bar has been cup jointed to the inside of first insert ring and second insert ring.

As the utility model discloses preferred scheme, the filter can be dismantled for sliding with liquid collecting box's connected mode and be connected.

As the utility model discloses preferred scheme, the connected mode of threaded rod and mounting bracket is for rotating the connection.

As the utility model discloses preferred scheme, the connected mode of threaded rod and scraper blade is threaded connection.

As the utility model discloses preferred scheme, the inserted bar can be dismantled for sliding with the connected mode of first ring, the second ring of inserting.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, can filter the waste liquid when liquid collecting box is carried to the waste liquid through the filter that sets up, make the solid debris in the waste liquid filtered out, thereby realize solid-liquid separation's effect, and the threaded rod of setting, servo motor can drive the scraper blade and control the removal, thereby can strike off the debris that accumulate on the filter, the debris of striking off can be followed in the debris export drops the debris collecting box, thereby can conveniently clear up the filter, make it carry out filtering work for a long time.

2. The utility model discloses in, coupling assembling through the setting can make things convenient for liquid collecting box and debris collecting box to be connected and dismantle to can collect at the waste liquid, handle the completion after, carry out classification to it, and also can fill the back at liquid collecting box, change the debris collecting box to other liquid collecting box on, make things convenient for holistic use.

Drawings

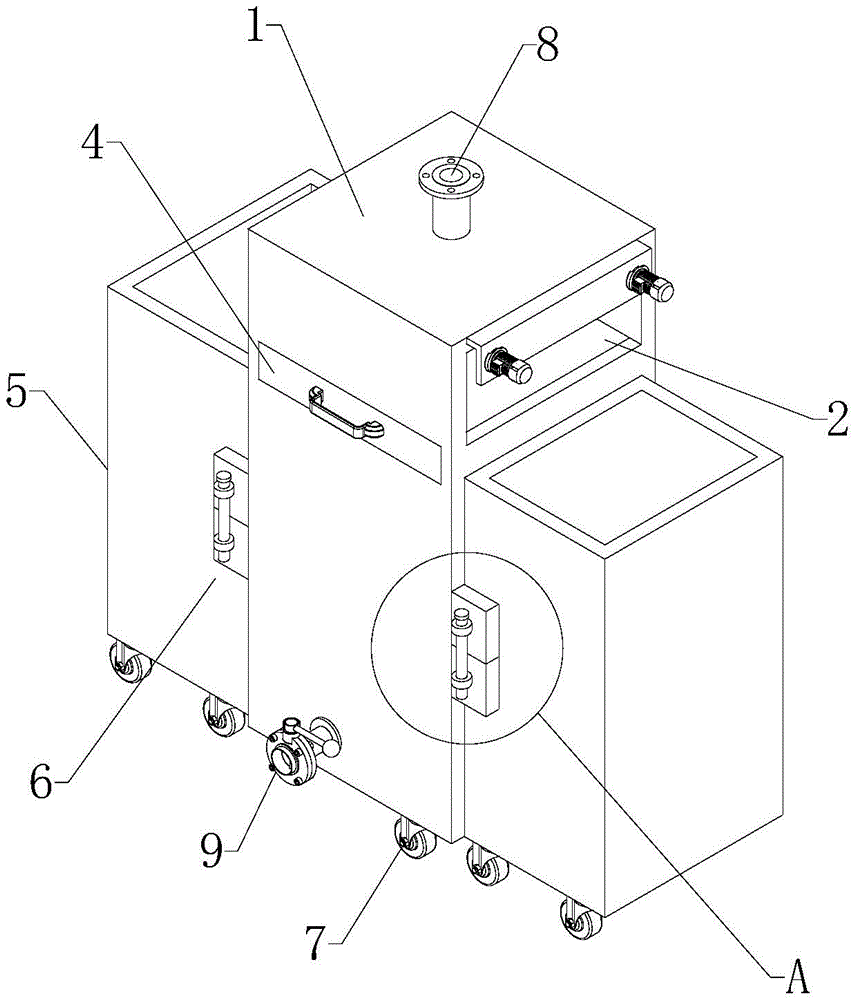

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the sweeping assembly of the present invention;

fig. 3 is an enlarged view of the present invention a.

In the figure: 1. a liquid collection tank; 2. a sundry outlet; 3. a sweeping assembly; 4. a filter plate; 5. a sundries collecting box; 6. a connecting assembly; 7. a moving wheel; 8. a liquid inlet pipe; 9. a liquid outlet pipe; 301. a mounting frame; 302. a threaded rod; 303. a servo motor; 304. a squeegee; 601. a first connecting plate; 602. a second connecting plate; 603. a first insert ring; 604. a second insert ring; 605. and (4) inserting the rod.

Detailed Description

The technical solution in the embodiments of the present invention will be clearly and completely described below in conjunction with the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention based on the embodiments of the present invention.

To facilitate understanding of the invention, the invention will be described more fully hereinafter with reference to the accompanying drawings, in which several embodiments of the invention are shown, but which can be embodied in many different forms and are not limited to the embodiments described herein, but rather are provided for the purpose of making the disclosure more thorough and complete.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present, that when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, and that the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the use of the terms herein in the specification of the present invention are for the purpose of describing particular embodiments only and are not intended to limit the present invention, and the use of the term "and/or" herein includes any and all combinations of one or more of the associated listed items.

Referring to fig. 1-3, the present invention provides a technical solution:

a marine oil and gas exploitation environmental protection waste liquid collecting device comprises a liquid collecting box 1, sundries outlets 2 are arranged above the left side and the right side of the liquid collecting box 1, a sweeping component 3 is arranged on the upper side inside the liquid collecting box 1, a filter plate 4 is arranged inside the sweeping component 3 and below the sweeping component 3, sundries collecting boxes 5 are arranged on the left side and the right side of the liquid collecting box 1, connecting components 6 are arranged at the connecting parts of the front surface and the back surface of the liquid collecting box 1 and the sundries collecting boxes 5, moving wheels 7 are arranged at the bottoms of the liquid collecting box 1 and the sundries collecting boxes 5, a liquid inlet pipe 8 is arranged at the top of the liquid collecting box 1, a liquid outlet pipe 9 is arranged on the lower side of the front surface of the liquid collecting box 1, the sweeping component 3 comprises a mounting frame 301, a threaded rod 302, a servo motor 303 and a scraper 304, a mounting frame 301 is arranged above the sundries outlets 2 on the left side and the right side of the liquid collecting box 1, the inner side of the mounting rack 301 is symmetrically provided with threaded rods 302 in front and back, the right end of the threaded rod 302 is provided with a servo motor 303, the outer wall of the threaded rod 302 is sleeved with a scraper 304, the connecting component 6 comprises a first connecting plate 601, a second connecting plate 602, a first insert ring 603, a second insert ring 604 and an insert rod 605, the first connecting plate 601 is fixedly connected with the liquid collection box 1, the lower side of the first connecting plate 601 is provided with the second connecting plate 602, the second connecting plate 602 is fixedly connected with the sundry collection box 5, the outer side of the first connecting plate 601 is provided with the first insert ring 603, the outer side of the second connecting plate 602 is provided with the second insert ring 604, the inner parts of the first insert ring 603 and the second insert ring 604 are sleeved with the insert rod 605, the filter plate 4 is connected with the liquid collection box 1 in a sliding and detachable manner, the threaded rod 302 is connected with the mounting rack 301 in a rotating manner, the threaded rod 302 is connected with the scraper 304 in a screw manner, the connection mode of the insertion rod 605 with the first insertion ring 603 and the second insertion ring 604 is a sliding detachable connection.

Referring to fig. 1-3, when the waste liquid is conveyed to the liquid collection box 1, the filter plate 4 is arranged to filter the waste liquid, so that solid impurities in the waste liquid are filtered out, the solid-liquid separation effect is realized, the threaded rod 302 and the servo motor 303 are arranged to drive the scraper 304 to move left and right, so that the impurities accumulated on the filter plate 4 can be scraped, the scraped impurities can fall into the impurity collection box 5 from an impurity outlet, and the filter plate 4 can be conveniently cleaned, so that the filtering work can be carried out for a long time.

Referring to fig. 1-3, the liquid collection box 1 and the sundries collection box 5 can be conveniently connected and detached through the connecting assembly 6, so that waste liquid can be classified and treated after being collected and treated, and the sundries collection box 5 can be replaced on other liquid collection boxes 1 after the liquid collection boxes 1 are filled with the waste liquid, and the whole use is convenient.

The utility model discloses work flow: when in use, the sundries collecting box 5 is firstly pushed to the left and the right sides of the liquid collecting box 1, then the first insert ring 603 and the second insert ring 604 are aligned up and down, then, the insertion rod 605 is inserted into the first insertion ring 603 and the second insertion ring 604, the connection of the liquid collection tank 1 and the sundry collection tank 5 is completed, then the waste liquid is conveyed into the liquid collecting box 1 from the liquid inlet pipe 8, at the moment, the waste liquid is filtered by the filter plate 4 to remove fixed impurities, then the liquid flows into the liquid collecting box 1 through the filter plate 4, then the servo motor 303 is started to drive the threaded rod 302 to regularly rotate forwards and backwards, at the moment, the scraper 304 moves left and right on the threaded rod 302, thereby moving left and right on the surface of the filter plate 4 and scraping impurities on the surface of the filter plate 4, the graff may then fall from the graff outlet 2 to the graff collection tank 5 and the above steps are repeated until the liquid collection tank 1 is full.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a marine oil and gas exploitation waste liquid collection device for environmental protection, includes liquid collection box (1), its characterized in that: sundries outlet (2) have been seted up to the top of both sides about liquid collecting box (1), the inside upside of liquid collecting box (1) is provided with sweeps subassembly (3), the inside of sweeping subassembly (3) is and be located the below of sweeping subassembly (3) and be provided with filter (4), the left and right sides of liquid collecting box (1) is provided with sundries collecting box (5), the junction at the front, the back of liquid collecting box (1) and sundries collecting box (5) all is provided with coupling assembling (6), the bottom of liquid collecting box (1) and sundries collecting box (5) all is provided with removes wheel (7), the top of liquid collecting box (1) is provided with feed liquor pipe (8), the positive downside of liquid collecting box (1) is provided with drain pipe (9).

2. The marine oil and gas exploitation environmental protection waste liquid collection device according to claim 1, characterized in that: sweep subassembly (3) and include mounting bracket (301), threaded rod (302), servo motor (303) and scraper blade (304), the liquid collecting box (1) left and right sides is provided with mounting bracket (301) and the top that is located debris export (2), the inboard front and back symmetry of mounting bracket (301) is provided with threaded rod (302), the right-hand member of threaded rod (302) is provided with servo motor (303), scraper blade (304) have been cup jointed to the outer wall of threaded rod (302).

3. The marine oil and gas exploitation environmental protection waste liquid collection device according to claim 1, characterized in that: the connecting assembly (6) comprises a first connecting plate (601), a second connecting plate (602), a first insert ring (603), a second insert ring (604) and an insert rod (605), the first connecting plate (601) is fixedly connected with the liquid collecting box (1), the second connecting plate (602) is arranged on the lower side of the first connecting plate (601), the second connecting plate (602) is fixedly connected with the sundry collecting box (5), the first insert ring (603) is arranged on the outer side of the first connecting plate (601), the second insert ring (604) is arranged on the outer side of the second connecting plate (602), and the insert rod (605) is sleeved inside the first insert ring (603) and the second insert ring (604).

4. The marine oil and gas exploitation environmental protection waste liquid collection device according to claim 1, characterized in that: the filter plate (4) is connected with the liquid collecting box (1) in a sliding and detachable mode.

5. The marine oil and gas exploitation environmental protection waste liquid collection device according to claim 2, characterized in that: the threaded rod (302) is connected with the mounting rack (301) in a rotating mode.

6. The marine oil and gas exploitation environmental protection waste liquid collection device according to claim 2, characterized in that: the threaded rod (302) is connected with the scraper (304) in a screw connection mode.

7. The marine oil and gas production environmental protection waste liquid collection device of claim 3, wherein: the insertion rod (605) is connected with the first insertion ring (603) and the second insertion ring (604) in a sliding and detachable mode.
