CN217219682U

CN217219682U - Wound drainage fixing device for breast surgery

Info

Publication number: CN217219682U
Application number: CN202220763108.6U
Authority: CN
Inventors: 卢山
Original assignee: West China Hospital of Sichuan University
Current assignee: West China Hospital of Sichuan University
Priority date: 2022-04-02
Filing date: 2022-04-02
Publication date: 2022-08-19
Anticipated expiration: 2032-04-02

Abstract

The utility model discloses a wound drainage fixing device for mammary gland surgery, including the binder, the one end of binder is provided with the elastic band that sets up along its direction of height, the inner wall of elastic band is provided with first hook face magic subsides, the position that the binder outer wall is close to its other end is provided with first matte magic subsides, the upper end of binder outer wall is provided with two flexible saucer, all can dismantle between the upper end of each flexible saucer and the upper end of binder and be connected with the baldric, the below of binder outer wall one side is provided with the fixed bag of elasticity, can dismantle in the fixed bag of elasticity and be connected with the drainage bottle, the lower extreme of each flexible saucer inner wall all is provided with unable adjustment base, the outer wall of binder is provided with second hook face magic subsides in the below of flexible saucer, second matte magic subsides. The utility model discloses can not only independently accomplish alone when changing and apply ointment or plaster, can also effectively fix the drainage tube, and the patient can adjust fixed elasticity according to actual conditions, improves patient's comfort.

Description

Wound drainage fixing device for breast surgery

Technical Field

The utility model relates to the technical field of medical equipment, in particular to wound drainage fixing device for mammary gland surgery.

Background

The breast surgery is the next branch of clinical surgery, mainly aiming at the surgery aspect of breast diseases, such as breast anatomy, breast infection, breast tumor pathology, breast tumor diagnosis and treatment principle, and various surgical methods, chemotherapy, radiotherapy and endocrine treatment of breast tumor surgery, for example, for a patient after a breast surgery, a drainage tube of the patient generally needs to be fixed, most of the traditional fixing methods are methods of fixing the drainage tube of the patient by using gauze winding and bandaging or adhesive tape fixing, so that the situations of looseness, even shedding and the like easily occur due to the movement of the patient or sweating and the like, and a drainage fixing device is designed.

Current drainage fixing device's fixed band often all is behind the patient, because the reason of wound and drainage tube can't accomplish alone when changing the application, and need take off whole fixing device and just can change, can't effectively fix the drainage tube, leads to the drainage tube to fold easily when patient's routine activity, influences the drainage effect, and can't adjust fixed elasticity, influences patient's comfort.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a wound drainage fixing device for mammary gland surgery can not only independently accomplish alone when changing and applying ointment or plaster, can also effectively fix the drainage tube, does not let its folding influence drainage effect, and the patient can adjust fixed elasticity according to actual conditions, promotes patient's comfortable degree.

The above technical purpose of the present invention can be achieved by the following technical solutions:

a wound drainage fixing device for mammary gland surgery comprises a abdominal belt, wherein one end of the abdominal belt is provided with an elastic belt arranged along the height direction of the abdominal belt, the inner wall of the elastic belt is provided with a first hook-face magic tape, the position of the outer wall of the abdominal belt close to the other end of the abdominal belt is provided with a first suede magic tape matched with the first hook-face magic tape, the upper end of the outer wall of the abdominal belt is provided with two flexible cup holders arranged along the length direction of the abdominal belt, each flexible cup holder comprises first stabilizing cloth and second stabilizing cloth matched with the first stabilizing cloth, a connecting cloth strip is connected between the upper end of each first stabilizing cloth and the upper end of the corresponding second stabilizing cloth, a gap is reserved between each first stabilizing cloth and the corresponding second stabilizing cloth, and a shoulder strap used for fixing the abdominal belt is detachably connected between the upper end of each flexible cup holder and the upper end of the abdominal belt, the two shoulder straps are arranged in a crossed manner;

the below of binder outer wall one side is provided with the fixed bag of elasticity, can dismantle in the fixed bag of elasticity and be connected with the drainage bottle, drainage bottle outer wall upper end intercommunication has the feed liquor pipe, the upper end of drainage bottle outer wall in one side intercommunication of feed liquor pipe has the fluid-discharge tube, the mouth of pipe of fluid-discharge tube can be dismantled and be connected with and be used for plugging up the rubber buffer of fluid-discharge tube, the feed liquor pipe can be dismantled and be connected with it and pass its intercommunication its inside drainage tube is stretched in flexible saucer clearance, and the lower extreme of each flexible saucer inner wall all is provided with and is used for fixing the fixed baseplate of drainage tube.

By adopting the technical scheme, when the abdominal bandage is used, the abdominal bandage is fixed at the position below the chest of a patient through the matching of the first suede magic tape and the first hook-face magic tape, the length of the elastic band can be adjusted during fixing, the abdominal bandage can be fixed, discomfort of the patient can not be caused, the elastic band is positioned on one side of the body of the patient, one end of the drainage tube penetrates through the gap of the flexible cup stand, the drainage tube is inserted into the wound of the patient, a protective measure is made, the other end of the drainage tube is communicated with the liquid inlet tube on the drainage bottle, the drainage bottle is placed in the elastic fixing bag, the shoulder strap is connected to the flexible cup stand and the abdominal bandage, the first stable cloth and the second stable cloth can be lifted upwards and backwards through the shoulder strap which is arranged in a crossed mode, and the flexible cup stand is attached to the wound of the patient;

through the fixed drainage tube of unable adjustment base, tear second matte magic subsides, with the smooth upper end of hooking at the second with placing of drainage tube, gently paste the second matte magic and paste at the second hook face magic and paste, fixed drainage tube, drainage liquid then can flow into in the drainage bottle along the drainage tube, even if the patient is when doing conventional motion, also can not be because the range of motion is too big to be dragged the drainage tube or let the drainage tube fold, when need to be changed and apply ointment or plaster, the patient also can alone accomplish the change alone, and need not take off whole fixing device and only need loosen the baldric that loosens the front end and just can change, when the drainage bottle will be filled with, take out the drainage bottle, open the rubber buffer, let drainage liquid along the fluid-discharge tube flow can.

The utility model discloses a further set up to: the position of the inner wall of the abdominal belt close to the first suede magic tape and one side of the outer wall of the elastic fixing bag far away from the flexible cup stand can be detachably connected with sticky tapes.

Through adopting above-mentioned technical scheme, can fix the one end of binder in advance when the patient operates alone, make things convenient for the subsequent operation of patient, also can fix the fixed bag of elasticity, when preventing that the patient from moving, the drainage bottle is made a round trip to rock.

The utility model discloses a further set up to: the outer wall of each shoulder belt is connected with an adjusting buckle which slides along the length direction of the shoulder belt and can adjust the length of the corresponding shoulder belt.

Through adopting above-mentioned technical scheme, can be according to the patient of difference, the length of adjustment baldric also can improve patient's comfort when not influencing fixed effect.

The utility model discloses a further set up to: the upper end of each first stable cloth and the upper end of the corresponding second stable cloth are connected with a connecting cloth strip.

Through adopting above-mentioned technical scheme, the cloth is stabilized to first stable cloth and second when fixed to the convenience atress and atress size unanimity simultaneously, does not let the drainage tube slide.

Compared with the prior art, the utility model discloses following beneficial effect has:

one of the two parts is that the utility model can be independently completed by one person when the dressing is changed, and can effectively fix the drainage tube, so that the drainage effect is not influenced by the folding of the drainage tube, and the patient can adjust the fixing tightness according to the actual situation, thereby improving the comfort degree of the patient;

secondly, the shoulder strap of the utility model can not only prevent the abdominal strap from slipping off, but also can make the flexible cup stand fit with the wound of the patient, and can not make the drainage tube shake;

thirdly, the utility model discloses a sticky subsides are fixed binder when being convenient for patient's operation alone, make things convenient for subsequent operation.

Drawings

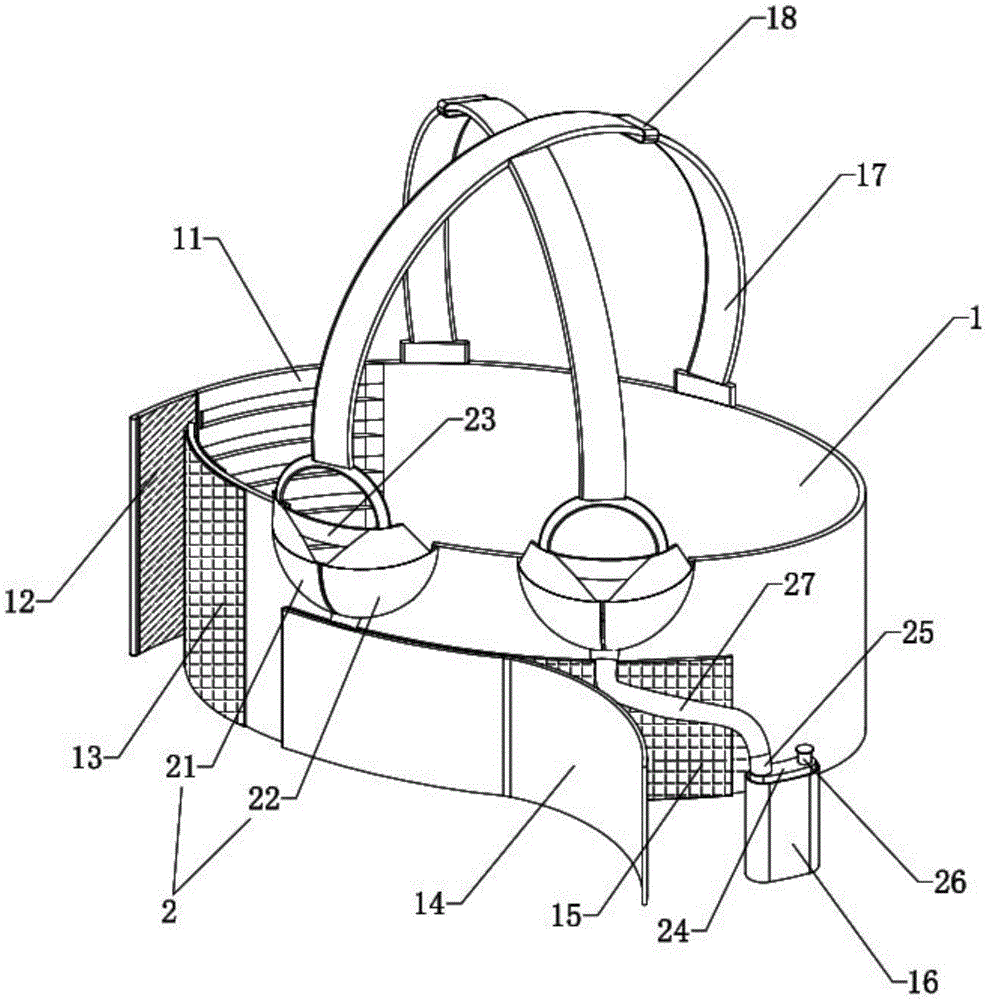

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a view mainly showing the adhesive sticker and the fixing base.

In the figure: 1. an abdominal belt; 11. an elastic band; 12. a first hook surface magic tape; 13. a first suede magic tape; 14. a second suede magic tape; 15. a second hook surface magic tape; 16. an elastic fixing bag; 17. shoulder straps; 18. adjusting buckles; 19. sticking with adhesive; 2. a flexible cup holder; 21. a first stabilizing cloth; 22. a second stabilizing cloth; 23. connecting the cloth strips; 24. a drainage bottle; 25. a liquid inlet pipe; 26. a liquid discharge pipe; 27. a drainage tube; 28. a rubber plug; 29. and fixing the base.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

Embodiment, referring to fig. 1-2, a wound drainage fixing device for breast surgery comprises a abdominal belt 1, one end of the abdominal belt 1 is provided with an elastic belt 11 arranged along the height direction thereof, the inner wall of the elastic belt 11 is provided with a first hook surface magic tape 12, the outer wall of the abdominal belt 1 near the other end thereof is provided with a first loop surface magic tape 13 used in cooperation with the first hook surface magic tape 12, the upper end of the outer wall of the abdominal belt 1 is provided with two flexible cup holders 2 arranged along the length direction thereof, the flexible cup holders 2 comprise a first stabilizing cloth 21, a piece of cloth 22 is stabilized with the second that first stable cloth 21 cooperation was used, all leaves the clearance between each first stable cloth 21 and the corresponding second stable cloth 22, all can dismantle between the upper end of each flexible saucer 2 and the upper end of binder 1 and be connected with a baldric 17 that is used for fixed binder 1, and two baldric 17 are the setting of crossing.

The below of 1 outer wall one side of binder is provided with a fixed bag of elasticity 16, can dismantle in the fixed bag of elasticity 16 and be connected with a drainage bottle 24, the intercommunication of 24 outer wall upper ends of drainage bottle has a feed liquor pipe 25, the upper end of 24 outer walls of drainage bottle has a fluid-discharge tube 26 in one side intercommunication of feed liquor pipe 25, the mouth of pipe of fluid-discharge tube 26 can be dismantled and is connected with a rubber buffer 28 that is used for blockking up fluid-discharge tube 26, feed liquor pipe 25 can be dismantled and is connected with a intercommunication with it and pass flexible saucer 2 clearance and stretch its inside drainage tube 27, the lower extreme of 2 inner walls of each flexible saucer all is provided with a fixed baseplate 29 that is used for fixed drainage tube 27, the outer wall of binder 1 is provided with a slice second hook face magic subsides 15 in the below of flexible saucer 2, the front end that second hook face magic subsides 15 can be dismantled and be connected with a slice and cooperate and be used for fixed drainage tube 27 second pile face magic subsides 14.

The position of the inner wall of the abdominal belt 1 close to the first suede magic tape 13 and one side of the outer wall of the elastic fixing bag 16 far away from the flexible cup stand 2 are detachably connected with a piece of sticky tape 19, the outer wall of each shoulder strap 17 is connected with an adjusting buckle 18 which slides along the length direction of the shoulder strap 17 and can adjust the length of the corresponding shoulder strap 17 in a sliding manner, and a connecting cloth strip 23 is connected between the upper end of each first stabilizing cloth 21 and the upper end of the corresponding second stabilizing cloth 22.

The use method comprises the following steps: when in use, one end of the abdominal belt 1 is firstly pasted on the body of a patient through the sticky paste 19, the abdominal belt 1 is fixed at the position below the chest of the patient through the matching of the first suede magic paste 13 and the first hook-face magic paste 12, the length of the elastic belt 11 can be adjusted through the adjusting buckle 18 during the fixing, the abdominal belt 1 can be fixed without causing discomfort of the patient, the elastic belt 11 is positioned at one side of the body of the patient, one end of the drainage tube 27 penetrates through the gap of the flexible cup stand 2, the drainage tube 27 is inserted into the wound of the patient, a protective measure is made, the other end of the drainage tube 27 is communicated with the liquid inlet tube 25 on the drainage bottle 24, the drainage bottle 24 is placed in the elastic fixing bag 16, the sticky paste 19 on the elastic fixing bag 16 can prevent the drainage bottle 24 from shaking back and forth, the shoulder strap 17 is connected on the flexible cup stand 2 and the abdominal belt 1, the first stable cloth 21 and the second stable cloth 22 can be lifted backwards through the shoulder strap 17 which is arranged crosswise, let flexible saucer 2 and patient's wound laminating, connect cloth 23 and can let first stable cloth 21 and second stabilize cloth 22 atress and atress size unanimity simultaneously, do not let drainage tube 27 slide.

Through fixed base 29 fixed drainage tube 27, tear second matte magic subsides 14, with the smooth placing of drainage tube 27 in second colluding a magic subsides 15 upper ends, gently paste second matte magic subsides 14 on second colludes a magic subsides 15, fixed drainage tube 27, drainage liquid then can flow into in drainage bottle 24 along drainage tube 27, even if the patient is when doing conventional motion, also can not tear drainage tube 27 or let drainage tube 27 fold because the range of motion is too big, when needing to be changed and applying ointment or plaster, the patient also can alone accomplish the change, and need not take off whole fixing device and only need loosen the baldric 17 of front end and just can change, when drainage bottle 24 will be filled with, take out drainage bottle 24, open rubber buffer 28, let drainage liquid along the fluid-discharge tube 26 outflow can.

The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.

Claims

1. The utility model provides a wound drainage fixing device for breast surgery, includes binder (1), its characterized in that: an elastic belt (11) arranged along the height direction of the abdominal belt (1) is arranged at one end of the abdominal belt (1), a first hook-and-loop fastener (12) is arranged on the inner wall of the elastic belt (11), a first suede fastener (13) matched with the first hook-and-loop fastener (12) for use is arranged at a position, close to the other end of the outer wall of the abdominal belt (1), two flexible cup holders (2) arranged along the length direction of the abdominal belt (1) are arranged at the upper end of the outer wall of the abdominal belt (1), each flexible cup holder (2) comprises a first stabilizing cloth (21) and a second stabilizing cloth (22) matched with the first stabilizing cloth (21) for use, a gap is reserved between each first stabilizing cloth (21) and the corresponding second stabilizing cloth (22), and a shoulder strap (17) used for fixing the abdominal belt (1) is detachably connected between the upper end of each flexible cup holder (2) and the upper end of the abdominal belt (1), the two shoulder belts (17) are arranged in a crossed manner;

the below of binder (1) outer wall one side is provided with fixed bag of elasticity (16), can dismantle in the fixed bag of elasticity (16) and be connected with drainage bottle (24), drainage bottle (24) outer wall upper end intercommunication has feed liquor pipe (25), the upper end of drainage bottle (24) outer wall in one side intercommunication of feed liquor pipe (25) has fluid-discharge tube (26), the mouth of pipe of fluid-discharge tube (26) can be dismantled and be connected with rubber buffer (28) that are used for blockking up fluid-discharge tube (26), feed liquor pipe (25) can be dismantled and be connected with it and communicate and pass flexible saucer (2) clearance stretches its inside drainage tube (27), the lower extreme of each flexible saucer (2) inner wall all is provided with and is used for fixing fixed base (29) of drainage tube (27), the outer wall of binder (1) in the below of flexible saucer (2) is provided with second hook face magic subsides (15), the front end of the second hook surface magic tape (15) is detachably connected with a second suede magic tape (14) which is matched with the second hook surface magic tape and is used for fixing the drainage tube (27).

2. The wound drainage fixture for breast surgery of claim 1, wherein: the position of the inner wall of the abdominal belt (1) close to the first suede magic tape (13) and one side of the outer wall of the elastic fixing bag (16) far away from the flexible cup stand (2) can be detachably connected with an adhesive tape (19).

3. The wound drainage fixture for breast surgery of claim 1, wherein: the outer wall of each shoulder strap (17) is connected with an adjusting buckle (18) which slides along the length direction and can adjust the length of the corresponding shoulder strap (17) in a sliding way.

4. The wound drainage fixture for breast surgery of claim 1, wherein: a connecting cloth strip (23) is connected between the upper end of each first stabilizing cloth (21) and the upper end of the corresponding second stabilizing cloth (22).
