Abstract
The utility model relates to a low-voltage complete reactive power compensation cabinet convenient for heat dissipation, which comprises a compensation cabinet body, a cavity is arranged in the compensation cabinet body, limiting grooves are arranged on two sides of the cavity, a partition plate is arranged in the cavity, the two sides of the clapboard are provided with limiting blocks which are matched with the limiting grooves, a rainproof roof is arranged above the compensation cabinet body, in the low-voltage complete reactive power compensation cabinet convenient for heat dissipation, water in the water storage tank enters the connecting water pipe through the circulating water pump, the connecting water pipe is connected with the bent pipe in the partition plate, so that uniform heat dissipation is realized in the compensation cabinet body, the motor drives the heat dissipation fan to rotate, moisture and hot air are conveniently discharged, be provided with the determine module in rain-proof top and be connected with dampproofing subassembly and cold cycle subassembly, realize intelligent regulation, convenient to use, determine module adopts the solar energy power supply, and is energy-concerving and environment-protective.
Description
Technical Field
The utility model relates to a compensation cabinet technical field specifically is a convenient radiating low pressure complete set reactive power compensation cabinet.
Background
It is known that electrical loads in the power grid, such as motors, transformers, etc., are mostly inductive loads, and during operation, corresponding reactive power needs to be provided to these devices. After reactive compensation equipment such as a parallel capacitor is installed in a power grid, reactive power consumed by inductive load can be provided, reactive power provided by a power grid power supply to the inductive load and transmitted by a line is reduced, and the flow of the reactive power in the power grid is reduced, so that the electric energy loss of the line and a transformer caused by transmitting the reactive power can be reduced, namely reactive compensation, the service life and the working state of electronic elements are easily influenced by high temperature, and therefore a low-voltage complete reactive power compensation cabinet convenient for heat dissipation is needed.
For example, the patent publication "CN 208508537U" is named as: the patent of "low pressure reactive compensation cabinet", the patent discloses "the utility model provides a low pressure reactive compensation cabinet, including compensation cabinet body, base and lifting means, be fixed with the telescopic link on compensation cabinet body base all around, the upper portion of telescopic link is fixed with the outer wall of compensation cabinet body, the lower part of compensation cabinet body is provided with a heat insulating board, the space internal fixation between the bottom of heat insulating board and compensation cabinet body has bellows, the intercommunication has the guide duct on the bellows, evenly distributed has the exhaust vent on the guide duct, be provided with on the bottom plate of compensation cabinet body with the spacing hole of lifting means complex horizontally. The utility model discloses in, compensation cabinet body and base are separable, telescopic link and base fixed connection, and the upper portion of telescopic link and the outer wall fixed connection of compensation cabinet body, and the telescopic link drives the compensation cabinet body when rising and rises, makes the compensation cabinet body leave ground, and the protection compensation cabinet body does not receive sleet infringement.
The existing low-voltage reactive power compensation cabinet is discovered in use, the equipment does not have the effects of energy conservation and environmental protection, the heat dissipation effect of the equipment is poor, the equipment is inconvenient to automatically allocate, the protection effect is poor, safety accidents are easily caused, and the use limitation is high.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides an automatic debugging, the radiating effect is good, dampproofing effectual low pressure complete set reactive power compensation cabinet.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a convenient radiating complete set reactive power compensation cabinet of low pressure, includes the compensation cabinet body, this internal cavity that is provided with of compensation cabinet, the cavity both sides are provided with the spacing groove, be provided with the baffle in the cavity, the baffle both sides are provided with the stopper, the stopper with the spacing groove phase-match, compensation cabinet body top is provided with rain-proof top, compensation cabinet body below both sides are provided with the refrigeration cycle subassembly, compensation cabinet body top both sides are provided with dampproofing subassembly, be provided with the emergency exit on the compensation cabinet body, the emergency exit with the cavity is connected, the emergency exit pass through the hinge with this body coupling of compensation cabinet, be provided with the determine module in the rain-proof top, the determine module extends to in the cavity.
For the environment in the convenient intellectual detection system cavity, the utility model discloses the improvement has, detection subassembly includes battery, controller, temperature sensor and humidity transducer, controller below one end is provided with temperature sensor, the controller below other end is provided with humidity transducer, temperature sensor, humidity transducer with the controller is connected, the battery sets up the controller top, the battery with the controller is connected.
For the effect of convenient realization energy-concerving and environment-protective, the utility model discloses the improvement has, rain-proof top is provided with solar panel, solar panel with the battery is connected.
In order to make the device heat dissipation even, the utility model discloses the improvement has, the cold circulation subassembly includes the water storage box, connects water pipe, return bend and circulating water pump, be provided with on the water storage box circulating water pump, circulating water pump one end with the water storage box is connected, the circulating water pump other end with it connects to connect water pipe one end, be provided with in the baffle the return bend, the return bend with it connects to connect the water pipe other end.
For the convenience of adjusting the radiating efficiency, the utility model discloses the improvement has, be provided with the solenoid valve on the connecting water pipe.
For the moisture in the convenient discharge cavity, the utility model discloses the improvement has, dampproofing subassembly includes mounting bracket, motor and heat dissipation fan, be provided with on the mounting bracket the motor, the motor with the heat dissipation fan is connected.
In order to further provide safety protection, the utility model discloses the improvement has, be provided with the protection network on the compensation cabinet body, the protection network sets up dampproofing subassembly week side.
(III) advantageous effects
Compared with the prior art, the utility model provides a convenient radiating complete set reactive power compensation cabinet of low pressure possesses following beneficial effect:
1. this convenient radiating complete set of reactive power compensation cabinet of low pressure, the water in the water storage box passes through circulating water pump entering connection water pipe, connects the return bend connection in water pipe and the baffle, makes and realizes even heat dissipation in the compensation cabinet body, and the motor drives the heat dissipation fan rotation, makes things convenient for discharge moisture and steam.
2. This convenient radiating complete set reactive power compensation cabinet of low pressure is provided with the determine module in rain-proof top and is connected with dampproofing subassembly and cold cycle subassembly, realizes intelligent regulation, convenient to use.
3. This convenient radiating complete set of reactive power compensation cabinet of low pressure, the determine module adopts the solar energy power supply, and is energy-concerving and environment-protective.
Drawings

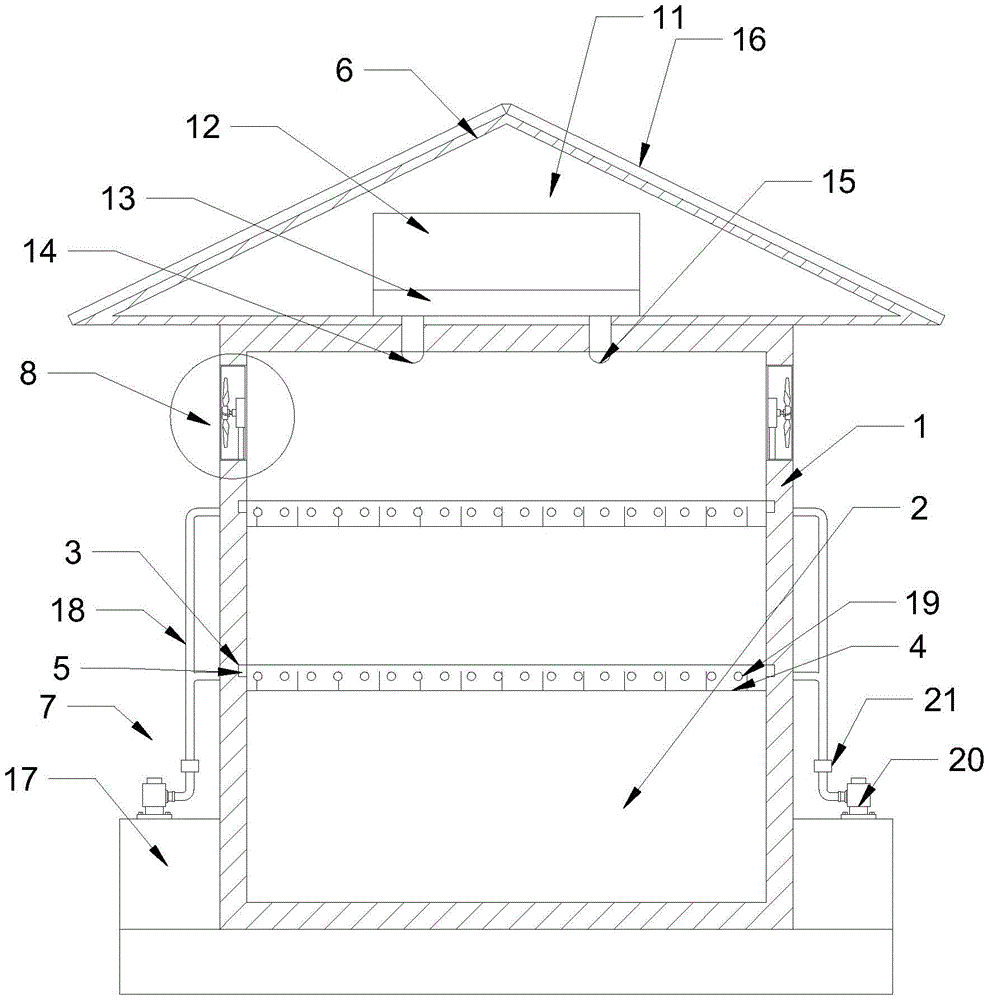

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a partially enlarged schematic view of the structure of FIG. 1 of the present invention;
fig. 3 is a front view of the structure of the present invention.
In the figure: 1. a compensation cabinet body; 2. a cavity; 3. a limiting groove; 4. a partition plate; 5. a limiting block; 6. a rain-proof roof; 7. a cold circulation assembly; 8. a moisture barrier component; 9. a safety door; 10. a hinge; 11. a detection component; 12. a storage battery; 13. a controller; 14. a temperature sensor; 15. a humidity sensor; 16. a solar panel; 17. a water storage tank; 18. connecting a water pipe; 19. bending a pipe; 20. a circulating water pump; 21. an electromagnetic valve; 22. a mounting frame; 23. a motor; 24. a heat dissipation fan; 25. and (4) a protective net.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Referring to fig. 1-3, a low-voltage complete reactive power compensation cabinet with convenient heat dissipation includes a compensation cabinet body 1, a cavity 2 is arranged in the compensation cabinet body 1, limiting grooves 3 are arranged on two sides of the cavity 2, a baffle plate 4 is arranged in the cavity 2, two sides of the baffle plate 4 are provided with limit blocks 5, the limit blocks 5 are matched with the limit grooves 3, a rainproof roof 6 is arranged above the compensation cabinet body 1, a cold circulation component 7 is arranged on two sides below the compensation cabinet body 1, the two sides above the compensation cabinet body 1 are provided with damp-proof components 8, the compensation cabinet body 1 is provided with a safety door 9, the safety door 9 is connected with the cavity 2, the safety door 9 is connected with the compensation cabinet body 1 through a hinge 10, a detection component 11 is arranged in the rainproof top 6, and the detection component 11 extends into the cavity 2.
Solar energy conveniently is the storage battery 12 energy storage as the clean energy of can regenerating, rain-proof top 6 tops are provided with solar panel 16, solar panel 16 with battery 12 is connected.
All be provided with return bend 19 in every group of baffle 4, the electronic component to on the baffle 4 of convenience dispels the heat, cold cycle subassembly 7 includes water storage box 17, connects water pipe 18, return bend 19 and circulating water pump 20, be provided with on the water storage box 17 circulating water pump 20, circulating water pump 20 one end with water storage box 17 is connected, the circulating water pump 20 other end with it connects to connect water pipe 18 one end, be provided with in the baffle 4 return bend 19, return bend 19 with it connects to connect the water pipe 18 other end.
The power change of the circulating water pump 20 and the opening and closing size change of the electromagnetic valve 21 are driven by the temperature change, intelligent adjustment is achieved, and the electromagnetic valve 21 is arranged on the connecting water pipe 18.
Drive heat dissipation fan 24 through motor 23, discharge moisture and steam in the cavity 2, dampproofing subassembly 8 includes mounting bracket 22, motor 23 and heat dissipation fan 24, be provided with on the mounting bracket 22 motor 23, motor 23 with heat dissipation fan 24 is connected.
In order to prevent foreign matters or dust from entering the cavity 2, a protective net 25 is arranged on the compensation cabinet body 1, and the protective net 25 is arranged on the periphery side of the moisture-proof component 8.
In conclusion, when the complete low-voltage reactive power compensation cabinet convenient for heat dissipation is used, the detection component 11 is arranged in the rainproof roof 6, the solar panel 16 supplies power to the storage battery 12, the storage battery 12 supplies power to other equipment, the temperature sensor 14 and the humidity sensor 15 are arranged below the controller 13 and extend into the cavity 2 of the compensation cabinet body 1, when the temperature sensor 14 senses that the temperature exceeds a threshold value, the cold circulation component 7 works, the electromagnetic valve 21 is opened, the circulating water pump 20 sends cooling liquid in the water storage tank 17 into the connecting water pipe 18, the limiting groove 3 is arranged in the cavity 2, the limiting block 5 arranged on the partition plate 4 is matched with the limiting groove 3, the cooling liquid flows through the partition plate 4 with the elbow pipe 19 to take away heat, the electromagnetic valve 21 on the connecting water pipe 18 is matched and adjusted with the circulating water pump 20, the heat dissipation efficiency is convenient to change, when the humidity sensor 15 senses that the humidity exceeds the threshold value, the motor 23 on the mounting frame 22 drives the heat dissipation fan 24 to rotate, so as to discharge water vapor and keep the cavity 2 dry.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a convenient radiating complete set reactive power compensation cabinet of low pressure, includes compensation cabinet body (1), its characterized in that: the compensation cabinet is characterized in that a cavity (2) is arranged in the compensation cabinet body (1), limiting grooves (3) are formed in two sides of the cavity (2), a partition plate (4) is arranged in the cavity (2), limiting blocks (5) are arranged on two sides of the partition plate (4), the limiting blocks (5) are matched with the limiting grooves (3), a rainproof roof (6) is arranged above the compensation cabinet body (1), cold circulation assemblies (7) are arranged on two sides below the compensation cabinet body (1), moistureproof assemblies (8) are arranged on two sides above the compensation cabinet body (1), a safety door (9) is arranged on the compensation cabinet body (1), the safety door (9) is connected with the cavity (2), the safety door (9) is connected with the compensation cabinet body (1) through a hinge (10), and a detection assembly (11) is arranged in the rainproof roof (6), the detection assembly (11) extends into the cavity (2).
2. The complete low-voltage reactive power compensation cabinet convenient for heat dissipation according to claim 1, characterized in that: detection element (11) includes battery (12), controller (13), temperature sensor (14) and humidity transducer (15), controller (13) below one end is provided with temperature sensor (14), controller (13) below other end is provided with humidity transducer (15), temperature sensor (14), humidity transducer (15) with controller (13) are connected, battery (12) set up controller (13) top, battery (12) with controller (13) are connected.
3. The low-voltage complete reactive power compensation cabinet convenient for heat dissipation according to claim 2, characterized in that: a solar panel (16) is arranged above the rainproof roof (6), and the solar panel (16) is connected with the storage battery (12).
4. The complete low-voltage reactive power compensation cabinet convenient for heat dissipation according to claim 3, characterized in that: cold circulation subassembly (7) include water storage box (17), connect water pipe (18), return bend (19) and circulating water pump (20), be provided with on water storage box (17) circulating water pump (20), circulating water pump (20) one end with water storage box (17) are connected, the circulating water pump (20) other end with it connects to connect water pipe (18) one end, be provided with in baffle (4) return bend (19), return bend (19) with it connects to connect water pipe (18) the other end.
5. The complete low-voltage reactive power compensation cabinet convenient for heat dissipation according to claim 4, characterized in that: and the connecting water pipe (18) is provided with an electromagnetic valve (21).
6. The complete set of low-voltage reactive power compensation cabinet convenient for heat dissipation according to claim 5, characterized in that: dampproofing subassembly (8) includes mounting bracket (22), motor (23) and heat dissipation fan (24), be provided with on mounting bracket (22) motor (23), motor (23) with heat dissipation fan (24) are connected.
7. The complete low-voltage reactive power compensation cabinet convenient for heat dissipation according to claim 6, wherein: be provided with protection network (25) on compensation cabinet body (1), protection network (25) set up dampproofing subassembly (8) week side.
