CN217212585U - Instrument placing detection table for agricultural product detection - Google Patents
Instrument placing detection table for agricultural product detection Download PDFInfo
- Publication number
- CN217212585U CN217212585U CN202123417673.1U CN202123417673U CN217212585U CN 217212585 U CN217212585 U CN 217212585U CN 202123417673 U CN202123417673 U CN 202123417673U CN 217212585 U CN217212585 U CN 217212585U
- Authority
- CN
- China
- Prior art keywords
- baffle
- groups
- instrument
- base
- connecting rod
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000001514 detection method Methods 0.000 title description 12
- 238000007689 inspection Methods 0.000 claims 11
- 230000005484 gravity Effects 0.000 abstract description 5
- 239000000428 dust Substances 0.000 description 8
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 238000002474 experimental method Methods 0.000 description 1
- 238000000034 method Methods 0.000 description 1
Images
Landscapes
- Catching Or Destruction (AREA)
Abstract
The utility model discloses an instrument is put and is examined test table for agricultural product testing, include: the device comprises a base, wherein a plurality of groups of supporting columns are uniformly arranged at the bottom of the base; the mounting plate is positioned at the top of the base, transverse plates are symmetrically arranged on two sides of the top of the mounting plate, and a plurality of groups of placing seats are uniformly arranged on the top of the mounting plate; the baffle A is positioned at one end of the top of the base; the baffle B is positioned at one end of the baffle A, and one ends of the baffle A and the baffle B are both provided with sliding chutes; the utility model discloses a lead to under groove, splint, sleeve pipe, connecting plate, spring A, connecting rod B, spring B, limiting plate and the sheathed tube cooperation, when the instrument is put into and is placed the seat inside, under the influence that receives instrument gravity, the instrument can be carried automatically to four group's splint, plays certain fixed action to the instrument, and the instrument is bumped to effectual preventing mistake, leads to the instrument to fall to ground, makes its damage.
Description
Technical Field
The utility model relates to a examine test table technical field, specifically be an agricultural product detects and puts with instrument and examine test table.
Background
Along with the adjustment of agricultural industry structure, the detection of agricultural product receives attention gradually, requires to improve gradually to the equipment in laboratory, and equipment in the current laboratory can meet following inconvenience:
put when not using, the instrument that detects on the platform is mostly direct to expose under the external environment, and on external dust piled up the instrument very easily, the dust still can cause the influence to the precision of instrument when entering into the instrument inside. And some small experimental instruments can be easily brought to the ground and broken if being accidentally touched during the experiment process, thereby causing loss.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an instrument is put and is examined test table for agricultural product detection to propose in solving above-mentioned background art and put the instrument of examining on test table when not using, mostly directly expose under the external environment, on external dust piles up the instrument very easily, the dust when entering into the instrument inside, still can cause the influence to the precision of instrument, and when miniature instrument was bumped by the mistake, be taken to the ground very easily and break, thereby cause the problem of loss.
In order to achieve the above object, the utility model provides a following technical scheme: an instrument placing detection table for agricultural product detection comprises:
the device comprises a base, wherein a plurality of groups of supporting columns are uniformly arranged at the bottom of the base;
the mounting plate is positioned at the top of the base, transverse plates are symmetrically arranged on two sides of the top of the mounting plate, and a plurality of groups of placing seats are uniformly arranged on the top of the mounting plate;
the baffle A is positioned at one end of the top of the base;
the baffle B is positioned at one end of the baffle A, and one ends of the baffle A and the baffle B are both provided with sliding chutes;
the baffle C is positioned at one end of the baffle B, and sliding rods are arranged at the bottoms of the baffle B and one end of the baffle C;
and the sliding rod is positioned at one end of the clamping block.
Preferably, the placing seat is internally provided with a clamping assembly, and the clamping assembly comprises:
the sleeve is positioned in the middle of the bottom in the placing seat; and
the four groups of limiting plates are uniformly distributed on the outer side of the sleeve;
the springs B are arranged in four groups, the four groups of springs B are respectively distributed between the two groups of limiting plates, and one side of each limiting plate is connected with the sleeve;
the four groups of connecting plates are respectively distributed at the tops of the limiting plates, pressing plates are arranged among the tops of the four groups of connecting plates, and springs A are sleeved among the outer sides of the four groups of connecting plates;
through grooves, four groups of through grooves are arranged on the four groups of through grooves and are uniformly distributed on the top of the placing seat
Connecting rod A, connecting rod A is located the inboard that leads to the groove, and connecting rod A's top is equipped with splint, connecting rod A's bottom is equipped with connecting rod B.
Preferably, the diameter of the connecting rod A is larger than that of the connecting rod B, and a groove is formed in one end of one side of the limiting plate.
Preferably, the top of base one end evenly is equipped with the multiunit drawer, the bottom of base one end evenly is equipped with multiunit cabinet.
Preferably, the baffle B, the baffle C and the baffle A are all made of arc structures, and one end of the baffle C is provided with a pull handle.
Preferably, the diameter of the clamping block is larger than the width of the sliding groove, and the sliding rod is matched with the sliding groove.
Compared with the prior art, the beneficial effects of the utility model are that: the agricultural product detection instrument is provided with a detection table;
under the matching of the through grooves, the clamping plates, the sleeves, the connecting plates, the springs A, the connecting rods B, the springs B, the limiting plates and the sleeves, when an instrument is placed in the placing seat, the four groups of clamping plates can automatically clamp the instrument under the influence of the gravity of the instrument, a certain fixing effect is realized on the instrument, and the instrument is effectively prevented from being mistakenly touched, so that the instrument is prevented from falling to the ground and being damaged; under the cooperation through baffle A, baffle B, baffle C, fixture block, slide bar and spout, when the instrument does not use, can protect equipment, effectively block external dust, at the service equipment, can also fold it, can not influence the experimenter and carry out normal work.
Drawings

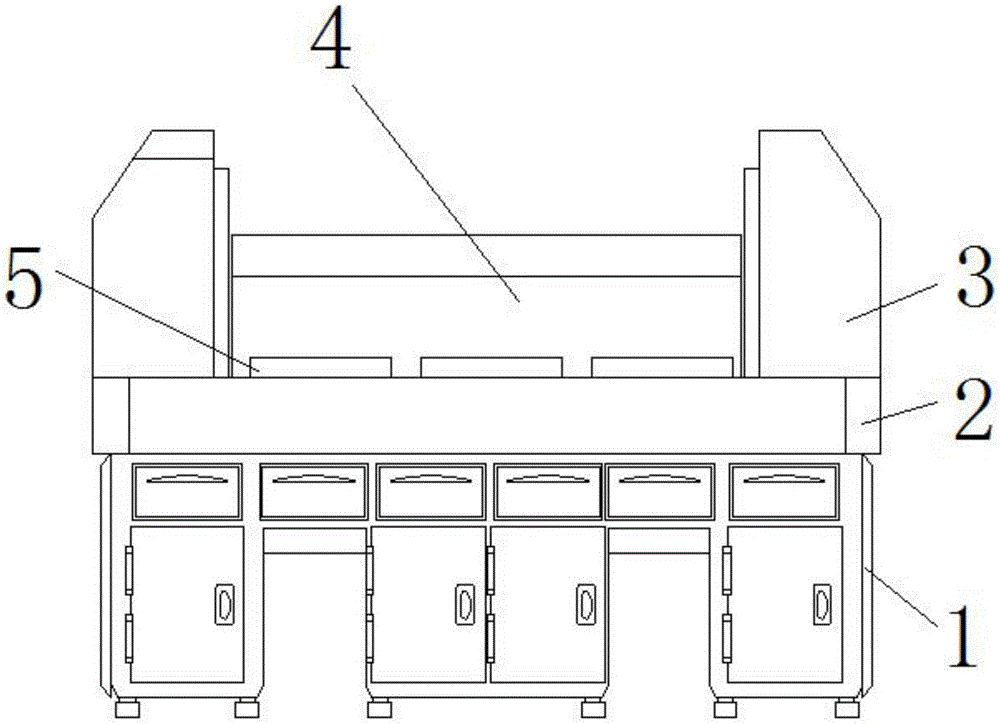

Fig. 1 is a front view of the present invention;
fig. 2 is a top view of the present invention;
fig. 3 is a side cross-sectional view of the present invention;
fig. 4 is a top cross-sectional view of the placement seat of the present invention;
fig. 5 is a front sectional view of the placement seat of the present invention;
fig. 6 is an enlarged schematic view of the point a in fig. 3 according to the present invention.
In the figure: 1. a base; 2. mounting a plate; 3. a transverse plate; 4. a baffle A; 5. a placing seat; 6. a baffle B; 7. a baffle C; 8. a through groove; 9. a splint; 10. pressing a plate; 11. a clamping block; 12. a slide bar; 13. a chute; 14. a connecting plate; 15. a spring A; 16. a connecting rod A; 17. a connecting rod B; 18. a spring B; 19. a limiting plate; 20. a sleeve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides an embodiment: an instrument placing detection table for agricultural product detection comprises:
the base 1 is provided with a plurality of groups of supporting columns uniformly at the bottom of the base 1;
the mounting plate 2 is positioned on the top of the base 1, transverse plates 3 are symmetrically arranged on two sides of the top of the mounting plate 2, and a plurality of groups of placing seats 5 are uniformly arranged on the top of the mounting plate 2;
a baffle A4, the baffle A4 is positioned at one end of the top of the base 1;
the baffle B6, baffle B6 are located at one end of baffle A4, and the spout 13 is arranged at one end of baffle A4 and one end of baffle B6, so that dust can be effectively prevented from entering;
the baffle C7, the baffle C7 is located at one end of the baffle B6, and the bottoms of the baffle B6 and one end of the baffle C7 are both provided with the sliding rod 12;
and the sliding rod 12 is positioned at one end of the clamping block 11.
Further, place the inside of seat 5 and be equipped with the centre gripping subassembly, the centre gripping subassembly includes:
the sleeve 20, the sleeve 20 is positioned in the middle of the inner bottom of the placing seat 5; and
the limiting plates 19 are provided with four groups, and the four groups of limiting plates 19 are uniformly distributed on the outer side of the sleeve 20;
the springs B18 and the springs B18 are arranged in four groups, the four groups of springs B18 are respectively distributed between the two groups of limit plates 19, and one side of each limit plate 19 is connected with the sleeve 20;
four groups of connecting plates 14 are arranged on the connecting plates 14, the four groups of connecting plates 14 are respectively distributed on the tops of the limiting plates 19, a pressing plate 10 is arranged between the tops of the four groups of connecting plates 14, and springs A15 are sleeved between the outer sides of the four groups of connecting plates 14;
the through grooves 8 are arranged, four groups of through grooves 8 are arranged, and the four groups of through grooves 8 are uniformly distributed on the top of the placing seat 5
Connecting rod A16, connecting rod A16 are located logical inboard of groove 8, and the top of connecting rod A16 is equipped with splint 9, and the bottom of connecting rod A16 is equipped with connecting rod B17, and under the influence that receives instrument gravity, the instrument can be carried automatically to four groups of splint 9, plays certain fixed action to the instrument.
Further, the diameter of the connecting rod A16 is larger than that of the connecting rod B17, and one end of one side of the limit plate 19 is provided with a groove which can fix the position of the connecting rod A16.
Furthermore, the top of one end of the base 1 is evenly provided with a plurality of groups of drawers, and the bottom of one end of the base 1 is evenly provided with a plurality of groups of bins, so that parts can be conveniently stored.
Furthermore, the baffle B6, the baffle C7 and the baffle A4 are all made by arc structures, and the one end of baffle C7 is equipped with the pull handle, conveniently pulls baffle C7, can also form a semicircle instrument that covers the mounting panel 2 top between baffle B6, baffle C7 and the baffle A4 simultaneously for outside dust is difficult for entering into inside.
Furthermore, the diameter of the fixture block 11 is larger than the width of the sliding slot 13, and the sliding rod 12 and the sliding slot 13 are matched with each other and are conveniently arranged inside the sliding slot 13.
The working principle is as follows: when the equipment is placed, firstly, the instrument is placed in the placing seat 5, then the pressing plate 10 is influenced by the gravity of the instrument to drive the connecting plate 14 and the limiting plates 19 to relatively slide along the sleeve 20, and meanwhile, the spring A15 is compressed, because the diameter of the connecting rod A16 is larger than that of the connecting rod B17, when the four groups of limiting plates 19 move downwards to coincide with the connecting rod B17, the connecting rod B17 cannot be clamped between the two groups of limiting plates 19, so that the spring B18 is reset to drive the four groups of connecting rods A16 to approach each other, and further, the four groups of clamping plates 9 are driven to move to clamp the instrument;
when the instrument needs to be taken out, the clamping plate 9 is pulled outwards at first, the fixing state of the instrument is released, then the instrument is taken out from the placing seat 5, due to the fact that the gravity of the instrument is lost, the spring A15 resets, the pressing plate 10 is pushed to move upwards, the connecting plate 14 and the limiting plate 19 are driven to move upwards together, the limiting plate 19 is enabled to coincide with the connecting rod A16 again, and the position of the connecting rod A16 is fixed;
when the instrument is not used, the baffle plate C7 is pulled first, then the baffle plate C7 drives the sliding rod 12 and the sliding block 11 to slide along the track of the sliding groove 13, when the sliding block 11 moves to the extreme end of the sliding groove 13, the baffle plate B6 is driven to move, so that the sliding block 11 and the sliding rod 12 on the baffle plate B6 slide along the sliding groove 13 on the baffle plate a4, when the sliding block 11 and the sliding rod 12 on the baffle plate B6 are pulled to the extreme end of the sliding groove 13 on the baffle plate a4, a semicircle is formed among the baffle plate C7, the baffle plate B6 and the baffle plate a4, thereby covering the instrument on the top of the mounting plate 2, and making external dust difficult to enter the instrument.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
In the description of the present invention, "a plurality" means two or more unless otherwise specified; the terms "upper", "lower", "left", "right", "inner", "outer", "front", "rear", "head", "tail", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "connected" and "connected" are to be interpreted broadly, e.g., as either a fixed connection or a detachable connection; can be mechanically or electrically connected; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Claims (6)
1. The utility model provides an instrument is put and is examined test table for agricultural product inspection which characterized in that includes:
the device comprises a base (1), wherein a plurality of groups of supporting columns are uniformly arranged at the bottom of the base (1);
the mounting plate (2) is positioned at the top of the base (1), transverse plates (3) are symmetrically arranged on two sides of the top of the mounting plate (2), and a plurality of groups of placing seats (5) are uniformly arranged on the top of the mounting plate (2);
the baffle A (4), the baffle A (4) is positioned at one end of the top of the base (1);
the baffle B (6) is positioned at one end of the baffle A (4), and one ends of the baffle A (4) and the baffle B (6) are both provided with a sliding chute (13);
the baffle C (7) is positioned at one end of the baffle B (6), and sliding rods (12) are arranged at the bottoms of one ends of the baffle B (6) and the baffle C (7);
the sliding rod (12), the sliding rod (12) is located at one end of the clamping block (11).
2. The agricultural product inspection instrument placement inspection table of claim 1, wherein: the inside of placing seat (5) is equipped with the centre gripping subassembly, the centre gripping subassembly includes:
the sleeve (20), the said sleeve (20) locates in the middle of the internal bottom of the seat (5); and
the four groups of limiting plates (19) are arranged, and the four groups of limiting plates (19) are uniformly distributed on the outer side of the sleeve (20);
the springs B (18) are arranged in four groups, the four groups of springs B (18) are respectively distributed between the two groups of limiting plates (19), and one side of each limiting plate (19) is connected with the sleeve (20);
the connecting plates (14) are provided with four groups, the four groups of connecting plates (14) are respectively distributed at the tops of the limiting plates (19), pressing plates (10) are arranged between the tops of the four groups of connecting plates (14), and springs A (15) are sleeved between the outer sides of the four groups of connecting plates (14);
four groups of through grooves (8) are arranged in the through grooves (8), and the four groups of through grooves (8) are uniformly distributed on the top of the placing seat (5)
Connecting rod A (16), connecting rod A (16) are located the inboard that leads to groove (8), and the top of connecting rod A (16) is equipped with splint (9), the bottom of connecting rod A (16) is equipped with connecting rod B (17).
3. The agricultural product inspection instrument placement inspection table according to claim 2, wherein: the diameter of connecting rod A (16) is greater than the diameter of connecting rod B (17), the one end of limiting plate (19) one side is equipped with the recess.
4. The agricultural product inspection instrument placement inspection table according to claim 1, wherein: the top of base (1) one end evenly is equipped with the multiunit drawer, the bottom of base (1) one end evenly is equipped with multiunit cabinet.
5. The agricultural product inspection instrument placement inspection table of claim 1, wherein: baffle B (6), baffle C (7) and baffle A (4) all are made by the arc structure, the one end of baffle C (7) is equipped with the pull handle.
6. The agricultural product inspection instrument placement inspection table of claim 1, wherein: the diameter of the clamping block (11) is larger than the width of the sliding groove (13), and the sliding rod (12) is matched with the sliding groove (13).
