CN217196269U - Novel mixer - Google Patents
Novel mixer Download PDFInfo
- Publication number
- CN217196269U CN217196269U CN202123054095.XU CN202123054095U CN217196269U CN 217196269 U CN217196269 U CN 217196269U CN 202123054095 U CN202123054095 U CN 202123054095U CN 217196269 U CN217196269 U CN 217196269U
- Authority
- CN
- China
- Prior art keywords
- agitator tank
- square
- rotating shaft
- bracing piece
- stirring box
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Mixers Of The Rotary Stirring Type (AREA)
Abstract
The utility model relates to a fishing line production facility technical field specifically discloses a novel blendor, including blendor base, first bracing piece, second bracing piece, rotation axis, driving motor and square agitator tank, first bracing piece and second bracing piece are all installed on the blendor base, the rotation axis is connected with driving motor, first bracing piece and second bracing piece respectively, the square agitator tank with the rotation axis is connected, the bottom of square agitator tank is provided with ejection of compact switch. The utility model discloses a set up that the rotation axis drives the square agitator tank and rotate in order to carry out the intensive mixing stirring to the raw materials in the square agitator tank, improve stirring efficiency and the degree of consistency of mixing to set up ejection of compact switch in the bottom of square agitator tank and control the ejection of compact, make the material after the stirring can the abundant ejection of compact, the practicality is high.
Description
Technical Field
The utility model relates to a fishing line production facility technical field, in particular to novel blendor.
Background
In daily life, fishing is an outdoor sport well liked by people, and a fishing line needs to be reasonably selected according to different water area environments during fishing to avoid the breakage of the fishing line, wherein the polyethylene fishing line is more and more concerned by people due to the advantages of high strength, more stable toughness, higher wear resistance and the like, and the polyethylene fishing line is a coated fishing line and generally adopts multifilament made of polyethylene materials as a core wire. In the production process of the fishing line, the initial process flow is a material mixing process, raw materials are uniformly mixed through a material mixer and then are sent to the next production procedure. However, the existing mixer is mostly mixed through stirring blades, the materials have certain balance in the stirring process, the mixing speed is reduced, the mixing uniformity is also reduced, and after the work is completed, the residual raw materials in the mixing barrel are not convenient to clean.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model lies in, to the above-mentioned defect of prior art, provide a novel blendor, drive the square agitator tank rotation through setting up the rotation axis and carry out the intensive mixing stirring with the raw materials to the agitator tank in, improve the degree of consistency of stirring efficiency and mixture to set up ejection of compact switch in the bottom of square agitator tank and control the ejection of compact, make the material after the stirring can the intensive ejection of compact, the practicality is high.
In order to solve the technical problem, the technical scheme of the utility model is that:
the utility model provides a novel blendor, includes blendor base, first bracing piece, second bracing piece, rotation axis, driving motor and square agitator tank, first bracing piece and second bracing piece are all installed on the blendor base, the rotation axis is connected with driving motor, first bracing piece and second bracing piece respectively, the square agitator tank with the rotation axis is connected, the bottom of square agitator tank is provided with ejection of compact switch.
Preferably, the bottom of the first support rod is fixedly connected with the base of the mixer, a first fixing piece is mounted at the upper end of the first support rod, and the first fixing piece is rotatably connected with one end of the rotating shaft; the bottom of second bracing piece with blender base fixed connection, the second mounting is installed to the upper end of second bracing piece, the second mounting with the other end of rotation axis rotates to be connected.
Preferably, the driving motor is mounted at the upper end of the first support rod, and an output shaft of the driving motor is in transmission connection with one end of the rotating shaft through a gear set.
Preferably, the rotation axis is followed the diagonal span of square agitator tank crosses in the square agitator tank and drive the square agitator tank rotates from top to bottom.
Preferably, a first fixing plate and a second fixing plate are arranged at the joint of the rotating shaft and the cube stirring box, and the rotating shaft is connected with the cube stirring box through the first fixing plate and the second fixing plate.
Preferably, a feed inlet is formed in the side face of the upper end of the square stirring box, and a baffle is arranged on the feed inlet; the discharge gate has been seted up to the base angle department of square agitator tank, the ejection of compact switch set up in on the discharge gate.
Adopt above-mentioned technical scheme, the utility model provides a pair of novel blendor has following beneficial effect: the first support rod and the second support rod in the novel mixer are both installed on a mixer base, a rotating shaft is respectively connected with a driving motor, the first support rod and the second support rod, a square stirring box is connected with the rotating shaft, a discharging switch is arranged at the bottom of the square stirring box, the square stirring box is driven to rotate by the rotating shaft so as to fully mix and stir raw materials in the square stirring box, the stirring efficiency and the mixing uniformity are improved, and therefore the production efficiency is greatly improved; and set up ejection of compact switch in the bottom of square agitator tank and control the ejection of compact for the material after the stirring can the abundant ejection of compact, can avoid the material to remain in the square agitator tank furthest, and the practicality is high, and it is more convenient to use.
Drawings

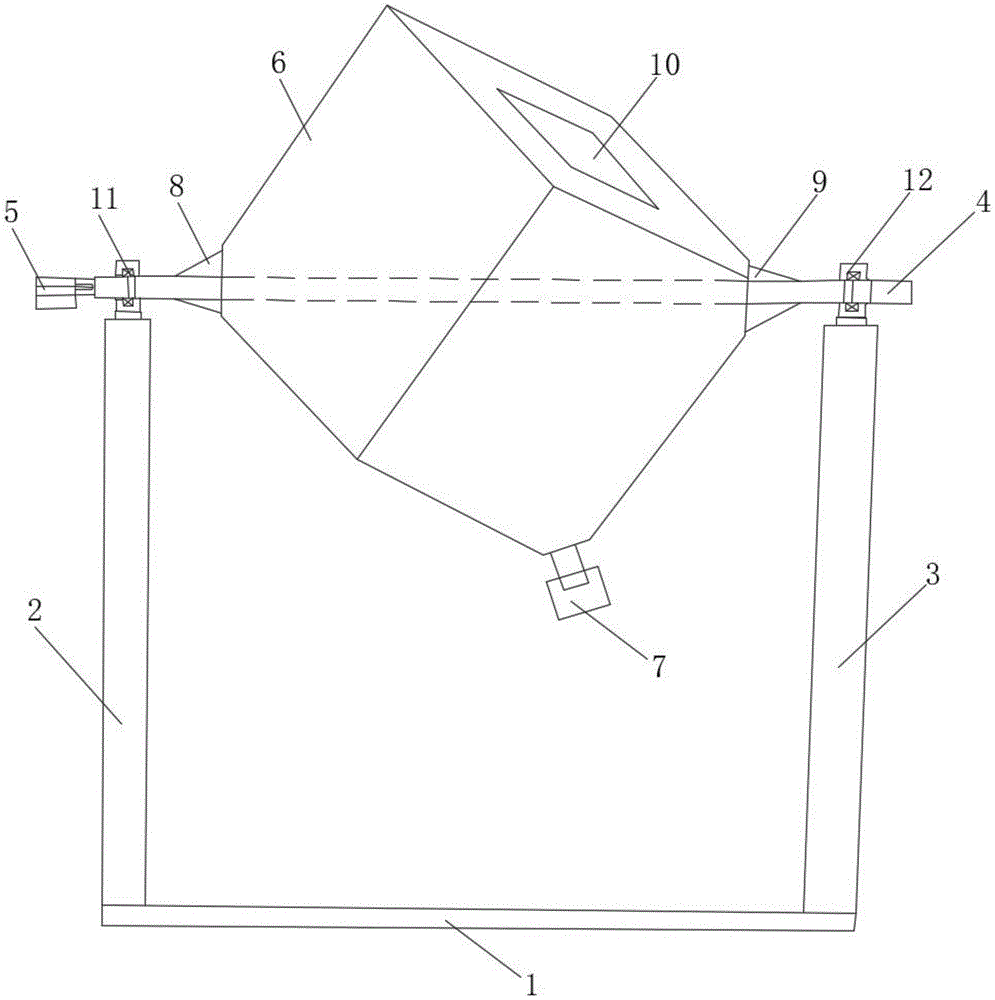

Fig. 1 is a schematic structural view of the present invention;
in the figure, 1-a mixer base, 2-a first supporting rod, 3-a second supporting rod, 4-a rotating shaft, 5-a driving motor, 6-a cube stirring box, 7-a discharging switch, 8-a first fixing plate, 9-a second fixing plate, 10-a baffle, 11-a first fixing piece and 12-a second fixing piece.
Detailed Description
The following describes the present invention with reference to the accompanying drawings. It should be noted that the description of the embodiments is provided to help understanding of the present invention, but the present invention is not limited thereto. In addition, the technical features related to the embodiments of the present invention described below may be combined with each other as long as they do not conflict with each other.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description of the present invention and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.
As shown in fig. 1, the utility model discloses an among the structural schematic diagram, this novel blendor includes blendor base 1, first bracing piece 2, second bracing piece 3, rotation axis 4, driving motor 5 and square agitator tank 6, this first bracing piece 2 and second bracing piece 3 are all installed on blender base 1, this rotation axis 4 respectively with driving motor 5, first bracing piece 2 and second bracing piece 3 are connected, this square agitator tank 6 is connected with this rotation axis 4, the bottom of this square agitator tank 6 is provided with discharge switch 7. It can be understood that the first support rod 2 and the second support rod 3 are both located on the same horizontal line, and can be fixedly connected with the mixer base 1 through screws, and the like; the driving motor 5 may be an electric motor or a cylinder, etc. for driving the rotation shaft 4; the cube stirring box 6 is in a cube shape, and the interior of the cube stirring box is of a hollow structure; this blendor base 1, first bracing piece 2, second bracing piece 3, rotation axis 4 and square agitator tank 6 all can be stainless steel material etc..
Specifically, the bottom of the first support rod 2 is fixedly connected with the mixer base 1, a first fixing member 11 is mounted at the upper end of the first support rod 2, and the first fixing member 11 is rotatably connected with one end of the rotating shaft 4; the bottom of the second support rod 3 is fixedly connected with the mixer base 1, a second fixing member 12 is mounted at the upper end of the second support rod 3, the second fixing member 12 is rotatably connected with the other end of the rotating shaft 4, and the first fixing member 11 and the second fixing member 12 are both used for supporting the rotating shaft and cannot rotate along with the rotation of the rotating shaft 4; the driving motor 5 is installed at the upper end of the first supporting rod 2, and an output shaft of the driving motor 5 is in transmission connection with one end of the rotating shaft 4 through a gear set; the rotating shaft 4 stretches across the inside of the cube stirring box 6 along the diagonal line of the cube stirring box 6 and drives the cube stirring box 6 to rotate up and down; a first fixing plate 8 and a second fixing plate 9 are arranged at the joint of the rotating shaft 4 and the cube stirring box 6, and the rotating shaft 4 is connected with the cube stirring box 6 through the first fixing plate 8 and the second fixing plate 9; a feed inlet is formed in the side face of the upper end of the square stirring box 6, and a baffle 10 is arranged on the feed inlet; the discharge hole is opened at the bottom corner of the square stirring box 6, and the discharge switch 7 is arranged on the discharge hole. As can be understood, when the stirring device works, the baffle 10 is opened, raw materials are put into the cube stirring box 6 from the feeding hole, and the baffle is closed; connecting a driving motor 5 to an external power supply, starting the driving motor 5, and driving a square stirring box 6 to rotate up and down by rotating a rotating shaft 4 so as to fully stir and mix the raw materials in the square stirring box 6; after the stirring is accomplished, open ejection of compact switch 7, the material can be followed the discharge gate and flowed, because the discharge gate is located the base angle department of this square agitator tank 6, the bottommost of this square agitator tank 6 promptly for the material can flow out furthest, avoids remaining.
The utility model has the advantages that the design is reasonable, the structure is unique, the rotating shaft 4 is arranged to drive the square stirring box 6 to rotate so as to fully mix and stir the raw materials in the square stirring box 6, the stirring efficiency and the mixing uniformity are improved, and the production efficiency is greatly improved; and set up ejection of compact switch 7 in the bottom of square agitator tank 6 and control the ejection of compact for the material after the stirring can the abundant ejection of compact, can avoid the material to remain in square agitator tank 6 to the furthest, and the practicality is high, and it is more convenient to use.
The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the described embodiments. It will be apparent to those skilled in the art that various changes, modifications, substitutions and alterations can be made in the embodiments without departing from the principles and spirit of the invention, and the scope of the invention is to be accorded the full scope of the claims.
Claims (3)
1. The utility model provides a novel blendor, its characterized in that: the mixer comprises a mixer base, a first supporting rod, a second supporting rod, a rotating shaft, a driving motor and a cube stirring box, wherein the first supporting rod and the second supporting rod are both installed on the mixer base; the driving motor is arranged at the upper end of the first supporting rod, and an output shaft of the driving motor is in transmission connection with one end of the rotating shaft through a gear set; the rotating shaft stretches across the inside of the cube stirring box along the diagonal line of the cube stirring box and drives the cube stirring box to rotate up and down; the rotation axis with the junction of square agitator tank is provided with first fixed plate and second fixed plate, the rotation axis passes through first fixed plate and second fixed plate with the square agitator tank is connected.
2. The novel mixer of claim 1, wherein: the bottom of the first support rod is fixedly connected with the mixer base, a first fixing piece is mounted at the upper end of the first support rod, and the first fixing piece is rotatably connected with one end of the rotating shaft; the bottom of the second supporting rod is fixedly connected with the mixer base, a second fixing piece is installed at the upper end of the second supporting rod, and the second fixing piece is rotatably connected with the other end of the rotating shaft.
3. The novel material mixing machine according to claim 1, characterized in that: a feed inlet is formed in the side face of the upper end of the square stirring box, and a baffle is arranged on the feed inlet; the discharge gate has been seted up to the base angle department of square agitator tank, the ejection of compact switch set up in on the discharge gate.
