CN217193970U

CN217193970U - Auxiliary device is used in processing of bar aluminum product

Info

Publication number: CN217193970U
Application number: CN202123275370.0U
Authority: CN
Inventors: 孙路程
Original assignee: Shandong Yayin Aluminum Co ltd
Current assignee: Shandong Yayin Aluminum Co ltd
Priority date: 2021-12-23
Filing date: 2021-12-23
Publication date: 2022-08-16
Anticipated expiration: 2031-12-23

Abstract

The utility model discloses an auxiliary device is used in processing of bar aluminum product relates to bar aluminum product processing technology field, including processing equipment, auxiliary frame and processing platform, the bottom fixed mounting of processing equipment has the processing platform, the bottom fixed mounting of processing platform has the support column, the side of processing equipment is provided with the auxiliary frame, the inside of auxiliary frame is provided with fixed establishment, the top of processing platform is provided with clearance mechanism. The utility model discloses an on the auxiliary frame was placed to the machined part, the flexible removal of flexible post of cooperation drove the stripper plate and extrudees on the machined part, reaches fixed effect, when the extrusion is fixed, drove the surface friction of friction piece and machined part, utilizes frictional resistance, improves fixed performance, makes things convenient for the better fixed machined part of device, has solved equipment self and has produced the vibrations power easily, leads to the problem that the machined part drops, is favorable to increasing the fixity ability of device, improves the work efficiency of device.

Description

Auxiliary device is used in processing of bar aluminum product

Technical Field

The utility model relates to a bar aluminum product processing technology field, concretely relates to auxiliary device is used in processing of bar aluminum product.

Background

The application range of the strip-shaped aluminum material is wide, the strip-shaped aluminum material can be used for roofs, wall surfaces, doors and windows, frameworks, internal and external decorative plates, ceilings, suspended ceilings, handrail rails, indoor furniture, shop containers, construction templates and the like, and the strip-shaped aluminum material is cut and welded when being manufactured into finished products.

The following problems exist in the prior art:

1. the auxiliary device for processing the strip-shaped aluminum material has poor fixing performance, and the equipment easily generates vibration force, so that a processed part falls off and the processing problem of the processed part is influenced;

2. bar aluminum product adds man-hour, produces a large amount of pieces easily to need the manual work to clear up, cause the hand labor to promote, improve the problem of processing cost.

SUMMERY OF THE UTILITY MODEL

The utility model provides an auxiliary device for processing strip aluminum products, one of which aims to increase the fixing performance and solve the problems that the auxiliary device for processing strip aluminum products has poor fixing performance, and the equipment is easy to generate vibration force, so that a workpiece falls off and the processing of the workpiece is influenced; wherein another kind of purpose is in order to solve the bar aluminum product and add man-hour, produces a large amount of pieces easily to need the manual work to clear up, cause the hand labor to promote, improve the problem of processing cost, in order to reach the automatic clastic effect of clearance.

In order to solve the technical problem, the utility model discloses the technical scheme who adopts is:

the utility model provides an auxiliary device is used in processing of bar aluminum product, includes processing equipment, auxiliary frame and processing platform, the bottom fixed mounting of processing equipment has the processing platform, the bottom fixed mounting of processing platform has the support column, the side of processing equipment is provided with the auxiliary frame, the inside of auxiliary frame is provided with fixed establishment, the top of processing platform is provided with clearance mechanism.

The fixing mechanism comprises a fixing rod, a fixing plate is fixedly mounted at the top of the fixing rod, and a fixing groove is formed in the fixing plate.

The cleaning mechanism comprises a cleaning column, a rotating column is arranged inside the cleaning column, and moving mechanisms are movably arranged on two sides of the rotating column.

The utility model discloses technical scheme's further improvement lies in: the inboard of fixed slot is provided with flexible post, the one end fixedly connected with stripper plate of flexible post.

The utility model discloses technical scheme's further improvement lies in: the pressing groove is formed in the extrusion plate, the pressing block is fixedly mounted at the top of the inner cavity of the pressing groove, and the reset elastic column is fixedly mounted at the top of the pressing block.

The utility model discloses technical scheme's further improvement lies in: the top of stripper plate is provided with the clutch blocks, the bottom fixed mounting of clutch blocks has the blotter, the bottom fixed mounting of blotter has the air pressure pad, the bottom fixed mounting of air pressure pad has the bulldozing board.

The utility model discloses technical scheme's further improvement lies in: the outer side of the cleaning column is fixedly provided with an elastic hairbrush, and the bottom of the elastic hairbrush is fixedly provided with an installation block.

The utility model discloses technical scheme's further improvement lies in: the bottom fixed mounting of installation piece has the gasbag layer, the inside fixed mounting of gasbag layer has the buffer block.

The utility model discloses technical scheme's further improvement lies in: the inner part of the fixed plate is fixedly provided with a sliding column, the outer side of the sliding column is fixedly provided with a sliding block, the side surface of the sliding block is arranged on one side of the rotating column, and one side of the rotating column is provided with a power motor.

Owing to adopted above-mentioned technical scheme, the utility model discloses relative prior art, the technological progress who gains is:

1. the utility model provides an auxiliary device is used in processing of bar aluminum product, place the auxiliary frame through the machined part on, the flexible removal of flexible post of cooperation, it extrudees on the machined part to drive the stripper plate, reach fixed effect, when the extrusion is fixed, drive the surface friction of friction piece and machined part, utilize frictional resistance, improve fixed performance, make things convenient for the better fixed machined part of device, the easy shaking force that produces of equipment self has been solved, lead to the problem that the machined part drops, be favorable to increasing the fixity ability of device, the work efficiency of device is improved.

2. The utility model provides an auxiliary device is used in processing of bar aluminum product, slide on the traveller through the slider, it removes to drive the column spinner, it provides power to deuterogamy motor power, it cleans with cleaning the column rotation to drive the column spinner, it is rotatory to make the cooperation rotatory when cleaning the column removal, reach the effect of cleaning the processing platform, the elasticity of recycling elasticity brush and the compliance of gasbag layer mutually support, increase and clean column life, then clean along with removing, thereby clean the inside of collecting the mouth to the piece on the processing platform, reach the function of collecting the piece, the bar aluminum product is processed with man-hour has been solved, produce a large amount of pieces easily, thereby need the artifical problem of clearing up, be favorable to the convenient clearance piece of device, reach and save the hand labor, reduce the effect of processing cost.

Drawings

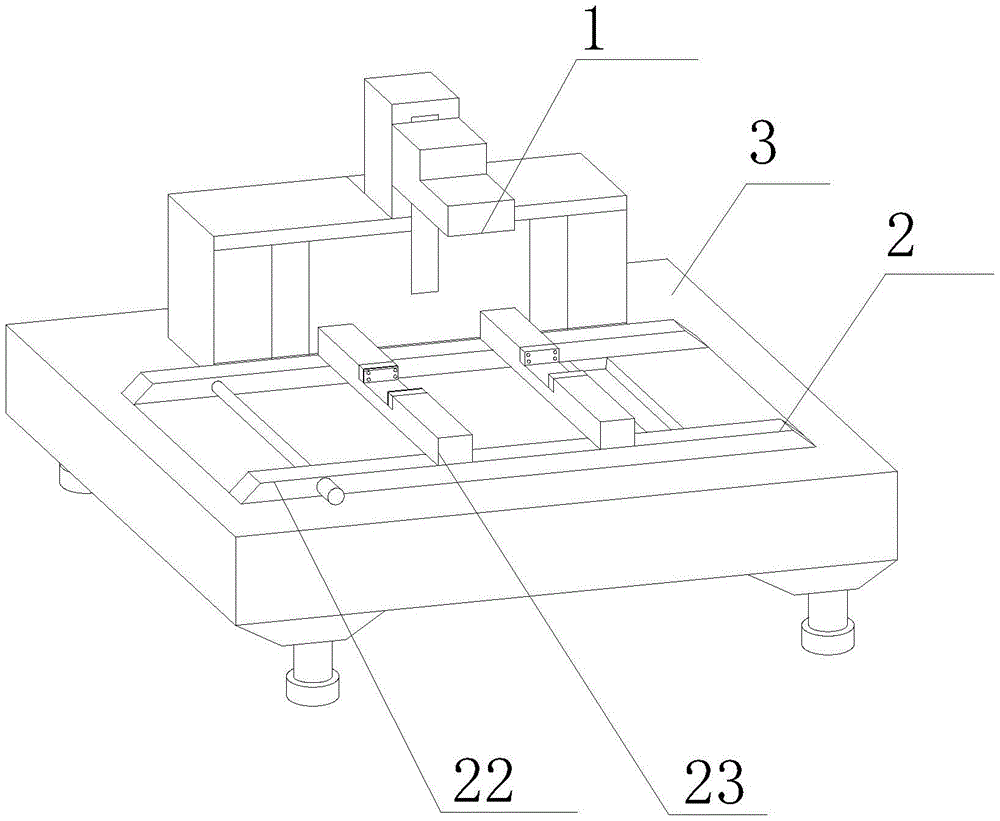

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic structural view of the fixing mechanism of the present invention;

FIG. 3 is a schematic cross-sectional view of the squeeze plate of the present invention;

FIG. 4 is a schematic view of the structure of the extrusion plate of the present invention;

fig. 5 is a schematic view of the structure of the fixing rod of the present invention;

fig. 6 is a schematic view of the structure of the cleaning column of the present invention.

In the figure: 1. processing equipment; 2. an auxiliary frame; 21. a fixing mechanism; 22. a fixing rod; 23. a fixing plate; 231. a traveler; 232. a slider; 24. fixing grooves; 241. a telescopic column; 242. a pressing plate; 2421. a friction block; 2422. a cushion pad; 2423. a pneumatic cushion; 2424. a push plate; 243. pressing the groove; 2431. a pressing block; 2432. resetting the elastic column; 3. a processing table; 31. a cleaning mechanism; 32. cleaning the column; 3221. an air bag layer; 3222. a buffer block; 321. an elastic brush; 322. mounting a block; 33. a spin column; 330. a power motor; 34. and a moving mechanism.

Detailed Description

The present invention will be described in further detail with reference to the following examples:

example 1

As shown in fig. 1-6, the utility model provides an auxiliary device for processing bar-shaped aluminum material, which comprises a processing device 1, an auxiliary frame 2 and a processing table 3, wherein the bottom of the processing device 1 is fixedly provided with the processing table 3, the bottom of the processing table 3 is fixedly provided with a support column, the side surface of the processing device 1 is provided with the auxiliary frame 2, the inside of the auxiliary frame 2 is provided with a fixing mechanism 21, the top of the processing table 3 is provided with a cleaning mechanism 31, the fixing mechanism 21 comprises a fixing rod 22, the top of the fixing rod 22 is fixedly provided with a fixing plate 23, the inside of the fixing plate 23 is provided with a fixing groove 24, the inner side of the fixing groove 24 is provided with a telescopic column 241, one end of the telescopic column 241 is fixedly connected with a squeezing plate 242, the top of the squeezing plate 242 is provided with a friction block 2421, the bottom of the friction block 2421 is fixedly provided with a cushion 2422, the bottom of the cushion 2423 is fixedly provided with an air pressure pad 2423, the bottom of the air pressure pad 2423 is fixedly provided with a pushing plate 2424.

In the embodiment, the workpiece is placed on the auxiliary frame 2, the telescopic column 241 is matched for telescopic movement, the extrusion plate 242 is driven to be extruded on the workpiece, the fixing effect is achieved, the friction block 2421 is driven to rub with the surface of the workpiece while extrusion is fixed, the fixing performance is improved by using the friction resistance, the workpiece is fixed better by the convenient device, the cushion 2422 is stressed to extrude the air pressure pad 2423, and the action force is buffered by using the elasticity of the air pressure pad 2423, so that the function of buffering and protecting the workpiece is achieved.

Example 2

As shown in fig. 1-6, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the pressing groove 243 is formed in the pressing plate 242, the pressing block 2431 is fixedly mounted on the top of the inner cavity of the pressing groove 243, and the reset spring post 2432 is fixedly mounted on the top of the pressing block 2431.

In this embodiment, when the pressing plate 242 pushes and fixes the workpiece, the contact surface portion of the pressing plate 242 is pushed inwards, and then the workpiece is clamped on the pressing groove 243, so that the restoring elasticity of the restoring elastic column 2432 is matched to drive the pressing block 2431 to extrude and fix the workpiece, and the effect of a longitudinal fixing force is achieved, thereby improving the fixing performance of the device.

Example 3

As shown in fig. 1-6, on the basis of embodiment 1, the utility model provides a technical solution: preferably, a collection port is formed in the side surface of the cleaning mechanism 31, the cleaning mechanism 31 includes a cleaning column 32, a rotating column 33 is arranged inside the cleaning column 32, moving mechanisms 34 are movably mounted on two sides of the rotating column 33, an elastic brush 321 is fixedly mounted on the outer side of the cleaning column 32, a mounting block 322 is fixedly mounted at the bottom of the elastic brush 321, an air bag layer 3221 is fixedly mounted at the bottom of the mounting block 322, a buffer block 3222 is fixedly mounted inside the air bag layer 3221, a sliding column 231 is fixedly mounted inside the fixing plate 23, a sliding block 232 is fixedly mounted on the outer side of the sliding column 231, the side surface of the sliding block 232 is arranged on one side of the rotating column 33, and a power motor 330 is arranged on one side of the rotating column 33.

In this embodiment, slide on traveller 231 through slider 232, it removes to drive column spinner 33, it provides power to cooperate motor power 330 again, it cleans to drive column spinner 33 and clean the post 32 and rotate, make to clean the cooperation rotation when post 32 removes, reach the effect of cleaning processing platform 3, the elasticity of recycling elasticity brush 321 and the compliance of gasbag layer 3221 cooperate each other, increase and clean post 32 life, then clean along with removing, thereby clean the inside of collecting the mouth to the piece of processing bench, reach the function of collecting the piece, convenient device's clearance piece, labor force is saved.

The working principle of the auxiliary device for processing the strip-shaped aluminum material is described in detail below.

As shown in fig. 1-6, the workpiece is placed on the auxiliary frame 2, and the workpiece is matched with the telescopic column 241 to move in a telescopic manner, so as to drive the extrusion plate 242 to extrude on the workpiece, thereby achieving a fixing effect, and while the workpiece is extruded and fixed, the friction block 2421 is driven to rub with the surface of the workpiece, and the friction resistance is utilized to improve the fixing performance, so as to facilitate the better fixing of the workpiece by the device, the workpiece slides on the sliding column 231 through the sliding block 232, thereby driving the rotating column 33 to move, and then the power motor 330 is matched to provide power, thereby driving the rotating column 33 and the cleaning column 32 to rotate and clean, so that the cleaning column 32 is matched to rotate when moving, thereby achieving an effect of cleaning the processing table 3, and then the cleaning is carried out along with the movement, thereby cleaning the chips on the processing table to the inside of the collection port.

The present invention has been described in general terms, but it will be apparent to those skilled in the art that modifications and improvements can be made based on the present invention. Therefore, modifications or improvements without departing from the spirit of the invention are within the scope of the invention.

Claims

1. The utility model provides an auxiliary device is used in processing of bar aluminum product, includes processing equipment (1), auxiliary frame (2) and processing platform (3), the bottom fixed mounting of processing equipment (1) has processing platform (3), the bottom fixed mounting of processing platform (3) has the support column, the side of processing equipment (1) is provided with auxiliary frame (2), its characterized in that: a fixing mechanism (21) is arranged inside the auxiliary frame (2), a cleaning mechanism (31) is arranged at the top of the processing table (3), and a collecting opening is formed in the side surface of the cleaning mechanism (31);

the fixing mechanism (21) comprises a fixing rod (22), a fixing plate (23) is fixedly installed at the top of the fixing rod (22), and a fixing groove (24) is formed in the fixing plate (23);

clearance mechanism (31) are including cleaning post (32), the inside of cleaning post (32) is provided with column spinner (33), the both sides movable mounting of column spinner (33) has moving mechanism (34).

2. The auxiliary device for processing the strip-shaped aluminum material as recited in claim 1, wherein: the inner side of the fixing groove (24) is provided with a telescopic column (241), and one end of the telescopic column (241) is fixedly connected with a squeezing plate (242).

3. The auxiliary device for processing the strip-shaped aluminum material as recited in claim 2, wherein: the pressing groove (243) is formed in the extrusion plate (242), the pressing block (2431) is fixedly mounted at the top of the inner cavity of the pressing groove (243), and the resetting elastic column (2432) is fixedly mounted at the top of the pressing block (2431).

4. The auxiliary device for processing the strip-shaped aluminum material as recited in claim 2, wherein: the friction block (2421) is arranged at the top of the extrusion plate (242), the cushion (2422) is fixedly mounted at the bottom of the friction block (2421), the air pressure pad (2423) is fixedly mounted at the bottom of the cushion (2422), and the pushing plate (2424) is fixedly mounted at the bottom of the air pressure pad (2423).

5. The auxiliary device for processing the strip-shaped aluminum material as recited in claim 1, wherein: the outer side of the cleaning column (32) is fixedly provided with an elastic brush (321), and the bottom of the elastic brush (321) is fixedly provided with an installation block (322).

6. The auxiliary device for processing the strip-shaped aluminum material as recited in claim 5, wherein: an air bag layer (3221) is fixedly mounted at the bottom of the mounting block (322), and a buffer block (3222) is fixedly mounted inside the air bag layer (3221).

7. The auxiliary device for processing the strip-shaped aluminum material as recited in claim 1, wherein: the inside fixed mounting of fixed plate (23) has traveller (231), outside fixed mounting slider (232) of traveller (231), the side setting of slider (232) is in one side of column spinner (33), one side of column spinner (33) is provided with motor power (330).
