Abstract
The utility model discloses a loading attachment of plate shearing machine. The utility model discloses a: the pedestal, the fixed pneumatic cylinder that is provided with in pedestal front side, be connected with the slide on the pneumatic cylinder, the slide top is provided with places the piece, it has all seted up the stable trough to place a both sides face, the sliding contact has the stabilizing block in the stable trough, the stabilizing block side is provided with the connecting block, the connecting block side is provided with the carriage, the sliding contact has the movable plate in the carriage, the movable plate side is provided with the compact heap, rotate on the connecting block and be connected with the axis body, the external screw thread has been seted up in the axis body outside, the spiral shell groove has been seted up to the movable plate side, external screw thread and spiral shell groove threaded connection on the axis body, it all is provided with the side piece to place a both sides face, the outer groove has been seted up to the connecting block side. The utility model discloses the convenience is fixed not unidimensional panel, improves the accurate nature after cutting panel.
Description
Technical Field
The utility model relates to a loading attachment technical field specifically is a loading attachment of plate shearing machine.
Background
A plate shearing machine is a machine for shearing a plate by using a blade to do reciprocating linear motion relative to another blade. The metal plates with various thicknesses are applied with shearing force by a reasonable blade gap by virtue of a moving upper blade and a fixed lower blade, so that the plates are broken and separated according to the required size;
the feeding process of the plate shearing machines used in most of the existing factories is basically that metal plates to be machined are manually held and sent to a feeding hole of the plate shearing machine, and due to the fact that the fixation of manpower on the plates is poor, the metal plates can be cut inaccurately.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a loading attachment of plate shearing machine to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a loading device of a plate shearing machine comprises: the automatic clamping device comprises a pedestal, a hydraulic cylinder is fixedly arranged on the front side of the pedestal, a sliding plate is connected onto the hydraulic cylinder, a placing block is arranged on the top of the sliding plate, stabilizing grooves are formed in two side faces of the placing block, stabilizing blocks are in sliding contact in the stabilizing grooves, connecting blocks are arranged on the side faces of the stabilizing blocks, a connecting frame is arranged on the side faces of the connecting blocks, a moving plate is in sliding contact in the connecting frame, a pressing block is arranged on the side faces of the moving plate, a shaft body is rotatably connected onto the connecting blocks, external threads are formed in the outer side of the shaft body, screw grooves are formed in the side faces of the moving plate, the external threads on the shaft body are in threaded connection with the screw grooves, side blocks are arranged on two side faces of the placing block, outer grooves are formed in the side faces of the connecting blocks, an inner hole is formed in the inner wall of the bottom of the outer groove, a fixing hole is formed in the top of the side block, and an L-shaped fixing strip clamped with the fixing hole is in sliding contact in the inner hole, a matching groove is formed in the inner wall of the bottom of the outer groove, and a spring is welded between the L-shaped fixing strip and the inner wall of the bottom of the matching groove.
Furthermore, the sliding groove is formed in the top of the pedestal, and the sliding plate is slidably mounted in the sliding groove.
Furthermore, the connecting block is attached to the side face of the placing block.
Further, the bottom of the placing block is attached to the pedestal.
Furthermore, the bottom of the pressing block is attached to the placing block.
Furthermore, four table props are arranged at the pedestal bottom.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses a placing block, slide, pneumatic cylinder, connecting block, connecting frame, movable plate, side piece, L type fixed strip, spring and compact heap that set up, only need place panel on placing the block, stimulate L type fixed strip, promote the connecting block subsequently, make two compact heaps compress tightly panel fixedly, start the pneumatic cylinder, can make the panel after compressing tightly fixedly enter into the shearing machine, improve the stability after cutting panel;
through connecting block, connection frame, movable plate, compact heap and the axis body that sets up, only need rotatory axis body, can adjust the position of compact heap, and then can be applicable to not unidimensional panel, satisfy the user demand.
Drawings

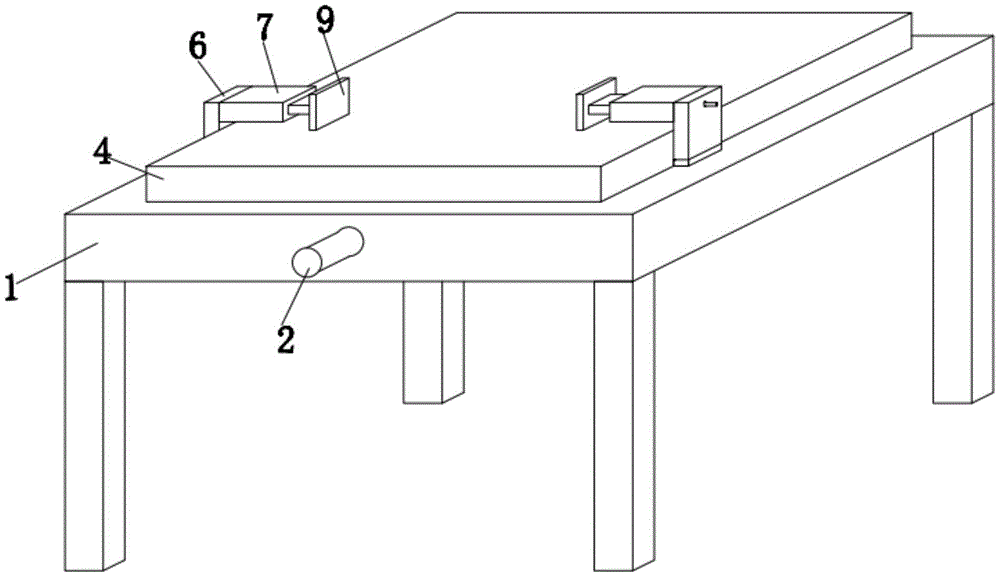

Fig. 1 is a schematic structural diagram in an embodiment of the present invention;
FIG. 2 is a schematic cross-sectional view of the embodiment of FIG. 1;
fig. 3 is a schematic structural view of a portion a in fig. 2.
Reference numerals are as follows: 1. a pedestal; 2. a hydraulic cylinder; 3. a slide plate; 4. placing the blocks; 5. a stabilizing block; 6. connecting blocks; 7. a connecting frame; 8. moving the plate; 9. a compression block; 10. a shaft body; 11. a side block; 12. an L-shaped fixing strip; 13. a spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Please refer to fig. 1-3, in which fig. 1 is a schematic structural diagram of an embodiment of the present invention;
FIG. 2 is a schematic cross-sectional view of the embodiment of FIG. 1; fig. 3 is a schematic structural diagram of a portion a in fig. 2, and a feeding device of a plate shearing machine includes: the automatic sliding device comprises a pedestal 1, a hydraulic cylinder 2 is fixedly arranged on the front side of the pedestal 1, a sliding plate 3 is connected onto the hydraulic cylinder 2, a sliding groove is formed in the top of the pedestal 1, the sliding plate 3 is slidably mounted in the sliding groove, the sliding plate 3 can be conveniently moved, a placing block 4 is arranged on the top of the sliding plate 3, stabilizing grooves are formed in two side faces of the placing block 4, a stabilizing block 5 is in sliding contact in the stabilizing groove, a connecting block 6 is arranged on the side face of the stabilizing block 5, a connecting frame 7 is arranged on the side face of the connecting block 6, a moving plate 8 is in sliding contact in the connecting frame 7, a pressing block 9 is arranged on the side face of the moving plate 8, a shaft body 10 is rotatably connected onto the connecting block 6, external threads are formed in the outer side of the shaft body 10, screw grooves are formed in the side face of the moving plate 8, the external threads on the shaft body 10 are connected with the screw grooves, and side blocks 11 are arranged on two side faces of the placing block 4, an outer groove is formed in the side face of the connecting block 6, an inner hole is formed in the inner wall of the bottom of the outer groove, a fixing hole is formed in the top of the side block 11, an L-shaped fixing strip 12 clamped with the fixing hole is arranged in the inner hole in a sliding contact mode, a matching groove is formed in the inner wall of the bottom of the outer groove, and a spring 13 is welded between the L-shaped fixing strip 12 and the inner wall of the bottom of the matching groove.
Four table props are provided with to 1 bottom of pedestal, support pedestal 1.
Connecting block 6 with place 4 side facies laminatings of piece, carry on spacingly to connecting block 6, place 4 bottoms of piece and laminate mutually with pedestal 1, compact heap 9 bottoms with place 4 and laminate mutually.
To sum up, the feeding device of the plate shearing machine provided by the utility model, when in operation, a plate is placed on the placing block 4, the L-shaped fixing strip 12 is pulled, the L-shaped fixing strip 12 stretches the spring 13, the connecting block 6 is pushed to synchronously move the stabilizing block 5 and the connecting frame 7 until the two pressing blocks 9 press and fix the plate, at this time, the L-shaped fixing strip 12 is loosened, the spring 13 is reset, the L-shaped fixing strip 12 can be clamped into the fixing groove, the plate can be conveniently fixed, then the hydraulic cylinder 2 is started, the sliding plate 3 and the placing block 4 can be moved, the fixed plate enters from the feeding port of the plate shearing machine to be cut, the shaft body 10 can be rotated, the moving plate 8 and the pressing blocks 9 can be moved transversely through the arranged external thread and the spiral groove, the positions of the pressing blocks 9 can be adjusted according to plates with different sizes, the plate with different sizes can be fixed conveniently, and the use is convenient.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a loading attachment of plate shearing machine which characterized in that includes: the table base (1), the fixed pneumatic cylinder (2) that is provided with in pedestal (1) front side, be connected with slide (3) on pneumatic cylinder (2), slide (3) top is provided with places piece (4), place piece (4) both sides face and all seted up stable groove, the sliding contact has stable piece (5) in the stable groove, stable piece (5) side is provided with connecting block (6), connecting block (6) side is provided with linking frame (7), sliding contact has movable plate (8) in linking frame (7), movable plate (8) side is provided with compact heap (9), rotating connection has axis body (10) on connecting block (6), the axis body (10) outside is seted up the external screw thread, the screw groove has been seted up to axis body (8) side, external screw thread and screw groove threaded connection on movable plate (10), it all is provided with side piece (11) to place piece (4) both sides face, the connecting block (6) side has been seted up the outer tank, the hole has been seted up on the outer tank bottom inner wall, the fixed orifices has been seted up at side piece (11) top, sliding contact has L type fixed strip (12) that clamp mutually with the fixed orifices in the hole, the cooperation groove has been seted up on the outer tank bottom inner wall, the welding has spring (13) between L type fixed strip (12) and the cooperation tank bottom inner wall.
2. The feeding device of the plate shearing machine according to claim 1, wherein a sliding groove is formed in the top of the pedestal (1), and the sliding plate (3) is slidably mounted in the sliding groove.
3. The feeding device of a plate shearing machine according to claim 1, characterized in that said connecting block (6) is attached to the side of the placing block (4).
4. The feeding device of a plate shearing machine according to claim 1, characterized in that the bottom of the placing block (4) is attached to the pedestal (1).
5. The feeding device of the plate shearing machine as claimed in claim 1, characterized in that the bottom of the pressing block (9) is attached to the placing block (4).
6. The feeding device of a plate shearing machine as claimed in claim 1, characterized in that four table supports are arranged at the bottom of said table (1).
