Abstract
A dining sideboard comprises a box body, an inner container, a layer frame and a door body, wherein two side wall plates of the inner container are provided with a support guide rail, a guide stop groove and a longitudinal guide groove, and the guide stop groove and the longitudinal guide groove are intersected with the support guide rail; the rear parts of the two sides of the layer frame are provided with sliding stop rods, the sliding stop rods are guided into the guiding stop grooves through the longitudinal guide grooves, and the two sides of the layer frame are supported by the support guide rails in sliding fit. The arrangement of the supporting guide rail, the sliding stop groove and the sliding stop rod can realize the assembly of the layer frame on the inner container without any tool; the parts are reduced, the structure is simplified, and the cost is reduced.
Description
Technical Field
The utility model relates to a refrigeration formula gradevin, especially the gradevin that uses in the dining room.
Background
At present, chinese patent 200720058122.1 includes a cabinet body and a plurality of display shelves located inside the cabinet body, wherein, the left and right sides of the display shelves are assembled with the left and right inner containers of the cabinet body through slide rails. The sliding rail comprises an inner rail assembly fixed on the left side and the right side of the display shelf and an outer rail assembly fixed on the inner containers on the left side and the right side of the cabinet body, wherein the inner rail assembly comprises an inner rail, a wheel shaft, a pulley and a gasket, and the outer rail assembly comprises an outer rail, a wheel shaft, a pulley and a gasket. And hooks which are inserted and hung with the inner container are formed at two ends of the outer rail in the outer rail assembly. There are problems in that: the arrangement of the slide rail has the advantages of complex structure, low assembly efficiency and high cost.
SUMMERY OF THE UTILITY MODEL
The utility model aims at: the dining side wine cabinet has the characteristics of simple structure, convenience in disassembly and assembly and low cost.
The utility model discloses a realize like this: the utility model provides a dining sideboard, includes box, inner bag, layer frame and door body, its characterized in that: two side wall plates of the inner container are provided with a support guide rail, a guide stop groove and a longitudinal guide groove, wherein the guide stop groove and the longitudinal guide groove are intersected with the support guide rail;
the rear parts of the two sides of the layer frame are provided with sliding stop rods, the sliding stop rods are guided into the guide stop grooves through the longitudinal guide grooves, and the support guide rails support the two sides of the layer frame and are in sliding fit.
Preferably: the rear end of the guide stop groove is intersected and vertical to the lower end of the longitudinal guide groove.
Preferably: and the inner container wall at the upper part of the supporting guide rail is provided with a circular arc groove in the front-back direction, and the circular arc groove is intersected with the longitudinal guide groove.
Preferably: when the layer frame is retracted into the inner container, a gap is formed between the rear end of the layer frame and the back plate of the inner container; the sliding stop rod is matched with the rear end of the guide stop groove to stop.
Preferably: the two door bodies are hinged to the left side of the left inner container, and the other door body is hinged to the right side of the right inner container, so that the side-by-side dining side wine cabinet is formed.
Preferably: one side of the layer frame is provided with a vertical wine bottle frame for horizontally placing wine bottles, and the other side of the layer frame is provided with a supporting position for vertically placing wine bottles.
Preferably: the longitudinal wine bottle rack and the layer rack are fixed together by screws.
The utility model relates to a dining sideboard, the arrangement of a supporting guide rail, a sliding stop groove and a sliding stop rod can realize the assembly of a shelf on an inner container without any tool; the parts are reduced, the structure is simplified, and the cost is reduced.
Drawings
Fig. 1 is a perspective view of the present invention.
Fig. 2 is an exploded perspective view of the present invention.

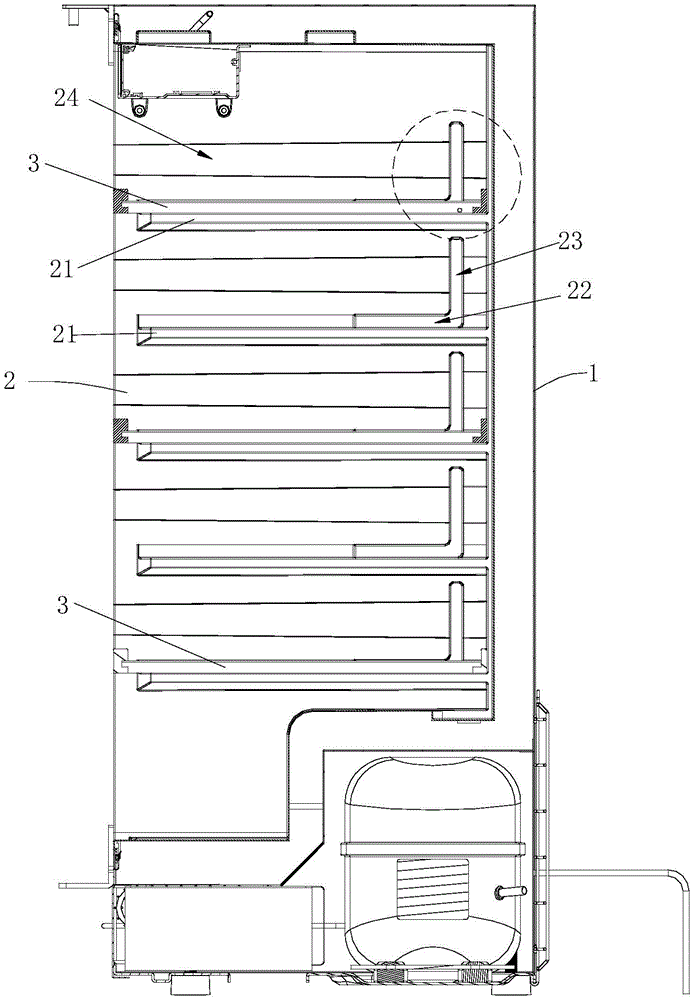

Fig. 3 is a cross-sectional view of the present invention.
Fig. 4 is a partially enlarged view of fig. 3.
Fig. 5 is a perspective view of the shelf of the present invention.
Fig. 6 is a perspective view of the novel and improved shelf of the present invention.
Fig. 7 is a use state diagram of the shelf of the present invention.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present invention, and should not be construed as limiting the present invention.
In the description of the present invention, it is to be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, are not to be construed as limiting the present invention.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
As shown in fig. 1 and fig. 2, a sideboard wine cabinet comprises a box body 1, an inner container 2, a shelf 3 and a door body 4, wherein two side wall plates of the inner container 2 are provided with a supporting guide rail 21, a guiding stop groove 22 and a longitudinal guide groove 23, wherein the guiding stop groove 22 and the longitudinal guide groove are intersected with the supporting guide rail;
the rear parts of two sides of the layer frame 3 are provided with sliding stop rods 31, the sliding stop rods 31 are guided into the guide stop grooves 22 through the longitudinal guide grooves 23, and the support guide rails 21 support two sides of the layer frame 3 and are in sliding fit;
when the structure is adopted for assembly, the layer frame 3 is inclined from right to left or from left to right, the sliding stop rod at one side is inserted into the longitudinal guide groove 23, the sliding stop rod at the other side is inserted into the guide groove 23 at the other side, then the layer frame rotates to be horizontal and moves downwards, the sliding stop rod enters the guide stop groove 22, and the support guide rail 21 supports the layer frame. The assembly can be completed without any tool during assembly, and the assembly efficiency is high;
when in disassembly, the sliding stop rod 31 enters the longitudinal guide groove 22 and moves upwards, and then the shelf 3 is inclined and can be taken out without any tool;
compared with the prior art, the inner rail assembly is omitted, the structure is simplified, and the cost is reduced.
The rear end of the guide stop groove 22 is intersected and vertical with the lower end of the longitudinal guide groove 23.
The inner container wall at the upper part of the supporting guide rail 21 is provided with a circular arc groove 24 in the front-back direction, and the circular arc groove 24 is intersected with the longitudinal guide groove 23. The assembly of the shelf 3 is convenient; when wine bottles are horizontally placed on the shelf 3, the space of the inner container is expanded; the wine bottles on the two sides of the shelf 3 are embedded with the circular arc-shaped grooves 24.
When the layer frame 3 retracts into the inner container 2, a gap is formed between the rear end of the layer frame 3 and the back plate of the inner container 2; the sliding stop rod 31 is matched with the rear end of the guide stop groove 22 for stopping. In the process of preventing the layer frame 3 from impacting the back plate of the inner container 2 to protect the inner container 2.
As shown in fig. 2, there are two inner containers 2 and two door bodies 4, the inner containers 2 are arranged in the box body 1 from left to right, one door body 4 is hinged with the left side of the left inner container 2, and the other door body 4 is hinged with the right side of the right inner container 2, so that the side-by-side type sideboard is called.
As a further improvement of the utility model: one side of the layer frame 3 is provided with a longitudinal wine bottle frame 5 for horizontally placing wine bottles, and the other side of the layer frame 3 is provided with a supporting position 32 for vertically placing wine bottles;
as shown in fig. 2 and 6, the longitudinal wine bottle rack 5 is provided with a plurality of wine bottle supports 51 from bottom to top, each wine bottle support 51 comprises a front rack plate and a rear rack plate, and the front rack plate and the rear rack plate are provided with circular arc-shaped clamping grooves; a stop plate 52 is arranged at the rear end of the longitudinal wine bottle rack 5, the stop plate 52 corresponds to the rear rack plate, and the stop plate 52 is used for stopping wine bottles to prevent the wine bottles from impacting the rear board of the inner container 2;
the longitudinal wine bottle rack 5 and the layer rack 3 are fixed together by screws.
When drinking, the wine bottles with wine left are placed at the supporting position 32, so that the hidden danger of leakage when the wine bottles are placed horizontally is eliminated.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an illustrative embodiment," "an example," "a specific example," or "some examples" or the like mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the present invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
While embodiments of the present invention have been shown and described, it will be understood by those of ordinary skill in the art that: various changes, modifications, substitutions and alterations can be made to the embodiments without departing from the principles and spirit of the invention, the scope of which is defined by the claims and their equivalents.
Claims (7)
1. The utility model provides a dining sideboard, includes box, inner bag, layer frame and the door body, its characterized in that: two side wall plates of the inner container are provided with a support guide rail, a guide stop groove and a longitudinal guide groove, wherein the guide stop groove and the longitudinal guide groove are intersected with the support guide rail;
the rear parts of the two sides of the layer frame are provided with sliding stop rods, the sliding stop rods are guided into the guide stop grooves through the longitudinal guide grooves, and the support guide rails support the two sides of the layer frame and are in sliding fit.
2. A sideboard as claimed in claim 1, wherein: the rear end of the guide stop groove is intersected and vertical to the lower end of the longitudinal guide groove.
3. A sideboard as claimed in claim 1, wherein: and the inner container wall at the upper part of the supporting guide rail is provided with a circular arc groove in the front-back direction, and the circular arc groove is intersected with the longitudinal guide groove.
4. A sideboard as claimed in claim 1, wherein: when the layer frame is retracted into the inner container, a gap is formed between the rear end of the layer frame and the back plate of the inner container; the sliding stop rod is matched with the rear end of the guide stop groove to stop.
5. A sideboard according to claim 1, 2, 3 or 4, characterized in that: the two door bodies are hinged to the left side of the left inner container, and the other door body is hinged to the right side of the right inner container, so that the side-by-side dining side wine cabinet is formed.
6. A sideboard as claimed in claim 5, wherein: one side of the layer frame is provided with a vertical wine bottle frame for horizontally placing wine bottles, and the other side of the layer frame is provided with a supporting position for vertically placing wine bottles.
7. A sideboard as claimed in claim 6, wherein: the longitudinal wine bottle rack and the layer rack are fixed together by screws.
