Abstract
The utility model discloses an adjustable steel sheet fixed-position welding composite set, including two bearing frames, the bearing frame parallel arrangement, the bearing frame includes: the upper end of the base plate is provided with a vertical plate, the vertical plate is positioned in the middle of the upper surface of the base plate, the opposite surface of the vertical plate is provided with a plug socket, and the plug socket is fixedly connected with the base plate; a fixing groove is formed between the plug socket and the vertical plate; the inner side of the socket is provided with a slot; the bearing frame is correspondingly provided with an auxiliary support, the auxiliary support and the bearing frame are fixedly connected in a detachable mode, and the auxiliary support is provided with a flat supporting plate; the utility model solves the problems of inconvenient operation and manpower and material waste in the prior art; the utility model has simple structure and convenient operation; the flat supporting plate is arranged, so that the working efficiency can be improved; the fence has the advantages that the fence is used for preventing personnel from falling off from the flat supporting plate and ensuring the operation safety when the operation is performed.
Description
Technical Field
The utility model relates to a steel sheet fixed-position welding field specifically is an adjustable steel sheet fixed-position welding composite set.
Background
In traditional job site welding, the steel plate that relates to the erect welding storehouse body fixes a position roughly very much, and the steel sheet is consuming time power, and welding quality often can not be guaranteed, phenomenons such as rework, secondary operation often appear, and the interim reinforcement method is adopted to the trade usually, carries out the steel sheet location, waits that the steel sheet welded fastening back, demolishs interim reinforcing member again. Through the methods and measures, materials and manpower are wasted, and construction is inconvenient in the operation process; meanwhile, the construction period and the safe and civilized construction are not ensured. In order to solve the problems, an adjustable steel plate positioning welding combination device is provided.
Disclosure of Invention
The utility model aims at solving the above problem, a but adjustable steel sheet fixed-position welding composite set is provided.
The utility model has the following concrete scheme: the utility model provides an adjustable steel sheet fixed-position welding composite set, includes two bearing framves, bearing frame parallel arrangement, the bearing frame includes: the upper end of the base plate is provided with a vertical plate, the vertical plate is positioned in the middle of the upper surface of the base plate, the opposite surface of the vertical plate is provided with a plug socket, and the plug socket is fixedly connected with the base plate; a fixing groove is formed between the plug socket and the vertical plate; the inner side of the socket is provided with a slot; the bearing frame is correspondingly provided with an auxiliary support, the auxiliary support and the bearing frame are fixedly connected in a detachable mode, and the auxiliary support is provided with a flat supporting plate.
Preferably, the auxiliary support comprises: an insert having a support member above the insert, the support member comprising: the vertical support is vertically welded with the middle part of the insertion block, the inclined support is obliquely welded with the rear part of the insertion block, and the upper end of the inclined support inclines outwards; the supporting member is provided with a cross joist, the cross joist is fixedly connected with the supporting member, a flat supporting plate is arranged above the cross joist, an upright post is arranged behind the flat supporting plate, and the upright post is fixedly connected with the cross joist.
Preferably, a fence is arranged above the upright post, and the fence comprises: the beam comprises a main beam frame, upright beams and cross beams, wherein a plurality of upright beams which are uniformly arranged are arranged on the inner side of the main beam frame, the cross beams are arranged at the bottoms of the upright beams, and the cross beams, the main beam frame and the upright beams are fixed by welding; the lower parts of two ends of the main beam frame are provided with inserting shafts, the upright posts are provided with inserting holes, and the inserting shafts are inserted into the inserting holes.
Preferably, the slot is provided with a connecting hole, the corresponding position on the insert block is provided with a threaded hole, and when the insert block is inserted into the slot for fixed connection, the connecting hole is coaxial with the threaded hole and is fixedly connected through a connecting bolt.
Preferably, the base plate of the bearing frame is I-shaped steel, and a plurality of reinforcing ribs are symmetrically arranged on two ribs of the I-shaped steel and used for improving the bearing strength of the bearing frame.
Preferably, the flat supporting plate is a wood plate with the thickness of 15-30 mm.
Preferably, the bottom of the auxiliary support is provided with a support leg, and the bottom of the support leg is provided with a universal roller.
The utility model discloses an operating method: when the bin body needs to be welded by a jacking process on site, a steel plate with proper length and thickness is selected according to the size and thickness of the bin body. Arrange the round on ground the utility model discloses a bearing frame hoists the steel sheet to the bearing frame on, and two fixed steel sheets of bearing frame are with the vertical stand of putting of steel sheet in the fixed slot to tentatively fix a position the steel sheet. Repeating the action for many times, and adjusting the positions of the adjacent steel plates until the steel plates form a circle. The auxiliary support assembly is inserted into the bearing frame and fixedly connected together by using the connecting bolt, the flat supporting plate is placed on the auxiliary support, the fence is erected on the auxiliary support and used for protecting the safety of constructors, and after all the components are installed, the constructors can stand on the flat supporting plate to perform welding operation.
The utility model discloses following beneficial effect has: 1. the structure is simple, and the operation is convenient; 2. the welding machine is provided with the flat supporting plate, so that an operator can step on the flat supporting plate to weld, and the working efficiency is improved; 3. the fence is arranged, so that personnel can be prevented from falling off from the flat supporting plate when the operation is carried out, and the operation safety is guaranteed.
Drawings

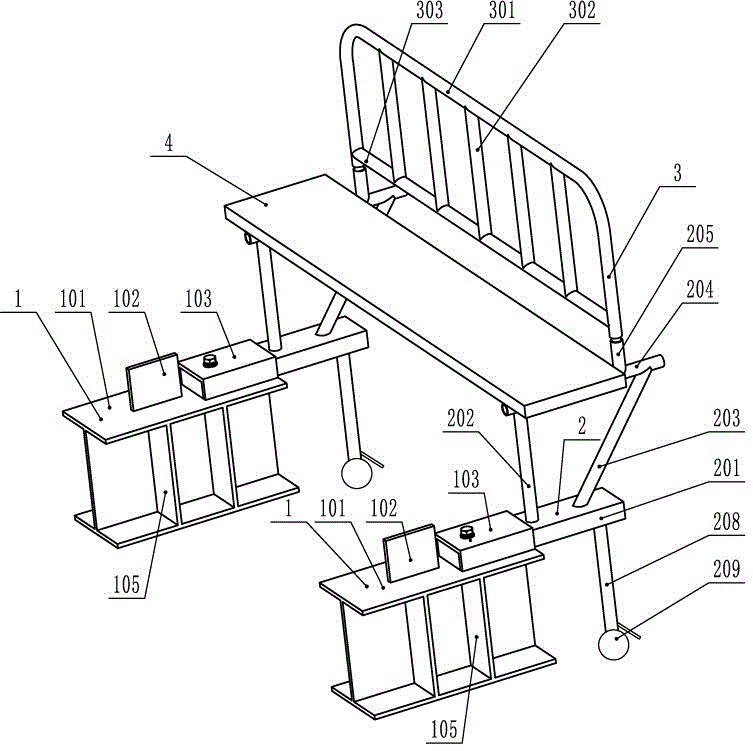

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a front view of the present invention;
fig. 3 is a left side view of the present invention;
FIG. 4 is an enlarged schematic view of a three-dimensional structure of a bearing frame;
FIG. 5 is an enlarged perspective view of the auxiliary support;
FIG. 6 is an enlarged view of a portion H of FIG. 2;
in the figure: 1-bearing frame, 101-base plate, 102-vertical plate, 103-plug socket, 104-connecting hole, 105-reinforcing rib, 106-fixing groove, 107-slot, 2-auxiliary support, 201-plug block, 202-vertical support, 203-diagonal support, 204-transverse joist, 205-upright post, 206-threaded hole, 207-jack, 208-supporting leg, 209-universal roller, 3-fence, 301-main beam frame, 302-upright beam, 303-cross beam, 304-plug shaft and 4-flat pallet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
It should be noted that, if directional indications (such as upper, lower, left, right, front and rear … …) are involved in the embodiment of the present invention, the directional indications are only used to explain the relative position relationship between the components, the motion situation, etc. in a specific posture (as shown in the drawings), and if the specific posture is changed, the directional indications are changed accordingly.
In addition, if there is a description relating to "first", "second", etc. in the embodiments of the present invention, the description of "first", "second", etc. is for descriptive purposes only and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, the meaning of "and/or" appearing throughout includes three juxtapositions, exemplified by "A and/or B" including either A or B or both A and B. In addition, the technical solutions in the embodiments may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should not be considered to exist, and is not within the protection scope of the present invention.
Referring to fig. 1-6, an adjustable steel plate positioning and welding combination device includes two bearing frames 1, the bearing frames 1 are arranged in parallel, and the bearing frames 1 include: a base plate 101, wherein an upright plate 102 is arranged at the upper end of the base plate 101, and in the embodiment, the upright plate 102 is a steel plate made of Q235 material and with the plate thickness of 12 mm; the vertical plate 102 is located in the middle of the upper surface of the base plate 101, and the plug socket 103 is arranged on the opposite surface of the vertical plate 102, in the embodiment, the plug socket 103 is preferably made of channel steel through blanking; the plug socket 103 is fixedly connected with the base plate 101; a fixing groove 106 is formed between the inserting seat 103 and the vertical plate 102, and in this embodiment, the width of the fixing groove 106 is preferably greater than or equal to 20 mm; the inner side of the socket 103 is provided with a slot 107; the bearing frame 1 is correspondingly provided with an auxiliary support 2, the auxiliary support 2 and the bearing frame 1 are fixedly connected in a detachable mode, and a flat supporting plate 4 is arranged on the auxiliary support 2.
In this embodiment, the auxiliary support 2 includes: an insert block 201, the insert block 201 having a support member above, the support member comprising: a vertical support 202 vertically welded with the middle part of the insertion block 201, an inclined support 203 obliquely welded with the rear part of the insertion block 201, and the upper end of the inclined support 203 inclining outwards; a cross joist 204 is arranged above the supporting member, the cross joist 204 is fixedly connected with the supporting member, a flat supporting plate 4 is arranged above the cross joist 204, an upright column 205 is arranged behind the flat supporting plate 4, and the upright column 205 is fixedly connected with the cross joist 204.
In this embodiment, the cross joists 204, the vertical supports 202, the diagonal supports 203 and the vertical columns 205 are all made of steel pipes, and cold-drawn steel pipes with a diameter of 30 mm and a wall thickness of 3 mm are preferred.
In this embodiment, a fence 3 is disposed above the upright column 205, and the fence 3 includes: the beam comprises a main beam frame 301, upright beams 302 and cross beams 303, wherein a plurality of upright beams 302 which are uniformly arranged are arranged on the inner side of the main beam frame 301, the cross beams 303 are arranged at the bottoms of the upright beams 302, and the cross beams 303, the main beam frame 301 and the upright beams 302 are fixed by welding; the lower parts of the two ends of the main beam frame 301 are provided with inserting shafts 304, in the embodiment, the diameter of each inserting shaft 304 is a pin shaft of 22 mm, and the inserting shafts are welded and fixed with the main beam frame 301; the upright column 205 is provided with a plug hole 207, and the plug shaft 304 is plugged into the plug hole 207.
In this embodiment, the insertion slot 107 has a connection hole 104, the insertion block 201 has a threaded hole 206 at a corresponding position, and when the insertion block 201 is inserted into the insertion slot 107 for fixed connection, the connection hole 104 is coaxial with the threaded hole 206 and is fixedly connected through a connection bolt.
In this embodiment, the base plate 101 of the bearing frame 1 is an i-steel, and a plurality of reinforcing ribs 105 are symmetrically arranged on the inner side of the i-steel, so as to improve the bearing strength of the bearing frame 1.
In this embodiment, the flat supporting plate 4 is a wood plate with a thickness of 15-30 mm.
In this embodiment, the bottom of the auxiliary support 2 is provided with a support leg 208, and the bottom of the support leg 208 is provided with a universal roller 209.
When the bin body needs to be welded by a jacking process on site, a steel plate with proper length and thickness is selected according to the size and thickness of the bin body. Arrange the round on ground the utility model discloses a bearing frame 1, with steel sheet hoist and mount to bearing frame 1 on, two bearing frame 1 fixed steel sheets, with the steel sheet vertical put immediately in fixed slot 106 to tentatively fix a position the steel sheet. Repeating the action for many times, and adjusting the positions of the adjacent steel plates until the steel plates form a circle. The auxiliary support 2 assembly is inserted into the bearing frame 1 and fixedly connected together through the connecting bolt, the flat supporting plate 4 is placed on the auxiliary support 2, the fence 3 is erected on the auxiliary support 2 to protect the safety of constructors, and after all the parts are installed, the constructors can stand on the flat supporting plate 4 to perform welding operation.
Claims (7)
1. The utility model provides an adjustable steel sheet fixed-position welding composite set which characterized in that: including two bearing frames, the bearing frame parallel arrangement, the bearing frame includes: the upper end of the base plate is provided with a vertical plate, the vertical plate is positioned in the middle of the upper surface of the base plate, the opposite surface of the vertical plate is provided with a plug socket, and the plug socket is fixedly connected with the base plate; a fixing groove is formed between the plug socket and the vertical plate; the inner side of the socket is provided with a slot; the bearing frame is correspondingly provided with an auxiliary support, the auxiliary support and the bearing frame are fixedly connected in a detachable mode, and the auxiliary support is provided with a flat supporting plate.
2. The adjustable steel plate positioning and welding combination device as claimed in claim 1, wherein: the auxiliary support includes: an insert having a support member above the insert, the support member comprising: the vertical support is vertically welded with the middle part of the insertion block, the inclined support is obliquely welded with the rear part of the insertion block, and the upper end of the inclined support inclines outwards; the supporting member is provided with a cross joist, the cross joist is fixedly connected with the supporting member, a flat supporting plate is arranged above the cross joist, an upright post is arranged behind the flat supporting plate, and the upright post is fixedly connected with the cross joist.
3. The adjustable steel plate positioning and welding combination device as claimed in claim 2, wherein: the stand top is equipped with the rail, the rail includes: the beam comprises a main beam frame, upright beams and cross beams, wherein a plurality of upright beams which are uniformly arranged are arranged on the inner side of the main beam frame, the cross beams are arranged at the bottoms of the upright beams, and the cross beams, the main beam frame and the upright beams are fixed by welding; the lower parts of the two ends of the main beam frame are provided with inserting shafts, the upright post is provided with a jack, and the inserting shafts and the jack are inserted together.
4. The adjustable steel plate positioning and welding combination device as claimed in claim 2, wherein: the slot is provided with a connecting hole, the corresponding position on the inserting block is provided with a threaded hole, and when the inserting block is inserted into the slot for fixed connection, the connecting hole is coaxial with the threaded hole and is fixedly connected through a connecting bolt.
5. The adjustable steel plate positioning and welding combination device as claimed in claim 1, wherein: the base plate of the bearing frame is made of I-shaped steel, and a plurality of reinforcing ribs are symmetrically arranged on two ribs of the I-shaped steel and used for improving the bearing strength of the bearing frame.
6. The adjustable steel plate positioning and welding combination device as claimed in claim 1, wherein: the flat supporting plate is a wood plate with the thickness of 15-30 mm.
7. The adjustable steel plate positioning and welding combination device as claimed in claim 1, wherein: the bottom of the auxiliary support is provided with a support leg, and the bottom of the support leg is provided with a universal roller.
