CN217146685U - Anti-scald paper cup

Info

Publication number: CN217146685U
Application number: CN202221057997.0U
Authority: CN
Inventors: 鲍俊翰
Original assignee: Xianghe Heyi Packaging Machinery Co ltd
Current assignee: Xianghe Heyi Packaging Machinery Co ltd
Priority date: 2022-05-06
Filing date: 2022-05-06
Publication date: 2022-08-09
Anticipated expiration: 2032-05-06

Abstract

The utility model discloses a scald-proof paper cup, including the paper cup body, be provided with thermal-insulated intermediate layer between the inlayer and the skin of paper cup body, the outer wall middle part cover of paper cup body is equipped with the radiation shield, the lower extreme of paper cup body is connected with the base, the bottom of base is provided with anti-skidding line, the upper top of paper cup body is equipped with the turn-up, the upper end of paper cup body is installed the bowl cover, the upper end right side of bowl cover is equipped with the drinking hole, the left side of bowl cover upper end is provided with the bleeder vent, the inside bottom of paper cup body is provided with the silo, the inner circle of radiation shield and the outer wall phase-match of paper cup body, it is provided with a plurality of equidistantly distributed archs to surround on the outer circumference of radiation shield, be equipped with the decorative pattern on the bellied up end; make child or baby can not be scalded by the hot water in the paper cup body through setting up thermal-insulated intermediate layer and heat insulating sleeve to set up the arch on the heat insulating sleeve, make things convenient for child or baby to take, the base has improved the steadiness of paper cup, and the bowl cover has improved the convenience and the performance of drinking cup.

Description

Anti-scald paper cup

Technical Field

The utility model relates to a paper cup, concretely relates to prevent scalding paper cup.

Background

The paper cup is a paper container which is made by mechanically processing and bonding raw paper (white paper board) made of chemical wood pulp, the paper cup is cup-shaped in appearance, the paper cup used for frozen food is waxed, can contain ice cream, jam, butter and the like, and the paper cup used for hot drinks is plastic-coated, can resist the temperature of more than 90 ℃, even can contain boiled water, and has the characteristics of safety, sanitation, lightness and convenience, can be used in public places, restaurants and dining rooms, and is a disposable article; the existing paper cup is mostly a single-layer paper cup, in the using process, when boiled water is filled in the paper cup, the hot water is poured into the paper cup, the cup body is hot, a child or a baby can scald his hand when taking the paper cup with a hand, the child or the baby can be seriously scalded, the user can be seriously scalded, harm is caused to the human body, and the use of the child or the baby is inconvenient.

Disclosure of Invention

In view of the above-mentioned drawbacks and deficiencies of the prior art, it would be desirable to provide a burn-proof paper cup.

According to the technical solution provided by the embodiment of the present application,

an anti-scald paper cup comprises a paper cup body,

the inner side and the outer side of the paper cup body are respectively provided with an inner layer and an outer layer, a heat insulation interlayer is arranged between the inner layer and the outer layer of the paper cup body, a heat insulation sleeve is sleeved on the middle portion of the outer wall of the paper cup body, the lower end of the paper cup body is connected with the base, the upper top end of the paper cup body is provided with a turned edge, the cup cover is installed at the upper end of the paper cup body, and the bottom end inside the paper cup body is provided with a trough.

The heat insulation interlayer is embedded between the inner layer and the outer layer of the paper cup body, and the heat insulation interlayer is made of heat-resistant heat insulation materials.

The inner ring of the heat insulation sleeve is matched with the outer wall of the paper cup body, a plurality of bulges are arranged on the outer circumference of the heat insulation sleeve in an encircling mode and distributed at equal intervals, and patterns are arranged on the upper end faces of the bulges.

The upper end of base is equipped with the standing groove, and the lower extreme of paper cup body is placed to the standing groove internal fixation, and the bottom of base is provided with anti-skidding line.

The lower end of the cup cover is provided with a fixing groove, the fixing groove is connected with a turned edge on the paper cup body, the right side of the upper end of the cup cover is provided with a drinking hole, the left side of the upper end of the cup cover is provided with an air vent, and the part of the outer side of the upper end of the cup cover, which is close to the drinking hole, is provided with a transition groove.

The inside of silo is equipped with accommodation space, has placed the material of bubble water in the accommodation space of silo, and the filter screen is installed to the upper end of silo.

To sum up, the beneficial effect of this application:

the utility model provides a, thermal-insulated intermediate layer and heat insulation sleeve set up thermal-insulated intermediate layer between the inlayer of paper cup body and skin to paper cup itself has better heat-proof quality, at the outside middle part suit heat insulation sleeve of paper cup body, when child or baby use the paper cup body at the heat insulation sleeve through holding, can not scalded by the hot water in the paper cup body, and set up the arch on the heat insulation sleeve, make things convenient for child or baby to take.

Two, base and bowl cover, set up the bowl cover in the upper end of paper cup body, when child or baby drink water with the paper cup, can prevent that water spills from the upper end in the paper cup to holding the paper cup at child or baby and removing, water can not spill from the cup, the convenience performance and the performance of drinking cup have been improved, set up the base through the lower extreme at the paper cup body, full water need place on the plane in the paper cup, anti-skidding line on the base makes the paper cup stabilize and places on the plane, can not incline, the steadiness of paper cup has been improved.

Drawings

Other features, objects and advantages of the present application will become more apparent upon reading of the following detailed description of non-limiting embodiments thereof, made with reference to the accompanying drawings in which:

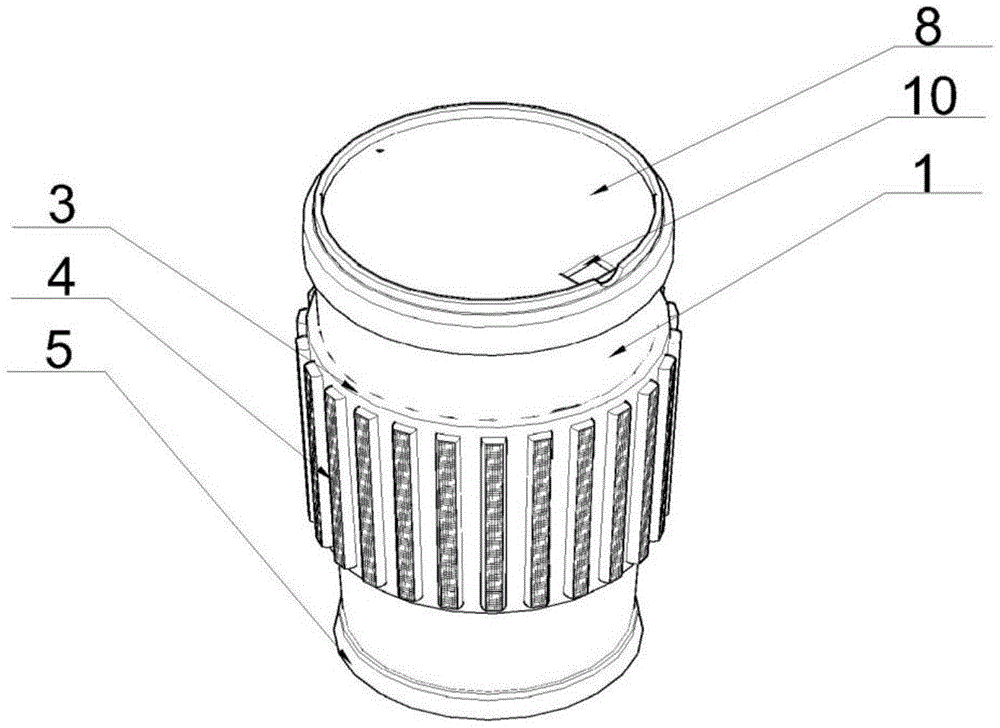

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a front view of the present invention;

FIG. 3 is a schematic view of a partial structure of the present invention;

FIG. 4 is a schematic structural view of a paper cup body according to the present invention;

FIG. 5 is a schematic view of the structure of the base of the present invention;

fig. 6 is a schematic diagram of the structure of the middle trough of the present invention.

Reference numbers in the figures: the paper cup comprises a paper cup body-1, an inner layer-1.1, an outer layer-1.2, a heat insulation interlayer-2, a heat insulation sleeve-3, a bulge-4, a base-5, a placing groove-5.1, anti-skid lines-6, a turned edge-7, a cup cover-8, a fixing groove-8.1, air holes-9, a drinking hole-10, a trough-11 and a filter screen-11.1.

Detailed Description

The present application will be described in further detail with reference to the following drawings and examples. It is to be understood that the specific embodiments described herein are merely illustrative of the relevant invention and not restrictive of the invention. It should be noted that, for convenience of description, only the portions related to the present invention are shown in the drawings.

It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.

As shown in fig. 1, the anti-scald paper cup comprises a paper cup body 1,

the inner side and the outer side of the paper cup body 1 are respectively provided with an inner layer 1.1 and an outer layer 1.2, a heat insulation interlayer 2 is arranged between the inner layer 1.1 and the outer layer 1.2 of the paper cup body 1, the outer wall middle sleeve of the paper cup body 1 is provided with a heat insulation sleeve 3, the lower end of the paper cup body 1 is connected with the base 5, the upper top end of the paper cup body 1 is provided with a turned edge 7, the upper end of the paper cup body 1 is provided with a cup cover 8, and the inner bottom end of the paper cup body 1 is provided with a trough 11.

The inner ring of the heat insulation sleeve 3 is matched with the outer wall of the paper cup body 1, a plurality of protrusions 4 distributed at equal intervals are arranged on the outer circumference of the heat insulation sleeve 3 in a surrounding mode, and patterns are arranged on the upper end faces of the protrusions 4.

The heat insulation interlayer 2 is made of heat-resistant heat insulation material.

The bottom of the base 5 is provided with anti-skid grains 6.

The right side of the upper end of the cup cover 8 is provided with a drinking hole 10, the left side of the upper end of the cup cover 8 is provided with an air vent 9, and the outer side of the upper end of the cup cover 8, which is close to the drinking hole 10, is provided with a transition groove.

The inside of silo 11 is equipped with accommodation space, has placed the material of bubble water in the accommodation space of silo 11, and filter screen 11.1 is installed to the upper end of silo 11.

If fig. 1, fig. 2, fig. 3 and fig. 4 show, when using paper cup splendid attire hot water, pour paper cup body 1 back into hot water, cover 8 lid in paper cup body 1 upper end, and be connected with turn-up 7 through fixed recess 8.1 of 8 lower extremes of bowl covers, thereby fix bowl cover 8 in the upper end of paper cup body 1, when the inside splendid attire of paper cup has hot water, its temperature sees through cup 1 can be through the thermal-insulated heat insulation of insulating layer 2 with most, then at outer 1.2 of transmitting paper cup body 1, suit insulating sleeve 3 on paper cup body 1, child or baby when taking the paper cup, it can not feel hot through insulating sleeve 3 to take the paper cup, and be equipped with arch 4 at the surface that can not feel too hot hand 3, through being equipped with arch 4, make things convenient for the staff to take.

As shown in fig. 3 and 5, the cup cover 8 is arranged at the upper end of the paper cup body 1, when a child or a baby drinks water from the paper cup, water in the paper cup can be prevented from leaking from the upper end, the child or the baby holds the paper cup to move, the water cannot spill out of the paper cup, the convenience performance and the usability performance of the paper cup body 1 are improved, the air holes 9 and the drinking openings 10 are formed in the cup cover 8, partial heat inside the paper cup body 1 is dissipated out through the air holes 9, when the person needs drinking water, the water in the paper cup body 1 can be drunk through the drinking openings 10, the base 5 is arranged at the lower end of the paper cup body 1, the paper cup body 1 is filled with water and needs to be placed on a plane, anti-skidding lines on the base enable the paper cup body 1 to be stably placed on the plane and cannot be inclined, and the stability of the paper cup is improved.

As shown in fig. 6, a trough 11 is arranged at the bottom end inside a paper cup body 1, a filter screen 11.1 is arranged at the upper end of the trough 11, the filter screen is an edible non-woven fine filter screen, a containing space is arranged in the trough 11, and materials for soaking water are placed in the containing space. The boiled water can be directly poured into the paper cup body 1 by children or infants to brew the materials for brewing, so that the brewing time is shortened, and the filter screen 11.1 prevents the filter screen 11.1 from floating upwards after being brewed, so that the drinking of the children or infants is influenced.

The foregoing description is only exemplary of the preferred embodiments of the application and is provided for the purpose of illustrating the general principles of the technology and the like. Meanwhile, the scope of the invention according to the present application is not limited to the technical solutions in which the above-described technical features are combined in a specific manner, and also covers other technical solutions in which the above-described technical features or their equivalent are combined arbitrarily without departing from the inventive concept described above. For example, the above features may be replaced with (but not limited to) features having similar functions disclosed in the present application.

Claims

1. The utility model provides a prevent scalding paper cup, includes paper cup body (1), characterized by:

the paper cup is characterized in that the inner side and the outer side of the paper cup body (1) are respectively provided with an inner layer (1.1) and an outer layer (1.2), a heat insulation interlayer (2) is arranged between the inner layer (1.1) and the outer layer (1.2) of the paper cup body (1), a heat insulation sleeve (3) is sleeved on the middle portion of the outer wall of the paper cup body (1), the lower end of the paper cup body (1) is connected with a base (5), the upper top end of the paper cup body (1) is provided with a turned edge (7), a cup cover (8) is installed at the upper end of the paper cup body (1), and a trough (11) is arranged at the bottom end of the inner portion of the paper cup body (1).

2. An anti-scald paper cup according to claim 1, which is characterized in that: the heat insulation interlayer (2) is embedded between the inner layer (1.1) and the outer layer (1.2) of the paper cup body (1), and the heat insulation interlayer (2) is made of heat-resistant heat-preservation materials.

3. An anti-scald paper cup according to claim 1, which is characterized in that: the inner ring of the heat insulation sleeve (3) is matched with the outer wall of the paper cup body (1), a plurality of protrusions (4) distributed at equal intervals are arranged on the outer circumference of the heat insulation sleeve (3) in an encircling mode, and patterns are arranged on the upper end face of each protrusion (4).

4. An anti-scald paper cup according to claim 1, which is characterized in that: the upper end of base (5) is equipped with standing groove (5.1), base (5) are the round platform type setting and from last down direction on, its diameter is gradually big, the lower extreme of paper cup body (1) is placed to standing groove (5.1) internal fixation, the bottom of base (5) is provided with anti-skidding line (6).

5. An anti-scald paper cup according to claim 1, which is characterized in that: the lower extreme of bowl cover (8) is equipped with fixed recess (8.1), fixed recess (8.1) are connected with turn-up (7) on the paper cup body (1), the upper end right side of bowl cover (8) is equipped with drinks mouthful (10), bowl cover (8) upper end left side is provided with bleeder vent (9), the position that is close to drinks mouthful (10) in bowl cover (8) upper end outside is equipped with the aqueduct.

6. An anti-scald paper cup according to claim 1, which is characterized in that: the inside of silo (11) is equipped with accommodation space, the material of bubble water has been placed in the accommodation space of silo (11), filter screen (11.1) are installed to the upper end of silo (11).
