Abstract
The utility model belongs to the technical field of pipeline production equipment, and particularly relates to a detection device for online production of a PE water supply pipe, which comprises a base plate, a right support sleeve, a gauge clamping pipe, a gauge and a left support sleeve; an L-shaped clamping groove is formed in the gauge clamping tube, a clamping pin is arranged on the gauge, and the gauge is installed in the gauge clamping tube and is axially limited through the clamping pin sliding into the L-shaped clamping groove; the right supporting sleeve and the left supporting sleeve are arranged on two sides of the gauge clamping pipe respectively, the right supporting sleeve, the left supporting sleeve and the gauge clamping pipe are welded on the stinger respectively, and the stinger is welded on the base plate. The detection device is used for sampling inspection of PE water supply pipe on-line production, and the outer diameter size of a through gauge detection pipeline can be detected to be not more than the upper limit value by installing the through gauge on the gauge clamp pipe. In addition, the universal gauge can detect whether bubbles or raised hard particles exist on the outer surface of the pipeline. The efficiency and the quality of the pipeline sampling inspection can be effectively improved.
Description
Technical Field
The utility model belongs to the technical field of pipeline production equipment, and particularly relates to a detection device for online production of a PE water supply pipe.
Background
In the production process of the PE water supply pipe, sampling detection needs to be carried out on the pipeline, and whether the outer diameter size and the outer surface of the pipeline are qualified or not is carried out in a sampling mode. At present, calipers are usually used to measure the outer diameter of small-sized pipelines at different positions in sampling inspection, and the outer surface of the pipelines is visually inspected to determine whether bubbles or hard particles exist. The calipers are used for measuring the outer diameter sizes of different positions of the pipeline, so that the efficiency is low, the measurement error also exists, one pipeline needs to be measured and read for many times, and the efficiency and the quality of sampling inspection are influenced. Therefore, it is necessary to design a detection device for online production of a PE water supply pipe.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a detection device for online production of a PE water supply pipe, which is used for sampling detection of online production of the PE water supply pipe, and can detect that the outer diameter of a pipeline is not more than an upper limit value by installing a go gauge on a gauge clamp pipe. In addition, the universal gauge can detect whether bubbles or raised hard particles exist on the outer surface of the pipeline. The efficiency and the quality of the pipeline sampling inspection can be effectively improved.
The technical scheme adopted by the utility model is as follows: a detection device for online production of a PE water supply pipe comprises a base plate, a right support sleeve, a gauge clamp pipe, a gauge and a left support sleeve; the gauge clamping tube is provided with an L-shaped clamping groove, the gauge is provided with a clamping pin, and the gauge is installed in the gauge clamping tube and is axially limited by the clamping pin sliding into the L-shaped clamping groove; the right supporting sleeve and the left supporting sleeve are respectively arranged on two sides of the gauge clamping pipe, the right supporting sleeve, the left supporting sleeve and the gauge clamping pipe are respectively welded on the stinger, and the stinger is welded on the base plate.
Further, the right support sleeve, the gage clamp tube and the left support sleeve are coaxial.
Furthermore, the clamping pin and the L-shaped clamping groove are in transition fit.
Further, the gauge is a go gauge.
Further, the gauge is a no-go gauge.
Further, an arc-shaped supporting plate is arranged at the top of the stinger.
The utility model has the beneficial effects that: the detection device is used for sampling detection of online production of the PE water supply pipe, and the outer diameter of a through gauge detection pipeline can be detected to be not more than the upper limit value by installing the through gauge on a gauge clamping pipe. In addition, the universal gauge can detect whether bubbles or raised hard particles exist on the outer surface of the pipeline. The efficiency and the quality of the pipeline sampling inspection can be effectively improved.
Drawings

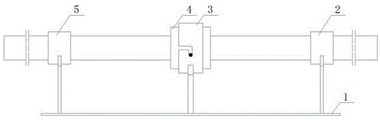

FIG. 1 is a schematic front view of the first embodiment;
FIG. 2 is a right side view of FIG. 1;
FIG. 3 is a left side view of FIG. 1;
FIG. 4 is a rear view of FIG. 1;
FIG. 5 is a schematic front view of a gauge tube according to an embodiment;
FIG. 6 is a schematic diagram of a front view of a gauge in a first embodiment;
FIG. 7 is a left side view of FIG. 6;
fig. 8 is an assembly schematic of a gauge and a gauge card tube in an embodiment one.
Detailed Description
Example one
Referring to the figures, the detection device for online production of the PE water supply pipe comprises a base plate 1, a right support sleeve 2, a gauge clamping pipe 3, a gauge 4 and a left support sleeve 5; the gauge clamping tube 3 is provided with an L-shaped clamping groove 31, the gauge 4 is provided with a clamping pin 41, and the gauge 4 is installed in the gauge clamping tube 3 and axially limited by the clamping pin 41 sliding into the L-shaped clamping groove 31; the right support sleeve 2 and the left support sleeve 5 are respectively arranged at two sides of the gauge clamping pipe 3, the right support sleeve 2, the left support sleeve 5 and the gauge clamping pipe 3 are respectively welded on a stinger, and the stinger is welded on the base plate 1; the right support sleeve 2, the gauge clamping tube 3 and the left support sleeve 5 are coaxial; the bayonet 41 and the L-shaped bayonet 31 are in transition fit; the gauge 4 is a go gauge or a no-go gauge; and an arc-shaped supporting plate is arranged at the top of the stinger.
When using to lead to the rule to the pipeline selective examination of PE feed pipe production line, install the logical rule of this model pipeline of selective examination on gauge card pipe earlier, will lead to the bayonet lock of rule during the installation and slide and insert to the L shape draw-in groove of gauge card pipe in, after the tip was arranged in to the bayonet lock, rotatory logical rule made the lower extreme of bayonet lock screw in L shape draw-in groove, the bayonet lock of card income circumference draw-in groove can prevent to lead to rule axial float. The installation and the dismantlement of gauge are simple, are convenient for change the gauge. During detection, the right end of the pipeline penetrates through the left support sleeve firstly, then the pipeline penetrates through the through gauge, if the pipeline can completely penetrate through the through gauge, the pipeline meets the requirement, the outer diameter of the pipeline does not exceed the upper limit value, and if the pipeline cannot penetrate through the through gauge, the outer diameter of the pipeline exceeds the upper limit value and does not meet the requirement. And when the right end of the pipeline passes through the go gauge, the right end of the pipeline penetrates through the right support sleeve, and then the pipeline is held to move rightwards to perform detection. In addition, if there are large bubbles or raised hard particles on the outer surface of the pipeline, the pipeline cannot pass through the gauge, and further detection is needed to determine whether the pipeline is a qualified product. The sampling inspection efficiency and quality of the pipeline are improved.
Claims (6)
1. The utility model provides a detection device is used in online production of PE feed pipe which characterized in that: the detection device comprises a base plate (1), a right support sleeve (2), a gauge clamping tube (3), a gauge (4) and a left support sleeve (5); the gauge clamping tube (3) is provided with an L-shaped clamping groove (31), the gauge (4) is provided with a clamping pin (41), and the gauge (4) is installed in the gauge clamping tube (3) and is axially limited by the clamping pin (41) sliding into the L-shaped clamping groove (31); the right supporting sleeve (2) and the left supporting sleeve (5) are arranged on two sides of the gauge clamping pipe (3) respectively, the right supporting sleeve (2), the left supporting sleeve (5) and the gauge clamping pipe (3) are welded on the stinger respectively, and the stinger is welded on the base plate (1).
2. The detection device for online production of the PE water supply pipe according to claim 1, wherein the detection device comprises: the right support sleeve (2), the gauge clamping pipe (3) and the left support sleeve (5) are coaxial.
3. The detection device for online production of the PE water supply pipe according to claim 1, wherein the detection device comprises: the clamping pin (41) and the L-shaped clamping groove (31) are in transition fit.
4. The detection device for online production of the PE water supply pipe according to claim 1, wherein the detection device comprises: the gauge (4) is a go gauge.
5. The detection device for online production of the PE water supply pipe according to claim 1, wherein the detection device comprises: the gauge (4) is a no-go gauge.
6. The detection device for online production of the PE water supply pipe according to claim 1, wherein the detection device comprises: and an arc-shaped supporting plate is arranged at the top of the stinger.
