CN217031960U - Heating device and heat pump dryer - Google Patents
Heating device and heat pump dryer Download PDFInfo
- Publication number
- CN217031960U CN217031960U CN202220197064.5U CN202220197064U CN217031960U CN 217031960 U CN217031960 U CN 217031960U CN 202220197064 U CN202220197064 U CN 202220197064U CN 217031960 U CN217031960 U CN 217031960U
- Authority
- CN
- China
- Prior art keywords
- heat pump
- block
- drying room
- main body
- fan
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Drying Of Solid Materials (AREA)
Abstract
The utility model discloses a heating device and a heat pump dryer, which comprise a fan arranged on one side of a heat pump main body, a grid door arranged on one side of the heat pump main body, a control box and a heat dissipation port arranged on one side of the heat pump main body close to the grid door, a fan groove arranged on the upper surface of a drying room, a circular block arranged on the inner bottom wall of the drying room, fan blades rotatably connected to the upper surface of a connecting frame, a cover opening mechanism with the same transverse area as that of the fan groove, a fixed frame arranged on the upper surface of the drying room and connected to the inside of the fixed frame, and a sealing cover movably inserted into the inside of the movable block. The utility model has the beneficial effects that: can discharge the inside heat in stoving room fast, the personnel of being convenient for get into.
Description
Technical Field
The utility model relates to a heat pump dryer, in particular to a heating device and a heat pump dryer, and belongs to the technical field of heat pump dryers.
Background
In the drying aspect, the traditional drying mode which mainly adopts coal and assists fuel gas and fuel oil is mostly adopted by enterprises, so that the energy consumption and the labor cost are high, the quality of dried products is poor, the efficiency is low, the automation control degree is low, the labor capacity of operators is large, the environmental pollution is large, and the sanitation and the safety of food cannot be ensured; with the development and progress of the technology, equipment of the heat pump dryer is produced at the same time, and the energy consumption of the heat pump dryer is far lower than that of dehumidification drying modes such as fuel heating, electric heating and the like;
most drying device all puts into drying device through the manual work in at present most drying device uses, dries and finishes after taking out, but the inside temperature of drying device that just finishes is very high, and personnel need wait the temperature to scatter and just can get into, leads to work efficiency to reduce, therefore we have proposed a heating device and heat pump drying-machine.
SUMMERY OF THE UTILITY MODEL
The present invention achieves the above object by the following technical scheme, a heating apparatus comprising:
the heat pump device comprises a heat pump main body, wherein a fan is installed on one side of the heat pump main body, a grid door is installed on one side of the heat pump main body, a control box and a heat dissipation opening are installed on one side, close to the grid door, of the heat pump main body, and the heat dissipation opening is located below the control box.
A heat pump dryer comprising:
the heat pump comprises a heat pump body, a drying room, a fan groove, a circular block, a connecting frame and a fan blade, wherein the drying room is fixedly arranged on the side wall of the heat pump body, one side of the drying room is rotatably connected with a room door, the upper surface of the drying room is provided with the fan groove, the inner bottom wall of the drying room is provided with the circular block, the connecting frame is arranged in the circular block, the upper surface of the connecting frame is rotatably connected with the fan blade, and the transverse cutting area of the circular block is the same as that of the fan groove;
the cover opening mechanism comprises a fixed frame, a movable block and a sealing cover, the fixed frame is installed on the upper surface of the drying room, the movable block is connected to the inside of the fixed frame, and the sealing cover is movably inserted into the movable block.
Preferably, the cover opening mechanism further comprises two sliding grooves, the two sliding grooves are formed in the upper surface of the fixing frame, a connecting block is connected to the inner portion of each sliding groove, and the lower surface of each connecting block is arranged on the upper surface of the corresponding moving block.
Preferably, electric telescopic handle is installed to one side of connecting block, and electric telescopic handle's the one end of keeping away from the connecting block is installed at the upper surface in stoving room.
Preferably, the moving block is provided with a circular groove therein, an inner wall of the circular groove is attached to an outer surface of the sealing cover, and a diameter of the circular groove is the same as a diameter of the fan groove.
Preferably, the bracing piece is all installed to four edges and corners of movable block upper surface, and the last surface mounting of bracing piece has the fixed block, the last surface mounting of fixed block has the cylinder, and the output of cylinder runs through the lower surface of fixed block, and the output of cylinder is installed at the upper surface of sealed lid.
The beneficial effects of the utility model are:
1. the utility model provides a heating device and heat pump drying-machine, drive sealed lid rebound through the cylinder, make sealed lid and movable block separation, then electric telescopic handle drives the connecting block and removes, the connecting block removes and drives the removal piece and remove, the removal piece removes and drives the bracing piece and removes, the bracing piece drives the fixed block and removes, the fixed block drives sealed lid and removes, thereby open the fan groove, the flabellum of being convenient for rotates and produces wind-force, thereby take out the heat in the room of drying, the quick hypothermia of being convenient for, thereby make things convenient for personnel to get into.
2. The utility model provides a heating device and heat pump drying-machine, when personnel need get into, at first cylinder work, output rebound drives sealed lid rebound, make sealed lid and circular groove separation, thereby open the fan groove, then electric telescopic handle work, the telescopic link is tensile, it removes to drive the connecting block, the connecting block removes and drives the removal piece and removes, thereby make sealed lid remove one side, then the flabellum rotates the heat discharge in with the stoving room, the personnel of being convenient for get into, prevent to be burnt by high temperature.
Drawings

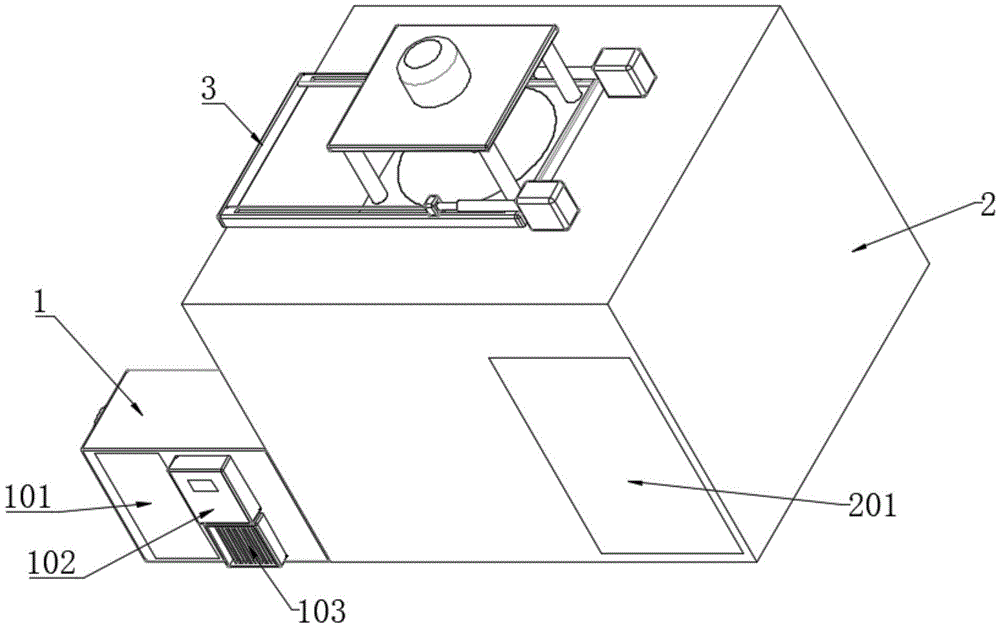

FIG. 1 is a schematic view of the main structure of the present invention;
FIG. 2 is a schematic view of a drying room according to the present invention;
FIG. 3 is a schematic view of the fixing frame of the present invention;
FIG. 4 is a schematic view of the electric telescopic rod of the present invention;
fig. 5 is a schematic structural diagram of a moving block according to the present invention.
In the figure: 1. a heat pump main body; 101. a grid gate; 102. a control box; 103. a heat dissipation port; 2. a drying room; 201. a door; 202. a fan groove; 203. a circular block; 204. a connecting frame; 205. a fan blade; 3. a fixed mount; 301. a moving block; 302. an electric telescopic rod; 303. a sealing cover; 304. connecting blocks; 305. a circular groove; 306. a support bar; 307. a fixed block; 308. a cylinder; 309. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without making any creative effort based on the embodiments in the present invention, belong to the protection scope of the present invention.
The embodiment of the utility model discloses a heating device and a heat pump dryer.
According to the attached drawings 1 and 2, a fan is fixedly connected to one side of a heat pump body 1, a grid door 101 is fixedly connected to one side of the heat pump body 1, a control box 102 and a heat dissipation port 103 are fixedly connected to one side of the heat pump body 1 close to the grid door 101, and the heat dissipation port 103 is located below the control box 102;
the drying room 2 is fixedly arranged on the side wall of the heat pump main body 1, one side of the drying room 2 is rotatably connected with a room door 201, the upper surface of the drying room 2 is provided with a fan groove 202, the inner bottom wall of the drying room 2 is fixedly connected with a circular block 203, the inside of the circular block 203 is fixedly connected with a connecting frame 204, the upper surface of the connecting frame 204 is rotatably connected with fan blades 205, and the transverse cross-sectional area of the circular block 203 is the same as that of the fan groove 202;
the cover opening mechanism comprises a fixed frame 3, a movable block 301 and a sealing cover 303, the fixed frame 3 is fixedly connected to the upper surface of the drying room 2, the movable block 301 is connected to the inside of the fixed frame 3 in a sliding mode, and the sealing cover 303 is movably inserted into the movable block 301;
drive sealed lid 303 rebound through cylinder 308, make sealed lid 303 separate with the movable block 301, then electric telescopic handle 302 drives connecting block 304 and removes, connecting block 304 removes and drives movable block 301 and remove, movable block 301 removes and drives bracing piece 306 and remove, bracing piece 306 drives fixed block 307 and removes, fixed block 307 drives sealed lid 303 and removes, thereby open fan groove 202, it produces wind-force to be convenient for flabellum 205 rotates, thereby take out the heat in room 2 inside of drying, be convenient for reduce the temperature, thereby make things convenient for personnel to get into.
As shown in fig. 3 and 4, the cover opening mechanism further includes two sliding grooves 309, the two sliding grooves 309 are both formed in the upper surface of the fixed frame 3, a connecting block 304 is slidably connected inside the sliding groove 309, and the lower surface of the connecting block 304 is fixedly connected to the upper surface of the moving block 301;
one side of the connecting block 304 is fixedly connected with an electric telescopic rod 302, one end of the electric telescopic rod 302, which is far away from the connecting block 304, is fixedly connected to the upper surface of the drying room 2, a circular groove 305 is formed inside the moving block 301, the inner wall of the circular groove 305 is attached to the outer surface of the sealing cover 303, and the diameter of the circular groove 305 is the same as that of the fan groove 202;
the four edges of the upper surface of the moving block 301 are fixedly connected with supporting rods 306, the upper surface of each supporting rod 306 is fixedly connected with a fixing block 307, the upper surface of each fixing block 307 is fixedly connected with an air cylinder 308, the output end of each air cylinder 308 penetrates through the lower surface of each fixing block 307, and the output end of each air cylinder 308 is fixedly connected to the upper surface of the corresponding sealing cover 303;
when personnel need get into, at first cylinder 308 work, the output up-shift drives sealed lid 303 up-shift, make sealed lid 303 and circular groove 305 separate, thereby open fan groove 202, then electric telescopic handle 302 work, the telescopic link is tensile to drive connecting block 304 and is removed, connecting block 304 removes and drives movable block 301 and remove, thereby make sealed lid 303 remove one side, then flabellum 205 rotates and discharges the heat in the stoving room 2, the personnel of being convenient for get into, prevent to be burnt by high temperature.
The working principle is as follows:
when the electric telescopic rod is used, firstly, the door 201 is opened, objects are placed into the drying room 2, then, the door 201 is closed, then, drying is carried out through the control panel, after drying is finished, the air cylinder 308 works, the output end moves upwards to drive the sealing cover 303 to move upwards, the sealing cover 303 is separated from the circular groove 305, therefore, the fan groove 202 is opened, and then, the electric telescopic rod 302 works;
the tensile drive connecting block 304 of telescopic link removes in spout 309, the drive movable block 301 that connecting block 304 removed removes, movable block 301 removes and drives bracing piece 306 and remove, bracing piece 306 removes and drives fixed block 307 and removes, fixed block 307 removes and drives cylinder 308 and removes, cylinder 308 removes and drives sealed lid 303 and removes, thereby make sealed lid 303 remove one side, not be in the top of circular recess 305, then flabellum 205 rotates, the inside temperature in room 2 that will dry is discharged, can dispel the heat fast, and the work efficiency is improved.
For those skilled in the art, the air cylinder 308 drives the sealing cover 303 to move upwards, so that the sealing cover 303 is separated from the moving block 301, then the electric telescopic rod 302 drives the connecting block 304 to move, the connecting block 304 moves to drive the moving block 301 to move, the moving block 301 moves to drive the supporting rod 306 to move, the supporting rod 306 drives the fixing block 307 to move, and the fixing block 307 drives the sealing cover 303 to move, so that the fan groove 202 is opened, the fan blade 205 can rotate to generate wind power, heat inside the drying room 2 can be taken out, the temperature can be rapidly reduced, and people can conveniently enter the drying room;
when personnel need get into, at first cylinder 308 work, the output up-shift drives sealed lid 303 up-shift, make sealed lid 303 and circular groove 305 separate, thereby open fan groove 202, then electric telescopic handle 302 work, the telescopic link is tensile, drive connecting block 304 and remove, connecting block 304 removes and drives movable block 301 and remove, thereby make sealed lid 303 remove one side, then flabellum 205 rotates and discharges the heat in stoving room 2, the personnel of being convenient for get into, prevent to be burnt by high temperature.
Furthermore, it should be understood that although the present specification describes embodiments, not every embodiment includes only a single embodiment, and such description is for clarity purposes only, and it is to be understood that all embodiments may be combined as appropriate by one of ordinary skill in the art to form other embodiments as will be apparent to those of skill in the art from the description herein.
Claims (6)
1. A heating device, comprising:
the heat pump system comprises a heat pump main body (1), wherein a fan is installed on one side of the heat pump main body (1), a grid door (101) is installed on one side of the heat pump main body (1), a control box (102) and a heat dissipation opening (103) are installed on one side, close to the grid door (101), of the heat pump main body (1), and the heat dissipation opening (103) is located below the control box (102).
2. A heat pump dryer comprising a heating apparatus of claim 1, characterized by further comprising:
the heat pump air conditioner comprises a drying room (2), wherein the drying room (2) is fixedly installed on the side wall of a heat pump main body (1), one side of the drying room (2) is rotatably connected with a door (201), a fan groove (202) is formed in the upper surface of the drying room (2), a round block (203) is installed on the inner bottom wall of the drying room (2), a connecting frame (204) is installed inside the round block (203), fan blades (205) are rotatably connected to the upper surface of the connecting frame (204), and the transverse cutting area of the round block (203) is the same as that of the fan groove (202);
the cover opening mechanism comprises a fixed frame (3), a moving block (301) and a sealing cover (303), the fixed frame (3) is installed on the upper surface of the drying room (2), the moving block (301) is connected inside the fixed frame (3), and the sealing cover (303) is movably inserted inside the moving block (301).
3. The heat pump dryer according to claim 2, wherein: the uncovering mechanism further comprises two sliding grooves (309), the two sliding grooves (309) are formed in the upper surface of the fixing frame (3), a connecting block (304) is connected inside the sliding grooves (309), and the lower surface of the connecting block (304) is installed on the upper surface of the moving block (301).
4. A heat pump dryer according to claim 3, wherein: electric telescopic handle (302) are installed to one side of connecting block (304), and the upper surface in stoving room (2) is installed to the one end of keeping away from connecting block (304) of electric telescopic handle (302).
5. The heat pump dryer according to claim 4, wherein: a circular groove (305) is formed in the moving block (301), the inner wall of the circular groove (305) is attached to the outer surface of the sealing cover (303), and the diameter of the circular groove (305) is the same as that of the fan groove (202).
6. The heat pump dryer according to claim 5, wherein: supporting rods (306) are installed at four edges of the upper surface of the moving block (301), fixing blocks (307) are installed on the upper surface of the supporting rods (306), air cylinders (308) are installed on the upper surface of the fixing blocks (307), the output ends of the air cylinders (308) penetrate through the lower surfaces of the fixing blocks (307), and the output ends of the air cylinders (308) are installed on the upper surface of the sealing cover (303).
