CN217011105U

CN217011105U - Sleep-assisting sound box

Info

Publication number: CN217011105U
Application number: CN202123326682.XU
Authority: CN
Inventors: 胡承栋; 吴艳
Original assignee: Zhuhai Jizhi Communication Technology Co ltd
Current assignee: Zhuhai Jizhi Communication Technology Co ltd
Priority date: 2021-12-27
Filing date: 2021-12-27
Publication date: 2022-07-19
Anticipated expiration: 2031-12-27

Abstract

The utility model relates to the technical field of sleep aiding, and discloses a sleep aiding sound box which comprises a main body, wherein a main control circuit board is arranged in the main body, the main body is provided with a tuning switch, the tuning switch is connected with the main control circuit board, the main body is also provided with a charging platform, a wireless charging module is arranged in the main body and is connected with the main control circuit board, and the wireless charging module is used for charging electronic equipment arranged on the charging platform. The tuning switch is used for selecting different sound sources so as to meet the requirements of different users; moreover, the sleep-assisting sound box is also provided with the charging platform, so that a user can conveniently charge the electronic equipment when relaxing and sleeping or when the electronic equipment is not powered, the occupied space of single wireless charging equipment is saved, and the storage is convenient; compared with a single wireless charging device, the sleep-assisting sound box is more striking and easy to find, and the time for a user to find the wireless charging device in daily life is saved; the multifunctional electric heating cooker is multifunctional, practical and convenient, and brings convenience to the life of a user.

Description

Sleep-assisting sound box

Technical Field

The utility model relates to the technical field of sleep aiding, in particular to a sleep aiding sound box.

Background

Today, as society develops rapidly, many people have insomnia, and hearing white noise is an effective means for helping sleep in solving the insomnia. At present, a sleep-assisting sound box special for playing white noise exists, but most of the sleep-assisting sound boxes have single functions, and the practicability can be further improved.

SUMMERY OF THE UTILITY MODEL

In order to overcome the defects of the prior art, the utility model provides a sleep-assisting sound box, and one aspect of the disclosure solves the technical problem that the function of the existing sleep-assisting sound box is single.

The technical scheme adopted by the utility model for solving the technical problems is as follows:

the utility model provides a help dormancy audio amplifier, includes the main part, the inside master control circuit board that is equipped with of main part, the main part is equipped with the tuning switch, the tuning switch is connected with the master control circuit board, the main part still is equipped with charging platform, the internally mounted of main part has wireless charging module, wireless charging module is connected with the master control circuit board, wireless charging module is used for charging for the electronic equipment of arranging charging platform in.

As an improvement of the technical scheme, the main body is provided with a light source, the light source is connected with the main control circuit board, and the light source is used for lighting.

As an improvement of the technical scheme, the main body is provided with a handle, and the handle can rotate relative to the main body.

As an improvement of the technical scheme, the handle is a U-shaped handle, two ends of the handle are respectively installed on two sides of the main body, the handle can rotate to be vertical, and the handle can also rotate to the middle of the handle to be flush with the bottom of the main body.

As an improvement of the above technical scheme, the handle includes an inner shell and an outer shell respectively located on the inner side and the outer side of the handle, a lamp strip is arranged between the inner shell and the outer shell, the inner shell is a transparent material shell, the outer shell is a metal material shell, and the lamp strip and the outer shell are respectively connected with the main control circuit board through wires.

As an improvement of the above technical solution, the charging platform is located at the top of the main body, and the wireless charging module is located at the lower side of the charging platform.

As an improvement of the above technical scheme, the tuning switch includes a plurality of slide switches, the main control circuit board is provided with a sound source potentiometer, and the tuning switch is connected with the sound source potentiometer.

As an improvement of the above technical solution, the main control circuit board is mounted on a side surface inside the main body, the plurality of slide switches are mounted on a side surface of the main body, a plurality of sliding grooves are formed in a side wall of the main body, one slide switch penetrates through one sliding groove, one end of the slide switch is connected to the sound source potentiometer, and the other end of the slide switch protrudes out of the main body.

As an improvement of the above technical scheme, the inside of main part is equipped with the audio amplifier body, the audio amplifier body is connected with the main control circuit board, the audio amplifier body is equipped with loudspeaker and vibrating diaphragm, the main part has seted up out the sound mesh in corresponding position department, the sound outlet of loudspeaker is towards out the sound mesh.

As an improvement of the technical scheme, a power panel and a battery which are connected with each other are arranged inside the main body, a power interface is arranged on the side face of the main body and connected with the power panel, and the power panel and the battery are both connected with the main control circuit board.

One beneficial effect brought by one aspect of the disclosure is:

according to one aspect of the disclosure, the tuning switch of the sleep-assisting sound box is used for selecting different sound sources so as to meet the requirements of different users; moreover, the sleep-assisting sound box is also provided with the charging platform, so that a user can conveniently charge the electronic equipment when relaxing and sleeping or when the electronic equipment is not powered, the occupied space of single wireless charging equipment is saved, and the storage is convenient; compared with a single wireless charging device, the sleep-assisting sound box is more striking and easy to find, and the time for a user to find the wireless charging device in daily life is saved; the multifunctional desk has multiple functions, is practical and convenient, and brings convenience to the life of a user.

Drawings

The utility model is further described with reference to the following detailed description of embodiments and drawings, in which:

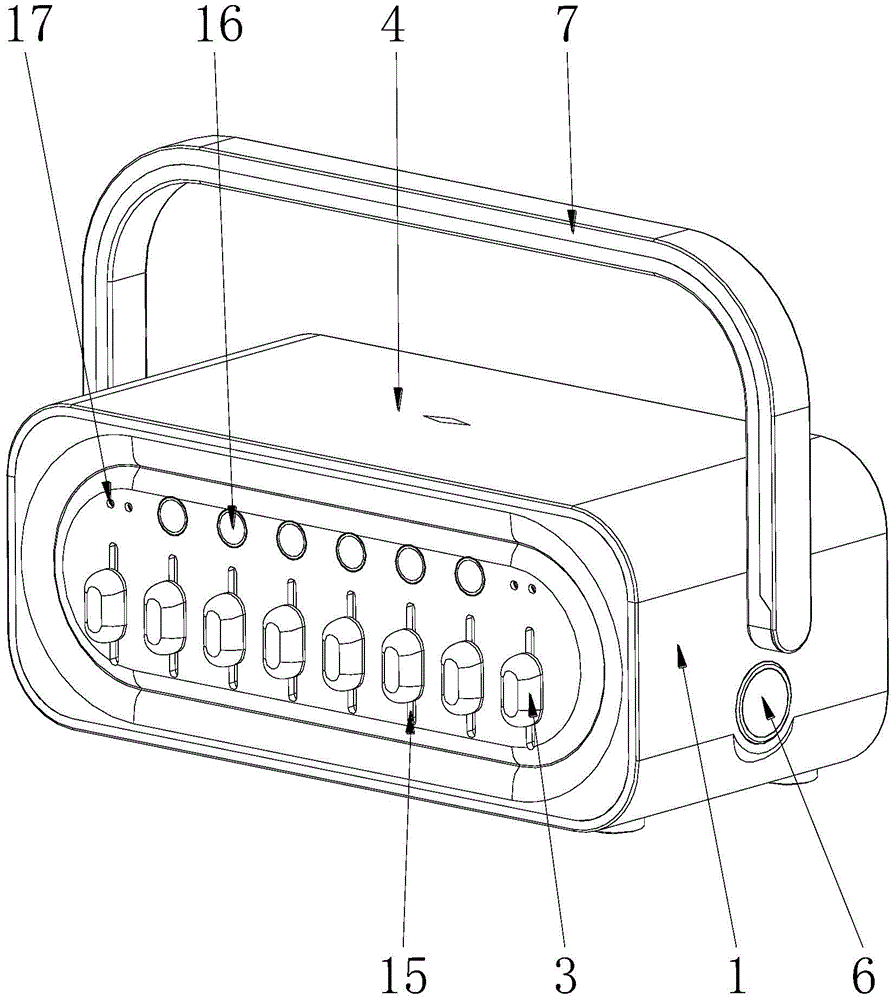

FIG. 1 is a perspective view of one embodiment of the present invention;

FIG. 2 is another perspective view of one embodiment of the present invention;

FIG. 3 is a schematic diagram of a portion of one embodiment of the present invention;

FIG. 4 is another schematic structural diagram of a portion of one embodiment of the present invention;

fig. 5 is a partial structural cross-sectional view of a handle of one of the embodiments of the present invention.

Detailed Description

Referring to fig. 1 and 4, the sleep-assisting sound box comprises a main body 1, wherein a main control circuit board 2 is arranged inside the main body 1, the main body 1 is provided with a tuning switch, the tuning switch is connected with the main control circuit board 2, the main body 1 is further provided with a charging platform 4, a wireless charging module 5 is arranged inside the main body 1, the wireless charging module 5 is connected with the main control circuit board 2, and the wireless charging module 5 is used for charging electronic equipment arranged on the charging platform 4.

Specifically, the tuning switch of the sleep-assisting sound box is used for selecting different sound sources so as to meet the requirements of different users; moreover, the sleep-assisting sound box is also provided with the charging platform 4, so that a user can conveniently charge the electronic equipment when relaxing and sleeping or when the electronic equipment is not powered, the occupied space of single wireless charging equipment is saved, and the storage is convenient; compared with a single wireless charging device, the sleep-assisting sound box is more striking and easy to find, and the time for a user to find the wireless charging device in daily life is saved; the multifunctional desk has multiple functions, is practical and convenient, and brings convenience to the life of a user.

Further, the shape of the body 1 may be various, and may be a regular or irregular shape, such as a rectangular parallelepiped, a cylindrical shape, a triangular prism, a step shape, or the like.

In this embodiment, charging platform 4 is located the top of main part 1, wireless module 5 that charges is located charging platform 4's downside, and the support frame is installed to charging platform 4's lower lateral wall, and wireless charging module 5 is installed in the support frame, and wireless charging module 5 is pressed close to charging platform 4. Thus, when the electronic equipment needs to be charged, the electronic equipment can be charged only by placing the electronic equipment on the main body 1 of the sleep-assisting sound box, and the electronic equipment is convenient to use.

Further, the tuning switch has various forms, such as: the tuning switch comprises a knob switch, or the tuning switch comprises a plurality of knob switches, or the tuning switch comprises a plurality of sliding switches 3.

In this embodiment, the tuning switch includes a plurality of slide switches 3, the main control circuit board 2 is provided with a sound source potentiometer 21, and the plurality of slide switches 3 are all connected with the sound source potentiometer 21. The sound source potentiometer 21 is a sound source selector, and a user can select a single sound source by toggling one sliding switch 3, or toggle different sliding switches 3 to simultaneously select a plurality of sound sources, so that different requirements of different users can be met in a diversified manner, and the volume can be adjusted by toggling the sliding switch 3.

Further, the plurality of sound sources may be different types of sound sources, for example, rain sound, wind sound, jungle sound, frog sound, bird song, stream sound, cricket sound, wood burning sound, and the like.

Specifically, referring to fig. 1, the main control circuit board 2 is installed on a side surface inside the main body 1, the plurality of sliding switches 3 are also installed on the side surface of the main body 1, the plurality of sliding switches 3 may be uniformly or non-uniformly arranged on the side surface of the main body 1, the side wall of the main body 1 is provided with a plurality of sliding grooves 15, one sliding switch 3 is inserted into one sliding groove 15, one end of the sliding switch 3 is connected to the sound source potentiometer 21, the other end of the sliding switch 3 protrudes out of the main body 1, the sliding switch 3 can slide in the sliding groove 15, and the plurality of sliding grooves 15 may have different heights and the same lengths.

Further refer to fig. 2 and 3, the inside of main part 1 is equipped with audio amplifier body 8, audio amplifier body 8 is connected with main control circuit board 2, audio amplifier body 8 is equipped with loudspeaker 9 and vibrating diaphragm 10, main part 1 has seted up out sound mesh 11 corresponding to position department, loudspeaker 9's sound outlet is towards sound mesh 11, the diffusion of the sound of being convenient for. The diaphragm 10 is used to soften the sound and enhance the sleep-aiding effect.

Moreover, the inside of main part 1 is equipped with power strip 12, the side of main part 1 is equipped with power interface 13 and battery 14, power interface 13 is connected with power strip 12, power strip 12 and battery 14 all are connected with main control circuit board 2. The power interface 13 can charge the battery 14 and also can supply power to the wireless charging module 5.

In addition, the side of main part 1 still is equipped with control button 16 and pilot lamp 17, and control button 16 and pilot lamp 17 all are connected with main control circuit board 2. The control button 16 is used for controlling the sleep-assisting sound box to enter different states, and the indicator light 17 is used for displaying the different states of the sleep-assisting sound box.

Further refer to fig. 1, in order to adapt to different use scenes, this helps dormancy audio amplifier still has the flashlight function, specifically does, the side of main part 1 is equipped with light source 6, light source 6 is connected with main control circuit board 2, light source 6 is used for the illumination. The light source 6 comprises a light source concave cavity arranged on the side face of the main body 1, a bulb is arranged in the light source concave cavity, a lens is arranged at the opening of the light source concave cavity, and the bulb is connected with the main control circuit board 2. The light source 6 is convenient for a user to move in a dark environment, and can be used in daily and emergency scenes.

Moreover, main part 1 is equipped with handle 7, handle 7 can rotate relative main part 1 to help sleeping the carrying and the removal of audio amplifier, also make things convenient for the user to use its flashlight function more.

In this embodiment, the handle 7 is a U-shaped handle, two ends of the handle 7 are respectively installed at two sides of the main body 1, the handle 7 can be rotated to be vertical, and the handle 7 can also be rotated to be flush with the middle of the handle 7 and the bottom of the main body 1. The U-shaped handle structure is convenient for a user to carry the sleep-assisting sound box in the hand and also convenient for the user to hang the sleep-assisting sound box so as to adapt to different use environments.

Referring to fig. 5 specifically, the handle 7 includes an inner shell 71 and an outer shell 72 respectively located on the inner side and the outer side of the handle 7, a light strip 73 is disposed between the inner shell 71 and the outer shell 72, the inner shell 71 is a transparent material shell, the outer shell 72 is a metal material shell, and the light strip 73 and the outer shell 72 are respectively connected to the main control circuit board 2 through wires. The inner housing 71 of this embodiment is made of a light-transmitting material so that the light emitted from the light strip 73 can be diffused more gently.

The above description is only a preferred embodiment of the present invention, but the present invention is not limited to the above embodiments, and the present invention shall fall within the protection scope of the present invention as long as the technical effects of the present invention are achieved by any similar or identical means.

Claims

1. A sleep-aiding sound box is characterized in that: including main part (1), main part (1) inside is equipped with master control circuit board (2), main part (1) is equipped with the tuning switch, the tuning switch is connected with master control circuit board (2), main part (1) still is equipped with charging platform (4), the internally mounted of main part (1) has wireless charging module (5), wireless charging module (5) are connected with master control circuit board (2), wireless charging module (5) are used for charging for the electronic equipment of arranging charging platform (4) in.

2. A sleep aid audio amplifier according to claim 1, wherein: the main part (1) is equipped with light source (6), light source (6) are connected with main control circuit board (2), light source (6) are used for the illumination.

3. A sleep aid speaker as claimed in claim 1, wherein: the main body (1) is provided with a handle (7), and the handle (7) can rotate relative to the main body (1).

4. A sleep aid audio amplifier according to claim 3, wherein: the portable multifunctional nursing bed is characterized in that the handle (7) is U-shaped, two ends of the handle (7) are respectively installed on two sides of the main body (1), the handle (7) can rotate to be vertical, and the handle (7) can also rotate to the middle of the handle (7) to be flush with the bottom of the main body (1).

5. A sleep aid speaker as claimed in claim 3, wherein: handle (7) are including inner shell (71) and shell (72) that are located handle (7) inboard and outside respectively, be equipped with lamp area (73) between inner shell (71) and shell (72), inner shell (71) are the printing opacity material shell, shell (72) are the metal material shell, lamp area (73) with shell (72) are connected with main control circuit board (2) respectively through the wire.

6. A sleep aid audio amplifier according to any one of claims 1 to 5, wherein: charging platform (4) are located the top of main part (1), wireless module (5) of charging are located the downside of charging platform (4).

7. A sleep aid speaker as claimed in any one of claims 1 to 5, wherein: the volume adjustment switch includes a plurality of slide switch (3), master control circuit board (2) are equipped with sound source potentiometre (21), the volume adjustment switch is connected with sound source potentiometre (21).

8. The sleep-aid sound box as claimed in claim 7, wherein: the main control circuit board (2) is installed on the side face of the inside of the main body (1), the sliding switches (3) are installed on the side face of the main body (1), a plurality of sliding grooves (15) are formed in the side wall of the main body (1), one sliding switch (3) penetrates through one sliding groove (15), one end of the sliding switch (3) is connected with the sound source potentiometer (21), and the other end of the sliding switch (3) protrudes out of the main body (1).

9. A sleep aid audio amplifier according to any one of claims 1 to 5, wherein: the inside of main part (1) is equipped with audio amplifier body (8), audio amplifier body (8) are connected with main control circuit board (2), audio amplifier body (8) are equipped with loudspeaker (9) and vibrating diaphragm (10), main part (1) has seted up out sound mesh hole (11) in corresponding position department, the sound outlet of loudspeaker (9) is towards sound mesh hole (11).

10. A sleep aid speaker as claimed in any one of claims 1 to 5, wherein: the inside of main part (1) is equipped with interconnect's power strip (12) and battery (14), the side of main part (1) is equipped with power source (13), power source (13) are connected with power strip (12), power strip (12) and battery (14) all are connected with main control circuit board (2).
