CN216998966U

CN216998966U - Clothes airing machine

Info

Publication number: CN216998966U
Application number: CN202220749419.7U
Authority: CN
Inventors: 金立鹏; 陈建刚
Original assignee: Aupu Home Style Corp Ltd
Current assignee: Aopu Intelligent Technology Co ltd
Priority date: 2022-04-01
Filing date: 2022-04-01
Publication date: 2022-07-19
Anticipated expiration: 2032-04-01

Abstract

The present application relates to a clothes drying machine, which is provided with an air outlet and a clothes support assembly. The clothes support assembly is provided with an air duct, the air duct is arranged corresponding to the air outlet, and the clothes support assembly can be driven to have a state close to the air outlet or a state away from the air outlet. By opening an air outlet on the base body, the clothes drying machine can discharge air through the air outlet to dry the clothes. The clothes support assembly can be used to hang clothes, and an air duct is arranged in the clothes support assembly and corresponding to the air outlet, so that when the clothes support assembly is driven close to or away from the air outlet, the wind in the air outlet can enter. to the airway. Therefore, when the clothes are hung on the clothes support assembly, the wind in the air duct can dry the clothes through the inside of the clothes.

Description

Clothes airing machine

Technical Field

The application relates to the technical field of clothes airing devices, in particular to a clothes airing machine.

Background

With the continuous improvement of the living standard of people, the clothes drying machine gradually enters a plurality of common families so as to improve the experience of users in clothes drying. The clothes drying machine generally realizes a drying function by means of a drying module arranged on a top plate of a main machine. For example, a fan is arranged on the main machine, and a ventilating duct and a heating part are correspondingly arranged on the top plate of the main machine, so that the drying function of the clothes drying machine is realized.

However, the air blown out by the main machine of the existing clothes drying machine can only be distributed outside the clothes hanger, so that the clothes are often dried outside the clothes and the inside of the clothes is difficult to dry, the drying time is long, and the efficiency is low.

SUMMERY OF THE UTILITY MODEL

Based on this, it is necessary to provide a clothes drying machine having high drying efficiency.

A clothes airing machine is provided with an air outlet and a clothes support assembly. An air duct is arranged in the clothes support component, the air duct is arranged corresponding to the air outlet, and the clothes support component is close to or far away from the air outlet.

It can be understood that the air outlet is formed in the seat body, so that the clothes drying machine can exhaust air through the air outlet to dry clothes. The clothes support component can be used for hanging clothes, an air duct is arranged in the clothes support component and corresponds to the air outlet, and therefore when the clothes support component is close to or far away from the air outlet, wind energy in the air outlet can enter the air duct. Therefore, when the clothes are hung on the clothes support assembly, the wind in the air duct can dry the clothes through the inside of the clothes.

In one embodiment, the clothes drying machine further comprises a rack body which can be driven to move towards or away from the seat body; the clothes support assembly is detachably arranged on the frame body.

It can be understood that the number and the capacity of clothes hung on the clothes airing machine can be expanded by arranging the frame body. When the user need not prop the stoving clothing through the clothing, set up in the clothing of support body and prop the subassembly and then occupy the certain space of support body and influence the placing of other clothing (if only when sunning bed clothes, need not to use the stoving function that the clothing propped this moment), the practicality is relatively poor. Through propping the clothing with the clothing and propping subassembly detachably and installing in the support body, can supply the user to prop support and clothing according to actual need and install in the support body to improve the practicality that this clothing propped the subassembly.

In one embodiment, the clothes hanger assembly comprises a bracket and a clothes hanger, wherein the bracket is detachably arranged on the frame body, and the clothes hanger is arranged on the bracket;

the clothes support is internally provided with the air duct.

It can be understood that, when the user need not dry the clothing through the clothing props, the clothing props that set up in the support body and then has occupied the certain space of support body and influence the placing of other clothing, and the practicality is relatively poor. Install in the support body through with support detachably to set up the support in the support, can supply the user to prop support and clothing according to actual need and install in the support body, thereby improve the practicality that this clothing propped the subassembly. Install in the support body through with support detachably to set up the support in the support, can supply the user to prop support and clothing according to actual need and install in the support body, thereby improve the practicality that this clothing propped the subassembly.

In one embodiment, the clothes hanger is integrally formed with the bracket.

It can be understood that, through propping integrated into one piece in the support with the clothing, not only make to prop the clothing with the integrative setting of support, effectively reduce this clothing and prop subassembly assemble duration and reduction in production cost, and compare in through connected modes such as joint, bonding, prop the clothing and also make the clothing prop the subassembly with the integrative setting of support and have higher intensity to be difficult for damaging more.

In one embodiment, the support comprises a support base and a connecting rod extending from the support base, the connecting rod is arranged on the support body, and a channel opposite to the air outlet is arranged on the support base;

the clothing props for a plurality ofly, and is a plurality of the clothing props along the length direction integrated into one piece in the support seat, the wind channel with the passageway intercommunication.

It can be understood that the channel that the support base was seted up can communicate in the wind channel that the clothing propped, and when the support was installed in airing machine, the channel of support base then corresponded or was communicated in the air outlet of the diapire of airing machine, and the wind that the air outlet discharged gets into the wind channel via the channel. When the clothes are hung on the clothes support, the wind in the air duct can be exhausted into the clothes, so that the clothes are dried in the clothes. And the clothes hanger is provided with a plurality of clothes hangers, so that the number of clothes hung on the clothes hanger component can be increased.

In one embodiment, the clothes hanger is detachably clamped on the bracket.

It can be understood that when the user needs to expand the number of clothes hung on the rack body, the support can be arranged on the rack body according to the needs, and the clothes support can be detached, so that the clothes can be hung on the support by the support for airing. Therefore, various use scenes of a user can be further improved, and the practicability is high.

In one embodiment, the bracket comprises a rod part and a matching part extending from the end of the rod part, and the matching part is connected with the frame body;

the rod part is provided with one of a clamping groove or a bulge, and the clothes support is provided with the other of the clamping groove and the bulge.

It can be understood that the end part of the rod part is provided with the matching part, so that the support can be detachably arranged on the support body through the matching part, and the expansion of the support body is easy to realize.

In one embodiment, the clothes support comprises a hollow connecting part and a support part connected with the connecting part, and a first air guide channel is arranged in the support part.

It can be understood that the connecting part is arranged so that the clothes support can be matched with an external structure, and the bracket part is arranged so that clothes can be hung on the clothes support conveniently. When the hollow connecting part is connected to the clothes airing machine, the hollow connecting part can lead the air blown out from the air outlet of the clothes airing machine into the first air guide channel of the support and then is discharged from the air outlet of the first air guide channel, so that the clothes support can lead the air at the air outlet to enter the clothes.

In one embodiment, the clothes hanger assembly further comprises a movable arm movably disposed on the support portion;

an adjustment structure disposed between the movable arm and the stand portion to cause the movable arm to have an expanded state and a contracted state relative to the stand portion.

It can be understood that, by arranging the adjusting structure, the adjusting structure is arranged between the movable arm and the support part, so that the position and the state of the movable arm relative to the support part can be adjusted, if the movable arm moves towards the support seat to be away from one side for a certain distance, the movable arm can be in an unfolding state, and if the movable arm moves towards the support seat to be close to one side for a certain distance, the movable arm can be in a contraction state.

In one embodiment, the movable arm is provided with a cavity, and the cavity is communicated with the air duct.

It can be understood that the cavity is formed through the movable arm and is communicated with the air duct, so that the cavity can be communicated with the air duct, and when clothes with larger sizes are aired, the cavity can extend to the sleeves of the clothes with larger sizes, and the sleeves of the clothes with larger sizes can be dried.

In one embodiment, the clothes drying machine further comprises a swinging blade, the swinging blade is located at the air outlet, and the swinging blade extends along the length direction of the seat body.

It can be understood that the swing blade is arranged to correct the angle of the air discharged from the air outlet through the swing of the swing blade. The wind can be oriented to different angles, so that the wind can flow in a larger area range, and the range of clothes covered by the air outlet is further expanded. In order to ensure that the air outlet has a larger air outlet area, the air outlet is usually opened along the length direction of the base body so as to have a larger length, and the swinging blade extends along the length direction of the base body so as to be better matched with the air outlet.

In one embodiment, the cross section of the swinging vane is a circular swinging vane.

It can be understood that, because the existing swing blade is in a straight plate shape, if the width of the straight plate-shaped swing blade is reduced, the swing blade with a shorter width is not easy to guide wind, and the wind guiding effect is poor. The width of the straight plate-shaped swinging blade is increased, so that the swinging blade is easily interfered by the inner wall of the surrounding structure in the swinging process, and the swinging blade cannot swing to a larger extent, so that the area of the dried clothes is still limited. The cross section through with the swing leaf sets up to circular, can effectively prevent the interference of structure around the swing leaf to swing that the swing leaf can great amplitude, so that dry the clothing in great region, and promoted the efficiency of drying the clothing.

In one embodiment, the swing blade at least partially protrudes from the air outlet.

It can be understood that, because the air outlet is arranged on the base body, the angle of the air discharged by the air outlet is relatively fixed, and the area which can be reached by the discharged wind is correspondingly limited. At least part of the swing blade protrudes out of the air outlet, so that the air outlet angle of the air outlet is further expanded through the swing of the swing blade protruding out of the air outlet, and the area of the area where the air discharged from the air outlet can reach is increased.

In one embodiment, the clothes hanger assembly comprises a clothes hanger, the top of the clothes hanger is provided with an inward concave groove, and the swing blade partially protruding out of the air outlet is attached to the inner wall of the groove.

It can be understood that the top of the clothes support is provided with an inwards concave groove, so that the swing blade partially protruding out of the air outlet is attached to the inner wall of the groove. Thereby enabling the swinging blade to swing to a larger extent.

In one embodiment, the clothes drying machine further comprises a telescopic assembly, and the clothes support assembly is connected with the base body through the telescopic assembly.

It can be understood that through setting up the flexible subassembly to realize the lift of support body for the pedestal, so that the height of user's regulation support body, when needs sunning clothing, can descend the support body to suitable height, thereby convenience of customers hangs the clothing and establishes the support body or hangs the clothing and prop the subassembly and establish the support body.

Drawings

In order to more clearly illustrate the technical solutions in the embodiments or the conventional technologies of the present application, the drawings used in the descriptions of the embodiments or the conventional technologies will be briefly introduced below, it is obvious that the drawings in the following descriptions are only some embodiments of the present application, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

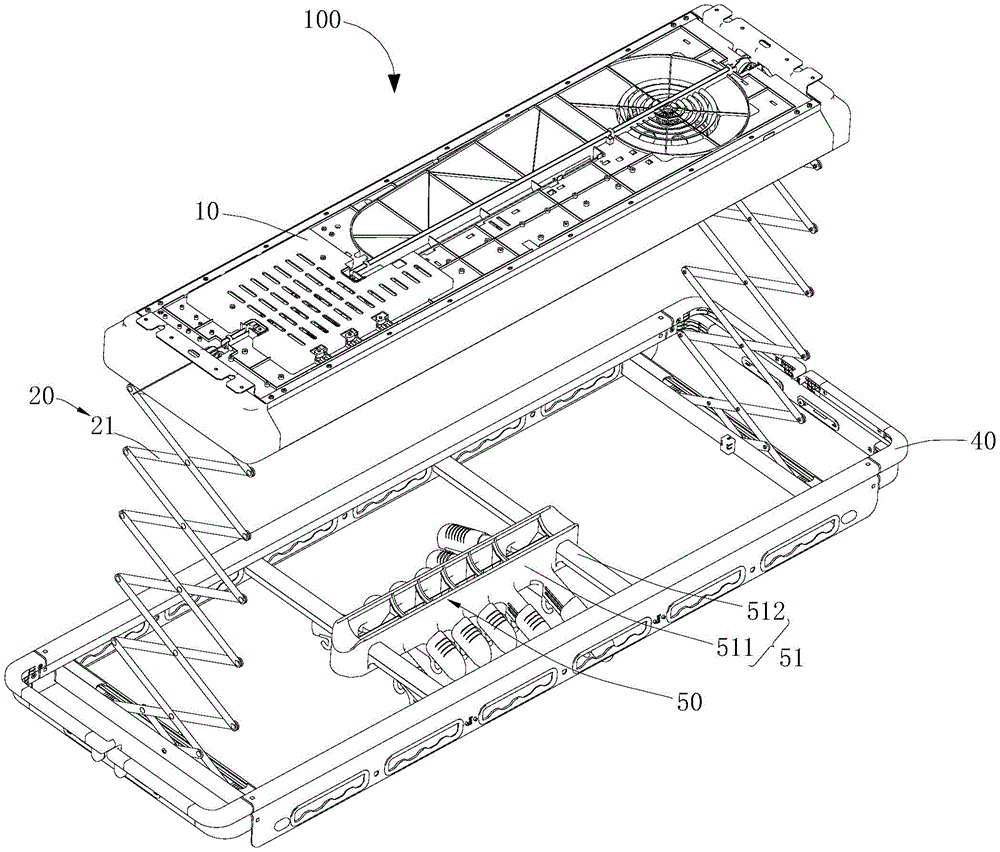

Fig. 1 is a schematic structural view of a clothes drying machine according to one embodiment of the present application;

fig. 2 is a schematic structural view of a pendulum blade disposed at an air outlet according to an embodiment of the present disclosure;

FIG. 3 is a schematic structural view of a fan assembly according to one embodiment provided herein;

FIG. 4 is a schematic view of a construction of a temple assembly according to one embodiment of the present disclosure;

FIG. 5 is a cross-sectional view of the clothes hanger assembly of the embodiment of FIG. 4;

FIG. 6 is a schematic structural view of the telescoping assembly of the embodiment of FIG. 1 in a retracted state;

FIG. 7 is a schematic cross-sectional view of the embodiment of FIG. 6;

FIG. 8 is a schematic structural diagram of a swing blade according to an embodiment of the present disclosure;

fig. 9 is a partial schematic structural view of a clothes drying machine according to another embodiment provided herein;

FIG. 10 is a schematic view of the hanger being detached from the frame;

fig. 11 is a schematic structural view of a clothes hanger according to one embodiment of the present application.

Reference numerals: 10. a base body; 11. a partition plate; 12. an air outlet; 20. a telescoping assembly; 21. a scissor rack; 30. a fan assembly; 31. a fan; 311. an air outlet; 32. a second air guide channel; 321. an inlet; 322. an outlet; 33. swinging the leaves; 40. a frame body; 50. a clothes hanger assembly; 51. a support; 511. a support base; 5111. a channel; 512. a connecting rod; 513. a rod portion; 5131. a protrusion; 514. a fitting portion; 52. a clothes support; 521. an air duct; 522. a connecting portion; 523. a bracket part; 5231. a first air guide channel; 524. a spacer; 5241. a guide portion; 5242. a drainage part; 525. a card slot; 526. a groove; 53. a movable arm; 531. a cavity; 54. an adjustment structure; 100. a clothes drying machine.

Detailed Description

In order to make the aforementioned objects, features and advantages of the present application more comprehensible, embodiments accompanying figures are described in detail below. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present application. This application is capable of embodiments in many different forms than those described herein and that modifications may be made by one skilled in the art without departing from the spirit and scope of the application and it is therefore not intended to be limited to the specific embodiments disclosed below.

It will be understood that when an element is referred to as being "secured to" or "disposed on" another element, it can be directly on the other element or intervening elements may also be present. When a component is referred to as being "connected" to another component, it can be directly connected to the other component or intervening components may also be present. The use of the terms "vertical," "horizontal," "upper," "lower," "left," "right," and the like in the description of the present application is for purposes of illustration only and is not intended to represent the only embodiment.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present application, "plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.

In this application, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may mean that the first feature is in direct contact with the second feature, or that the first feature and the second feature are in indirect contact via an intermediate. Also, a first feature "on," "above," and "over" a second feature may be directly on or obliquely above the second feature, or may simply mean that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the first feature, or may simply mean that the first feature is at a lesser elevation than the second feature.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this application belongs. The terminology used in the description of the present application is for the purpose of describing particular embodiments only and is not intended to be limiting of the application. As used in the description of the present application, the term "and/or" includes any and all combinations of one or more of the associated listed items.

However, the air blown out by the main machine of the existing clothes drying machine can only be distributed on two sides of the clothes hanger, so that when clothes are dried, one side of the clothes close to the main machine is often dry, and one side of the clothes far away from the main machine is still wet, and the experience is poor. And mainly, the air outlet of the main machine is usually a certain distance away from the clothes, so that the energy loss of the air in the flowing process is high after the air is discharged from the air outlet of the main machine, and the drying efficiency is low.

As shown in fig. 1, the clothes drying machine 100 provided by the present invention includes a base 10, a telescopic assembly 20, a fan assembly 30, a frame 40 and a clothes support assembly 50. One end of the telescopic assembly 20 is disposed on the base 10, and the fan assembly 30 is disposed in the base 10 and has an air outlet 12 disposed on the bottom wall of the base 10. A frame body 40 is connected to the other end of the telescopic assembly 20. Clothes props subassembly 50 and sets up in support body 40, is equipped with wind channel 521 in the clothes props subassembly 50, and wind channel 521 corresponds the setting with air outlet 12 to drive support body 40 orientation through telescopic assembly 20 and be close to or keep away from the lift of air outlet 12. The manner of the clothes support assembly 50 to achieve the two states of approaching to the seat body 10 and departing from the seat body 10 is not particularly limited, and as an alternative embodiment, the clothes support assembly 50 is directly connected to the telescopic assembly 20 without depending on the frame body 40, and is controlled by the telescopic assembly 20 to ascend and descend so as to achieve the purpose of approaching to the seat body 10 and departing from the seat body 10. As another alternative, the clothes hanger assembly 50 can be switched between the state close to the seat 10 and the state away from the seat 10 by other means, such as eliminating the telescopic assembly, and then providing a lifting mechanism on the ground, or manufacturing an energy field capable of generating a lifting force below the air outlet 12 of the seat 10.

As shown in fig. 2 to 3, the fan assembly 30 is arranged to generate flowing air, and the air is discharged through the air outlet 12 opened in the seat body 10, so as to dry the clothes. The clothes hanger assembly 50 with the built-in air duct 521 corresponds to the air outlet 12 through the air duct 521, so that when a user hangs clothes on the clothes hanger assembly 50, the air duct 521 in the clothes hanger 52 can guide air to the inside of the clothes, so as to dry the clothes from the inside of the clothes. It can be understood that the wind channel 521 in the clothes hanger 52 can guide the wind to the inside of the clothes to reduce the energy consumed by the wind flowing in the air, thereby improving the efficiency of drying the clothes.

It should be noted that the air duct 521 corresponds to the air outlet 12, which means that the wind energy discharged from the air outlet 12 can enter the air duct 521. It is understood that the air duct 521 may be connected to the air outlet 12, so that the air in the air outlet can completely enter the air duct 521. The air duct 521 and the air outlet 12 may be spaced from each other, so that part of the wind discharged from the air outlet 12 can enter the air duct 521, the other part of the wind is directly discharged from the air outlet 12, and the wind directly discharged from the air outlet 12 can blow to the outside of the clothes. So as to dry the laundry from the outside, thereby implementing that the clothes drying machine 100 can dry both the inside and outside of the laundry at the same time, so as to improve the drying efficiency. The distance between the air duct 521 and the air outlet 12 is not particularly limited, and can be adaptively selected according to actual needs. The air discharged from the air outlet 12 can enter the air duct 521 at least partially. As an alternative embodiment, the air channel 521 is not directly opposite to the air outlet 12, and the air from the air outlet 12 can be blown into the air channel 521 by staggering the air channel 521.

Since the clothes-horse body 10 is usually installed on an indoor roof and has a high height, for some users with inconvenient actions such as the old, children and the disabled, the clothes-horse is usually held by hand to hang the clothes on the frame body 40 of the clothes-horse 100, but it is difficult for the users with inconvenient actions to hang a plurality of clothes and the clothes with heavy weight due to moisture, which causes inconvenience to hang the clothes. One end of the telescopic assembly 20 is arranged on the base 10, and the other end of the telescopic assembly is connected to the frame body 40, so that the frame body 40 can be lifted relative to the base 10, the user can lift the frame body 40, when clothes need to be aired, the frame body 40 can be descended to a proper height, the height of the frame body 40 is slightly higher than the height of the user, and the user can hang the clothes on the frame body 40 by only lifting the hand.

It should be noted that, since the clothes supporting assembly 50 is disposed on the frame body 40, and the air duct 521 is disposed corresponding to the air outlet 12, the clothes supporting assembly 50 can follow the frame body 40 to drive the frame body 40 to move toward or away from the air outlet 12 through the telescopic assembly 20. When a user needs to air clothes, the telescopic assembly 20 drives the rack 40 and the clothes support 52 arranged on the rack 40 to fall to a proper height, so that the user can hang the clothes on the clothes support assembly 50. After the user hangs the clothes, the telescopic assembly 20 drives the frame body 40 and the clothes support 52 to rise to a predetermined height, so as to connect the air duct 521 of the clothes support assembly 50 to the air outlet 12.

In this embodiment, the retractable assembly 20 includes a motor (not shown) and a scissor frame 21, and the scissor frame 21 is connected to an output shaft of the motor to drive the scissor frame 21 to retract, so that the retractable assembly 20 drives the frame body 40 to move up and down. In other embodiments, the scissor frame 21 may be replaced by a telescopic shaft to achieve the lifting of the frame body 40. The utility model is not limited to the specific form of the telescopic assembly 20, as long as the telescopic assembly 20 can drive the frame body 40 to lift. Further, it is also possible to retract or extend the scissor frame 21 only manually without providing a motor.

As shown in fig. 4 and 11, for two embodiments of the present invention, the clothes hanger assembly 50 includes a bracket 51 and a clothes hanger 52, the bracket 51 is detachably disposed on the frame body 40, the clothes hanger 52 is disposed on the bracket 51, and an air duct 521 is disposed in the clothes hanger 52. When the user does not need to dry the clothes through the clothes hanger 52, the clothes hanger 52 disposed on the frame body 40 occupies a certain space of the frame body 40 to affect the placement of other clothes (for example, when only airing the bedclothes, the drying function of the clothes hanger 52 is not needed), and the practicability is poor. By detachably mounting the bracket 51 on the frame body 40 and mounting the bracket 51 on the bracket 51, the user can mount the bracket 51 and the clothes support 52 on the frame body 40 according to actual needs, thereby improving the practicability of the clothes support assembly 50.

As shown in fig. 4 to 7, the clothes hanger 52 is integrally formed with the bracket 51. Through propping 52 integrated into one piece in support 51 with the clothing, not only make to prop 52 and support 51 integrative setting with the clothing, effectively reduce this clothing and prop 50 assemble duration and reduction in production cost, and compare in connecting through joint, bonding etc. and prop 52 and support 51 integrative setting also make clothing prop subassembly 50 and have higher intensity with the clothing to be difficult for damaging.

Specifically, the support frame 51 includes a support frame base 511 and a connecting rod 512 extending from the support frame base 511, the connecting rod 512 is disposed on the frame body 40, and a channel 5111 opposite to the air outlet 12 is disposed on the support frame base 511. The plurality of clothes hangers 52 are integrally formed on the support base 511 along the length direction of the support base 511, and the air duct 521 is communicated with the passage 5111.

The passage 5111 of the support base 511 can be communicated with the air duct 521 of the clothes hanger 52, when the support 51 is installed on the clothes drying machine 100, the passage 5111 of the support base 511 corresponds to or is communicated with the air outlet 12 of the bottom wall of the clothes drying machine 100, and the air exhausted from the air outlet 12 enters the air duct 521 through the passage 5111. When the clothes are hung on the clothes hanger 52, the wind in the wind channel 521 can be discharged to the inside of the clothes, so that the clothes can be dried in the inside of the clothes. And the clothes hanger 52 is provided in plurality, so that the number of clothes hung on the clothes hanger component 50 can be increased. The present invention is not limited to the number of hangers 52 provided with the hanger assembly 50 and may be one, three, five, and seven or other numbers.

In the embodiment provided in fig. 9 to 11, the clothes hanger 52 is detachably snap-fitted to the holder 51. The number of clothes aired by the user can be increased or decreased along with the change of seasons. For example, in hot summer, the user wears fewer clothes, and needs fewer clothes to be washed and dried, and the smaller size of the frame body 40 can meet the requirement. In the cold autumn and winter season, the number of clothes worn by the user is increased, and therefore, the number of clothes to be washed and dried is increased. When the user needs to expand the amount of the clothes hung on the rack 40, the rack 51 can be mounted on the rack 40 and the clothes hanger 52 can be detached according to the need, so that the rack 51 can hang the clothes on the rack 51 for airing. Therefore, various use scenes of the user can be further improved, and the practicability is high.

Further, the bracket 51 includes a rod portion 513 and a fitting portion 514 extending from an end of the rod portion 513, and the fitting portion 514 is connected to the frame body 40. The end of the rod part 513 is provided with a matching part 514, so that the bracket 51 can be detachably mounted on the frame body 40 through the matching part 514, and the frame body 40 is expanded. As shown in fig. 9 to 10, preferably, the bracket 51 includes two fitting portions 514, the two fitting portions 514 are respectively disposed at two ends of the rod portion 513, and the fitting portions 514 are detachably attached to two adjacent brackets 51. When a user needs to carry a large number of clothes, the support 51 is directly transversely arranged on the frame body 40, and the rod part 513 can provide a position for the user to hang the clothes support 52 or directly hang and dry the clothes, so that the clothes hanger is expanded.

Specifically, as shown in fig. 9 to 10, one of the engaging groove 525 and the protrusion 5131 is provided on the rod portion 513, and the other is provided on the clothes stay 52. The rod part 513 is provided with a clamping groove 525 or a protrusion 5131, and the clothes support 52 is provided with the protrusion 5131 or the clamping groove 525, so that the clothes support 52 is detachably connected with the bracket 51 through the clamping of the protrusion 5131 and the clamping groove 525. In this embodiment, the engaging groove 525 is formed on the clothes stay 52, and the protrusion 5131 is formed on the rod 513. The present invention does not limit the specific form and the specific position of the engaging groove 525 and the protrusion 5131, as long as the engaging groove 525 and the protrusion 5131 can be engaged to allow the clothes hanger 52 to be detachably mounted on the rod portion 513 of the bracket 51.

Further, as shown in fig. 11, the clothes hanger 52 includes a hollow connecting portion 522 and a bracket portion 523 connected to the connecting portion 522, and a first air guiding passage 5231 is provided in the bracket portion 523. The connection part 522 is provided to facilitate the clothes hanger 52 to be adapted to an external structure, and the bracket part 523 is provided to facilitate the clothes hanger 52 to hang clothes. When the hollow connection part 522 is connected to the clothes drying machine 100, the hollow connection part 522 can guide the air blown out from the air outlet 12 of the clothes drying machine 100 into the first air guiding passage 5231 of the bracket 51 and then discharge the air through the air outlet 12 of the first air guiding passage 5231, thereby guiding the air at the air outlet 12 into the clothes by the clothes stay 52.

Specifically, the clothes hanger 52 further includes a plurality of spacers 524, and the plurality of spacers 524 are provided on an inner wall of the holder portion 523 to divide the air duct 521 into a plurality of first air guide passages 5231. In order to prevent the hot air discharged from the air duct 521 from being too concentrated and drying only a part of the laundry, the laundry cannot be uniformly dried, and at the same time, the laundry cannot be dried at a position such as a sleeve. By providing the spacer 524 in the holder portion 523, the air duct 521 is divided into a plurality of first air guide passages 5231. The first air guide channels 5231 can uniformly divide air in the air duct 521, and the first air guide channels 5231 can be directed to different positions inside the clothes, such as sleeves and armpits on two sides of the clothes, so that the positions difficult to dry can be dried. Preferably, the spacer 524 is integrally formed with the bracket portion 523.

Further, the partition 524 includes a flow guide portion 5242 and a guide portion 5241, the guide portion 5241 is connected to the flow guide portion 5242, and the guide portion 5241 is bent and extended from the flow guide portion 5242 toward the end of the first air guiding passage 5231. The guide portion 5241 is provided so that the guide portion 5241 can guide the wind from the guide portion 5242 to a predetermined position, thereby facilitating the setting of the position and angle of the end of the first air guiding passage 5231. It can be understood that the preset positions may be armpits and sleeves of the clothes, and the ends of the first air guiding passages 5231 are directed to positions where drying is difficult, such as armpits and sleeves of the clothes, so as to effectively improve the drying effect of the clothes support 52 on the clothes.

As shown in fig. 4 to fig. 6, the clothes hanger assembly 50 further includes a movable arm 53 and an adjusting structure 54, wherein the movable arm 53 is movably disposed on the bracket portion 523. The adjustment structure 54 is provided between the movable arm 53 and the holder part 523 so that the movable arm 53 has an expanded state and a contracted state with respect to the holder part 523. Since the shoulder widths of the children's clothes with small size are different from those of the adults with large size, the universal use of the clothes hanger assembly 50 is improved by providing the movable arm 53 so that the clothes hanger assembly 50 can be adapted to clothes with different sizes.

By providing the adjusting structure 54 and disposing the adjusting structure 54 between the movable arm 53 and the bracket portion 523, the position and the state of the movable arm 53 relative to the bracket portion 523 can be adjusted, for example, the movable arm 53 can be in the expanded state by moving a certain distance toward the side of the bracket holder 511 far away, and the movable arm 53 can be in the contracted state by moving a certain distance toward the side of the bracket holder 511 close to. In the present embodiment, the adjusting structure 54 is a slide rail and a slide groove adapted to the slide rail, one of the slide rail and the slide groove is disposed on the movable arm 53, and the other is disposed on the bracket portion 523. It is understood that the adjustment structure 54 may also be a hinge structure to pivotally connect the movable arm 53 to the bracket portion 523.

When a large-sized garment is hung, the movable arm 53 is moved along the length direction of the stand portion 523 to the side far from the stand holder 511, so that the movable arm 53 is in an expanded state to fit the large-sized garment, and the movable arm 53 is moved along the length direction of the stand portion 523 to the side near the stand holder 511, so that the movable arm 53 is in a contracted state to fit the small-sized garment. The present invention is not particularly limited in the size of the movable arm 53 and the specific form of the adjustment structure 54, as long as it can be realized that the clothes hanger assembly 50 can adjust the state of the movable arm 53 to fit the clothes of a larger size or a smaller size.

Further, the movable arm 53 is provided with a cavity 531, and the cavity 531 communicates with the air duct 521. The cavity 531 is formed in the movable arm 53, and the cavity 531 is communicated with the air duct 521, so that the cavity 531 can be communicated with the air duct 521, and when clothes with larger sizes are aired, the cavity 531 can extend to sleeves of the clothes with larger sizes, and the sleeves of the clothes with larger sizes can be dried.

As shown in fig. 2 to 8, the fan assembly 30 includes a fan 31, a second air guiding channel 32 and a swinging vane 33, the fan 31 is located in the base 10, an inlet 321 of the second air guiding channel 32 is communicated with an air outlet 311 of the fan 31, an outlet 322 of the second air guiding channel 32 is communicated with the swinging vane 33, and the swinging vane 33 is located at the air outlet 12.

Specifically, referring to fig. 5 and 11, it is preferable that the swing vane 33 is a swing vane 33 with a circular outer peripheral wall and at least a portion of the swing vane 33 protrudes from the air outlet 12. The top of the clothes hanger 52 has an inward concave groove 526, and the swing blade 33 partially protruding from the air outlet 12 is attached to the inner wall of the groove 526. It can be understood that, by arranging the swing blade 33 as the swing blade 33 with a circular cross section, interference of the structure around the swing blade 33 (such as the structure of the peripheral edge of the air outlet 12) on the swing blade 33 is prevented, so that the swing blade 33 can swing to a larger extent, so as to dry clothes in a larger area, and improve the efficiency of the clothes drying machine 100 in drying clothes.

Further, in order to ensure that the air outlet 12 has a larger air outlet area, the air outlet 12 is generally opened along the length direction of the base 10 to have a larger length, and the swing blade 33 is extended along the length direction of the base 10 to be better matched with the air outlet 12.

It should be noted that, because the air outlet 12 is disposed on the base 10, the angle of the air discharged from the air outlet 12 is relatively fixed, and the area that the discharged wind can reach is correspondingly limited. The swing blade 33 protrudes at least partially from the air outlet 12, so that the swing of the swing blade 33 protruding from the air outlet 12 further expands the air outlet angle of the air outlet 12, thereby increasing the area of the region where the air outlet 12 can reach.

The top of the clothes hanger 52 is provided with an inward concave groove 526, so that the swing blade 33 partially protruding out of the air outlet 12 is attached to the inner wall of the groove 526. Further fit to the swing blade 33, so that the swing blade can swing to a large extent. It can be understood that, when the top of the clothes hanger 52 is provided with the concave groove 526, the clothes hanger can also be adapted to the straight plate-shaped swing blade 33, which is not particularly limited in the present invention and can be adaptively selected according to actual requirements. Specifically, the seat body 10 further has a plurality of partition plates 11, the second air guiding channels 32 are enclosed by the partition plates 11 arranged in the seat body 10 and the inner wall of the seat body 10, and the cross-sectional area of each second air guiding channel 32 gradually increases from the inlet 321 of the air cavity to the outlet 322 of the air cavity.

Since the cross-sectional area of each second air guiding channel 32 gradually increases from the inlet 321 to the outlet 322, the end of the outlet 322 of each second air guiding channel 32 (i.e. at the outlet 322 of the second air guiding channel 32) has the largest cross-sectional area, so as to form the air outlet 12 with a larger length, thereby achieving the effect of covering more clothes, and achieving the effect of drying multiple clothes at the same time. The swing blade 33 is provided to correct the angle of the air discharged from the air outlet 12 by the swing of the swing blade 33. The wind can be directed to different angles, so that the wind can flow in a larger area range, and the range of clothes covered by the air outlet 12 is further expanded.

In this embodiment, the fan 31 is a volute type centrifugal fan, and because the volute type centrifugal fan is small in size, the fan can be conveniently debugged and can be simply disposed on the clothes drying machine 100, and a large air volume can be provided, so that the air volume required by the clothes drying machine 100 when drying clothes can be effectively provided. It can be understood that the utility model is not limited to the specific setting form and type of the fan 31, and can be selected according to the actual needs and the actual use scene adaptability.

The technical features of the embodiments described above may be arbitrarily combined, and for the sake of brevity, all possible combinations of the technical features in the embodiments described above are not described, but should be considered as being within the scope of the present specification as long as there is no contradiction between the combinations of the technical features.

The above-mentioned embodiments only express several embodiments of the present application, and the description thereof is more specific and detailed, but not construed as limiting the claims. It should be noted that, for a person skilled in the art, several variations and modifications can be made without departing from the concept of the present application, which falls within the scope of protection of the present application. Therefore, the protection scope of the present application shall be subject to the appended claims.

Claims

1. a clothes drying machine, is characterized in that, comprises:

The seat body (10) is provided with an air outlet (12); and

The clothes support assembly (50) is provided with an air duct (521) inside, the air duct (521) is arranged corresponding to the air outlet (12), and the clothes support assembly (50) has an air duct (521) close to the air outlet (12). ) or away from the air outlet (12).

2 . The clothes drying machine according to claim 1 , wherein the clothes drying machine further comprises a frame body ( 40 ), and the frame body ( 40 ) can be driven to approach or approach the base body ( 10 ). 3 . keep away;

The clothes support assembly (50) is detachably arranged on the frame body (40).

3. The clothes drying machine according to claim 2, wherein the clothes support assembly (50) comprises a bracket (51) and a clothes support (52), and the bracket (51) is detachably arranged on the clothes support (51). a frame body (40), wherein the clothes support (52) is arranged on the bracket (51);

The air duct (521) is provided in the clothes support (52).

4. The clothes drying machine according to claim 3, wherein the clothes support (52) is integrally formed with the bracket (51).

5. The clothes drying machine according to claim 4, wherein the bracket (51) comprises a bracket seat (511) and a connecting rod (512) extending from the bracket seat (511), the connecting rod (512) is provided on the frame body (40), and a channel (5111) opposite to the air outlet (12) is provided on the support seat (511);

There are a plurality of the clothes supports (52), and the plurality of clothes supports (52) are integrally formed on the bracket seat (511) along the length direction of the bracket seat (511), and the air duct (521) communicate with the channel (5111).

6 . The clothes drying machine according to claim 3 , wherein the clothes support ( 52 ) is detachably clamped to the bracket ( 51 ). 7 .

7. The clothes drying machine according to claim 6, wherein the bracket (51) comprises a rod portion (513) and a mating portion (514) extending from an end of the rod portion (513), The matching portion (514) is connected to the frame body (40);

The rod portion (513) is provided with one of a slot (525) or a protrusion (5131), and the clothes support (52) is provided with the other of the two.

8. The clothes drying machine according to any one of claims 3 to 7, wherein the clothes support (52) comprises a hollow connecting part (522) and a bracket part connected with the connecting part (522) (523), the bracket portion (523) is provided with a first air guide channel (5231).

9 . The clothes drying machine according to claim 8 , wherein the clothes support assembly ( 50 ) further comprises a movable arm ( 53 ), and the movable arm ( 53 ) is movably arranged on the bracket portion ( 9 . 523);

An adjustment structure (54), the adjustment structure (54) is provided between the movable arm (53) and the bracket part (523), so that the movable arm (53) is relative to the bracket part (523) ) has an expanded state and a collapsed state.

10 . The clothes drying machine according to claim 9 , wherein the movable arm ( 53 ) is provided with a cavity ( 531 ), and the cavity ( 531 ) communicates with the air duct ( 521 ). 11 .

11. The clothes drying machine according to any one of claims 1 to 7, 9, and 10, characterized in that, the clothes drying machine further comprises a swing leaf (33), and the swing leaf (33) is located at the outlet. At the tuyere (12), the swing blade (33) extends along the length direction of the seat body (10).

12. The clothes drying machine according to claim 11, wherein the swing leaf (33) is a swing leaf (33) with a circular cross section.

13. The clothes drying machine according to claim 12, characterized in that, the swing blade (33) is at least partially protruded from the air outlet (12).

14. The clothes drying machine according to claim 13, wherein the clothes support assembly (50) comprises a clothes support (52), the top of the clothes support (52) has a concave groove (526), The swing vane (33) partially protruding from the air outlet (12) is fitted to the inner wall of the groove (526).

15. The clothes drying machine according to any one of claims 1 to 7, 9, 10, 12, 13, characterized in that, the clothes drying machine further comprises a telescopic assembly (20), and the clothes support assembly (50) ) is connected with the seat body (10) through the telescopic assembly (20).
