CN216966433U - Full-automatic pipe cutting machine - Google Patents
Full-automatic pipe cutting machine Download PDFInfo
- Publication number
- CN216966433U CN216966433U CN202122800478.0U CN202122800478U CN216966433U CN 216966433 U CN216966433 U CN 216966433U CN 202122800478 U CN202122800478 U CN 202122800478U CN 216966433 U CN216966433 U CN 216966433U
- Authority
- CN
- China
- Prior art keywords
- seat
- cutting
- disc
- full
- clamping
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a full-automatic pipe cutting machine which comprises a workbench, wherein strip-shaped guide rails are welded at two corners of the upper surface of the workbench along the length direction, a pushing seat is arranged between the two strip-shaped guide rails, a circular cavity is formed in the center of the front surface of the pushing seat, a clamping disc is arranged in the circular cavity, the clamping disc is connected with a first annular sliding groove formed in the inner wall of the circular cavity in a sliding mode through a first sliding block, and a driven gear is welded on the front surface of the clamping disc. According to the full-automatic pipe cutting machine, the pushing and cutting of steel pipes can be automatically realized through the arrangement of the pushing seat, the clamping disc is arranged in the pushing seat, the clamping disc is connected into the first annular chute formed in the pushing seat in a sliding mode through the first sliding block, and the clamping disc can be driven to rotate through the driving gear and the driven gear, so that the clamped steel pipes can be turned over, the two ends of the steel pipes can be cut at symmetrical angles conveniently, and the seamless welding between the steel pipes is facilitated.
Description
Technical Field
The utility model relates to the technical field of pipe cutting machines, in particular to a full-automatic pipe cutting machine.
Background
Because the length of the pipe made of the raw material is longer, the pipe with the corresponding length needs to be cut for use according to the size of a product. At present, the cutting of the pipe can adopt various forms, such as laser cutting, steel saw cutting and the like.
Current pipe cutting machine, degree of automation is lower, can't realize autoloading and centre gripping fixed, leads to its needs artifical pay-off more, then manual fixed, cuts, and cutting efficiency is lower on the one hand, and intensity of labour is great, secondly has the potential safety hazard of removal to current pipe cutting machine can't carry out the automatic cutting of overturning to the steel pipe, needs manual upset, just can realize carrying out the angle cutting of symmetry to the both ends of steel pipe, so can not satisfy user's demand.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art and provides a full-automatic pipe cutting machine.
In order to achieve the purpose, the utility model adopts the following technical scheme: the full-automatic pipe cutting machine comprises a workbench, wherein strip-shaped guide rails are welded at two corners of the upper surface of the workbench along the length direction, and a pushing seat is arranged between the two strip-shaped guide rails;
a circular cavity is formed in the center of the front surface of the pushing seat, a clamping disc is arranged in the circular cavity, the clamping disc is in sliding connection with a first annular sliding groove formed in the inner wall of the circular cavity through a first sliding block, a driven gear is welded on the front surface of the clamping disc, a motor is embedded and mounted on the pushing seat, a driving gear is fixedly connected to an output shaft of the motor, and the driving gear is in meshed connection with the driven gear;
and a clamping mechanism and a cutting mechanism are welded on one side of the front surface of the workbench, which is positioned on the strip-shaped guide rail.
As a further description of the above technical solution:
the bar guide rail upper surface has seted up the bar groove along length direction, and the bar inslot inlays along length direction's one end and establishes and installs the propelling movement motor, the rigid coupling has the lead screw on the output shaft of propelling movement motor, and threaded connection has lead screw nut seat on the lead screw, lead screw nut seat and propelling movement seat rigid coupling.
As a further description of the above technical solution:
the first sliding blocks are arranged in a plurality of annular distribution, and the distance between every two adjacent first sliding blocks is equal.
As a further description of the above technical solution:
the two screw nut seats are arranged and are mutually symmetrical about the vertical center of the pushing seat.
As a further description of the above technical solution:
the clamping disc is characterized in that a rectangular hole is formed in the center of the front surface of the clamping disc, an electric push rod is embedded in the inner wall of the rectangular hole, the telescopic end of the electric push rod is fixedly connected with two clamping blocks, and the two clamping blocks are symmetrical to each other about the vertical central line of the clamping disc.
As a further description of the above technical solution:
fixture includes cutting seat, decides splint and moves splint, cutting seat rigid coupling is on the workstation, decide splint welded fastening on the cutting seat, decide splint and be L type structure, it has electric telescopic handle to go back the rigid coupling on the cutting seat, and electric telescopic handle's flexible end rigid coupling has the movable splint that the splint used is decided in the cooperation.
As a further description of the above technical solution:
cutting mechanism includes the base, the base rigid coupling is on the workstation, the base upper surface is seted up flutedly, and the recess internal rotation is connected with the circular disk, circular disk upper surface center department welding has concave seat, it is connected with the cutting frame to rotate on the concave seat, the one end of cutting frame is rotated and is connected with the cutting wheel, it has the cutting wheel pivoted cutting motor of drive to go back the rigid coupling on the cutting frame, the other end of cutting frame rotates and is connected with hydraulic telescoping rod, and hydraulic telescoping rod's the other end and circular disk rotate and be connected.
As a further description of the above technical solution:
the welding has the second slider on the circular disk outer wall, and the second annular spout sliding connection who sets up on second slider and the recess inner wall, the top welding that lies in the recess on the circular disk outer wall has the ring gear, inlay on the base and establish and install the rotating electrical machines, and the rigid coupling has the toothed disc on the output shaft of rotating electrical machines, the toothed disc is connected with ring gear meshing.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the full-automatic pipe cutting machine, the pushing and cutting of steel pipes can be automatically realized through the arrangement of the pushing seat, the clamping disc is arranged in the pushing seat, the clamping disc is connected into the first annular sliding groove formed in the pushing seat in a sliding mode through the first sliding block, and the clamping disc can be driven to rotate through the driving gear and the driven gear, so that the clamped steel pipes can be turned over, the two ends of the steel pipes can be conveniently cut at symmetrical angles, and the seamless welding between the steel pipes is facilitated.
2. According to the full-automatic pipe cutting machine, the cutting wheel is arranged on the circular disc, the circular disc is rotatably connected to the base, the gear disc can be driven to rotate through the rotating motor in the using process, the gear disc drives the circular disc to rotate through the gear ring, so that the angle of the cutting wheel can be adjusted, steel pipes with different angles can be conveniently cut, and the actual using effect of the full-automatic pipe cutting machine is improved in a maximized mode.
Drawings

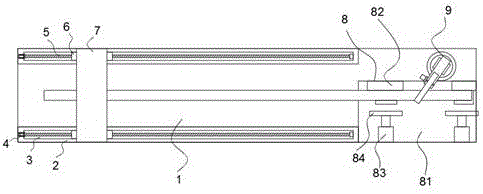

FIG. 1 is a top view of a fully automatic pipe cutter according to the present invention
FIG. 2 is a front view of the push socket of the present invention;
FIG. 3 is a schematic view of a clamping plate according to the present invention;
FIG. 4 is a schematic view of the cutting mechanism of the present invention;
FIG. 5 is an enlarged view of area A of FIG. 4 according to the present invention.
Illustration of the drawings:
1. a work table; 2. a strip-shaped guide rail; 3. a strip-shaped groove; 4. a pushing motor; 5. a lead screw; 6. a lead screw nut seat; 7. a pushing seat; 71. a circular cavity; 72. a clamping plate; 73. a driven gear; 74. a driving gear; 75. a first slider; 76. a first annular chute; 77. a rectangular hole; 78. an electric push rod; 79. a clamping block; 8. a clamping mechanism; 81. a cutting seat; 82. fixing the clamping plate; 83. an electric telescopic rod; 84. a movable clamping plate; 9. a cutting mechanism; 91. a base; 92. a circular disc; 93. a ring gear; 94. a rotating electric machine; 95. a gear plate; 96. a concave seat; 97. a cutting frame; 98. cutting the motor; 99. a cutting wheel; 910. a hydraulic telescopic rod; 911. a second slider; 912. a second annular chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-5, the full-automatic pipe cutting machine comprises a workbench 1, wherein strip-shaped guide rails 2 are welded at two corners of the upper surface of the workbench 1 along the length direction, and a pushing seat 7 is arranged between the two strip-shaped guide rails 2;
a circular hollow hole 71 is formed in the center of the front surface of the pushing seat 7, a clamping disc 72 is arranged in the circular hollow hole 71, the clamping disc 72 is in sliding connection with a first annular sliding groove 76 formed in the inner wall of the circular hollow hole 71 through a first sliding block 75, a driven gear 73 is welded on the front surface of the clamping disc 72, a motor is embedded and mounted on the pushing seat 7, a driving gear 74 is fixedly connected to an output shaft of the motor, and the driving gear 74 is in gear engagement connection with the driven gear 73;
in this embodiment, the motor drives driving gear 74 and rotates, and driving gear 74 drives clamping disk 72 through driven gear 73 and rotates to drive through clamping disk 72 and rotated by the fixed steel pipe of clamping disk 72 centre gripping, realize the upset to the steel pipe, be convenient for carry out the angle cutting of symmetry to the both ends of steel pipe, make things convenient for seamless welding between the steel pipe.
A clamping mechanism 8 and a cutting mechanism 9 are welded on one side of the front surface of the workbench 1, which is positioned on the strip-shaped guide rail 2.
Strip groove 3 has been seted up along length direction to 2 upper surfaces of bar guide rail, and along length direction's one end inlays in strip groove 3 and establishes and install propelling movement motor 4, and the rigid coupling has lead screw 5 on propelling movement motor 4's the output shaft, and threaded connection has lead screw nut seat 6 on the lead screw 5, lead screw nut seat 6 and propelling movement seat 7 rigid coupling.
In this embodiment, propelling movement motor 4 is the servo motor that can just reverse, and propelling movement motor 4 is used for driving lead screw 5 and rotates, and lead screw 5 rotates and drives lead screw nut seat 6 and remove, drives propelling movement seat 7 through lead screw nut seat 6 and removes, carries out the propelling movement cutting to the fixed steel pipe of centre gripping on propelling movement seat 7.
The first sliding blocks 75 are provided with a plurality of first sliding blocks 75 which are distributed annularly, and the distance between two adjacent first sliding blocks 75 is equal.
The screw nut seats 6 are provided with two screw nut seats 6, and the two screw nut seats 6 are mutually symmetrical about the vertical center of the pushing seat 7.
In this embodiment, the steel tube passes through the rectangular hole 77, and one end of the steel tube is extended onto the clamping mechanism 8, and then the electric push rod 78 is controlled to drive the clamping block 79 to move, so as to clamp and fix the steel tube.
In this embodiment, fixture 8 is used for carrying out the centre gripping to the other end of steel pipe fixedly, then cooperates cutting mechanism 9 to cut the steel pipe, and when the centre gripping was fixed, control electric telescopic handle 83 extension drove movable clamp plate 84 and is close to fixed clamp plate 82, carries out the centre gripping to the steel pipe fixedly, and fixed clamp plate 82 all is provided with two with movable clamp plate 84, and two liang of a set of carries out the centre gripping respectively to the both sides at the position of cutting mechanism 9 cutting fixedly, guarantees the stability of its cutting.
In this embodiment, through the flexible of hydraulic telescoping rod 910, drive cutting frame 97 and rotate to cutting wheel 99 reciprocates, cuts the steel pipe, and cutting motor 98 is used for driving cutting wheel 99 and rotates.
The welding has second slider 911 on the circular disk 92 outer wall, and second annular spout 912 sliding connection who sets up on second slider 911 and the recess inner wall, and the top that lies in the recess on the circular disk 92 outer wall welds has ring gear 93, inlays on the base 91 to establish and installs rotating electrical machines 94, and the rigid coupling has gear disc 95 on rotating electrical machines 94's the output shaft, and gear disc 95 is connected with ring gear 93 gear engagement.
In this embodiment, the rotating motor 94 is used for driving the gear disc 95 to rotate, the gear disc 95 can drive the circular disc 92 to rotate through the gear ring 93, the angle of the cutting wheel 99 can be adjusted through the rotation of the circular disc 92, and the cutting at different angles can be conveniently realized.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered as the technical solutions and the utility model concepts of the present invention in the scope of the present invention.
Claims (8)
1. The full-automatic pipe cutting machine comprises a workbench (1) and is characterized in that strip-shaped guide rails (2) are welded at two corners of the upper surface of the workbench (1) along the length direction, and a pushing seat (7) is arranged between the two strip-shaped guide rails (2);
a circular hollow hole (71) is formed in the center of the front surface of the pushing seat (7), a clamping disc (72) is arranged in the circular hollow hole (71), the clamping disc (72) is connected with a first annular sliding groove (76) formed in the inner wall of the circular hollow hole (71) in a sliding mode through a first sliding block (75), a driven gear (73) is welded on the front surface of the clamping disc (72), a motor is installed on the pushing seat (7) in an embedded mode, a driving gear (74) is fixedly connected to an output shaft of the motor, and the driving gear (74) is in gear meshing connection with the driven gear (73);
one side of the front surface of the workbench (1) positioned on the strip-shaped guide rail (2) is welded with a clamping mechanism (8) and a cutting mechanism (9).
2. The full-automatic pipe cutting machine according to claim 1, wherein a strip-shaped groove (3) is formed in the upper surface of the strip-shaped guide rail (2) along the length direction, a pushing motor (4) is embedded in one end of the strip-shaped groove (3) along the length direction, a lead screw (5) is fixedly connected to an output shaft of the pushing motor (4), a lead screw nut seat (6) is connected to the lead screw (5) in a threaded manner, and the lead screw nut seat (6) is fixedly connected to the pushing seat (7).
3. The full-automatic pipe cutting machine according to claim 1, wherein the first sliding blocks (75) are provided in a plurality, the first sliding blocks (75) are distributed annularly, and the distance between two adjacent first sliding blocks (75) is equal.
4. The full-automatic pipe cutting machine according to claim 2, characterized in that there are two screw-nut seats (6) and the two screw-nut seats (6) are mutually symmetrical with respect to the vertical centre of the pushing seat (7).
5. The full-automatic pipe cutting machine according to claim 1, wherein a rectangular hole (77) is formed in the center of the front surface of the clamping disc (72), an electric push rod (78) is embedded in the inner wall of the rectangular hole (77), clamping blocks (79) are fixedly connected to the telescopic ends of the electric push rod (78), two clamping blocks (79) are arranged, and the two clamping blocks (79) are symmetrical to each other about the vertical center line of the clamping disc (72).
6. The full-automatic pipe cutting machine according to claim 5, wherein the clamping mechanism (8) comprises a cutting seat (81), a fixed clamping plate (82) and a movable clamping plate (84), the cutting seat (81) is fixedly connected to the workbench (1), the fixed clamping plate (82) is fixedly welded to the cutting seat (81), the fixed clamping plate (82) is of an L-shaped structure, an electric telescopic rod (83) is further fixedly connected to the cutting seat (81), and the movable clamping plate (84) matched with the fixed clamping plate (82) for use is fixedly connected to the telescopic end of the electric telescopic rod (83).
7. The full-automatic pipe cutting machine according to claim 1, wherein the cutting mechanism (9) comprises a base (91), the base (91) is fixedly connected to the workbench (1), a groove is formed in the upper surface of the base (91), a circular disc (92) is rotatably connected in the groove, a concave seat (96) is welded at the center of the upper surface of the circular disc (92), a cutting frame (97) is rotatably connected to the concave seat (96), one end of the cutting frame (97) is rotatably connected with a cutting wheel (99), a cutting motor (98) for driving the cutting wheel (99) to rotate is further fixedly connected to the cutting frame (97), a hydraulic telescopic rod (910) is rotatably connected to the other end of the cutting frame (97), and the other end of the hydraulic telescopic rod (910) is rotatably connected with the circular disc (92).
8. The full-automatic pipe cutting machine according to claim 7, wherein a second sliding block (911) is welded on the outer wall of the circular disc (92), the second sliding block (911) is slidably connected with a second annular sliding groove (912) formed in the inner wall of the groove, a gear ring (93) is welded on the outer wall of the circular disc (92) above the groove, a rotating motor (94) is installed on the base (91) in an embedded mode, a gear disc (95) is fixedly connected to an output shaft of the rotating motor (94), and the gear disc (95) is connected with the gear ring (93) in a gear meshing mode.
