Abstract
The utility model belongs to the technical field of supports, in particular to a modeling support for ornamental flowers, which aims at solving the problem that when the existing support is placed on uneven ground, the support cannot form a horizontal position easily, so that the support is inclined.
Description
Technical Field
The utility model relates to the technical field of flower supports, in particular to a modeling support for a ornamental flower.
Background
The flower stand can be applied to various garden greenbelts, is usually arranged in places with beautiful landscapes for rest and spot scenery, and can also be combined with pavilions, galleries, water elysees and the like to form a garden building group with attractive appearance, and when the flower pot is arranged, the flower pot is usually arranged on a specified flower support for people to appreciate in order to improve the ornamental value of the flower pot.
Traditional flower support is when putting, all directly places subaerial usually, then puts the flowerpot, and this has just led to when it places subaerial unevenness, leads to the unable horizontal position that forms of support easily to make the support take place the slope, and at this moment putting the flowerpot on the support, make the support take place to empty very easily, so that the flowerpot takes place to damage, so we propose a molding support for watching the flower for solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problems that in the prior art, when a support is placed on uneven ground, the support cannot be horizontally positioned easily, so that the support is inclined, and at the moment, a flowerpot is placed on the support, so that the support is prone to toppling, and the modeling support for appreciating flowers is provided.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides a molding support for ornamental flower, includes base and first heart type support and the second heart type support that is located the base top, a plurality of rings of one side fixedly connected with that first heart type support and second heart type support are close to mutually, four fixed plates that are the rectangle and place of bottom fixedly connected with of ring, symmetrical two the same base pillar of one side fixedly connected with that the fixed plate is close to mutually, four spliced poles of top fixedly connected with of base, and the other end of four spliced poles and the bottom fixed connection of same ring, the both sides of base all are provided with the supporting component who supports the base.
Preferably, the supporting component includes the sliding tray that the both sides of base were all seted up, the bottom inner wall of sliding tray rotates and is connected with the threaded rod, the top of threaded rod is run through the sliding tray and is extended to the top of base, the outer wall thread bush of threaded rod is equipped with the lifter plate, the equal fixedly connected with connecting plate in both ends of lifter plate, two connecting plate one end is run through the sliding tray and is extended to one side of base and the same backup pad of fixedly connected with.
Preferably, a handle is fixedly connected to the top of the threaded rod.
Preferably, the bottom of the supporting plate is fixedly connected with a plurality of supporting cones.
Preferably, the inner wall of the bottom of the sliding groove is fixedly connected with a mounting plate, and the top of the mounting plate is rotatably connected with the bottom end of the threaded rod.
Preferably, the inner wall of the bottom of the sliding groove is fixedly connected with two symmetrical fixed sliding rods, and the lifting plate is sleeved on the outer walls of the two fixed sliding rods in a sliding manner.
Compared with the prior art, the utility model has the beneficial effects that:
according to the utility model, the threaded rod is driven to rotate by rotating the handle, the lifting plate can be driven to descend by the threaded rod when the threaded rod rotates, the supporting plate can be driven to descend by the connecting plate when the lifting plate descends, and the supporting cone can be driven to descend by the supporting plate when the supporting plate descends, so that the supporting cone is in contact with the ground, the base is positioned at a horizontal position, and the stability of the base is ensured.
According to the flowerpot, the flowerpot is placed in the circular ring, so that the bottom of the flowerpot is in contact with the tops of the two bottom columns, and the flowerpot is supported by the bottom columns, and people can enjoy the flowerpot conveniently.
The flowerpot rack is simple in structure and convenient to use, the flowerpot can be placed conveniently through the matching between the circular rings and the bottom column, people can appreciate the flowerpot rack conveniently, the plurality of circular rings can be placed at the same time, the attractiveness of the flowerpot rack is improved, the base can be kept in a horizontal position through the rotation of the threaded rod, the stability of the base is guaranteed, and the base cannot be stably supported to topple over when placed on uneven ground.
Drawings

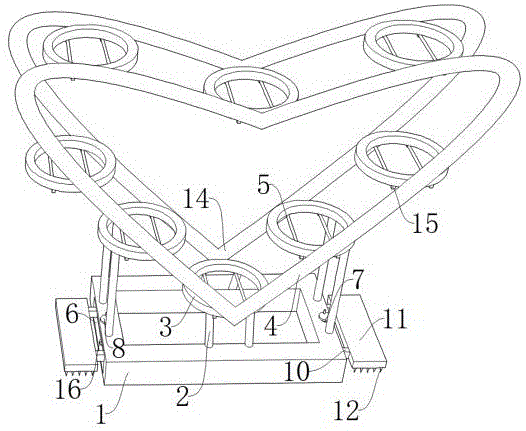

FIG. 1 is a three-dimensional schematic view of a modeling support for ornamental flowers according to the present invention;
FIG. 2 is a schematic top view, in section and in section, of a base of a modeling support for an ornamental flower according to the present invention;
fig. 3 is a schematic perspective view of a support plate of a modeling support for ornamental flowers according to the present invention.
In the figure: 1. a base; 2. connecting columns; 3. a circular ring; 4. a first heart-shaped stent; 5. a bottom pillar; 6. a sliding groove; 7. a threaded rod; 8. a handle; 9. a lifting plate; 10. a connecting plate; 11. a support plate; 12. a support cone; 13. fixing the sliding rod; 14. a second heart-shaped stent; 15. a fixing plate; 16. and (7) mounting the plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Example one
Referring to fig. 1-3, a molding support for ornamental flower, including base 1 and first heart type support 4 and the second heart type support 14 that is located base 1 top, a plurality of rings 3 of one side fixedly connected with that first heart type support 4 and second heart type support 14 are close to mutually, four fixed plates 15 that are the rectangle and place of bottom fixedly connected with of ring 3, the same sill pillar 5 of one side fixedly connected with that two symmetrical fixed plates 15 are close to mutually, four spliced poles 2 of top fixedly connected with of base 1, and the other end of four spliced poles 2 and the bottom fixed connection of same ring 3, the both sides of base 1 all are provided with the supporting component who supports base 1.
Example two
The embodiment is improved on the basis of the first embodiment: referring to fig. 1-3, a modeling bracket for ornamental flowers comprises a base 1, a first heart-shaped bracket 4 and a second heart-shaped bracket 14 which are positioned above the base 1, a plurality of circular rings 3 are fixedly connected to one side of the first heart-shaped bracket 4 close to the second heart-shaped bracket 14, four fixing plates 15 which are arranged in a rectangular shape are fixedly connected to the bottoms of the circular rings 3, the same bottom column 5 is fixedly connected to one side of the two symmetrical fixing plates 15 close to each other, four connecting columns 2 are fixedly connected to the top of the base 1, the other ends of the four connecting columns 2 are fixedly connected to the bottom of the same circular ring 3, supporting components for supporting the base 1 are arranged on two sides of the base 1, each supporting component comprises a sliding groove 6 which is arranged on each side of the base 1, a threaded rod 7 is rotatably connected to the inner wall of the bottom of the sliding groove 6, and the top end of the threaded rod 7 extends to the upper side of the base 1 through the sliding groove 6, the outer wall of the threaded rod 7 is sleeved with a lifting plate 9 in a threaded manner, two ends of the lifting plate 9 are fixedly connected with connecting plates 10, one ends of the two connecting plates 10 penetrate through the sliding groove 6 and extend to one side of the base 1 and are fixedly connected with the same supporting plate 11, the base 1 can be kept in a horizontal position by rotating the threaded rod 7, the stability of the base is ensured, and therefore the base 1 cannot be stably supported when placed on uneven ground, so that the base is toppled over, the handle 8 is fixedly connected to the top of the threaded rod 7, a user can conveniently rotate the threaded rod 7 through the handle 8, a plurality of supporting cones 12 are fixedly connected to the bottom of the supporting plate 11, the supporting cones 12 can be inserted into the ground when placed on the ground, so that the stability of the base is improved, a mounting plate 16 is fixedly connected to the inner wall of the bottom of the sliding groove 6, and the top of the mounting plate 16 is rotatably connected with the bottom end of the threaded rod 7, the stability of the threaded rod 7 during rotation can be improved through the mounting plate 16, the two symmetrical fixed slide bars 13 are fixedly connected to the inner wall of the bottom of the sliding groove 6, the lifting plate 9 is slidably sleeved on the outer walls of the two fixed slide bars 13, and the lifting plate 9 is prevented from shifting during lifting through the fixed slide bars 13.
The working principle is as follows: when the base is used, the base 1 is firstly placed at a designated position, when the placed ground is uneven, and the base 1 is not at a horizontal position, the handle 8 positioned at one side of the lower position is rotated, the handle 8 can drive the threaded rod 7 to rotate when rotating, the threaded rod 7 can drive the lifting plate 9 to descend when rotating, the lifting plate 9 can slide on the fixed sliding rod 13 when descending, so that the lifting plate 9 can not deviate when descending, meanwhile, the lifting plate 9 can drive the connecting plate 10 to descend when descending, the connecting plate 10 can drive the supporting plate 11 to descend when descending, the supporting plate 11 can drive the supporting cone 12 to descend when descending, so that the supporting cone 12 is in contact with the ground, so that the base 1 is positioned at a horizontal position, the stability of the base is ensured, and when the base is placed on the ground, the supporting cone 12 can be inserted into the ground, so that the stability of the base is improved, at this time, the flowerpot is placed in the circular ring 3, so that the bottom of the flowerpot is contacted with the tops of the two bottom columns 5, and the flowerpot is supported by the bottom columns 5, so that people can enjoy the flowerpot conveniently.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. The utility model provides a molding support for ornamental flower, includes base (1) and first heart type support (4) and second heart type support (14) that are located base (1) top, its characterized in that, a plurality of rings (3) of one side fixedly connected with that first heart type support (4) and second heart type support (14) are close to mutually, four fixed plate (15) that are the rectangle and place, symmetrical two of bottom fixedly connected with of ring (3) one side fixedly connected with same sill post (5) that fixed plate (15) are close to mutually, four spliced poles (2) of top fixedly connected with of base (1), and the other end of four spliced poles (2) and the bottom fixed connection of same ring (3), the both sides of base (1) all are provided with the supporting component who supports base (1).
2. The modeling support for an ornamental flower is characterized in that the supporting component comprises sliding grooves (6) formed in two sides of a base (1), a threaded rod (7) is rotatably connected to the inner wall of the bottom of each sliding groove (6), the top end of each threaded rod (7) extends to the upper side of the base (1) through the corresponding sliding groove (6), a lifting plate (9) is sleeved on the outer wall of each threaded rod (7) in a threaded manner, connecting plates (10) are fixedly connected to two ends of each lifting plate (9), and one end of each connecting plate (10) extends to one side of the base (1) through the corresponding sliding groove (6) and is fixedly connected with the same supporting plate (11).
3. A modelling support for a ornamental flower according to claim 2, wherein a handle (8) is fixedly connected to the top of said threaded rod (7).
4. A modelling support for ornamental flowers according to claim 2, wherein a plurality of support cones (12) are fixedly connected to the bottom of said support plate (11).
5. A modeling support used for an ornamental flower according to claim 2, characterized in that the inner wall of the bottom of the sliding groove (6) is fixedly connected with a mounting plate (16), and the top of the mounting plate (16) is rotatably connected with the bottom end of the threaded rod (7).
6. A modeling support for an ornamental flower according to claim 2, characterized in that the inner wall of the bottom of the sliding groove (6) is fixedly connected with two symmetrical fixed sliding rods (13), and the lifting plate (9) is slidably sleeved on the outer walls of the two fixed sliding rods (13).
