CN216914167U

CN216914167U - Building board drilling equipment

Info

Publication number: CN216914167U
Application number: CN202123109262.6U
Authority: CN
Inventors: 郑志杰; 郑婷婷; 高文萍
Original assignee: Guangdong Jiandu Construction Engineering Co ltd
Current assignee: Guangdong Jiandu Construction Engineering Co ltd
Priority date: 2021-12-13
Filing date: 2021-12-13
Publication date: 2022-07-08
Anticipated expiration: 2031-12-13

Abstract

The utility model discloses a building board punching device which comprises a workbench, wherein an L-shaped arm is rotatably connected to one side of the upper surface of the workbench, a vertical arm is fixedly connected to the upper surface of the workbench at a position corresponding to the L-shaped arm, a fixing mechanism is arranged between the vertical arm and one end of the L-shaped arm, and a first sliding groove is formed in the outer surface of the L-shaped arm. According to the utility model, the clamping block can be moved out of the clamping groove by starting the first motor in the fixing mechanism through the rotatable L-shaped arm and the fixing mechanism, so that the L-shaped arm can be rotated, the punching motor is moved to an open position to replace a drill bit, great convenience is brought to users, the situation that the plate is moved during punching can be avoided through the arranged clamping mechanism, the situation that the wood chips splash during punching to cause environmental pollution can be avoided through the arranged protection mechanism and the arranged cleaning mechanism, meanwhile, the generated wood chips can be sucked into the collecting box, and the heat dissipation can be carried out on the punching motor.

Description

Building board drilling equipment

Technical Field

The utility model relates to the technical field of plate punching, in particular to a punching device for a building plate.

Background

The punching equipment is a general name of machinery and equipment which leave a cylindrical hole or a hole on a target object by using a tool which is harder and sharper than the target object through a rotary cutting or rotary extrusion mode, and the punching device is more and more widely used in the aspects of machining, building and the like along with the development of the society;

at present, relate to a building board drilling equipment, current building board drilling equipment generally pushes down panel through the manual work when using then punching, appears rocking when punching easily like this to cause the failure of punching, and the sweeps that produces is difficult to collect, and the clearance is troublesome, extravagant manpower and materials, and current building board drilling equipment's punching motor generally all installs on the portal frame moreover, is not convenient for carry out the change of drill bit, greatly increased work burden.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defects in the prior art and provides a building board punching device.

In order to achieve the purpose, the utility model adopts the following technical scheme: a building board punching device comprises a workbench, wherein one side of the upper surface of the workbench is rotatably connected with an L-shaped arm, the upper surface of the workbench is fixedly connected with a vertical arm at a position corresponding to the L-shaped arm, a fixing mechanism is arranged between the vertical arm and one end of the L-shaped arm, a first chute is formed in the outer surface of the L-shaped arm, a moving mechanism is arranged inside the first chute, an electric push rod is fixedly arranged at the moving end of the moving mechanism, a mounting plate is fixedly connected to the bottom end of a moving rod of the electric push rod, a punching motor is arranged on the lower surface of the mounting plate, a drill bit is fixedly arranged on an output shaft of the punching motor, a protection mechanism is arranged on the outer surface of the mounting plate in a sleeved mode, a cleaning mechanism communicated with the protection mechanism is arranged on one side of the workbench, a second chute and a machining port are respectively formed in the upper surface of the workbench, and a clamping mechanism is arranged in the second sliding groove.

Further, fixed establishment is including seting up at the draw-in groove of L type arm one end lower surface and seting up in the groove of accomodating of erecting arm surface one side, erect the arm surface and seted up the mounting groove, the internally mounted of mounting groove has first motor, the first screw rod of output shaft fixedly connected with of first motor, the surface threaded connection of first screw rod has the fixture block, the fixture block runs through the top of mounting groove and extends to the inside of draw-in groove.

Furthermore, the moving mechanism comprises a second screw rod penetrating through the first sliding groove, the outer surface of the second screw rod is in threaded connection with a T-shaped block, a second motor connected with the second screw rod is installed on one side of the L-shaped arm, and the electric push rod is installed on the outer surface of the T-shaped block.

Further, the protection mechanism comprises a support sleeve sleeved on the outer surface of the mounting plate, the inner wall of the support sleeve is in threaded connection with the outer surface of the mounting plate, an annular groove is formed in the lower surface of the support sleeve, a spring is fixedly connected to the inner top of the annular groove, a transparent protective cover is fixedly connected to the bottom end of the spring, and a through hole is formed in the outer surface of the transparent protective cover.

Further, clearance mechanism is including the collecting box that is located workstation one side, the air exhauster is installed at the top of collecting box, the convulsions end of air exhauster is linked together with the top of collecting box, just the one end embedding that the convulsions end of air exhauster is located the collecting box top is installed the filter screen, top one side of collecting box is run through fixed intercommunication and is had the suction tube, the one end of suction tube runs through transparent protection casing.

Further, clamping mechanism is including the third screw rod that runs through the second spout, the surface symmetry threaded connection of third screw rod has the slider, the top fixedly connected with splint of slider, the third motor that is connected with the third screw rod is installed to one side of workstation.

Furthermore, the lower surface of workstation is fixedly connected with the supporting leg all around, the lower surface of workstation just slides with the corresponding position of processing mouth and can dismantle and be connected with the clearance case.

The utility model has the beneficial effects that:

1. when the building board punching equipment is used, the rotatable L-shaped arm and the fixing mechanism are used, the first motor in the fixing mechanism is started, so that the clamping block can be moved out of the clamping groove, the L-shaped arm can be rotated, the punching motor is moved to an open position to replace a drill bit, and therefore the building board punching equipment is greatly convenient for users.

2. When the building board punching equipment is used, the building board can be clamped without manual pressing through the arranged clamping mechanism, so that the situation of moving during punching is avoided.

3. When the building board punching equipment is used, the protection mechanism and the cleaning mechanism can prevent sawdust from splashing during punching to cause environmental pollution, and meanwhile, the generated sawdust can be sucked into the collecting box, so that the inside of the transparent protective cover is cleaned, and the punching motor can be radiated.

Drawings

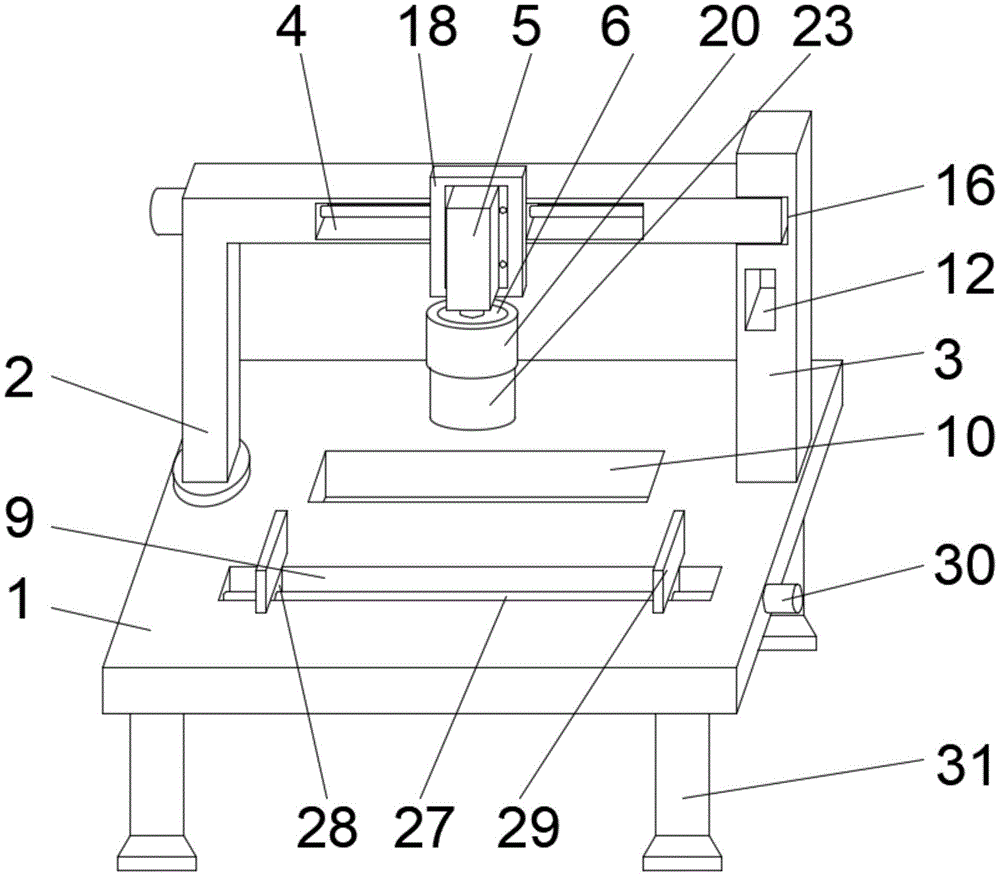

FIG. 1 is a perspective view of the present invention;

FIG. 2 is a schematic view of the overall structure of the present invention;

FIG. 3 is a side view of the present invention;

FIG. 4 is a schematic structural view of the securing mechanism of the present invention;

fig. 5 is a schematic structural diagram of the protection mechanism of the present invention.

Illustration of the drawings:

1. a work table; 2. an L-shaped arm; 3. a vertical arm; 4. a first chute; 5. an electric push rod; 6. mounting a plate; 7. a punching motor; 8. a drill bit; 9. a second chute; 10. processing a port; 11. a card slot; 12. mounting grooves; 13. a first motor; 14. a first screw; 15. a clamping block; 16. a receiving groove; 17. a second screw; 18. a T-shaped block; 19. a second motor; 20. a support sleeve; 21. an annular groove; 22. a spring; 23. a transparent protective cover; 24. a collection box; 25. an exhaust fan; 26. a suction pipe; 27. a third screw; 28. a slider; 29. a splint; 30. a third motor; 31. supporting legs; 32. and (5) cleaning the box.

Detailed Description

Referring to fig. 1 to 5, which relate to a building board punching device, comprising a workbench 1, wherein one side of the upper surface of the workbench 1 is rotatably connected with an L-shaped arm 2, the upper surface of the workbench 1 is fixedly connected with a vertical arm 3 at a position corresponding to the L-shaped arm 2, a fixing mechanism is arranged between the vertical arm 3 and one end of the L-shaped arm 2, the outer surface of the L-shaped arm 2 is provided with a first chute 4, a moving mechanism is arranged inside the first chute 4, the moving end of the moving mechanism is fixedly provided with an electric push rod 5, the bottom end of the moving rod of the electric push rod 5 is fixedly connected with a mounting plate 6, the lower surface of the mounting plate 6 is provided with a punching motor 7, the output shaft of the punching motor 7 is fixedly provided with a drill bit 8, the outer surface of the mounting plate 6 is sleeved with a protection mechanism, one side of the workbench 1 is provided with a cleaning mechanism communicated with the protection mechanism, the upper surface of the workbench 1 is respectively provided with a second chute 9 and a processing port 10, a clamping mechanism is mounted inside the second chute 9.

Fixing mechanism is including offering at the draw-in groove 11 of 2 one end lower surfaces of L type arm and offering at the groove 16 of accomodating of erecting 3 surface one sides of arm, erect 3 surface of arm and seted up mounting groove 12, the internally mounted of mounting groove 12 has first motor 13, the first screw rod 14 of the output shaft fixedly connected with of first motor 13, the surface threaded connection of first screw rod 14 has fixture block 15, fixture block 15 runs through the top of mounting groove 12 and extends to the inside of draw-in groove 11, first motor 13 rotates and drives first screw rod 14 and rotate, thereby drive fixture block 15 and remove downwards, thereby make fixture block 15 shift out draw-in groove 11.

The moving mechanism comprises a second screw rod 17 penetrating through the first sliding chute 4, the outer surface of the second screw rod 17 is in threaded connection with a T-shaped block 18, a second motor 19 connected with the second screw rod 17 is installed on one side of the L-shaped arm 2, the electric push rod 5 is installed on the outer surface of the T-shaped block 18, and the second motor 19 rotates to drive the second screw rod 17 to rotate, so that the T-shaped block 18 is driven to move left and right, and the punching motor 7 and the drill bit 8 are driven to move left and right.

Protection machanism establishes at 6 outer surface support covers 20 of mounting panel including the cover, and support the inner wall of cover 20 and the surface threaded connection of mounting panel 6, ring channel 21 has been seted up to the lower surface of support cover 20, the interior top fixedly connected with spring 22 of ring channel 21, the transparent protection casing 23 of bottom fixedly connected with of spring 22, the through-hole has been seted up to the surface of transparent protection casing 23, when drill bit 8 moves down, transparent protection casing 23 contacts with building board's upper surface, thereby the cooperation supports cover 20 and covers the department of punching, thereby the saw-dust splashes when avoiding punching, cause environmental pollution.

Clearance mechanism is including the collecting box 24 that is located 1 one side of workstation, air exhauster 25 is installed at the top of collecting box 24, air exhauster 25's convulsions end is linked together with the top of collecting box 24, and the one end embedding that air exhauster 25's convulsions end is located collecting box 24 top installs the filter screen, top one side of collecting box 24 is run through fixed intercommunication and is had suction tube 26, transparent protection casing 23 is run through to the one end of suction tube 26, air exhauster 25 takes out into the inside negative pressure of collecting box 24, and then inhale into collecting box 24 through the saw-dust in the suction tube 26 with transparent protection casing 23, thereby realize the cleanness in the transparent protection casing 23, and can also dispel the heat to drilling motor 7.

Clamping mechanism is including running through the third screw rod 27 of second spout 9, the surface symmetry threaded connection of third screw rod 27 has slider 28, the top fixedly connected with splint 29 of slider 28, the third motor 30 that is connected with third screw rod 27 is installed to one side of workstation 1, third motor 30 rotates and drives third screw rod 27 and rotate to drive two sliders 28 and two splint 29 relative movement, and then fix building board, the condition that appears removing when avoiding punching.

Fixedly connected with supporting leg 31 all around the lower surface of workstation 1, the lower surface of workstation 1 and slide with the corresponding position of processing mouth 10 and to dismantle and be connected with cleaning box 32, supporting leg 31 is for the ease of placing equipment, and cleaning box 32 is for the ease of collecting the saw-dust that punches the back bottom and produce.

When the building board punching equipment is used, firstly, the punching position is determined, so that the punching position is positioned above the processing opening 10, then the third motor 30 is started, the third motor 30 rotates to drive the third screw 27 to rotate, thereby driving the two sliding blocks 28 and the two clamping plates 29 to move relatively, further, the building board is fixed, the situation of movement during punching is avoided, then the second motor 19 is started, the second motor 19 rotates to drive the second screw 17 to rotate, thereby driving the T-shaped block 18 to move, further driving the punching motor 7 and the drill bit 8 to move to the position needing punching, further, the electric push rod 5 and the punching motor 7 are started to punch, when the drill bit 8 moves downwards, the transparent protective cover 23 is in contact with the upper surface of the building board, thereby the punching position is covered by matching with the support sleeve 20, thereby avoiding wood dust splashing during punching, causing environmental pollution, further, the exhaust fan 25 is started, the suction fan 25 is with the inside negative pressure of taking out of collecting box 24, and then inhale into collecting box 24 through the saw-dust of suction tube 26 in with transparent protection casing 23, thereby realize the cleanness in the transparent protection casing 23, and can also dispel the heat to drilling motor 7, when needs are changed drill bit 8, only need start first motor 13, first motor 13 rotates and drives first screw rod 14 and rotates, thereby drive fixture block 15 downstream, thereby make fixture block 15 shift out draw-in groove 11, just can rotate L type arm 2 this moment, and then make drilling motor 7 move the spacious position and carry out drill bit 8 and change, thereby make things convenient for the user greatly.

The above description is only for the purpose of illustrating the preferred embodiments of the present invention and should not be taken as limiting the scope of the present invention, which is intended to cover any modifications, equivalents, improvements, etc. within the spirit and scope of the present invention.

Claims

1. The utility model provides a building board drilling equipment, includes workstation (1), its characterized in that: the automatic punching machine is characterized in that one side of the upper surface of the workbench (1) is rotatably connected with an L-shaped arm (2), the upper surface of the workbench (1) is fixedly connected with a vertical arm (3) corresponding to the L-shaped arm (2), a fixing mechanism is arranged between one ends of the vertical arm (3) and the L-shaped arm (2), a first chute (4) is formed in the outer surface of the L-shaped arm (2), a moving mechanism is arranged inside the first chute (4), an electric push rod (5) is fixedly arranged at the moving end of the moving mechanism, a mounting plate (6) is fixedly connected with the bottom end of the moving rod of the electric push rod (5), a punching motor (7) is arranged on the lower surface of the mounting plate (6), a drill bit (8) is fixedly arranged on the output shaft of the punching motor (7), a protection mechanism is arranged on the outer surface of the mounting plate (6), a cleaning mechanism communicated with the protection mechanism is arranged on one side of the workbench (1), a second sliding groove (9) and a processing opening (10) are formed in the upper surface of the workbench (1) respectively, and a clamping mechanism is installed inside the second sliding groove (9).

2. The building board perforating apparatus as recited in claim 1, wherein: fixing mechanism is including offering draw-in groove (11) at L type arm (2) one end lower surface and offering accepting groove (16) in erecting arm (3) surface one side, erect arm (3) surface and seted up mounting groove (12), the internally mounted of mounting groove (12) has first motor (13), the first screw rod (14) of output shaft fixedly connected with of first motor (13), the surface threaded connection of first screw rod (14) has fixture block (15), fixture block (15) run through the top of mounting groove (12) and extend to the inside of draw-in groove (11).

3. The building board perforating apparatus of claim 1, wherein: the moving mechanism comprises a second screw (17) penetrating through the first sliding groove (4), the outer surface of the second screw (17) is in threaded connection with a T-shaped block (18), a second motor (19) connected with the second screw (17) is installed on one side of the L-shaped arm (2), and the electric push rod (5) is installed on the outer surface of the T-shaped block (18).

4. The building board perforating apparatus as recited in claim 1, wherein: protection machanism establishes support cover (20) at mounting panel (6) surface including the cover, just support the inner wall of cover (20) and the surface threaded connection of mounting panel (6), ring channel (21) have been seted up to the lower surface of support cover (20), the interior top fixedly connected with spring (22) of ring channel (21), the bottom fixedly connected with transparent protection casing (23) of spring (22), the through-hole has been seted up to the surface of transparent protection casing (23).

5. The building board punching device according to claim 4, wherein: clearance mechanism is including collecting box (24) that are located workstation (1) one side, air exhauster (25) are installed at the top of collecting box (24), the convulsions end of air exhauster (25) is linked together with the top of collecting box (24), just the one end embedding that the convulsions end of air exhauster (25) is located collecting box (24) top is installed the filter screen, top one side of collecting box (24) is run through fixed intercommunication and is had suction tube (26), transparent protection casing (23) is run through to the one end of suction tube (26).

6. The building board perforating apparatus of claim 1, wherein: clamping mechanism is including running through third screw rod (27) of second spout (9), the surface symmetry threaded connection of third screw rod (27) has slider (28), the top fixedly connected with splint (29) of slider (28), third motor (30) that are connected with third screw rod (27) are installed to one side of workstation (1).

7. The building board perforating apparatus as recited in claim 1, wherein: the lower surface of workstation (1) is fixedly connected with supporting leg (31) all around, the lower surface of workstation (1) and with processing mouthful (10) corresponding position slip can be dismantled and be connected with clearance case (32).
