The utility model discloses a sewage treatment system with multi-stage filtration, and relates to the technical field of sewage treatment. The utility model comprises a base plate, wherein a first sedimentation tank, a second sedimentation tank and a third sedimentation tank are sequentially arranged from one end to the other end of the upper side of the base plate, a first sliding plate is matched with one side of the first sedimentation tank in a sliding manner, and two first water outlet pipes are connected and communicated on the first sedimentation tank. The first sliding plate, the second sliding plate and the third sliding plate are arranged, so that sludge and impurities in the first sedimentation tank, the second sedimentation tank and the third sedimentation tank can be cleaned conveniently and timely, the influence on the sewage treatment effect when the first sedimentation tank, the second sedimentation tank and the third sedimentation tank are used again is reduced, the arrangement of the filtering tank is convenient, the precipitated sewage can be further filtered, the sewage treatment effect is improved, and the sewage treatment process is more convenient.
Description
Technical Field
The utility model belongs to the technical field of sewage treatment, and particularly relates to a sewage treatment system with multistage filtration.
Background
Sewage treatment is a process of purifying sewage to meet the requirement of discharging the sewage into a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as building, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.
Some current sewage treatment include the sedimentation tank, and the sedimentation tank bottom can accumulate more impurity and silt when long-term to sewage treatment, if untimely clearance can influence the effect that the sedimentation tank was used once more, and then can reduce the practicality of sedimentation tank, brings a great deal of inconvenience for the user simultaneously.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a sewage treatment system with multi-stage filtration, which solves the technical problem that impurities and sludge in the existing sedimentation tank are not easy to remove.
In order to achieve the purpose, the utility model is realized by the following technical scheme:
a sewage treatment system with multi-stage filtration comprises a base plate, wherein a first sedimentation tank, a second sedimentation tank and a third sedimentation tank are sequentially arranged from one end to the other end of the upper side of the base plate, a first sliding plate is in sliding fit with one side of the first sedimentation tank, the first sedimentation tank is connected and communicated with two first water outlet pipes, a second sliding plate is in sliding fit with one side of the second sedimentation tank, the second sedimentation tank is connected and communicated with two second water outlet pipes, a third sliding plate is in sliding fit with one side of the third sedimentation tank, and the third sedimentation tank is connected and communicated with two third water outlet pipes;
and the filtering tank is positioned on one side of the third sedimentation tank.
Optionally, a first notch is formed in one side of the first sedimentation tank, the first sliding plate is located in the first notch, a first threaded rod is arranged on the first sedimentation tank in a rotating fit mode, one end of the first threaded rod is in threaded fit with the first sliding plate, and a first rotating block is arranged at the other end of the first threaded rod.
Optionally, a second sliding plate is arranged on one side of the second sedimentation tank, the second sliding plate is located in the second sliding plate, a second threaded rod is rotatably matched on the second sedimentation tank, one end of the second threaded rod is in threaded fit with the second sliding plate, and a second rotating block is arranged at the other end of the second threaded rod.
Optionally, a plurality of first support rods are arranged between the first sedimentation tank and the base plate, a plurality of second support rods are arranged between the second sedimentation tank and the base plate, a plurality of third support rods are arranged between the third sedimentation tank and the base plate, and a water inlet pipe is arranged on the upper side of the first sedimentation tank.
Optionally, a filter screen is installed inside the filter tank, the bottom of the filter tank is connected and communicated with a fourth water outlet pipe, one end of the first water outlet pipe is located in the second sedimentation tank, one end of the second water outlet pipe is located in the third sedimentation tank, and one end of the third water outlet pipe is located in the filter tank.
Optionally, a first notch is formed in one side of the third sedimentation tank, the third sliding plate is located in the first notch, a third threaded rod is rotatably matched on the third sedimentation tank, one end of the third threaded rod is in threaded fit with the third sliding plate, and a third rotating block is arranged at the other end of the third threaded rod.
The embodiment of the utility model has the following beneficial effects:
the first sliding plate, the second sliding plate and the third sliding plate are arranged in one embodiment of the utility model, so that sludge and impurities in the first sedimentation tank, the second sedimentation tank and the third sedimentation tank can be cleaned conveniently and timely, the influence on the sewage treatment effect when the first sedimentation tank, the second sedimentation tank and the third sedimentation tank are used again is reduced, the arrangement of the filtering tank is convenient for further filtering the precipitated sewage, the sewage treatment effect is improved, and the sewage treatment process is more convenient.
Of course, it is not necessary for any product in which the utility model is practiced to achieve all of the above-described advantages at the same time.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, illustrate embodiments of the utility model and, together with the description, serve to explain the utility model and not to limit the utility model. In the drawings:

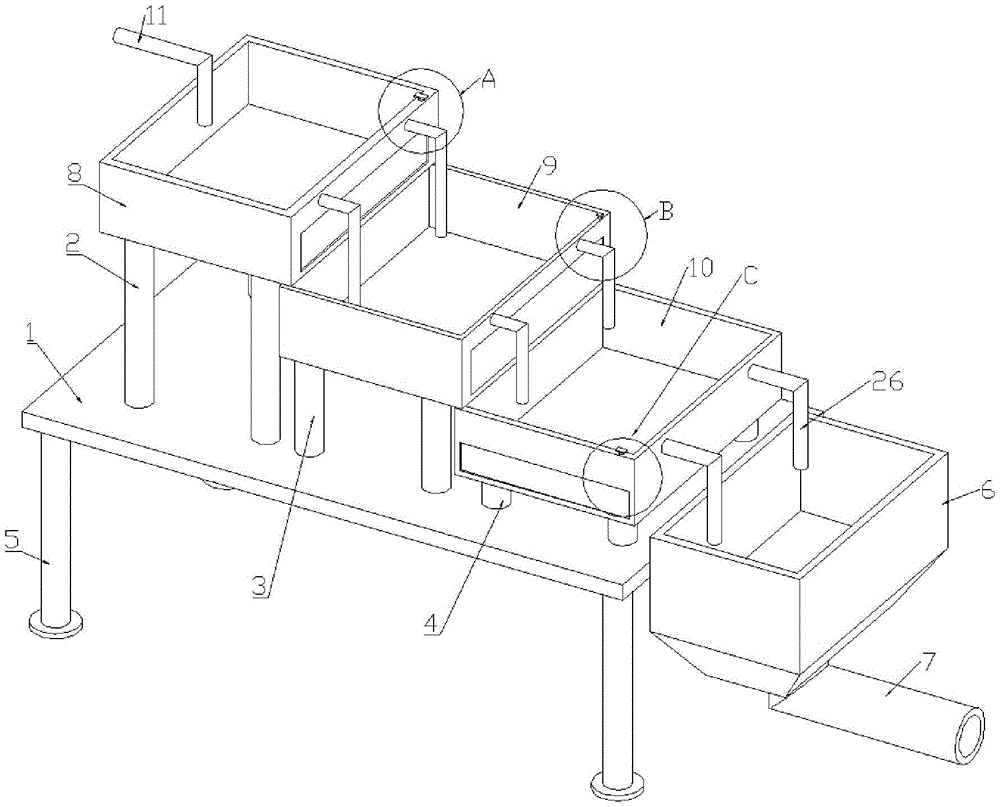

FIG. 1 is a schematic perspective view of an embodiment of the present invention;
FIG. 2 is a schematic view of the structure at A in FIG. 1;
FIG. 3 is a schematic view of the structure at B in FIG. 1;
fig. 4 is a schematic structural diagram at C in fig. 1.
Wherein the figures include the following reference numerals:
the water treatment device comprises a base plate 1, a first supporting rod 2, a second supporting rod 3, a third supporting rod 4, a supporting column 5, a filtering tank 6, a fourth water outlet pipe 7, a first sedimentation tank 8, a second sedimentation tank 9, a third sedimentation tank 10, a water inlet pipe 11, a first notch 12, a first sliding plate 13, a first threaded rod 14, a first rotating block 15, a first water outlet pipe 16, a second notch 17, a second sliding plate 18, a second threaded rod 19, a second rotating block 20, a second water outlet pipe 21, a third notch 22, a third sliding plate 23, a third threaded rod 24, a third rotating block 25 and a third water outlet pipe 26.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. The following description of at least one exemplary embodiment is merely illustrative in nature and is in no way intended to limit the utility model, its application, or uses.
To maintain the following description of the embodiments of the present invention clear and concise, a detailed description of known functions and known components of the utility model have been omitted.
Referring to fig. 1-4, in this embodiment, a multi-stage filtration sewage treatment system is provided, which includes: the device comprises a substrate 1, wherein a first sedimentation tank 8, a second sedimentation tank 9 and a third sedimentation tank 10 are sequentially arranged from one end to the other end of the upper side of the substrate 1, a first sliding plate 13 is in sliding fit with one side of the first sedimentation tank 8, two first water outlet pipes 16 are connected and communicated with the first sedimentation tank 8, a second sliding plate 18 is in sliding fit with one side of the second sedimentation tank 9, two second water outlet pipes 21 are connected and communicated with the second sedimentation tank 9, a third sliding plate 23 is in sliding fit with one side of the third sedimentation tank 10, and two third water outlet pipes 26 are connected and communicated with the third sedimentation tank 10;
a filtering tank 6, and the filtering tank 6 is positioned at one side of the third settling tank 10.
When sewage needs to be treated, firstly, sewage is injected into a first sedimentation tank 8 through a water inlet pipe 11 for first-step sedimentation, the sewage on the upper side of the first sedimentation tank 8 flows into a second sedimentation tank 9 through a first water outlet pipe 16 for second-step sedimentation, the sewage on the upper side of the second sedimentation tank 9 flows into a third sedimentation tank 10 through a second water outlet pipe 21 for third-step sedimentation, the sewage on the upper side of the third sedimentation tank 10 flows into a filtering tank 6 through a third water outlet pipe 26 for filtering through a filtering screen, and the filtered sewage is discharged through a fourth water outlet pipe 7, so that the sewage treatment is completed;
when the sludge and impurities in the first sedimentation tank 8, the second sedimentation tank 9 and the third sedimentation tank 10 need to be cleaned, first, the first rotating block 15 is rotated, the first rotating block 15 drives the first sliding plate 13 to slide in the first slot 12 through the first threaded rod 14, then the sludge and impurities at the bottom of the first sedimentation tank 8 are scraped into the second sedimentation tank 9 by a scraper, then the second rotating block 20 is rotated, the second rotating block 20 drives the second sliding plate 18 to slide in the second notch 17 through the second threaded rod 19, then the sludge and impurities at the bottom of the second sedimentation tank 9 are scraped into the third sedimentation tank 10 by a scraper, then the third rotating block 25 is rotated, the third rotating block 25 drives the third sliding plate 23 to slide in the third slot 22 through the third threaded rod 24, then the sludge and impurities in the third sedimentation tank 10 are scraped out by a scraper and collected. It should be noted that the electric devices referred to in this application may be powered by a storage battery or an external power source.
The first sliding plate 13 that sets up, the second sliding plate 18, the third sliding plate 23, convenient to first sedimentation tank 8, the second sedimentation tank 9, silt and impurity in the third sedimentation tank 10 in time clear up, first sedimentation tank 8 has been reduced, the second sedimentation tank 9, influence when the third sedimentation tank 10 is used once more to sewage treatment's effect, filtering ponds 6's setting, it further filters to the sewage after the sediment to have made things convenient for, sewage treatment's effect has been improved, make sewage treatment's process more convenient.
Referring to fig. 3, a filter screen is installed inside a filter tank 6 of this embodiment, a fourth water outlet pipe 7 is connected and communicated with the bottom of the filter tank 6, one end of a first water outlet pipe 16 is located inside a second sedimentation tank 9, one end of a second water outlet pipe 21 is located inside a third sedimentation tank 10, one end of a third water outlet pipe 26 is located inside the filter tank 6, one side of the first sedimentation tank 8 is provided with a first notch 12, a first sliding plate 13 is located inside the first notch 12, the first sedimentation tank 8 is rotatably fitted with a first threaded rod 14, one end of the first threaded rod 14 is in threaded fit with the first sliding plate 13, the other end of the first threaded rod 14 is provided with a first rotating block 15, one side of the second sedimentation tank 9 is provided with a second sliding plate 18, the second sliding plate 18 is located inside the second sliding plate 18, the second sedimentation tank 9 is rotatably fitted with a second threaded rod 19, and one end of the second threaded rod 19 is in threaded fit with the second sliding plate 18, the other end of the second threaded rod 19 is provided with a second rotating block 20, which facilitates the second threaded rod 19 to rotate through the second rotating block 20.
Referring to fig. 1, in the embodiment, a first notch 12 is formed in one side of a third settling tank 10, a third sliding plate 23 is located in the first notch 12, a third threaded rod 24 is rotatably fitted on the third settling tank 10, one end of the third threaded rod 24 is in threaded fit with the third sliding plate 23, a third rotating block 25 is installed at the other end of the third threaded rod 24, a plurality of first support rods 2 are installed between the first settling tank 8 and a base plate 1, a plurality of second support rods 3 are installed between the second settling tank 9 and the base plate 1, a plurality of third support rods 4 are installed between the third settling tank 10 and the base plate 1, and a water inlet pipe 11 is installed at the upper side of the first settling tank 8, so that sewage can be conveniently injected into the first settling tank 8 through the water inlet pipe 11.
Example 1: in one aspect of the embodiment, in order to minimize the tilting of the first threaded rod 14 during rotation, the present embodiment provides two alternative embodiments.
Embodiment 1.1, in this embodiment, first threaded rod 14 is normal running fit in first sedimentation tank 8, has reduced the condition emergence that first threaded rod 14 leaned on when rotating, and then has improved the stability of first threaded rod 14 when rotating.
Embodiment 1.2, in this embodiment, first threaded rod 14 one end and first sliding plate 13 screw-thread fit have reduced the first threaded rod 14 and have rocked the condition emergence when rotating.
The above embodiments may be combined with each other.
It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It is to be understood that the data so used is interchangeable under appropriate circumstances such that the embodiments of the application described herein are capable of operation in sequences other than those illustrated or described herein.
In the description of the present invention, it is to be understood that the orientation or positional relationship indicated by the orientation words such as "front, rear, upper, lower, left, right", "lateral, vertical, horizontal" and "top, bottom", etc. are usually based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and in the case of not making a reverse description, these orientation words do not indicate and imply that the device or element being referred to must have a specific orientation or be constructed and operated in a specific orientation, and therefore, should not be considered as limiting the scope of the present invention; the terms "inner and outer" refer to the inner and outer relative to the profile of the respective component itself.
Claims (6)
1. A multi-stage filtration sewage treatment system, comprising:
the device comprises a substrate (1), wherein a first sedimentation tank (8), a second sedimentation tank (9) and a third sedimentation tank (10) are sequentially arranged from one end to the other end of the upper side of the substrate (1), a first sliding plate (13) is in sliding fit with one side of the first sedimentation tank (8), the first sedimentation tank (8) is connected and communicated with two first water outlet pipes (16), a second sliding plate (18) is in sliding fit with one side of the second sedimentation tank (9), the second sedimentation tank (9) is connected and communicated with two second water outlet pipes (21), a third sliding plate (23) is in sliding fit with one side of the third sedimentation tank (10), and the third sedimentation tank (10) is connected and communicated with two third water outlet pipes (26);
a filtering tank (6), wherein the filtering tank (6) is positioned at one side of the third sedimentation tank (10).
2. The sewage treatment system with multi-stage filtration according to claim 1, wherein the filtering tank (6) is internally provided with a filtering screen, the bottom of the filtering tank (6) is connected and communicated with a fourth water outlet pipe (7), one end of the first water outlet pipe (16) is positioned in the second sedimentation tank (9), one end of the second water outlet pipe (21) is positioned in the third sedimentation tank (10), and one end of the third water outlet pipe (26) is positioned in the filtering tank (6).
3. The sewage treatment system of the multistage filtration of claim 1, wherein one side of the first sedimentation tank (8) is provided with a first notch (12), the first sliding plate (13) is positioned in the first notch (12), the first sedimentation tank (8) is rotatably matched with a first threaded rod (14), one end of the first threaded rod (14) is in threaded fit with the first sliding plate (13), and the other end of the first threaded rod (14) is provided with a first rotating block (15).
4. The sewage treatment system with multi-stage filtration according to claim 1, wherein one side of the second sedimentation tank (9) is provided with a second sliding plate (18), the second sliding plate (18) is positioned in the second sliding plate (18), a second threaded rod (19) is rotatably fitted on the second sedimentation tank (9), one end of the second threaded rod (19) is in threaded fit with the second sliding plate (18), and the other end of the second threaded rod (19) is provided with a second rotating block (20).
5. The sewage treatment system of the multistage filtration of claim 1, wherein one side of the third sedimentation tank (10) is opened with a first notch (12), and the third sliding plate (23) is positioned in the first notch (12), the third sedimentation tank (10) is rotatably fitted with a third threaded rod (24), and one end of the third threaded rod (24) is threadedly fitted with the third sliding plate (23), and the other end of the third threaded rod (24) is provided with a third rotating block (25).
6. The sewage treatment system of the multistage filtration of claim 1, wherein a plurality of first support rods (2) are installed between the first settling tank (8) and the base plate (1), a plurality of second support rods (3) are installed between the second settling tank (9) and the base plate (1), a plurality of third support rods (4) are installed between the third settling tank (10) and the base plate (1), and a water inlet pipe (11) is installed at the upper side of the first settling tank (8).
