Abstract

The utility model relates to a wine bottle labeling device which comprises a conveying device, wherein a rotating shaft for placing a label and a wheel disc for collecting a twisted lining paper are arranged on one side of the upper end of the conveying device, the wheel disc is driven by a motor arranged in the conveying device, a fixing rod at the end of the conveying device is also rotatably connected with a V-shaped bracket, two ends of the bracket are respectively rotatably connected with a first roller and a second roller, the first roller is positioned between the rotating shaft and the wheel disc, and a separating plate for separating the label and the lining paper is further arranged on one side of the first roller. When the wine bottle from left to right gets into conveyer, thereby the motor drive rim plate rotates and makes label paper roll from the pivot and take out, label paper is through the side of first cylinder and the tip of separator plate, the separator plate makes the laminating in the body after label and the slip sheet separation, when the body conveys to first cylinder one side, first cylinder makes label laminating body, continue to convey right through the further fastening of second cylinder to the label of laminating, the cylinder group also makes the meeting of columniform wine bottle laminating more fasten.

Description

Wine bottle labeling device
Technical Field
The utility model belongs to the technical field of wine making, and particularly relates to a wine bottle labeling device.
Background
In the wine processing production process, the label description needs to be pasted on the outer wall of the wine bottle filled with vinegar, and if the label is pasted manually, the labeling efficiency is low, uneven phenomenon can occur in the position of the label pasted on the outer wall of the wine bottle, the whole production efficiency is influenced, and the whole packaging attractiveness of the wine bottle is influenced.
In the actual production, adopt the machine to label mostly, improved efficiency greatly, still have many weak points, because the demand in production and market, often have cylindrical bottle and square bottle etc. current labeller can only be suitable for the beverage bottle of a shape, label subsides also not very firm moreover, when carrying out subsequent process, has the risk of droing, and the structure is complicated moreover, also does not benefit to the maintenance in later stage.
Disclosure of Invention
The utility model aims to overcome the defects of the prior art, and mainly solves the problem of providing a wine bottle labeling device which not only can adapt to wine bottles with various shapes, but also can fasten and attach labels to avoid the subsequent rework condition, has a simple structure and is convenient to use.
The purpose of the utility model is realized as follows: the utility model provides a beverage bottle labelling device, includes conveyer, conveyer upper end one side is installed the pivot of placing the label and is received the rim plate of skein paper, the rim plate is through arranging the inside motor drive of conveyer in, it is connected with "V" shape support still to rotate on the dead lever of conveyer end, the support both ends are rotated respectively and are connected first cylinder and second cylinder, first cylinder is located between pivot and the rim plate, the separator plate of separation label and slip paper is still installed to first cylinder one side.
Furthermore, a baffle is installed at one side of the conveying device, and the support located at one side of the first roller is connected to one side of the baffle through a first spring.
Still further, the separation plate tip is flat, and another tip articulates in baffle one side, just the separation plate middle part still passes through second spring connection baffle one side.
Furthermore, a plurality of grooves formed in the conveying device are connected with a fixing plate in a sliding mode, a drum group is further installed on the fixing plate, and the fixing plate is limited through bolts.
Furthermore, the surfaces of the first roller, the second roller and the drum group are all wrapped with soft materials.
The utility model has the technical effects that: when the wine bottle from left to right gets into conveyer, thereby the motor drive rim plate rotates and makes label paper roll from the pivot and take out, label paper is through the side of first cylinder and the tip of separator plate, the separator plate makes the laminating in the body after label and the slip sheet separation, when the body conveys to first cylinder one side, first cylinder makes label laminating body, continue to convey right through the further fastening of second cylinder to the label of laminating, the cylinder group also makes the meeting of columniform wine bottle laminating more fasten.
Drawings

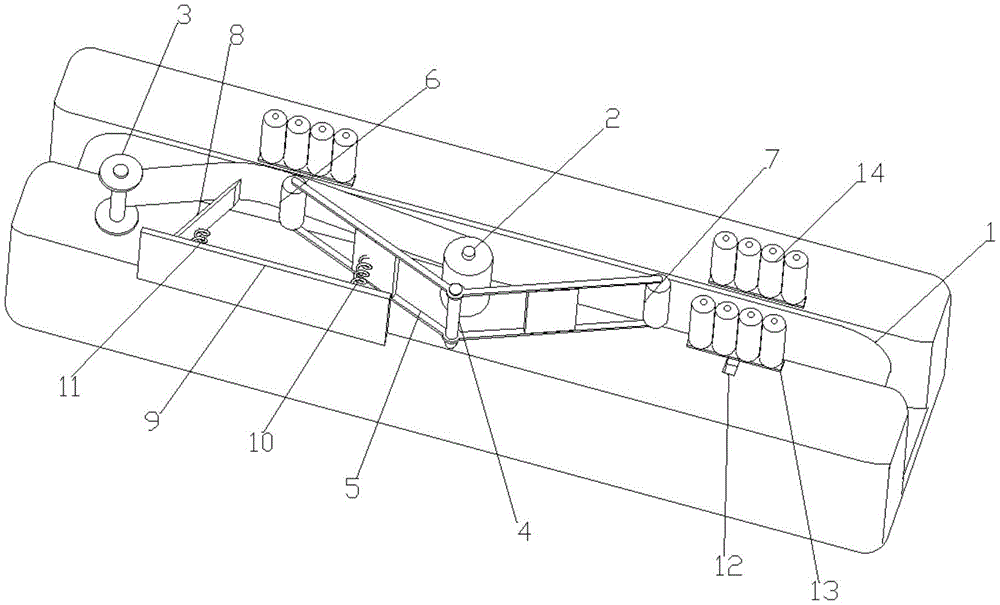

FIG. 1 is a schematic perspective view of the apparatus of the present invention;
FIG. 2 is a top view of the apparatus of the present invention.
In the drawings: 1. a conveying device; 2. a rotating shaft; 3. a wheel disc; 4. fixing the rod; 5. a support; 6. a first drum; 7. a second drum; 8. a separation plate; 9. a baffle plate; 10. a first spring; 11. a second spring; 12. a groove; 13. a fixing plate; 14. and (5) a barrel group.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The present invention will now be described in detail with reference to the accompanying drawings.
The utility model provides a beverage bottle labelling device, includes conveyer 1, 1 upper end one side of conveyer installs the carousel 3 of placing the pivot 2 of label and receipts slip sheet, carousel 3 is through arranging the inside motor drive of conveyer 1 in, it is connected with "V" shape support 5 still to rotate on the dead lever 4 of 1 end of conveyer, 5 both ends of support rotate respectively and connect first cylinder 6 and second cylinder 7, first cylinder 6 is located between pivot 2 and the carousel 3, the separator 8 of separation label and slip sheet is still installed to 6 one side of first cylinder.
As shown in fig. 1-2, when labeling a wine bottle, the wine bottle is placed on the conveying device 1 and conveyed from left to right, the starting motor drives the wheel disc 3 to rotate to receive the twisted lining paper, meanwhile, the rotating shaft for placing the label paper is driven to rotate, the elongated label paper passes through the surface of the first roller 6 and the end of the separating plate 8, the end of the separating plate 8 enables the label and the lining paper to be separated and is adhered to one side of the bottle body, when the wine bottle is conveyed to the right continuously, the first roller 6 enables the label to be adhered to the bottle body, and the V-shaped support 5 enables the first roller 6 to drive the second roller 7 to perform secondary fastening on the adhered wine bottle when being adhered to a subsequent wine bottle, so that the wine bottle is prevented from loosening.
According to one embodiment of the present invention, a baffle 9 is installed at one side of the conveying device 1, and the bracket 5 at one side of the first roller 6 is connected to one side of the baffle 9 through a first spring 10. The elasticity of first spring 10 supports presses first cylinder 6 can laminate the body for glue the label laminating body on the body, first cylinder 6 also has certain loose effect of stretching to the label of lengthening, makes separator 8 can be better with label and slip sheet separation.
According to one embodiment of the present invention, the end of the separation plate 8 is flat, the other end is hinged to one side of the baffle plate 9, and the middle of the separation plate 8 is connected to one side of the baffle plate 9 through a second spring 11. The elastic force of the second spring 11 presses the separating plate against the elongated label paper, so that the labels on the liner paper are separated.
According to one embodiment of the utility model, a plurality of grooves 12 formed on the conveying device 1 are slidably connected with a fixing plate 13, a barrel group 14 is further installed on the fixing plate 13, and the fixing plate 13 is limited by bolts. The cylinder group 14 is for making label paper more laminate on the body, and the cylinder group 14 that is located first cylinder 6 and puts one side relatively makes columniform beverage bottle rotate when the conveying for the label more laminates on the body, and the cylinder group 14 on right side carries out the secondary fastening, avoids appearing the condition that the pine takes off, influences the sale of product, and when labelling square bottle, slidable fixed plate 13 moves cylinder group 14 to the opposite side of recess 12, avoids influencing labelling.
According to one embodiment of the present invention, the surfaces of the first roller 6, the second roller 7 and the drum set 14 are wrapped with soft materials. The first roller 6, the second roller 7 and the drum set 14 can be better attached to the bottle body through the soft material, and the label is tightly attached to the bottle body.
The wine bottle labeling device provided by the utility model not only can ensure that the label is more tightly attached, but also can adapt to wine bottles in various shapes, and has the advantages of stronger practicability, simple structure and more convenience in use and later maintenance.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof.

Claims (5)

1. A wine bottle labelling device, comprising a conveyor (1), characterized in that: conveyer (1) upper end one side is installed and is placed pivot (2) of label and receive rim plate (3) of skein paper, rim plate (3) are through arranging conveyer (1) inside motor drive in, it is connected with "V" shape support (5) still to rotate on dead lever (4) of conveyer (1) end, support (5) both ends are rotated respectively and are connected first cylinder (6) and second cylinder (7), first cylinder (6) are located between pivot (2) and rim plate (3), separation plate (8) of separation label and slip paper are still installed to first cylinder (6) one side.
2. A wine bottle labelling apparatus according to claim 1 wherein: a baffle (9) is installed at one side edge of the conveying device (1), and a support (5) located on one side of the first roller (6) is connected to one side of the baffle (9) through a first spring (10).
3. A wine bottle labelling apparatus according to claim 2, wherein: the end part of the separation plate (8) is flat, the other end part of the separation plate is hinged to one side of the baffle plate (9), and the middle part of the separation plate (8) is connected to one side of the baffle plate (9) through a second spring (11).
4. A wine bottle labelling apparatus according to claim 3 wherein: the conveying device is characterized in that a plurality of grooves (12) formed in the conveying device (1) are connected with a fixing plate (13) in a sliding mode, a drum set (14) is further mounted on the fixing plate (13), and the fixing plate (13) is limited through bolts.
5. A wine bottle labelling device according to claim 4 wherein: the surfaces of the first roller (6), the second roller (7) and the drum group (14) are all wrapped with soft materials.
