Abstract
The utility model relates to the technical field of non-woven fabric production, in particular to a heat sealing device for non-woven fabric production, which comprises a workbench, an electric heating top plate and an electric heating bottom plate, wherein the electric heating bottom plate is fixedly arranged at the top of the workbench, a hydraulic cylinder is fixedly arranged at the top of the workbench through a supporting mechanism, the output end of the hydraulic cylinder is fixedly connected with the top of the electric heating top plate, two rotating rods are hinged to the front side and the rear side of the electric heating top plate, rotating rollers are rotatably connected between the rotating rods positioned at the front side and the rear side of the electric heating top plate, and a tension spring is also arranged between the rotating rods positioned at the same side of the electric heating top plate. When the electric heating top plate is matched with the electric heating bottom plate under the driving of the hydraulic cylinder, the electric heating top plate can automatically press the rotating rollers to enable the two rotating rollers to move in the direction away from each other, the non-woven fabric is smoothed while the rotating rollers move, labor is saved, and the electric heating top plate is simple in structure, easy to popularize and higher in practicability.
Description
Technical Field
The utility model relates to the technical field of non-woven fabric production, in particular to a heat sealing device for non-woven fabric production.
Background
Nonwoven fabrics, also known as nonwovens, are composed of oriented or random fibers. The non-woven fabric is called as the fabric because of the appearance and certain properties of the fabric, and has the characteristics of moisture resistance, air permeability, flexibility, light weight, no combustion supporting, easy decomposition, no toxicity or irritation, rich color, low price, recycling and the like.
The non-woven fabrics need pass through the heat seal process when processing in production, and the heat seal device that has now on the market adopts mutually supporting realization to the heat seal of non-woven fabrics of electric heat roof and electric heat bottom plate usually, but when carrying out the heat seal to the non-woven fabrics, the fold appears easily in the non-woven fabrics, influences product quality, needs the manual work to smooth the non-woven fabrics, and is comparatively inconvenient.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In view of the defects of the prior art, the present invention provides a heat sealing device for producing non-woven fabrics, so as to solve the problems in the background art.
(II) technical scheme
In order to achieve the above purpose, the utility model provides the following technical scheme: the utility model provides a heat seal device for non-woven fabrics production, includes workstation, electric heat roof and electric heat bottom plate, electric heat bottom plate fixed mounting is at the top of workstation, there is the hydraulic cylinder at the top of workstation and through supporting mechanism fixed mounting directly over being located the electric heat bottom plate, just the output of hydraulic cylinder and the top fixed connection of electric heat roof, it has two dwangs all to articulate on both sides around the electric heat roof all to be located all to rotate between the dwang of both sides around the electric heat roof and be connected with the live-rollers, be located still be provided with the extension spring between the dwang of electric heat roof homonymy.
Optionally, the supporting mechanism includes fixed connection at the workstation top and is located the backup pad at the electric heat bottom plate back, the top fixedly connected with diaphragm of backup pad, just hydraulic cylinder passes through mounting bracket fixed mounting at the top of diaphragm.
Optionally, both ends of the tension spring are fixedly connected with one side of the rotating rod at the same side, which is close to the rotating rod at the same side, and the tension spring is always in a stretched state.
Optionally, just be located two limiting plates of equal fixedly connected with between the homonymy dwang on both sides around the electric heat roof, and when the homonymy when the dwang is close to each other one side contacts with two limiting plates respectively, homonymy contained angle between the dwang is the acute angle.
Optionally, when the electric heating top plate is matched with the electric heating bottom plate, the two rotating rollers are respectively located on two sides of the electric heating top plate.
(III) advantageous effects
Compared with the prior art, the utility model provides a heat sealing device for non-woven fabric production, which has the following beneficial effects: according to the utility model, the two rotating rollers are arranged at the bottom of the electric heating top plate, when the electric heating top plate is matched with the electric heating bottom plate under the driving of the hydraulic cylinder, the electric heating top plate can automatically press the rotating rollers to enable the two rotating rollers to move towards the directions away from each other, the flattening effect on the non-woven fabric is realized while the rotating rollers move, the labor is saved, and in the process of separating the electric heating top plate from the electric heating bottom plate, the two rotating rollers can automatically reset under the action of the restoring force of the tension spring, so that the electric heating top plate is convenient to use, and the electric heating top plate is simple in structure, easy to popularize and higher in practicability.
Drawings

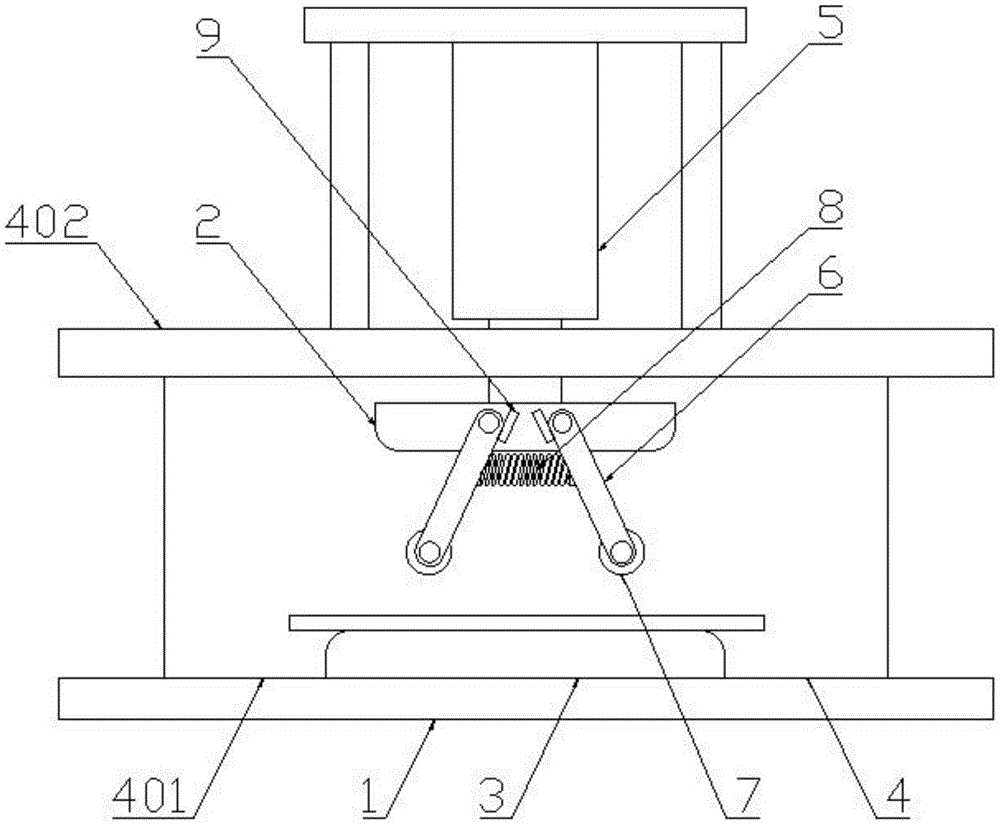

FIG. 1 is a schematic view of the structure of the present invention in its natural state;
FIG. 2 is a schematic structural view of the electric heating top plate and the electric heating bottom plate of the present invention when they are fitted.
In the figure: 1. a work table; 2. an electric heating top plate; 3. an electric heating soleplate; 4. a support mechanism; 401. a support plate; 402. a transverse plate; 5. a hydraulic cylinder; 6. rotating the rod; 7. a rotating roller; 8. a tension spring; 9. and a limiting plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: a heat sealing device for non-woven fabric production comprises a workbench 1, an electric heating top plate 2 and an electric heating bottom plate 3, wherein the electric heating bottom plate 3 is fixedly arranged at the top of the workbench 1, a hydraulic cylinder 5 is fixedly arranged at the top of the workbench 1 and right above the electric heating bottom plate 3 through a support mechanism 4, the hydraulic cylinder 5 is connected with an external power supply and a control system through a lead, the support mechanism 4 comprises a support plate 401 fixedly connected at the top of the workbench 1 and positioned at the back of the electric heating bottom plate 3, the top of the support plate 401 is fixedly connected with a transverse plate 402, the hydraulic cylinder 5 is fixedly arranged at the top of the transverse plate 402 through a mounting rack, the output end of the hydraulic cylinder 5 is fixedly connected with the top of the electric heating top plate 2, the front side and the back side of the electric heating top plate 2 are respectively hinged with two rotating rods 6, and two limiting plates 9 are fixedly connected between the rotating rods 6 at the front side and the back side of the electric heating top plate 2 and positioned at the same side, and when one side that is close to each other as homonymy dwang 6 contacts with two limiting plate 9 respectively, contained angle between homonymy dwang 6 is the acute angle, all rotate between the dwang 6 that is located electric heat roof 2 front and back both sides and be connected with live-rollers 7, when electric heat roof 2 and electric heat bottom plate 3 fit for, two live-rollers 7 are located the both sides of electric heat roof 2 respectively, it still is provided with extension spring 8 to be located between the dwang 6 of 2 homonymies of electric heat roof, the both ends of extension spring 8 respectively with one side fixed connection that homonymy dwang 6 is close to each other, and extension spring 8 is in stretched state all the time.
The working principle is as follows: during the use, place the non-woven fabrics that will need the heat seal on electric heat bottom plate 3, then start hydraulic cylinder 5 through external control system and drive 2 downstream of electric heat roof and carry out the adaptation with electric heat bottom plate 3, electric heat roof 2 can press down live-rollers 7 automatically at the in-process that descends and make two live-rollers 7 to the direction motion of keeping away from each other, realize the effect of pacifying to the non-woven fabrics in the time of live-rollers 7 motion, the heat seal is accomplished the back, hydraulic cylinder 5 drives 2 and 3 separations of electric heat roof and electric heat bottom plate, two live-rollers 7 automatic re-setting under the effect of 8 restoring forces of extension spring at the in-process of upward movement of electric heat roof 2.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a heat seal device is used in non-woven fabrics production, includes workstation (1), electric heat roof (2) and electric heat bottom plate (3), electric heat bottom plate (3) fixed mounting is at the top of workstation (1), its characterized in that: the utility model discloses a hydraulic pressure electric heating roof, including workstation (1), electrothermal bottom plate (3), support mechanism (4), hydraulic cylinder (5) and hydraulic cylinder (5), just be located directly over the top of workstation (1) and be located electrothermal bottom plate (3), all articulated on the front and back both sides of electrothermal top plate (2) have two dwang (6), are located all rotate between dwang (6) of both sides around electrothermal top plate (2) and be connected with live-rollers (7), are located still be provided with extension spring (8) between dwang (6) of electrothermal top plate (2) homonymy.
2. The heat sealing device for producing non-woven fabrics according to claim 1, characterized in that: supporting mechanism (4) are including fixed connection in backup pad (401) at workstation (1) top and be located electric heat bottom plate (3) back, the top fixedly connected with diaphragm (402) of backup pad (401), just hydraulic cylinder (5) are through mounting bracket fixed mounting at the top of diaphragm (402).
3. The heat sealing apparatus according to claim 1, wherein: the two ends of the tension spring (8) are fixedly connected with one side of the same-side rotating rod (6) close to each other, and the tension spring (8) is always in a stretched state.
4. The heat sealing apparatus according to claim 1, wherein: just be located two limiting plates (9) of equal fixedly connected with between homonymy dwang (6) on the both sides around electric heat roof (2), and when the homonymy dwang (6) one side that is close to each other contacts with two limiting plates (9) respectively, homonymy contained angle between dwang (6) is the acute angle.
5. The heat sealing apparatus according to claim 1, wherein: when the electric heating top plate (2) is matched with the electric heating bottom plate (3), the two rotating rollers (7) are respectively positioned at two sides of the electric heating top plate (2).
