Abstract

The utility model relates to a medical cap with the function of reducing indentation, which comprises a medical cap body provided with an opening at the bottom, an adjustment port is opened on the lower part of the rear side of the medical cap body, and a U-shaped installation is fixed on the inner wall of the lower part of the medical cap body along its circumferential direction. Sleeve, the opening of the U-shaped installation sleeve is set towards the adjustment port, the interior of the U-shaped installation sleeve is provided with an installation cavity along its circumferential direction, and the U-shaped elastic elastic band is pierced inside the installation cavity, and both ends of the U-shaped elastic elastic band are located in the installation cavity. The inner wall of the U-shaped installation sleeve is fixed with straps, and the two straps extend outward to the outside of the installation cavity. The inner wall of the U-shaped installation sleeve is fixed with an anti-pressure sponge cushion along its circumferential direction, and the anti-pressure sponge cushion is attached to the human skin. combine. The utility model has a reasonable structure design, is convenient to manufacture, can reduce the extrusion on the forehead and the ear when wearing, and ensures the wearing comfort of the medical staff.

Description

Medical cap with reduce indentation function

Technical Field

The utility model belongs to the technical field of medical consumptive material, especially, relate to a medical cap with reduce indentation function.

Background

The medical cap is a medical article suitable for medical systems in clinical health care, and is used for common isolation in outpatient service, sickroom, inspection room and the like of medical institutions, and prevents hairs or dandruff from falling off to pollute medical working environment. At present, the medical cap widely used clinically comprises a medical cap body with an open bottom, an annular elastic rope is fixed on the inner wall of the opening of the medical cap body, the medical cap body is tightly attached to the head of a medical worker through the annular elastic rope, and the medical cap body is not easy to loosen or fall off. However, since the looped elastic cord is narrow, wearing for a long time may cause pressure on the forehead and ear parts of the medical staff, forming an impression, thereby causing wearing discomfort.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a medical cap with reduce indentation function for medical cap among the solution prior art produces the indentation very easily wearing the in-process, the technical problem who satisfies the user demand that can not be fine.

In order to solve the technical problem, the utility model discloses the technical scheme who adopts is: the utility model provides a medical cap with reduce indentation function, medical cap body including the bottom opening setting, the regulation mouth has been seted up to the lower part of medical cap body rear side, be fixed with U type installation cover along its circumference on the inner wall of medical cap body lower part, the opening orientation of U type installation cover is adjusted the mouth and is set up, the installation cavity has been seted up along its circumference in the inside of U type installation cover, U type elastic cord is worn to be equipped with in the installation cavity inside, the both ends of U type elastic cord all are located the inside of installation cavity and are fixed with the bandage, two bandages all outwards extend to the installation cavity outside, be fixed with along its circumference on the inner wall of U type installation cover and prevent pressing the sponge bed course, prevent pressing the sponge bed course and laminate with human skin mutually.

Preferably, a circle of flexible pressure-proof cushion layer matched with the forehead of a human body is fixed on the inner wall of the front side of the pressure-proof sponge cushion layer.

Preferably, the inner walls of the left side and the right side of the anti-pressure sponge cushion layer are fixed with ear gaskets symmetrically arranged, the ear gaskets are made of flexible materials, and grooves matched with the ear shapes are formed in the ear gaskets.

Preferably, the width of the U-shaped mounting sleeve is 3cm-4cm, and the width of the U-shaped elastic band is 2.7cm-3.7 cm.

Preferably, the medical cap body comprises a cap body and a breathable net sewn at the top of the cap body, the cap body is made of ice silk fabric, and the breathable net is made of nylon.

The utility model has the advantages that: the structure design is reasonable, the U-shaped elastic band is arranged in the U-shaped mounting sleeve in a penetrating way by the U-shaped mounting sleeve, and the anti-pressing sponge cushion layer is fixed on the inner wall of the U-shaped mounting sleeve, when in use, the tightness of the medical cap body can be adjusted under the action of the U-shaped elastic band, the medical cap body can be ensured to be tightly attached to the head of the medical personnel, the problem that the medical cap body is loosened or falls off can not occur, and the U-shaped elastic band is arranged in the U-shaped mounting sleeve, and the anti-pressing sponge cushion layer is arranged, compared with the traditional elastic rope, on one hand, the width of the U-shaped elastic band is larger, on the other hand, the extrusion force generated by the U-shaped elastic band is buffered due to the double blocking of the U-shaped mounting sleeve and the anti-pressing sponge cushion layer, the extrusion force generated by the U-shaped elastic band to the forehead and the ears of the medical personnel can be greatly reduced, the possibility of indentation generation is reduced, and the wearing comfort of medical personnel is improved.

Drawings

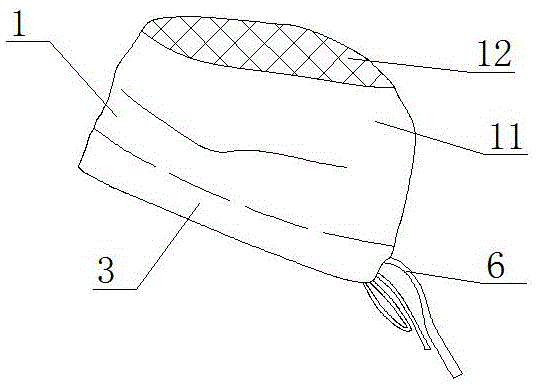

Fig. 1 is a first schematic structural diagram of the present invention;

FIG. 2 is a second schematic structural view of the present invention;

fig. 3 is a cross-sectional view of the present invention;

FIG. 4 is a schematic structural view of a U-shaped mounting sleeve;

FIG. 5 is a schematic view of the connection of the ear pad and the pressure-proof foam cushion layer.

Reference numerals: 1-medical cap body, 2-regulation mouth, 3-U type installation cover, 4-installation cavity, 5-U type elastic cord, 6-bandage, 7-prevent pressure sponge bed course, 8-flexible prevent pressure bed course, 9-ear's gasket, 10-recess, 11-cap body, 12-ventilative net.

Detailed Description

As shown in fig. 1 and fig. 2, the utility model discloses a medical cap body 1 that the bottom opening set up, regulation mouth 2 has been seted up to the lower part of medical cap body 1 rear side, as shown in fig. 3 and fig. 4, be fixed with U type installation cover 3 along its circumference on the inner wall of medical cap body 1 lower part, the material of U type installation cover 3 is the non-woven fabrics, U type installation cover 3's opening orientation regulation mouth 2 sets up, installation cavity 4 has been seted up along its circumference in U type installation cover 3's inside, U type elastic cord 5 is worn to be equipped with in installation cavity 4 inside, U type elastic cord 5's both ends all are located the inside of installation cavity 4 and are fixed with bandage 6, two bandage 6 all outwards extend to installation cavity 4 outsidely, through outside pull bandage 6, realize the regulation to U type elastic cord 5's elasticity. An anti-pressure sponge cushion layer 7 is fixed on the inner wall of the U-shaped mounting sleeve 3 along the circumferential direction of the U-shaped mounting sleeve, and the anti-pressure sponge cushion layer 7 is attached to the skin of a human body. A circle of flexible pressure-proof cushion layer 8 matched with the forehead of a human body is fixed on the inner wall of the front side of the pressure-proof sponge cushion layer 7. The flexible anti-pressure cushion layer 8 is made of sponge or other flexible materials. The flexible pressure-proof cushion layer 8 can carry out secondary protection on the forehead and can enhance the pressure-proof effect when being matched with the pressure-proof sponge cushion layer 7. As shown in fig. 5, ear pads 9 symmetrically arranged are fixed on the inner walls of the left and right sides of the anti-pressure sponge cushion layer 7, the ear pads 9 are made of flexible materials, the ear pads 9 are made of sponge, thickened lint and the like, and grooves 10 matched with the ear shapes are formed in the ear pads 9. Can carry out the secondary protection to the outside of ear, use with preventing pressing the 7 cooperations of sponge bed course and can strengthen preventing pressing the effect. The width of the U-shaped mounting sleeve 3 is 3cm-4cm, and the width of the U-shaped elastic band 5 is 2.7cm-3.7 cm. Because the U-shaped elastic band 5 is arranged in the U-shaped mounting sleeve 3 in a penetrating way, the width of the U-shaped elastic band 5 is slightly smaller than that of the U-shaped mounting sleeve 3. The width of the U-shaped elastic band 5 is increased, so that the contact area between the U-shaped elastic band and the head of the medical staff can be increased, the pressure generated locally is reduced, and the possibility of indentation generation is reduced. As shown in fig. 1 and 2, the medical cap body 1 includes a cap body 11 and a breathable net 12 sewn on the top of the cap body 11, the cap body 11 is made of ice silk fabric, and the breathable net 12 is made of nylon. The air permeability is good, the comfort level of wearing of a patient is improved, auxiliary heat dissipation of the head is facilitated, and the problems of sultriness and sweating caused by long-time wearing are avoided.

The utility model discloses a theory of operation and working process: during the use, establish the cap body 11 cover at medical personnel's head, make and adjust mouthful 2 position that is located medical personnel's back head spoon, through outside pull bandage 6, adjust U type elastic cord 5's elasticity, adjust and finish, tie a knot each other two bandages 6 and fix, make medical cap body 1 closely laminate with medical personnel's head. Owing to set up U type elastic band 5 inside U type installation cover 3, and prevent pressing sponge bed course 7 through the setting, the bed course 8 and ear's gasket 9 are prevented pressing in the flexibility, compare with traditional elasticity bungee, U type elastic band 5's width is great on the one hand, increase its area of contact with medical personnel's head, reduce the pressure of local production, on the other hand is because U type installation cover 3 blocks with preventing pressing sponge bed course 7's dual, the bed course 8 is prevented pressing in the flexibility in addition, the secondary protection of ear's gasket 9, can cushion the extrusion force that U type elastic band 5 produced, the extrusion force that U type elastic band 5 produced medical personnel's forehead and ear reduces the possibility that the indentation produced greatly.

The above-mentioned embodiment is right the utility model discloses an explanation, it is not right the utility model discloses a limited, any right the scheme after the simple transform of the utility model all belongs to the protection scope of the utility model.

Claims

1. A medical cap with a function of reducing indentation, comprising a medical cap body provided with an opening at the bottom, characterized in that: the lower part of the back side of the medical cap body is provided with an adjustment port, and the inner wall of the lower part of the medical cap body is fixed along its circumferential direction. There is a U-shaped installation sleeve, the opening of the U-shaped installation sleeve is set towards the adjustment port, the interior of the U-shaped installation sleeve is provided with an installation cavity along its circumference, and the U-shaped elastic elastic band is pierced inside the installation cavity, and the two ends of the U-shaped elastic elastic band are Both are located inside the installation cavity and are fixed with straps. The two straps extend outward to the outside of the installation cavity. The inner wall of the U-shaped installation sleeve is fixed with a pressure-resistant sponge cushion along its circumference. Human skin fit.

2 . The medical cap with the function of reducing indentation according to claim 1 , wherein a flexible anti-pressure cushion is fixed on the inner wall of the front side of the anti-pressure sponge cushion, which is matched with the forehead of the human body. 3 .

3. A medical cap with a function of reducing indentation according to claim 2, wherein the inner walls of the left and right sides of the anti-pressure sponge cushion are fixed with symmetrically arranged ear pads, and the The material is flexible material, and the ear pad is provided with a groove matching the shape of the ear.

4 . The medical cap with the function of reducing indentation according to claim 3 , wherein the width of the U-shaped mounting sleeve is 3cm-4cm, and the width of the U-shaped elastic band is 2.7cm-3.7cm. 5 .

5. A medical cap with a function of reducing indentation according to any one of claims 1-4, wherein the medical cap body comprises a cap body and a breathable mesh stitched on the top of the cap body, and the cap body is made of Ice silk fabric, the material of the breathable mesh is nylon.
