Abstract
The utility model provides a solar street lamp for western regions, and belongs to the technical field of solar street lamps. Including being located subaerial lamp pole, the lamp pole is equipped with reinforcing apparatus. The utility model can protect the street lamp when the street lamp encounters strong wind and sand, provides stronger ground-holding protection for the lamp post, can reinforce the lamp post from the outside and the inside of the ground, ensures that the lamp post is not blown down to the greatest extent, and utilizes a solar illumination machine type for charging at ordinary times, thereby fully utilizing energy.
Description
Technical Field
The utility model provides a solar street lamp for western regions, and belongs to the technical field of solar street lamps.
Background
The urban street lamp has the advantages that the urban street lamp is not like a coastal city in the matching of infrastructure, such as street lamps at the street, the street lamp needs to be powered by solar energy as much as possible, a large amount of electric power can be saved, the laying of underground pipelines can be reduced, more cost is saved, but the urban street lamp is dry and has more wind and sand, the street lamp is prevented from being damaged when the urban street lamp meets the sand storm weather, and an emergency device is needed to be used for protecting the urban street lamp.
SUMMERY OF THE UTILITY MODEL
In order to solve the problems, the utility model provides a solar street lamp for western regions. In order to solve the above problems, the provided technical scheme is as follows: a solar street lamp for western regions comprises a lamp post which is positioned on the ground, wherein the lamp post is provided with a reinforcing device, the reinforcing device comprises a first cavity which is positioned at one end of the lamp post extending downwards into the ground, screws are symmetrically and threadedly connected in the first cavity, one end of each screw extends out of the lamp post, a limiting plate is arranged at one end, close to each other, of each screw, a polygonal rod is inserted between the screws, a first bevel gear is arranged on each polygonal rod, a second cavity is arranged at one end, positioned on the ground, of the lamp post, a screw rod is rotatably arranged in each second cavity, a second bevel gear is arranged at one end, extending into the first cavity, of each screw rod and meshed with the first bevel gear, a motor is arranged on the second cavity of the lamp post, the output end of the motor is fixedly connected with the screw rods, strip-shaped through holes are symmetrically arranged on the corresponding cavities of the lamp post, and a moving block is arranged on each screw rod, the lamp post is characterized in that a first connecting rod is hinged to two ends, extending out of the lamp post, of the moving block, a second connecting rod is hinged to the other end of the first connecting rod, the other end of the second connecting rod is hinged to the bottom of the lamp post, the lamp post is provided with a storage battery on the motor, the storage battery is electrically connected with the motor, a supporting rod is arranged on one side of the lamp post, an indicator mark is arranged at one end of the supporting rod, a searchlight is arranged between the lamp post and the indicator mark on the supporting rod, a solar panel is arranged on the lamp post, and the solar panel is electrically connected with the storage battery.
The utility model has the advantages that:
the utility model can protect the street lamp when the street lamp encounters strong wind and sand, provides stronger ground-holding protection for the lamp post, can reinforce the lamp post from the outside and the inside of the ground, ensures that the lamp post is not blown down to the greatest extent, and utilizes the solar illumination type for charging at ordinary times, thereby fully utilizing energy.
Furthermore, the protection plates are symmetrically arranged between the limiting plates on the polygonal rod, so that the screw displacement distance is prevented from being too large.
Further, the polygonal rod is a regular hexagon cylinder.
Furthermore, one end of the screw extending out of the lamp post is provided with a conical protrusion, so that the screw can be conveniently driven into the ground surface.
Furthermore, a fixing nail is arranged at the position, close to the hinge joint with the connecting rod, of the outer side of the connecting rod, so that the friction force between the connecting rod and the ground is increased.
Furthermore, a plurality of air holes are formed in the supporting rod, so that wind resistance can be reduced when strong wind weather occurs.
Furthermore, the strip-shaped through holes are provided with anti-collision pads.
Drawings
Fig. 1 is a schematic structural view of a solar street lamp for western regions according to the present invention.

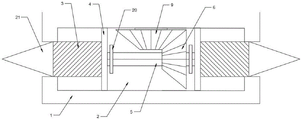

Fig. 2 is a schematic view of a first cavity of a solar street light for western regions according to the present invention.
As shown in the figure:
1. lamp pole, 2, cavity one, 3, screw, 4, limiting plate, 5, polygon pole, 6, bevel gear one, 7, cavity two, 8, screw rod, 9, bevel gear two, 10, motor, 11, bar through-hole, 12, movable block, 13, connecting rod one, 14, connecting rod two, 15, battery, 16, bracing piece, 17, indicator, 18, searchlight, 19, solar panel, 20, protection shield, 21, conical protrusion, 22, staple, 23, air vent, 24, crash pad.
Detailed Description
The utility model will be further explained with reference to the drawings.
According to all the figures:
a solar street lamp for western regions comprises a lamp post 1 positioned on the ground, wherein the lamp post 1 is provided with a reinforcing device, the reinforcing device comprises a first cavity 2 positioned at one end of the lamp post 1 extending downwards into the ground, screws 3 are symmetrically and threadedly connected in the first cavity 2, one end of each screw 3 extends out of the lamp post 1, one end, close to each other, of each screw 3 is provided with a limiting plate 4, a polygonal rod 5 is inserted between the screws 3, a first bevel gear 6 is arranged on each polygonal rod 5, one end, positioned on the ground, of the lamp post 1 is provided with a second cavity 7, a screw 8 is rotatably arranged in the second cavity 7, one end, extending into the first cavity 2, of each screw 8 is provided with a second bevel gear 9, the second bevel gears 9 are mutually meshed with the first bevel gears 6, the lamp post 1 is provided with a motor 10 positioned in the second cavity 7, and the output end of the motor 10 is fixedly connected with the screw 8, the lamp post 1 is provided with bar-shaped through holes 11 corresponding to the two 7 symmetries of the cavity, the screw rod 8 is provided with a moving block 12, the moving block 12 is provided with a first connecting rod 13 in a hinged mode at two ends extending out of the lamp post 1 from the bar-shaped through holes 11, the other end of the first connecting rod 13 is provided with a second connecting rod 14 in a hinged mode, the other end of the second connecting rod 14 is connected with the bottom of the lamp post 1 in a hinged mode, the lamp post 1 is provided with a storage battery 15 on the motor 10, the storage battery 15 is electrically connected with the motor 10, one side of the lamp post 1 is provided with a supporting rod 16, one end of the supporting rod 16 is provided with an indicator 17, a searchlight 18 is arranged between the lamp post 1 and the indicator 17 on the supporting rod 16, the lamp post 1 is provided with a solar panel 19, and the solar panel 19 is electrically connected with the storage battery 15.
Further, protection plates 20 are symmetrically arranged between the limit plates 4 of the polygonal rod 5 to prevent the screw 3 from being displaced by too large distance.
Further, the polygonal rod 5 is a regular hexagonal cylinder.
Furthermore, one end of the screw 3 extending out of the lamp post 1 is provided with a conical protrusion 21, so that the screw can be conveniently driven into the ground surface.
Further, a fixing nail 22 is arranged on the outer side of the second connecting rod 14 close to the hinged position of the first connecting rod 13, so that the friction force between the fixing nail and the ground is increased.
Furthermore, the support rod 16 is provided with a plurality of vent holes 23, so that the wind resistance can be reduced in the case of strong wind.
Further, the strip-shaped through hole 11 is provided with a crash pad 24.
The utility model is implemented as follows:
in normal times, the storage battery 15 is charged through the solar panel 19 by utilizing sufficient illumination in western regions, electric energy is stored for work at night, the electric energy can be discharged through the storage battery 15 at night to provide electric energy for the searchlight 18, after a windy weather occurs, the motor 10 works to drive the screw rod 8 to rotate, the screw rod 8 drives the moving block 12 to move and drives the connecting rod one 13 to move, the connecting rod one 13 drives the connecting rod two 14 to move, the connecting rod two 14 is opened downwards to slowly nail the fixing nail 22 on the ground, meanwhile, the screw rod 8 drives the bevel gear two 9 to rotate, the bevel gear two 9 drives the bevel gear one 6 to rotate, the polygonal rod 5 drives the screw 3 to rotate, the screw 3 is connected with the lamp post 1 through threads, moves out of the lamp post 1 while rotating and is slowly fixed with the ground, and the designed indicator 17 can be used when the sight is poor, the center position of the road is indicated for the driver, and the yaw is prevented from colliding with the coming vehicle.
The present invention and its embodiments have been described above, and the description is not intended to be limiting, and the drawings are only one embodiment of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should appreciate that they can readily use the disclosed conception and specific embodiments as a basis for designing or modifying other structures for carrying out the same purposes of the present invention without departing from the spirit and scope of the utility model as defined by the appended claims.
Claims (7)
1. The utility model provides a solar street lamp is used in western region which characterized in that: the lamp post comprises a lamp post positioned on the ground, the lamp post is provided with a reinforcing device, the reinforcing device comprises a first cavity positioned at one end of the lamp post extending downwards into the ground, screws are symmetrically and threadedly connected in the first cavity, one end of each screw extends out of the lamp post, a limiting plate is arranged at one end, close to each other, of each screw, a polygonal rod is inserted between the screws, a first bevel gear is arranged on each polygonal rod, a second cavity is arranged at one end, positioned on the ground, of the lamp post, a screw rod is rotatably arranged in the second cavity, a second bevel gear is arranged at one end, extending into the first cavity, of each screw rod, the second bevel gear is meshed with the first bevel gear, a motor is arranged on the second cavity of the lamp post, the output end of the motor is fixedly connected with the screw rods, strip-shaped through holes are symmetrically arranged corresponding to the cavities of the lamp posts, moving blocks are arranged on the screw rods, and connecting rods are hinged to two ends, extending out of the lamp posts from the strip-shaped through holes, the lamp post is characterized in that the other end of the connecting rod is hinged with a connecting rod II, the other end of the connecting rod II is hinged with the bottom of the lamp post, the lamp post is arranged on the motor and is provided with a storage battery, the storage battery is electrically connected with the motor, a supporting rod is arranged on one side of the lamp post, an indicator mark is arranged at one end of the supporting rod, a searchlight is arranged between the lamp post and the indicator mark on the supporting rod, a solar panel is arranged on the lamp post, and the solar panel is electrically connected with the storage battery.
2. The solar street light for western regions according to claim 1, wherein: and the polygonal rods are symmetrically provided with protective plates between the limiting plates.
3. The solar street light for western regions according to claim 1, wherein: the polygonal rod is a regular hexagon cylinder.
4. The solar street light for western regions according to claim 1, wherein: one end of the screw extending out of the lamp post is provided with a conical protrusion.
5. The solar street light for western regions according to claim 1, wherein: and a fixing nail is arranged at the position, close to the hinge joint with the connecting rod, of the outer side of the connecting rod.
6. The solar street light for western regions according to claim 1, wherein: the support rod is provided with a plurality of vent holes.
7. The solar street light for western regions according to claim 1, wherein: and the strip-shaped through holes are provided with anti-collision pads.
