Abstract
The utility model discloses a glass mirror surface treatment device of a field observation instrument, which comprises a water tank arranged below the observation instrument, wherein a glass mirror surface is arranged on the front side of the observation instrument, a return plate is fixedly arranged on the top of the water tank, the observation instrument is fixedly arranged on the top of the return plate, a thread driving mechanism is rotatably arranged on the inner wall of the left side of the return plate, the front side of the thread driving mechanism extends to the front of the return plate and is fixedly connected with a vertical pipe of which the top end and the bottom end are of a plugging structure, and a plurality of water spraying holes which are obliquely arranged backwards are formed in the right side of the vertical pipe. The remote control cleaning device is convenient for spraying water and wiping the glass mirror surface in a remote control mode, achieves the purpose of remote control cleaning, does not need to be cleaned manually by personnel, is time-saving and labor-saving, is convenient for wiping off residual water drops after automatic water spraying stopping, reduces the influence on observation work caused by the residual water drops, and meets the use requirement.
Description
Technical Field
The utility model relates to the technical field of glass mirror surface cleaning of observation instruments, in particular to a glass mirror surface processing device of a field observation instrument.
Background
Due to the influence of natural factors such as precipitation, sand and dust, dust and the like, the glass mirror surface of the outdoor observation instrument can cover impurities, so that the observation work of the observation instrument is influenced by using the glass mirror surface as a mask, personnel in the outdoor observation environment cannot maintain in real time, the observation work is influenced, and most of the personnel are required to clean manually at regular intervals; the device has the defects that the device is inconvenient to remotely and automatically control and clean the glass mirror surface of the observation instrument, wastes time and labor, cannot meet the use requirement, and aims at the phenomenon, so that the device for treating the surface of the glass mirror surface of the field observation instrument is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art, and provides a device for processing the glass mirror surface of a field observer.
In order to achieve the purpose, the utility model adopts the following technical scheme:
a glass mirror surface treatment device of a field observer comprises a water tank arranged below an observer, wherein a glass mirror surface is arranged on the front side of the observer, a return plate is fixedly mounted at the top of the water tank, the observer is fixedly mounted at the top of the return plate, a thread driving mechanism is rotatably mounted on the inner wall of the left side of the return plate, the front side of the thread driving mechanism extends to the front of the return plate and is fixedly connected with a vertical pipe, the top end and the bottom end of the vertical pipe are of a plugging structure, a plurality of water spraying holes which are obliquely inclined backwards are formed in the right side of the vertical pipe, the water spraying holes are matched with the glass mirror surface, wiping cotton is fixedly bonded on the rear side of the vertical pipe, and the rear side of the wiping cotton is flush with the front side of the glass mirror surface;
the water tank is characterized in that a water pump is fixedly mounted on the left side of the top of the water tank, the water inlet end of the water pump extends into the water tank and is fixedly connected with a water suction hose, the water outlet end of the water pump is communicated with the left side of the vertical pipe and is fixedly connected with the same telescopic hose, a driving motor is fixedly mounted on the inner wall of the right side of the return-shaped plate, the output shaft of the driving motor is fixedly connected with the right end of a thread driving mechanism, two fixing seats are fixedly connected to the bottom of the front side of the return-shaped plate, the same guide mechanism is fixedly connected between the two fixing seats, the top of the guide mechanism is fixedly connected with the bottom of the thread driving mechanism, a first light-touch switch and a second light-touch switch are fixedly connected to one sides, close to each other, of the two fixing seats, respectively, the first light-touch switch and the second light-touch switch are matched with the guide mechanism, a networking controller is fixedly mounted at the bottom of the return-shaped plate, and a first light-touch switch, a second light-touch switch, a water tank and a water tank are fixedly connected with a water tank, The driving motor and the water pump are both electrically connected with the networking controller.
Preferably, screw thread actuating mechanism is including rotating the reciprocal lead screw of connection on returning the shape board left side inner wall, and the threaded sleeve is equipped with reciprocal slider on the reciprocal lead screw, and the front side of reciprocal slider extends to the place ahead of returning the shape board and with the rear side fixed connection of standpipe, and the top and the bottom of reciprocal slider all are the rectangle nested four balls that have, ball and the inner wall rolling contact who returns the shape board.
Preferably, guiding mechanism includes the guide bar of fixed connection between two fixing bases, sliding sleeve is equipped with the uide bushing on the guide bar, the top of uide bushing and the bottom front side fixed connection of reciprocating slide block, the uide bushing be located first dabbing switch and second dabbing between the switch and with first dabbing switch and second dabbing switch cooperate.
Preferably, the right side of water tank is fixed and electrically connected with level sensor, level sensor and networking controller electric connection, networking controller matches and is provided with the APP of installing at the cell-phone end.
Preferably, the bottom of the return plate is fixedly provided with a storage battery, and the networking controller, the driving motor and the water pump are electrically connected with the storage battery.
Preferably, both sides of the bottom of the return plate are fixedly connected with supports, and the bottoms of the supports are fixedly connected with the top of the water tank.
Preferably, the top left side of the water tank is communicated and fixed with a water adding pipe, the top of the left side of the water tank is communicated and fixed with an air outlet pipe, and the bottom end of the water suction hose is communicated and fixed with a water suction head.
Preferably, the right side of the reciprocating slide block is provided with a reciprocating screw hole in threaded connection with a reciprocating screw rod.
Compared with the prior art, the utility model has the beneficial effects that:
the remote control type water spraying and wiping device is convenient for water spraying and wiping work of the glass mirror surface in a remote control mode, achieves the purpose of remote control and cleaning, is free from special manual cleaning of personnel, saves time and labor, is convenient for wiping off residual water drops after automatic water spraying stopping and automatic wiping stopping, reduces the influence on observation work caused by a large amount of water drops, and meets the use requirement.
Drawings

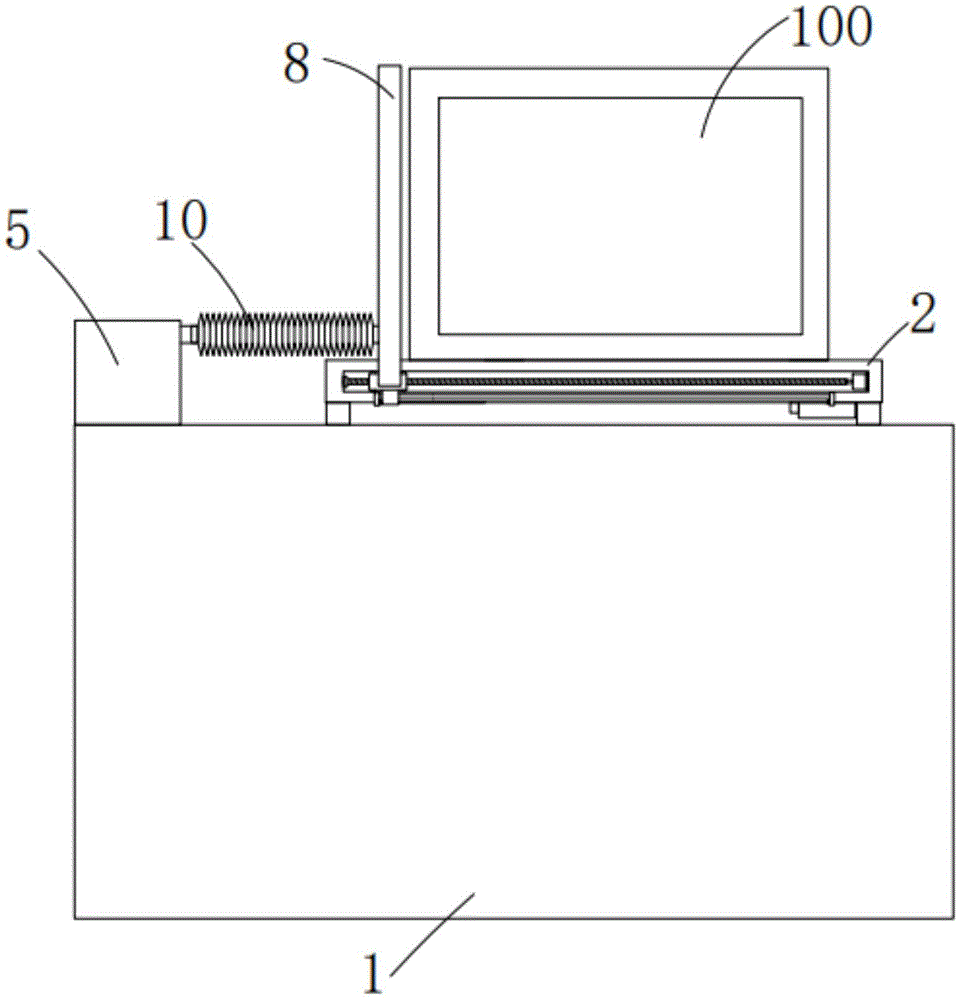

FIG. 1 is a schematic structural diagram of a glass mirror surface treatment device of a field viewer according to the present invention;
FIG. 2 is a schematic cross-sectional view of FIG. 1;
FIG. 3 is an enlarged view of part A of FIG. 2;
FIG. 4 is an enlarged view of the portion B of FIG. 2;
fig. 5 is a schematic top sectional view of a standpipe and a wiping cotton connection of the field viewer glass mirror surface treatment device according to the present invention.
In the figure: 100. a glass mirror surface; 1. a water tank; 2. a return plate; 3. a storage battery; 4. a water level sensor; 5. a water pump; 6. a reciprocating screw; 7. a reciprocating slide block; 8. a vertical tube; 9. a water spray hole; 10. a flexible hose; 11. wiping cotton; 12. a fixed seat; 13. a guide bar; 14. a guide sleeve; 15. a first tact switch; 16. a second tact switch; 17. a drive motor; 18. and a ball.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-5, a glass mirror surface treatment device for a field observer comprises a water tank 1 arranged below the observer, a water feeding pipe is communicated and fixed on the left side of the top of the water tank 1 and is used for feeding water into the water tank 1, an air outlet pipe is communicated and fixed on the top of the left side of the water tank 1, a glass mirror surface 100 is arranged on the front side of the observer, a return plate 2 is fixedly arranged on the top of the water tank 1, two sides of the bottom of the return plate 2 are fixedly connected with supports, the bottom of the supports is fixedly connected with the top of the water tank 1, the return plate 2 is fixed on the top of the water tank 1 through two supports and is used for supporting the return plate 2, the observer is fixedly arranged on the top of the return plate 2, a thread driving mechanism is rotatably arranged on the inner wall of the left side of the return plate 2, the front side of the thread driving mechanism extends to the front of the return plate 2 and is fixedly connected with a vertical pipe 8 of which the top end and the bottom end are of a plugging structure, a plurality of water spraying holes 9 which are obliquely inclined backwards are formed in the right side of the vertical pipe 8, the water spraying holes 9 are matched with the glass mirror surface 100, wiping cotton 11 is fixedly bonded on the rear side of the vertical pipe 8, and the rear side of the wiping cotton 11 is flush with the front side of the glass mirror surface 100;
a water pump 5 is fixedly arranged on the left side of the top of the water tank 1, the water inlet end of the water pump 5 extends into the water tank 1 and is fixedly connected with a water suction hose, the bottom end of the water suction hose is communicated and is fixedly provided with a water suction head used for pumping water in the water tank 1, a same telescopic hose 10 is communicated and fixed between the water outlet end of the water pump 5 and the left side of the vertical pipe 8, a driving motor 17 is fixedly arranged on the inner wall of the right side of the return plate 2, the output shaft of the driving motor 17 is fixedly connected with the right end of the screw thread driving mechanism, two fixing seats 12 are fixedly connected with the bottom of the front side of the return plate 2, a same guide mechanism is fixedly connected between the two fixing seats 12, the top of the guide mechanism is fixedly connected with the bottom of the screw thread driving mechanism, a first tact switch 15 and a second tact switch 16 are fixedly connected with one side of the two fixing seats 12 close to each other respectively, and the first tact switch 15 and the second tact switch 16 are matched with the guide mechanism, a networking controller is fixedly installed at the bottom of the return plate 2, the first light-touch switch 15, the second light-touch switch 16, the driving motor 17 and the water pump 5 are electrically connected with the networking controller, the storage battery 3 is fixedly installed at the bottom of the return plate 2, the networking controller, the driving motor 17 and the water pump 5 are electrically connected with the storage battery 3, the networking controller is provided with an APP installed at a mobile phone end in a matching manner, the APP is used for controlling the networking controller through the mobile phone end, so that remote control of a person is facilitated, the right side of the water tank 1 is fixedly and electrically connected with a water level sensor 4, and the water level sensor 4 is electrically connected with the networking controller;
the thread driving mechanism comprises a reciprocating screw 6 which is rotationally connected to the inner wall of the left side of the return plate 2, wherein a bearing is fixedly connected to the inner wall of the left side of the return plate 2, the inner side of the inner ring of the bearing is fixedly connected with the outer side of the reciprocating screw 6, the reciprocating screw 6 is rotationally installed on the inner wall of the left side of the return plate 2 through a rotating shaft, so that the effect of facilitating the reciprocating screw 6 to rotate on the inner wall of the left side of the return plate 2 is achieved, a reciprocating slide block 7 is sleeved on the reciprocating screw 6 in a threaded manner, a reciprocating screw hole in threaded connection with the reciprocating screw 6 is formed in the right side of the reciprocating slide block 7, the effect of facilitating the reciprocating slide block 7 to move to the right and left is achieved by utilizing the threaded connection relationship between the reciprocating screw 6 and the reciprocating screw hole, the front side of the reciprocating slide block 7 extends to the front side of the return plate 2 and is fixedly connected with the rear side of a vertical pipe 8, and four balls 18 are nested in a rectangular manner at the top and the bottom of the reciprocating slide block 7, the ball 18 is in rolling contact with the inner wall of the return plate 2, and the effect of reducing the friction force between the reciprocating slide block 7 and the inner side of the return plate 2 is achieved by the ball 18;
the guide mechanism comprises a guide rod 13 fixedly connected between two fixed seats 12, a guide sleeve 14 is sleeved on the guide rod 13 in a sliding mode, the top of the guide sleeve 14 is fixedly connected with the front side of the bottom of the reciprocating slide block 7 to achieve the effect of guiding and positioning the reciprocating slide block 7, the guide sleeve 14 is positioned between the first light-touch switch 15 and the second light-touch switch 16 and matched with the first light-touch switch 15 and the second light-touch switch 16.
The working principle is as follows: when the glass mirror surface cleaning device is used, when the glass mirror surface 100 needs to be cleaned, a person controls the networking controller to control the driving motor 17 and the water pump 5 to start at a mobile phone end by utilizing the collection APP, the water pump 5 extracts water in the water tank 1 through the water suction hose and discharges the water into the flexible hose 10, the water enters the vertical pipe 8 and is sprayed to the right side through the plurality of water spraying holes 9 to the front side of the glass mirror surface 100 to achieve water spraying and washing, meanwhile, the output shaft of the driving motor 17 drives the reciprocating lead screw 6 to rotate, under the action of the reciprocating lead screw hole formed in the reciprocating slide block 7, the reciprocating lead screw 6 rotates to drive the reciprocating slide block 7 to reciprocate from right to left, the reciprocating slide block 7 drives the ball 18 to roll on the inner wall of the clip plate 2, the reciprocating slide block 7 drives the guide sleeve 14 to reciprocate from right to left on the guide rod 13, meanwhile, the reciprocating slide block 7 drives the vertical pipe 8 to reciprocate from right to left, the vertical pipe 8 stretches and compresses the flexible hose 10 in a reciprocating manner, meanwhile, the vertical tube 8 drives the wiping cotton 11 to reciprocate right and left, the wiping cotton 11 reciprocating right and left can wipe the glass mirror surface 100 in a reciprocating manner, and in the process of the guide sleeve 14 reciprocating right and left, when the guide sleeve 14 moves rightwards to be in extrusion contact with the second tact switch 16, the second tact switch 16 transmits a signal to the networking controller, the networking controller controls the water pump 5 to be closed, and water spraying is stopped, so when the guide sleeve 14 moves backwards leftwards and drives the vertical tube 8 to move backwards, water is not sprayed, water drops on the glass mirror surface 100 can be wiped when the vertical tube 8 drives the wiping cotton 11 to move backwards leftwards, and when the guide sleeve 14 moves backwards leftwards to be in extrusion contact with the first tact switch 15, the first tact switch 15 transmits the networking controller to control the driving motor 17 to be closed, wiping work is automatically stopped, cleaning work is completed, and remote control and cleaning is enabled, the mode that water spraying is automatically stopped firstly and then wiping is automatically stopped can wipe off the residual water drops, so that the influence of a large amount of water drops on observation work is reduced;
In the description of the present application, it should be further noted that, unless otherwise explicitly stated or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may include, for example, a fixed connection, a detachable connection, an integral connection, a mechanical connection, an electrical connection, a direct connection, a connection through an intermediate medium, and a connection between two elements. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art according to specific circumstances.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (8)
1. A glass mirror surface treatment device of a field observer comprises a water tank (1) arranged below the observer, a glass mirror surface (100) is arranged on the front side of the observer, the novel glass mirror cleaning device is characterized in that a return plate (2) is fixedly mounted at the top of the water tank (1), an observation instrument is fixedly mounted at the top of the return plate (2), a thread driving mechanism is rotatably mounted on the inner wall of the left side of the return plate (2), the front side of the thread driving mechanism extends to the front of the return plate (2) and is fixedly connected with a vertical pipe (8) of which the top end and the bottom end are of a blocking structure, a plurality of water spraying holes (9) which are obliquely arranged backwards are formed in the right side of the vertical pipe (8), the water spraying holes (9) are matched with a glass mirror surface (100), cleaning cotton (11) is fixedly bonded to the rear side of the vertical pipe (8), and the rear side of the cleaning cotton (11) is flush with the front side of the glass mirror surface (100);
a water pump (5) is fixedly installed on the left side of the top of the water tank (1), the water inlet end of the water pump (5) extends into the water tank (1) and is fixedly connected with a water suction hose, the water outlet end of the water pump (5) is communicated with the left side of the vertical pipe (8) and is fixedly connected with the same telescopic hose (10), a driving motor (17) is fixedly installed on the inner wall of the right side of the return plate (2), the output shaft of the driving motor (17) is fixedly connected with the right end of the threaded driving mechanism, two fixing seats (12) are fixedly connected with the bottom of the front side of the return plate (2), the same guide mechanism is fixedly connected between the two fixing seats (12), the top of the guide mechanism is fixedly connected with the bottom of the threaded driving mechanism, a first light touch switch (15) and a second light touch switch (16) are fixedly connected with one side of the two fixing seats (12) close to each other respectively, and the first light touch switch (15) and the second light touch switch (16) are matched with the guide mechanism, the bottom of the return plate (2) is fixedly provided with a networking controller, and the first light touch switch (15), the second light touch switch (16), the driving motor (17) and the water pump (5) are all electrically connected with the networking controller.
2. The device for processing the glass mirror surface of a field observer according to claim 1, wherein the threaded driving mechanism comprises a reciprocating lead screw (6) rotatably connected to the inner wall of the left side of the return plate (2), a reciprocating slide block (7) is sleeved on the reciprocating lead screw (6) in a threaded manner, the front side of the reciprocating slide block (7) extends to the front of the return plate (2) and is fixedly connected with the rear side of the vertical pipe (8), four balls (18) are nested at the top and the bottom of the reciprocating slide block (7) in a rectangular manner, and the balls (18) are in rolling contact with the inner wall of the return plate (2).
3. The device for processing the glass mirror surface of a field observer according to claim 1, wherein the guide mechanism comprises a guide rod (13) fixedly connected between two fixed seats (12), a guide sleeve (14) is sleeved on the guide rod (13) in a sliding manner, the top of the guide sleeve (14) is fixedly connected with the front side of the bottom of the reciprocating slide block (7), and the guide sleeve (14) is positioned between the first tact switch (15) and the second tact switch (16) and is matched with the first tact switch (15) and the second tact switch (16).
4. The device for processing the glass mirror surface of a field observer according to claim 1, wherein a water level sensor (4) is fixed and electrically connected to the right side of the water tank (1), the water level sensor (4) is electrically connected to a networking controller, and the networking controller is provided with an APP installed at a mobile phone end in a matching manner.
5. The device for processing the glass mirror surface of a field observer according to claim 1, wherein a storage battery (3) is fixedly mounted at the bottom of the return plate (2), and the networking controller, the driving motor (17) and the water pump (5) are electrically connected with the storage battery (3).
6. The device for processing the glass mirror surface of a field observer according to claim 1, wherein two sides of the bottom of the return plate (2) are fixedly connected with supports, and the bottoms of the supports are fixedly connected with the top of the water tank (1).
7. The device for processing the glass mirror surface of a field observer according to claim 1, wherein a water feeding pipe is communicated and fixed on the left side of the top of the water tank (1), an air outlet pipe is communicated and fixed on the top of the left side of the water tank (1), and a water suction head is communicated and fixed on the bottom end of a water suction hose.
8. The device for processing the glass mirror surface of the field observer according to claim 2, wherein a reciprocating screw hole in threaded connection with the reciprocating screw rod (6) is formed in the right side of the reciprocating slide block (7).
