CN216726010U - Environment-friendly fire control is with transferring water jar

Info

Publication number: CN216726010U
Application number: CN202123066864.8U
Authority: CN
Inventors: 赵瑞雨
Original assignee: Hebei Shangshi Lubricating Oil Technology Co ltd
Current assignee: Hebei Shangshi Lubricating Oil Technology Co ltd
Priority date: 2021-12-08
Filing date: 2021-12-08
Publication date: 2022-06-14
Anticipated expiration: 2031-12-08

Abstract

The utility model relates to the technical field of water transfer tanks, in particular to an environment-friendly water transfer tank for fire fighting, wherein a first water inlet and a second water inlet are welded at the top of a tank body; a conical filter funnel is welded inside the tank body; the conical filtering funnel is provided with filtering holes; a sewage draining outlet is arranged at the bottom of the conical filtering funnel; a storage pipe is welded on the sewage draining exit; the storage pipe is welded with the sewage discharge pipe; the jar body, the equal cladding of toper filter funnel and storage tube has rubber, first water inlet and the dual assurance water transfer jar of second water inlet have water available, the cooperation through toper filter funnel and storage tube can filter interception impurity and collect the internal water that gets into the jar, through the jar body, toper filter funnel and the equal cladding of storage tube have rubber to form the inner bag, play long-time protection to the easy corruption part, thereby the long-time high pressure storage fire control water of effectual solution makes the jar body rusty corrosion easily compel pressure still can lead to the too much difficult clearance of impurity in still can leading to warping and the fire water jar, cause the problem that fire-fighting equipment blockked up.

Description

Environment-friendly fire control is with transferring water jar

Technical Field

The utility model relates to a water transfer jar technical field especially relates to an environment-friendly fire control is with water transfer jar.

Background

Fire control is with transferring water jar is a fire control facility, can provide the fire control facility at the water source to the fire control system when the conflagration breaing out, traditional type fire control is with transferring water jar and is mostly used the steel sheet welding to form, long-time high pressure storage fire control water makes jar body rusty easily and corrodes and compel pressure still can lead to the deformation, because the fire control water comes from many sides, it is too difficult for the clearance to make the interior impurity of fire control water jar too much easily, cause the fire control facility to block up, need improve an environment-friendly fire control with transferring water jar for this reason.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem, it is not enough to the technique that exists to the aforesaid, an environment-friendly fire control is with transferring water jar is provided, it is usable to have water through the dual assurance of first water inlet and second water inlet transfer water jar, the cooperation through toper filter funnel and memotron can filter the internal water of entering jar interception impurity and collect, through a jar body, the equal cladding of toper filter funnel and memotron has the rubber to form the inner bag, play long-time protection to easy corrosive part, thereby the effectual long-time high pressure of solution is stored the fire water and is made jar body rust easily and corrode and compel too much difficult clearance of impurity in pressure still can lead to warping and the fire water jar, cause the problem of fire-fighting equipment jam.

In order to solve the technical problem, the utility model discloses the technical scheme who adopts is: a first water inlet and a second water inlet are welded at the top of the tank body; a conical filter funnel is welded inside the tank body; the conical filtering funnel is provided with filtering holes; a sewage draining outlet is formed in the bottom of the conical filtering funnel; a storage pipe is welded on the sewage draining outlet; a sewage discharge pipe is welded at one side of the tank body; the storage pipe is welded with the sewage discharge pipe; jar body, toper filter funnel and storage tube all wrap up rubber.

Further optimize this technical scheme, the welding of jar body bottom has the delivery port.

Further optimizes the technical scheme, and the rubber is made of silicon rubber.

Further optimize this technical scheme, install the valve on the blow off pipe.

Compared with the prior art, the utility model has the advantages of it is following: 1. the first water inlet and the second water inlet are welded at the top of the tank body, so that the structure is favorable for ensuring that the water transfer tank can transfer water from different water pipes in case of water shortage; 2. a conical filtering funnel is welded inside the tank body; the conical filter funnel is provided with the filter holes, so that the structure is favorable for ensuring that water can be filtered in time when entering the tank body, and impurities in the water are intercepted; 3. a sewage draining outlet is arranged at the bottom of the conical filtering funnel; a storage pipe is welded on the sewage draining outlet; one side of the tank body is welded with a drain pipe, so that the structure is favorable for ensuring that the intercepted impurities enter the storage pipe to be collected and are discharged through the drain pipe; 4. jar body, toper filter funnel and storage tube all wrap up rubber, and the favourable protection jar body that has guaranteed that can be better of this structure and inside perishable structure make its increase life.

Drawings

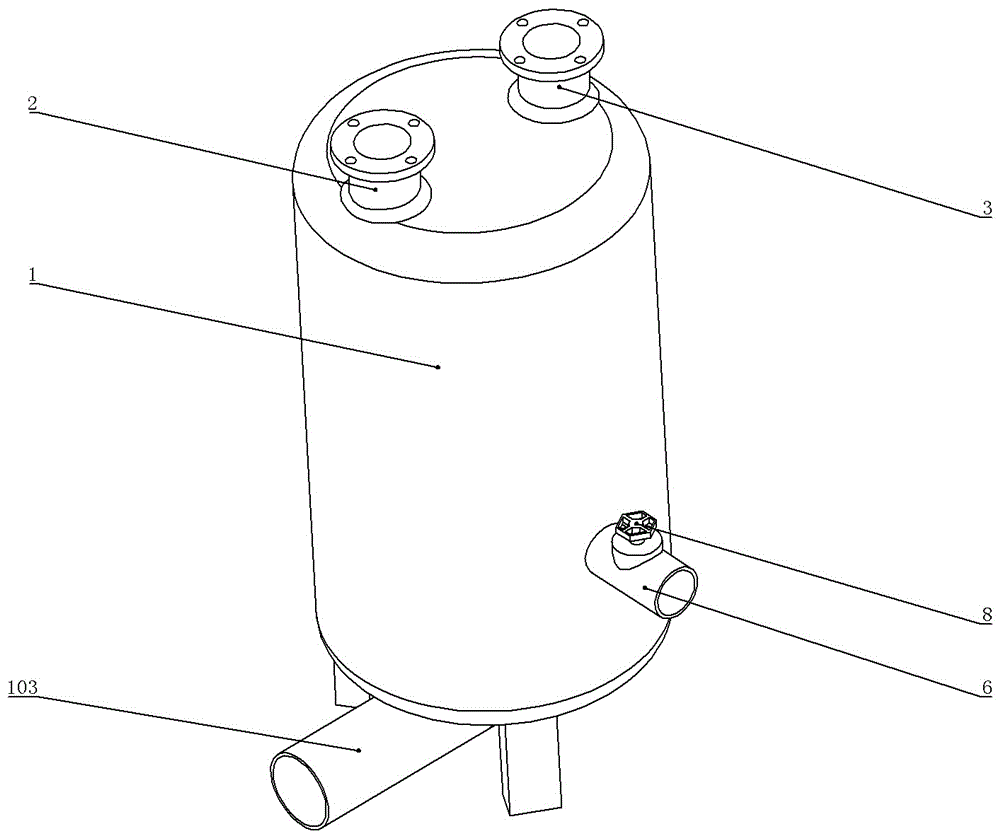

Fig. 1 is a schematic view of the overall structure of an embodiment of an environment-friendly fire-fighting water transfer tank.

FIG. 2 is a schematic cross-sectional view of an embodiment of an environment-friendly fire-fighting water distribution tank.

FIG. 3 is a schematic view of a conical filter funnel according to an embodiment of an environment-friendly fire-fighting water distribution tank.

In the figure: 1 represents a tank body; 2 represents a first water inlet; 3 represents a second water inlet; 4 represents a conical filter funnel; 5 represents a storage tube; 6 represents a sewage draining pipe; 7 represents a rubber; 8 represents a valve; 101 represents a filtration pore; 102 represents a sewage drain; 103 represents a water outlet.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended to be illustrative only and is not intended to limit the scope of the present invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.

The specific implementation mode is as follows: referring to fig. 1-3, a first water inlet 2 and a second water inlet 3 are welded at the top of a tank body 1; the water adjusting tank can adjust water from different water pipes in case of water shortage; a conical filter funnel 4 is welded in the tank body 1; the conical filtering funnel 4 is provided with a filtering hole 101; when water enters the tank body 1, the water can be filtered in time, so that impurities in the water are intercepted; the bottom of the conical filtering funnel 4 is provided with a sewage outlet 102; a storage pipe 5 is welded on the sewage outlet 102; a sewage discharge pipe 6 is welded on one side of the tank body 1; the storage pipe 5 is welded with the sewage discharge pipe 6; the intercepted impurities enter a storage pipe 5 to be collected and are discharged through a sewage discharge pipe 6; the tank body 1, the conical filter funnel 4 and the storage tube 5 are all coated with rubber 7; the bottom of the tank body 1 is welded with a water outlet 103; the rubber 7 is made of silicon rubber; the tank body 1 and the internal corrosion-prone structure can be better protected, so that the service life of the tank body is prolonged; the blow-off pipe 6 is provided with a valve 8.

When the water transfer tank is used, the first step is shown in a combined graph 1, most of the water transfer tanks for fire fighting are formed by welding steel plates, the tank body is easy to rust and corrode due to long-time high-pressure storage of fire-fighting water, the tank body is forced to deform due to pressure, the fire-fighting water comes from multiple sides, impurities in the fire-fighting water tank are easy to be too much and difficult to clean, fire-fighting facilities are blocked, and therefore a user can use the environment-friendly water transfer tank for fire fighting to solve the problems.

Step two, as shown in the figure 1-3, when the water supply pipe works normally, the first water inlet 2 and the second water inlet 3 work simultaneously to quickly supply water to the tank body 1, thereby effectively preventing the water supply of a single water supply pipe from being cut off, the water cannot be supplied in time when the tank body 1 is short of water, the fire-fighting water is effectively guaranteed, when the water enters the tank body 1, the storage pipe 5 is filled with water and passes through the conical filter funnel 4, at the moment, the water enters the bottom of the tank body 1 through the filter hole 101, however, silt foreign matters in the water are intercepted by the conical filter funnel 4, at the same time, the silt foreign matters in the water enter the storage pipe 5 filled with water through the sewage discharge port 102 to be stored, at the moment, the valve 8 on the sewage discharge pipe 6 is opened, the silt foreign matters in the storage pipe 5 are quickly discharged by the air pressure in the tank, thereby effectively solving the problem that the impurities in the tank body 1 are too much and difficult to clean up, cause the fire-fighting equipment to block up, the cladding forms the water storage bag at rubber 7 on 1 inner wall of the jar body when jar body 1 long-time water storage, prevents effectively that water and jar body 1 direct contact from causing jar body 1 to rust and corrode to extension jar body 1 life.

It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modification, equivalent replacement, improvement and the like made without departing from the spirit and scope of the present invention should be included in the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.

Claims

1. The utility model provides an environment-friendly water transfer jar for fire control, includes jar body (1), its characterized in that: the top of the tank body (1) is welded with a first water inlet (2) and a second water inlet (3); a conical filtering funnel (4) is welded in the tank body (1); the conical filtering funnel (4) is provided with a filtering hole (101); a sewage draining outlet (102) is formed at the bottom of the conical filtering funnel (4); a storage pipe (5) is welded on the sewage outlet (102); a sewage discharge pipe (6) is welded at one side of the tank body (1); the storage pipe (5) is welded with the sewage draining pipe (6); the tank body (1), the conical filter funnel (4) and the storage tube (5) are all coated with rubber (7).

2. The environment-friendly fire-fighting water transfer tank as recited in claim 1, wherein: a water outlet (103) is welded at the bottom of the tank body (1).

3. The environment-friendly fire-fighting water transfer tank as recited in claim 1, wherein: the rubber (7) is made of silicon rubber.

4. The environment-friendly fire-fighting water transfer tank as recited in claim 1, wherein: and a valve (8) is arranged on the sewage draining pipe (6).
