CN216721240U - Support for solar photovoltaic power generation - Google Patents
Support for solar photovoltaic power generation Download PDFInfo
- Publication number
- CN216721240U CN216721240U CN202122862762.0U CN202122862762U CN216721240U CN 216721240 U CN216721240 U CN 216721240U CN 202122862762 U CN202122862762 U CN 202122862762U CN 216721240 U CN216721240 U CN 216721240U
- Authority
- CN
- China
- Prior art keywords
- power generation
- solar photovoltaic
- photovoltaic power
- backup pad
- bottom plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/50—Photovoltaic [PV] energy
Abstract
The application discloses support for solar photovoltaic power generation, when the in-service use, can be according to actual conditions through the position department of adjusting the bracing piece in corresponding spacing recess, realize the regulation to backup pad inclination, and, during the regulation, can lift up the backup pad with the help of the first in command a little, place the bracing piece in corresponding spacing recess, after the inclination regulation with the backup pad targets in place, fix solar photovoltaic power generation board in the backup pad can, and then can realize the regulation to solar photovoltaic power generation board's installation angle, improve sunlight utilization ratio and generating efficiency, and simultaneously, the stability in use of this support can be ensured in the setting of bottom plate.
Description
Technical Field
The application relates to the field of solar power generation, in particular to a support for solar photovoltaic power generation.
Background
In order to respond to the requirement of environmental protection, most areas nowadays adopt solar photovoltaic power generation, which is a device for directly or indirectly converting solar radiation energy into electric energy through photoelectric effect or photochemical effect by absorbing sunlight.
However, most of the existing supports are fixed, and the angle of the support cannot be adjusted according to the installation environment or the irradiation angle of the sun, that is, the installation angle of the solar photovoltaic power generation panel cannot be adjusted, so that the utilization rate of sunlight is low, the power generation efficiency is affected, and meanwhile, the existing supports also have the problem of poor stability.
SUMMERY OF THE UTILITY MODEL
The application provides a support for solar photovoltaic power generation, has solved traditional support sunlight utilization ratio and generating efficiency among the prior art and has hanged down, the poor problem of stability.
In order to solve the technical problem, the application provides a support for solar photovoltaic power generation, include:
the bottom plate, be provided with a plurality of spacing recesses on the bottom plate, the one end bilateral symmetry of bottom plate is provided with the mounting panel, two be fixed with the installation axle between the mounting panel, it is provided with the backup pad to install epaxial rotation, the backup pad is close to one side of bottom plate is rotated and is provided with at least one bracing piece, the lower extreme of bracing piece is located in the spacing recess, the backup pad is kept away from the one end of mounting panel is provided with the first in command.
Preferably, the number of the supporting rods is two;
correspondingly, the limiting grooves are arranged in pairs.
Preferably, a connecting rod is further fixed between the two support rods, and a second handle is fixed on the connecting rod.
Preferably, a baffle is further arranged at the edge of the supporting plate.
Preferably, the opposite sides of the bottom plate are further provided with stabilizing plates, and fixing bolts are screwed on the stabilizing plates.
Compared with the prior art, the support for solar photovoltaic power generation that this application provided, including the bottom plate, be provided with a plurality of spacing recesses on the bottom plate, the one end bilateral symmetry of bottom plate is provided with the mounting panel, is fixed with the installation axle between two mounting panels, installs the epaxial rotation and is provided with the backup pad, and one side that the backup pad is close to the bottom plate is rotated and is provided with at least one bracing piece, and the lower extreme of bracing piece is located spacing recess, and the one end that the mounting panel was kept away from to the backup pad is provided with the first in command.
Therefore, the device is applied, in actual use, the position of the support rod in the corresponding limiting groove can be adjusted according to actual conditions, the inclination angle of the support plate can be adjusted, in addition, the support plate can be slightly lifted by means of a first handle during adjustment, the support rod is placed in the corresponding limiting groove, after the inclination angle of the support plate is adjusted in place, the solar photovoltaic power generation plate is fixed on the support plate, further, the adjustment of the installation angle of the solar photovoltaic power generation plate can be realized, the sunlight utilization rate and the power generation efficiency are improved, and meanwhile, the use stability of the support can be ensured by the arrangement of the bottom plate.
Drawings
In order to more clearly explain the technical solution of the present application, the drawings needed to be used in the embodiments are briefly described below, and it is obvious to those skilled in the art that other drawings can be obtained according to the drawings without making any inventive changes.

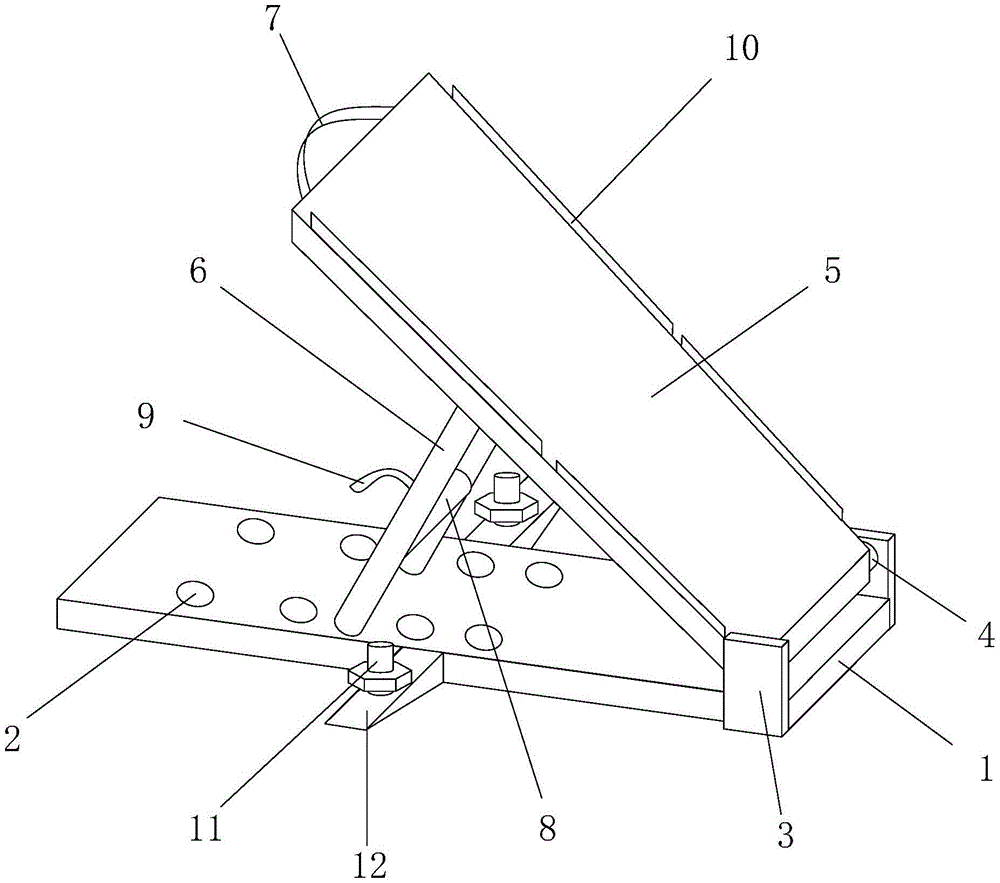

Fig. 1 is a schematic structural view of a support for solar photovoltaic power generation provided in an embodiment of the present invention;
in the figure, a bottom plate 1, a limiting groove 2, a mounting plate 3, a mounting shaft 4, a supporting plate 5, a supporting rod 6, a first handle 7, a connecting rod 8, a second handle 9, a baffle plate 10, a stabilizing plate 11 and a fixing bolt 12 are arranged.
Detailed Description
In order to make those skilled in the art better understand the technical solutions in the present application, the technical solutions in the embodiments of the present application will be described clearly and completely with reference to the accompanying drawings.
The core of this application is to provide a support for solar photovoltaic power generation, can solve traditional support sunlight utilization ratio and generating efficiency low among the prior art, poor stability's problem.
Fig. 1 is a schematic structural view of a support for solar photovoltaic power generation provided in an embodiment of the present invention, as shown in fig. 1, the support includes:
Specifically, the shape and the size of bottom plate 1 all can be confirmed according to actual conditions, be provided with a plurality of spacing recess 2 on bottom plate 1, spacing recess 2's size and shape need be corresponding with bracing piece 6, guarantee that bracing piece 6 does not take place to rock in spacing recess 2 and be accurate, when actual design, can also set up the limiting plate in bottom plate 1 near the position department of each spacing recess 2 for spacing to bracing piece 6, the limiting plate is not drawn in the picture. The fixed one end both sides position department that sets up at bottom plate 1 of mounting panel 3, installation axle 4 is fixed to be set up between two mounting panels 3, be provided with the mounting hole on the backup pad 5, installation axle 4 runs through this mounting hole and extends to the both sides of backup pad 5, the installation back, backup pad 5 can be round installation axle 4 pivoted, it is provided with at least one bracing piece 6 to rotate in backup pad 5 one side that is close to bottom plate 1, bracing piece 6 realizes with the concrete accessible connecting axle of the rotation connected mode of backup pad 5 and connecting plate, perhaps can realize the rotation between bracing piece 6 and the backup pad 5 through articulated, no longer describe herein. During the use, the lower extreme of bracing piece 6 is located spacing recess 2 to, can place bracing piece 6 in the spacing recess 2 of adaptation according to the installation requirement, in order to realize the angle modulation to backup pad 5. The fixed one end position department of keeping away from mounting panel 3 at backup pad 5 that sets up of first in command 7 can realize with the help of first in command 7 when adjusting the angle of backup pad 5, improves and adjusts the convenience.
In order to improve the support stability of the support plate 5, as a preferred embodiment, two support rods 6 may be rotatably provided at the lower side of the support plate 5; correspondingly, the limiting grooves 2 are arranged in pairs, i.e. two limiting grooves 2 are arranged as a group. In order to improve the convenience of angle adjustment of the supporting plate 5, a connecting rod 8 is further fixed between the two supporting rods 6, and a second handle 9 is fixed on the connecting rod 8. When in use, the supporting rod 6 can be lifted and placed in the corresponding limiting groove 2 by holding the second handle 9 by hands. In order to ensure the installation stability of the solar photovoltaic power generation panel, as a preferred embodiment, a baffle 10 is further arranged at the edge of the support plate 5, and the solar photovoltaic power generation panel is limited by the baffle 10. In order to improve the stability of the bottom plate 1, as a preferred embodiment, stabilizing plates 11 are further provided on opposite sides of the bottom plate 1, and fixing bolts 12 are screwed on the stabilizing plates 11.
The utility model provides a support for solar photovoltaic power generation, including the bottom plate, be provided with a plurality of spacing recesses on the bottom plate, the one end bilateral symmetry of bottom plate is provided with the mounting panel, is fixed with the installation axle between two mounting panels, installs epaxial rotation and is provided with the backup pad, and one side rotation that the backup pad is close to the bottom plate is provided with at least one bracing piece, and the lower extreme of bracing piece is located spacing recess, and the one end that the mounting panel was kept away from to the backup pad is provided with the first in command. When in actual use, can be according to actual conditions through the position department of adjusting the bracing piece in corresponding spacing recess, realize the regulation to backup pad inclination, and, during the regulation, can lift up the backup pad with the help of the first in command a little, place the bracing piece in corresponding spacing recess, after the inclination with the backup pad is adjusted to target in place, fix the solar photovoltaic electricity generation board in the backup pad can, and then can realize the regulation to the installation angle of solar photovoltaic electricity generation board, improve sunlight utilization ratio and generating efficiency, and simultaneously, the stability in use of this support can be ensured in the setting of bottom plate.
Other embodiments of the present application will be apparent to those skilled in the art from consideration of the specification and practice of the application disclosed herein. This application is intended to cover any variations, uses, or adaptations of the utility model following, in general, the principles of the application and including such departures from the present disclosure as come within known or customary practice in the art to which the utility model pertains. It is intended that the specification and examples be considered as exemplary only, with a true scope of the disclosure being indicated by the following claims.
It will be understood that the present application is not limited to the precise arrangements described above and shown in the drawings and that various modifications and changes may be made without departing from the scope thereof. The above-described embodiments of the present application do not limit the scope of the present application.
Claims (5)
1. The utility model provides a support for solar photovoltaic power generation which characterized in that includes:
the bottom plate, be provided with a plurality of spacing recesses on the bottom plate, the one end bilateral symmetry of bottom plate is provided with the mounting panel, two be fixed with the installation axle between the mounting panel, it is provided with the backup pad to install epaxial rotation, the backup pad is close to one side of bottom plate is rotated and is provided with at least one bracing piece, the lower extreme of bracing piece is located in the spacing recess, the backup pad is kept away from the one end of mounting panel is provided with the first in command.
2. The rack for solar photovoltaic power generation according to claim 1, wherein the number of the support rods is two;
correspondingly, the limiting grooves are arranged in pairs.
3. The rack for solar photovoltaic power generation of claim 1, wherein a connecting rod is further fixed between the two support rods, and a second handle is fixed on the connecting rod.
4. The rack for solar photovoltaic power generation according to claim 1, wherein a baffle is further provided at an edge of the support plate.
5. The rack for solar photovoltaic power generation of claim 1, wherein the bottom plate is further provided with stabilizing plates on opposite sides thereof, and fixing bolts are screwed on the stabilizing plates.
