The utility model provides a circulating type cooling liquid flushing assembly for a grinding machine, and relates to the technical field of cooling liquid flushing assemblies. This circulating coolant liquid flushing assembly that grinding machine was used, comprises an operation bench, grinding device is installed at the operation panel top, operation panel top fixedly connected with deposits the water frame, the spout has all been seted up to deposit water frame both sides, deposit water frame top fixedly connected with fixed plate, the inside fixedly connected with filter of water frame, the standing groove has all been seted up to filter top both sides, the filter top is equipped with the clearance subassembly, the circulating coolant liquid flushing assembly that this grinding machine was used, the scraper blade that rotates when reciprocal lead screw and makes reciprocal lead screw outside through ball nut pair connection slides under the spacing of gag lever post, thereby make the scraper blade slide at the filter top, scrape the standing groove inside of seting up filter top both sides with the filterable sweeps in filter top, avoid the sweeps to pile up, influence the filtration treatment in later stage, thereby make the coolant liquid recycle, energy saving.
Description
Technical Field
The utility model relates to a grinding machine technology, in particular to a circulating type cooling liquid flushing assembly for a grinding machine, and belongs to the technical field of cooling liquid flushing assemblies.
Background
The numerical control grinding machine is a machine tool for grinding the surface of a workpiece by utilizing a grinding tool, most grinding machines carry out grinding by utilizing a grinding wheel rotating at a high speed, and a few grinding machines carry out grinding by utilizing other grinding tools such as oilstones, abrasive belts and the like and free grinding materials, such as a honing machine, a superfinishing machine tool, an abrasive belt grinding machine, a polishing machine and the like.
Carry out recovery processing's in-process at the coolant liquid and often filter through the filter, the coolant liquid after will filtering is using again, when the filter filters the coolant liquid, the sweeps easily blocks up the filtration pore, can't make the filter carry out abundant filtration, when clearing up the sweeps on the filter simultaneously, need demolish it, it is too loaded down with trivial details to dismantle the process, and the operation is inconvenient, has brought the puzzlement for operating personnel, has influenced the efficiency of processing.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model aims to provide a circulating type cooling liquid flushing assembly for a grinding machine to solve the problems that in the prior art, a filter plate is often used for filtering in the process of recycling cooling liquid, the filtered cooling liquid is reused, filter holes are easily blocked by scraps when the filter plate filters the cooling liquid, the filter plate cannot be fully filtered, and the scraps on the filter plate need to be removed when the scraps are cleaned, so that the disassembly process is too complicated, the operation is inconvenient, troubles are brought to operators, and the processing efficiency is influenced.
(II) technical scheme
In order to achieve the purpose, the utility model is realized by the following technical scheme: circulating coolant liquid flushing assembly that grinding machine was used, comprises an operation panel, grinding device is installed at the operation panel top, operation panel top fixedly connected with deposits the water tray, the spout has all been seted up to deposit water tray both sides, deposit water tray top fixedly connected with fixed plate, the inside fixedly connected with filter of water tray, the standing groove has all been seted up to filter top both sides, the filter top is equipped with the clearance subassembly, it is equipped with the shower nozzle to deposit the water tray top, deposit the inside circulation subassembly that is equipped with of water tray.
Preferably, the cleaning assembly comprises a reciprocating screw rod, the reciprocating screw rod penetrates through the water storage frame and is rotationally connected with the water storage frame, and a scraper is sleeved on the outer side of the reciprocating screw rod and is connected with the scraper through a ball nut pair.
Preferably, the clearance subassembly still includes the gag lever post, gag lever post and water trap door frame inner wall fixed connection, the gag lever post run through the scraper blade and with scraper blade sliding connection, the scraper blade laminates with the filter plate top mutually, water trap door frame outside fixedly connected with motor, motor output shaft and reciprocal lead screw fixed connection are favorable to making the scraper blade carry out reciprocating motion through reciprocal lead screw to clear up the filter top.
Preferably, the inside of the standing groove that the filter top both sides were seted up is equipped with the catch bar, catch bar and filter sliding connection, the catch bar outside fixedly connected with connecting plate, the connecting plate passes the spout and with trap water frame sliding connection, is favorable to through externally pulling the connecting plate, makes the catch bar slide and clear up inside the standing groove.
Preferably, the water storage frame is fixedly connected with two fixing frames at the front side, the two fixing frames are respectively communicated with the two placing grooves, and the collecting box is connected inside the fixing frames in a sliding mode and is favorable for collecting through the collecting box.
Preferably, the circulation assembly comprises a connecting pipe, a water pump is arranged in the operating platform, the output end of the connecting pipe is fixedly communicated with the connecting pipe, and the spray head is fixedly communicated with the connecting pipe.
Preferably, the equal fixedly connected with mount in water storage frame top both sides, mount outside fixedly connected with fixed axle, water storage frame top both sides fixedly connected with blind, blind top fixedly connected with go-between is favorable to blockking water through the blind.
The utility model provides a circulating cooling liquid flushing assembly for a grinding machine, which has the following beneficial effects:
1. this circulating coolant liquid flushing assembly that grinding machine was used, starter motor this moment, make motor output shaft drive reciprocating screw rotate, the scraper blade that makes the reciprocating screw outside pass through ball nut pair and connect when reciprocating screw rotates slides under the spacing of gag lever post, thereby make the scraper blade slide at the filter top, scrape into the standing groove inside that filter top both sides were seted up with the filterable sweeps in filter top, avoid the sweeps to pile up, influence the filtration treatment in later stage, thereby make the coolant liquid recycle, energy saving.
2. This circulating coolant liquid flushing unit that grinding machine was used makes the connecting plate drive fixed connection's slurcam slide inside the standing groove to make the connecting plate promote the sweeps of standing groove inside, push the sweeps and collect in the collecting box of the inside setting of fixed frame, avoid personnel to open inside, the simple operation is convenient for clear up.
Drawings

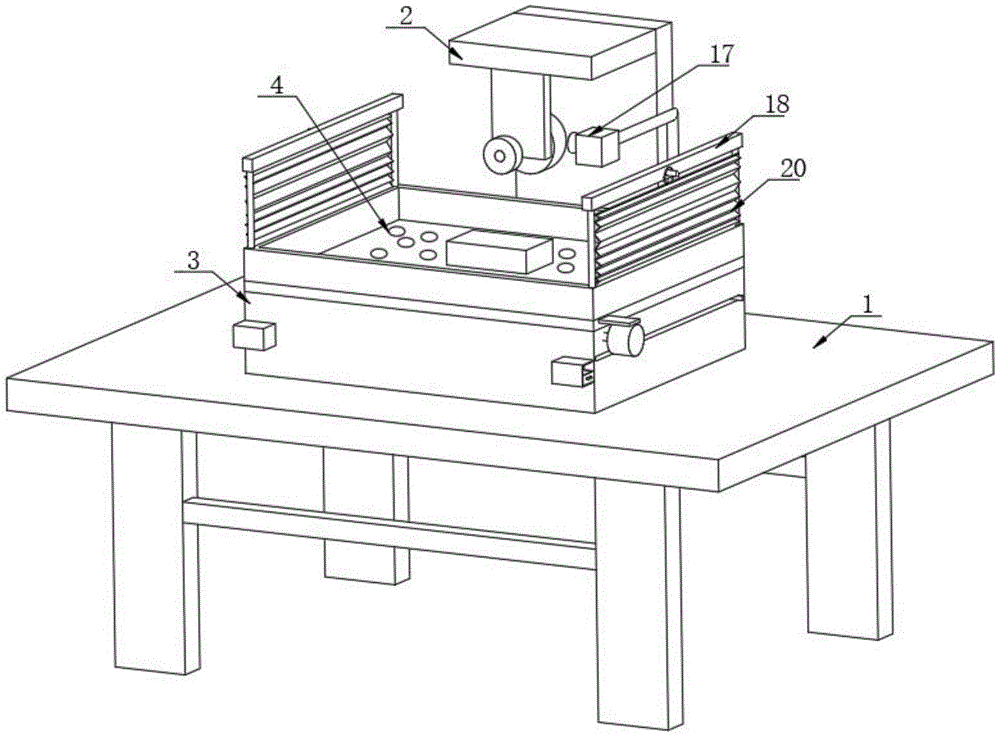

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the structure of the water storage frame of the present invention;
FIG. 3 is a block diagram of a cleaning assembly of the present invention;
fig. 4 is a schematic view of the reciprocating screw rod structure of the present invention.
In the figure: 1. an operation table; 2. a polishing device; 3. a water storage frame; 4. a fixing plate; 5. a filter plate; 6. a placement groove; 7. a reciprocating screw rod; 8. a limiting rod; 9. a squeegee; 10. a chute; 11. a connecting plate; 12. a motor; 13. a push plate; 14. a fixing frame; 15. a collection box; 16. a connecting pipe; 17. a spray head; 18. a fixed mount; 19. a fixed shaft; 20. a curtain; 21. and (7) connecting rings.
Detailed Description
The embodiment of the utility model provides a circulating type cooling liquid flushing assembly for a grinding machine.
Please refer to fig. 1 and 2, including operation panel 1, polishing device 2 is installed at operation panel 1 top, operation panel 1 top fixedly connected with water storage frame 3, spout 10 has all been seted up to water storage frame 3 both sides, water storage frame 3 top fixedly connected with fixed plate 4, water storage frame 3 inside fixedly connected with filter 5, standing groove 6 has all been seted up to filter 5 top both sides, filter 5 top is equipped with the clearance subassembly, water storage frame 3 top is equipped with shower nozzle 17, the inside circulation subassembly that is equipped with of water storage frame 3, the circulation subassembly includes connecting pipe 16, operation panel 1 internally mounted has the water pump, connecting pipe 16 output and connecting pipe 16 fixed intercommunication, shower nozzle 17 and connecting pipe 16 fixed intercommunication.
Specifically, when grinding device 2 carried out the during operation, start the water pump this moment and make the water pump output export water through connecting pipe 16 to through 17 alignment work pieces of shower nozzle wash the cooling, thereby guarantee to be overheated when polishing the work piece, also can avoid the condition that the dust splashes.
Please refer to fig. 1, fig. 2, fig. 3 and fig. 4 again, the cleaning assembly includes a reciprocating screw 7, the reciprocating screw 7 penetrates through the water storage frame 3 and is connected with the water storage frame 3 in a rotating manner, the outer side of the reciprocating screw 7 is sleeved with a scraper 9 and is connected with the scraper 9 through a ball nut pair, the cleaning assembly further includes a limiting rod 8, the limiting rod 8 is fixedly connected with the inner wall of the water storage frame 3, the limiting rod 8 penetrates through the scraper 9 and is connected with the scraper 9 in a sliding manner, the scraper 9 is attached to the top of the filter plate 5, the outer side of the water storage frame 3 is fixedly connected with a motor 12 (the motor 12 is not specifically limited and is based on an adaptive device), an output shaft of the motor 12 is fixedly connected with the reciprocating screw 7, which is beneficial to the reciprocating movement of the scraper 9 through the reciprocating screw 7, thereby cleaning the top of the filter plate 5.
It is specific, simultaneously inside through fixed plate 4 inflow water storage frame 3 when the sparge water, through at water storage frame 3 inside fixedly connected with filter 5, make filter 5 filter water, starting motor 12 this moment, make motor 12 output shaft drive reciprocal lead screw 7 and rotate, it slides at gag lever post 8's spacing to rotate the scraper blade 9 that makes reciprocal lead screw 7 outside pass through ball nut pair connection when reciprocal lead screw 7 rotates, thereby make scraper blade 9 slide at 5 tops of filter, scrape into 6 insides of standing groove that 5 top both sides of filter were seted up with the filterable sweeps in 5 tops of filter, avoid the sweeps to pile up, influence the filtration in later stage, thereby make the coolant liquid recycle, the energy saving.
Please refer to fig. 1, fig. 2, fig. 3 and fig. 4 again, the inside of the placing groove 6 opened at both sides of the top of the filter plate 5 is provided with a pushing plate 13, the pushing plate 13 is connected with the filter plate 5 in a sliding manner, the outer side of the pushing plate 13 is fixedly connected with a connecting plate 11, the connecting plate 11 passes through the sliding groove 10 and is connected with the water storage frame 3 in a sliding manner, which is beneficial for cleaning the pushing plate 13 by pulling the connecting plate 11 outside, the front side of the water storage frame 3 is fixedly connected with two fixing frames 14, the two fixing frames 14 are respectively communicated with the two placing grooves 6, the inside of the fixing frame 14 is connected with a collecting box 15 in a sliding manner, which is beneficial for collecting through the collecting box 15.
Specifically, the operating personnel regularly through at water storage frame 3 outside sliding connection board 11, make connecting plate 11 drive fixed connection's slurcam 13 slide inside standing groove 6 to make connecting plate 11 promote the inside sweeps of standing groove 6, collect in pushing into the collection box 15 of the inside setting of fixed frame 14 with the sweeps, avoid personnel to open inside, the simple operation, the clearance of being convenient for.
Referring to fig. 1 and 2 again, the fixing frames 18 are fixedly connected to both sides of the top of the water storage frame 3, the fixing shafts 19 are fixedly connected to the outer sides of the fixing frames 18, the curtains 20 are fixedly connected to both sides of the top of the water storage frame 3, and the connecting rings 21 are fixedly connected to the tops of the curtains 20, so as to facilitate blocking of water by the curtains 20.
Specifically, before work, an operator can pull the curtain 20 to hang the connecting ring 21 fixedly connected to the top of the curtain 20 on the fixed shaft 19, so that the curtain 20 blocks water and splashing of the water is avoided.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are given by way of illustration of the principles of the present invention, but that various changes and modifications may be made without departing from the spirit and scope of the utility model, and such changes and modifications are within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (7)
1. Circulating coolant liquid flushing assembly that grinding machine was used, including operation panel (1), its characterized in that: grinding device (2) are installed at operation panel (1) top, operation panel (1) top fixedly connected with deposits water frame (3), spout (10) have all been seted up to deposit water frame (3) both sides, deposit water frame (3) top fixedly connected with fixed plate (4), deposit water frame (3) inside fixedly connected with filter (5), standing groove (6) have all been seted up to filter (5) top both sides, filter (5) top is equipped with the clearance subassembly, it is equipped with shower nozzle (17) to deposit water frame (3) top, deposit water frame (3) inside and be equipped with the circulation subassembly.
2. A circulating coolant flushing assembly for a grinding machine as claimed in claim 1, wherein: the cleaning assembly comprises a reciprocating screw rod (7), the reciprocating screw rod (7) penetrates through the water storage frame (3) and is rotatably connected with the water storage frame (3), and a scraper (9) is sleeved on the outer side of the reciprocating screw rod (7) and is connected with the scraper (9) through a ball nut pair.
3. A circulating coolant flushing assembly for a grinding machine as claimed in claim 2, wherein: the cleaning assembly further comprises a limiting rod (8), the limiting rod (8) is fixedly connected with the inner wall of the water storage frame (3), the limiting rod (8) penetrates through the scraper (9) and is in sliding connection with the scraper (9), the scraper (9) is attached to the top of the filter plate (5), the water storage frame (3) is fixedly connected with a motor (12) on the outer side, and an output shaft of the motor (12) is fixedly connected with the reciprocating screw rod (7).
4. A circulating coolant flushing assembly for a grinding machine as claimed in claim 1, wherein: the inside of standing groove (6) that filter (5) top both sides were seted up is equipped with slurcam (13), slurcam (13) and filter (5) sliding connection, slurcam (13) outside fixedly connected with connecting plate (11), connecting plate (11) pass spout (10) and with deposit water frame (3) sliding connection.
5. The circulating coolant flushing assembly for a grinding machine of claim 4, wherein: the water storage frame (3) is fixedly connected with two fixing frames (14) on the front side, the two fixing frames (14) are respectively communicated with the two placing grooves (6), and a collecting box (15) is slidably connected inside the fixing frames (14).
6. A circulating coolant flushing assembly for a grinding machine as claimed in claim 1, wherein: the circulating assembly comprises a connecting pipe (16), a water pump is arranged inside the operating platform (1), the output end of the connecting pipe (16) is fixedly communicated with the connecting pipe (16), and the spray head (17) is fixedly communicated with the connecting pipe (16).
7. A circulating coolant flushing assembly for a grinding machine as claimed in claim 1, wherein: the water storage device is characterized in that fixing frames (18) are fixedly connected to two sides of the top of the water storage frame (3), fixing shafts (19) are fixedly connected to the outer sides of the fixing frames (18), check curtains (20) are fixedly connected to two sides of the top of the water storage frame (3), and connecting rings (21) are fixedly connected to the tops of the check curtains (20).
